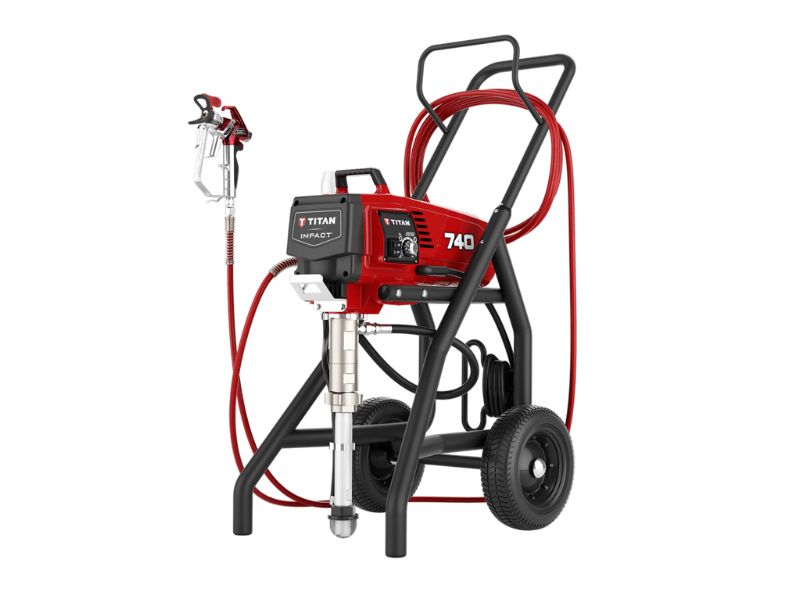

Specifications Of Titan Impact 740

Posted 5 years ago
 1 Mar, 2019 Specifications of Titan Impact 740

Impact 740 is not just an average machine, it is one of the best. Impact 740 is designed for extended and heavy-duty performance on a larger residential scale and huge commercial projects. This is the sprayer; the contractors turn to when the time comes to enter the big leagues. If you are a pro and you do not have one of these, are you really a pro?

Features:

The features of Titan Impact 740 are remarkable.

  • DuraLife™ Brushless HE Motor

The Titan Impact 740 is optimized for every tip size and every painter’s technique. This is the best part, it is like this is custom made for you with all your personalized settings.

  • Electronic Pressure Control

The Titan Impact 740 has electronic pressure control which maintains consistent pressure and gives Zero dead band.

  • Quad + Packings

The Titan Impact 740 comes in a secure and safe quad packing.

  • Telescoping Handle

The Titan Impact 740 comes with a telescoping handle for easy handling.

  • Easy-Load Cart

The Titan Impact 740 has a system for cleaning back loads in and out of vehicles easily. (Available on high rider model only)

  • Hose Wrap

The Titan Impact 740 holds up to 45m of airless hose.

  • Auto Oiler™

The Titan Impact 740 has an auto oiler to save you from visits to a workshop.

Impact 740 is not just an average machine, it is one of the best. Impact 740 is designed for extended and heavy-duty performance on a larger residential scale and huge commercial projects. This is the sprayer; the contractors turn to when the time comes to enter the big leagues. If you are a pro and you do not have one of these, are you really a pro? Features: The features of Titan Impact 740 are remarkable. • DuraLife™ Brushless HE Motor The Titan Impact 740 is optimized for every tip size and every painter’s technique. This is the best part, it is like this is custom made for you with all your personalized settings. • Electronic Pressure Control The Titan Impact 740 has electronic pressure control which maintains consistent pressure and gives Zero dead band. • Quad + Packings The Titan Impact 740 comes in a secure and safe quad packing. • Telescoping Handle The Titan Impact 740 comes with a telescoping handle for easy handling. • Easy-Load Cart The Titan Impact 740 has a system for cleaning back loads in and out of vehicles easily. (Available on high rider model only) • Hose Wrap The Titan Impact 740 holds up to 45m of airless hose. • Auto Oiler™ The Titan Impact 740 has an auto oiler to save you from visits to a workshop. Specifications of Titan Impact 740 Voltage: The voltage required for the Titan Impact 740 is 220~240 VAC, 50/60 Hz Max. current consumption: The maximum current consumed by the Titan Impact 740 is 7.5 A. Power cord: The power cord of the Titan Impact 740 is 6m. Acceptance capacity: The acceptance capacity of the Titan Impact 740 is 1725 Watt. Max. operating pressure: The maximum operating pressure of the Titan Impact 740 is 221 bar (22.1 MPa). Volume flow at 12 MPa (120 bar) with water: The volume flow at 12 MPa with water is 3.0 l/min. Max tip size: The maximum tip size of the Titan Impact 740 is 0.029 inch – 0.73 mm. Max. temperature of the coating material: The maximum temperature of the coating material coming out of the Titan Impact 740 reaches 43°C. Max viscosity: The maximum viscosity of the paint coming out of the Titan Impact 740 is 25.000 MPa. S Weight: The Titan Impact 740 weighs approximately 43.5 kg (Cart) and 43.5 kg (Stand). Special high-pressure hose: The special high-pressure hose of the Titan Impact 740 has following specifications: DN 6 mm, 15 m, connection thread M 16 x 1.5. Dimensions (l x W x h): The dimensions of the Titan Impact 740 are 590 x 529 x 726 mm (High Cart) and 1148 x 541 x 485 mm (Low Cart). Altitude: This equipment will operate correctly up to 2000 m above mean sea level. Vibration: The spray gun of Titan Impact 740 does not exceed 2.5m/s2. Max sound pressure level: The maximum sound pressure level of the Titan Impact 740 is 80 dB*. * Place of measurement: 1 m distance from unit and 1.60m above the floor, 12 MPa (120 bar) operating pressure, reverberant floor. Find all the latest titan paint sprayers online from alltitanparts.com today.

Specifications of Titan Impact 740



Voltage: The voltage required for the Titan Impact 740 is 220~240 VAC, 50/60 Hz

Max. current consumption: The maximum current consumed by the Titan Impact 740  is 7.5 A.

Power cord: The power cord of the Titan Impact 740 is 6m.

Acceptance capacity: The acceptance capacity of the Titan Impact 740 is 1725 Watt.

Max. operating pressure: The maximum operating pressure of the Titan Impact 740  is 221 bar (22.1 MPa).

Volume flow at 12 MPa (120 bar) with water: The volume flow at 12 MPa with water is 3.0 l/min.

Max tip size: The maximum tip size of the Titan Impact 740 is 0.029 inch – 0.73 mm.

Max. temperature of the coating material: The maximum temperature of the coating material coming out of the Titan Impact 740 reaches 43°C.

Max viscosity: The maximum viscosity of the paint coming out of the Titan Impact 740  is 25.000 MPa. S

Weight: The Titan Impact 740 weighs approximately 43.5 kg (Cart) and 43.5 kg (Stand).

Special high-pressure hose: The special high-pressure hose of the Titan Impact 740 has following specifications: DN 6 mm, 15 m, connection thread M 16 x 1.5.

Dimensions (l x W x h): The dimensions of the Titan Impact 740 are 590 x 529 x 726 mm (High Cart) and 1148 x 541 x 485 mm (Low Cart).

Altitude:  This equipment will operate correctly up to 2000 m above mean sea level.

Vibration: The spray gun of Titan Impact 740 does not exceed 2.5m/s2.

Max sound pressure level: The maximum sound pressure level of the Titan Impact 740 is 80 dB*.

* Place of measurement: 1 m distance from unit and 1.60m above the floor, 12 MPa (120 bar) operating pressure, reverberant floor.
