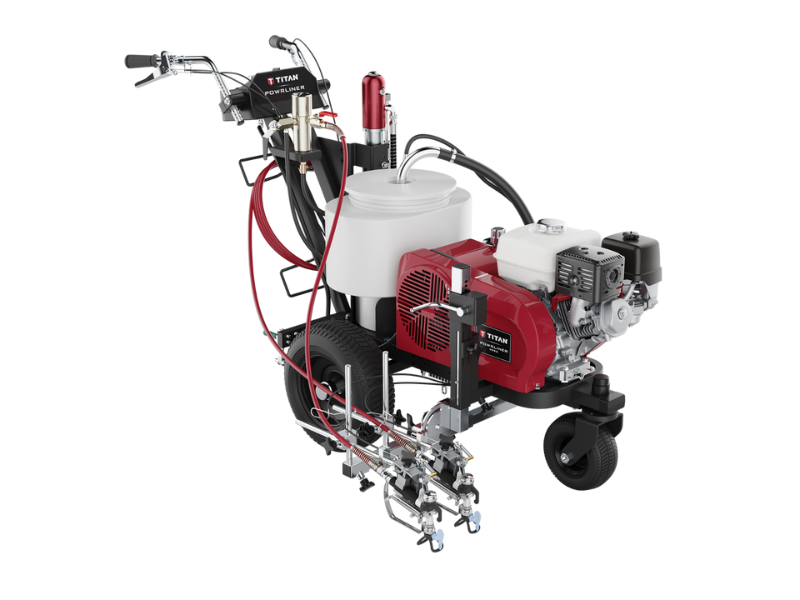

PowrLiner 4955 is basically designed and built for contractors who are serious pertaining to completing medium to large scale striping projects rapidly and profitably. The first step in hydraulic stripers is Titan PowrLiner 4955 where power and long-term operations are included. Moreover, heavy duty functions are the difference involving a business that makes money and one that does not.

Features:

SmartArm™: Its purpose is to spray on left, right, front or rear of line striper.

Particular Pressure Control: The pressure control that has a specific range from 27 to 227 bars. It is applicable for paint spraying light bodied coatings all the way up to low VOC striping paints.

Heavy-Duty Frame: It includes an outstanding characteristic of epoxy-finished frame which resists ruthless and harsh solvents. It also helps avoid corrosion and rust.

Second Gun Kit: The gun kit is complete with S-3 gun that has a hose and tip kit for wider or dual lines.

45 Liter Paint Hopper: It also comprises of paint hopper that has a capacity of 45 liters.

Pneumatic Tires: The tires are of pneumatic type and the reason behind these tires is to offer shock absorption.

Convenient Hose Rack: The hose rack is made so convenient for its clients that it can keep hose easily stored on the rear of the striper.

Electric Convertibility: Electric Converto Kit (230 V)

The amazing thing this kit has is Electric converto kit. It is easy to use. It has a quality of tool-free convertibility that converts from gas power to electric power for all those projects where gas engines are not acceptable.

Parts of PowrLiner 4955

PowrCenter™: It is considered with convenient and easy-to-use controls.

Speeflo® HydraDrive™: The purpose behind the creation of HydraDrive is to provide excessive power and trustworthiness.

DeadLock Handlebars: These are made to operate in 3-way with easy adjustments.

SmartArm™: Its purpose is to make line adjustments and transportation fast and effortless.

Specifications of PowrLiner 4955

Maximum Delivery time: The maximum delivery time of this model using gas power is 5,7 l/min.

Maximum Delivery time: The maximum delivery time of this model using electric power is 4,2 l/min.

Maximum Tip Size – 1-Gun:  0,038“(0,965 mm)

Maximum Tip Size – 2-Guns: 0,028“(0,711 mm)

Max. Operating Pressure: The maximum pressure at which it operates is 227 bars.

Engine – Gas: The specification of engine that uses gas as power is 120 cm³ Honda Motor along with 2,98 kW (4 HP), and Low Oil Alert.

Part number: The Part No of 2-gun PowrLiner 4955 is 0290052H.

Electric motor power: The specification of electric Motor is that it comprises of 2 HP which is 1,5 kW.

Line Width Range: It has a line width that ranges between 5 – 60 cms.

Unit weight and crated weight: The unit weight it holds is 148.8 kg whereas crated weight is 184 kg.
