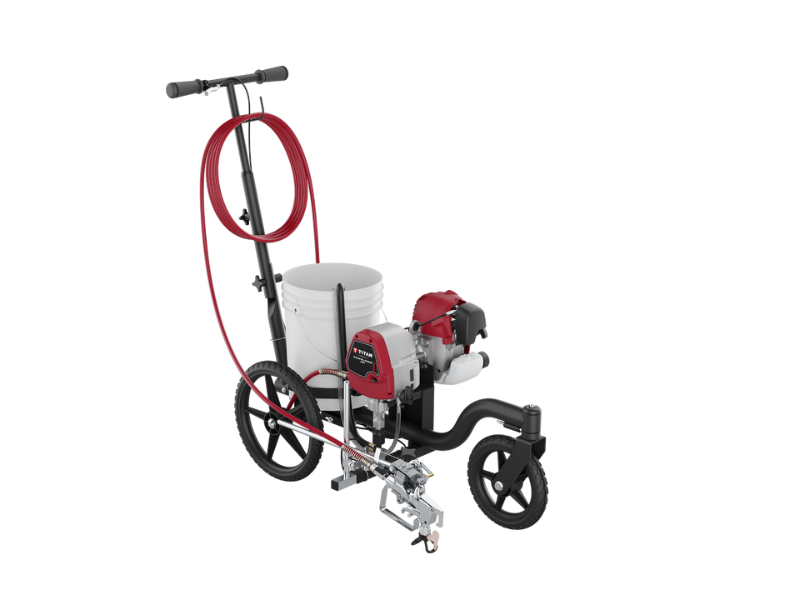

POWRLINERTM 850

Posted 6 years ago
 26 Oct, 2018 POWRLINERTM 850

Features:

  1. The design of PowrLiner 850 is much lightweight as of model PowrLiner 550. It assists in creating basic arrangements easier and quicker.
  2. It has an additional property of DirectLinkTM pressure Control that regulates between 7-207 bar.
  3. The gun mount that is attached to it is reversible as it has the capability to stripe off either front or rear tire.
  4. It also has no flat tires. The reason behind building such tires is a smooth ride for their clients. These are particularly formulated for its improved durability.
  5. It comprises of an AutoOilerTM.
  6. The outstanding feature of this model is adjustable front wheel through which one can straight lock the wheel or free the wheel caster.
  7. Folding handle is also a part of PowrLiner 850 in order to make transportation of things at your ease; you can store them easily or place them.
  8. A paint bucket is also installed whose capacity is 19 liters.
  9. PowrLinerTM 850 involves spray gun LX-40.
  10. 0,021” is set to be one gun striping case whereas tilt (tip) size for airless painting is 0,017”.
  11. It also has as a feature an in-handle filter with a finest TR1 line stripping tip.
  12. The exceptional feature is a front wheel release kit which releases the front wheel from lock position to unlock with the pull of a lever.

POWRLINERTM 850

Specifications

  • Maximum size: The maximum delivery of a PowrLiner 850 is 1,3 I/min.
  • Maximum pressure: The most pressure at which it operates is 207 bar.
  • Weight: The unit weight of machine is 38 kg whereas the crated weight is 41kg.
  • Gas Engine: The power source have 4-stroke gas engine comprising of 37.7cm3.
  • Maximum hose length: The maximum hose length it attains is 15,2m.
  • Pump: It has a clutch driven pump.
  • Line width range: The line width ranges from 5-30 cm.
  • Filter element of Paint outlet: An extra feature it has is paint outlet with a filter element which is of 60 Mesh.
  • Filter area of paint outlet: It has a filter area of 19cm2.
  • Dimensions (HxWxL): The dimensions of the unit are 97x74x107 cm whereas the crated dimensions are 66x66x116 cm.
  • Maximum Tip size of TR1 line striping: The tip size is 417 which is 10-cm-line by 0 and it has an Orifice of 0.432 mm.
  • Airless hose measurement: It has an airless hose which is 0,6 cm x 15 m by dimension.
  • Code of repair kit: The repair kit has a code of 759-365.
  • Manual code: The manual code is 293782.

Line Striping

The PowrLinerTM 850 is particularly designed for contractors and for sports ground managers and those who are maintenance personnel. The Line stripper is accomplished of high-spraying pressures for smaller jobs on pavement, grass or turf. It’s extremely easy to use, easy to transport wherever you want and easy to store. It just entails one operator for its transportation and fits effortlessly in most automobile trunks. It’s perfect for any association or municipal budget.
