Titan RentSpray 600 Fluid Section Assembly Parts
Shop Titan RentSpray 600 Fluid Section Assembly Parts at AllTitanParts to find replacement components for the pumping section of your airless paint sprayer. Explore piston assemblies, upper piston guides, retainers, packing components, pump housing parts, valve-related components and fluid connections. Use the illustrated parts diagram to identify the correct Titan replacement part for pump maintenance, pressure-loss troubleshooting and fluid section repairs.
Shop Titan RentSpray 600 Fluid Section Replacement Parts
The Titan RentSpray 600 Fluid Section Assembly Parts category provides replacement components associated with the pumping mechanism of the RentSpray 600 airless paint sprayer. The fluid section is responsible for drawing coating material into the pump, displacing it through the pumping chamber and delivering it toward the sprayer's outlet system.
The condition of the fluid section directly affects material delivery, pressure development and the sprayer's ability to maintain consistent pumping operation. Components such as the piston, piston guide, packing seals, valve parts and pump housing work together to support the movement of coating material through the equipment.

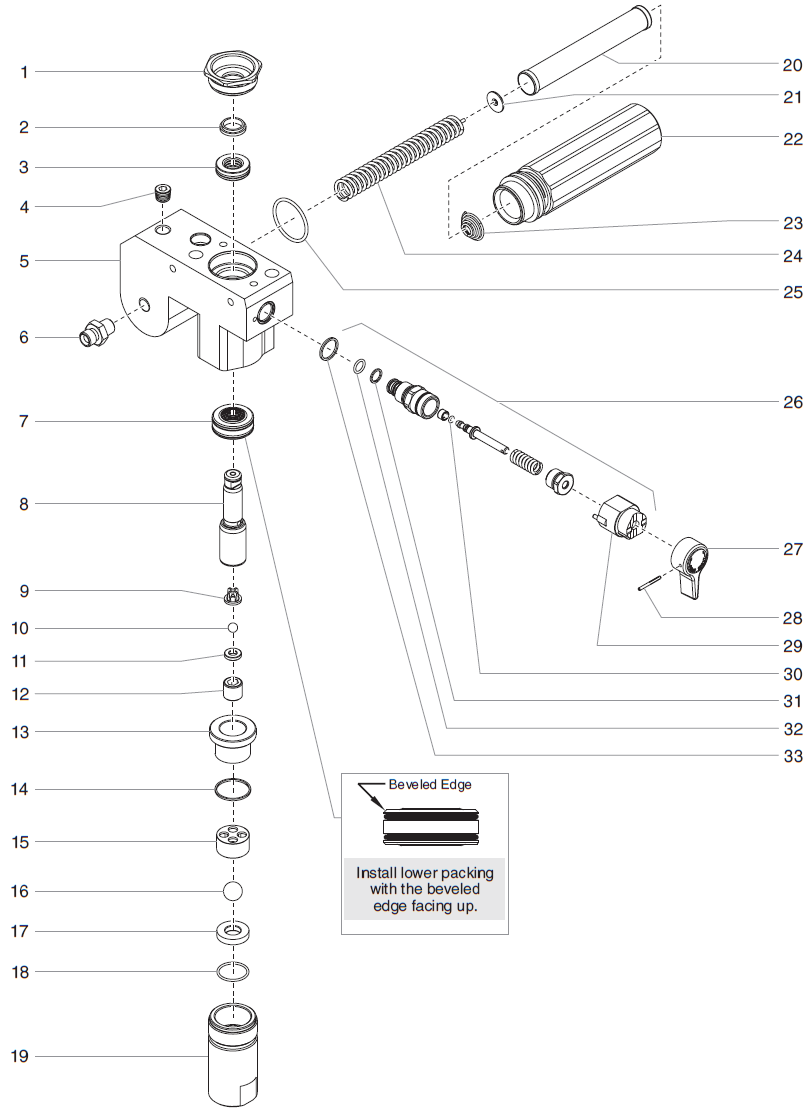

AllTitanParts organizes the RentSpray 600 Fluid Section Assembly category around an illustrated parts diagram containing 35 listed components. This makes it easier to identify individual replacement products using their diagram positions and manufacturer part numbers.
Among the components identified in the category are Titan 704-560 Piston Assembly, Titan 730-508 Retainer and Titan 700-587 Upper Piston Guide. These parts are associated with piston movement, component positioning and the internal mechanical arrangement of the fluid section.
The Titan 704-560 Piston Assembly is a complete piston assembly listed for the fluid section. The piston is a principal moving component in a reciprocating pump, helping displace coating material through the pumping chamber during operation.
Titan 730-508 is identified as a retainer and replaces the earlier Titan 509594 reference. Retaining components help position or secure specified internal parts. Their exact installation requirements should be confirmed using the appropriate diagram and service instructions.
Titan 700-587 Upper Piston Guide is another identified component. A piston guide helps support alignment of the reciprocating piston arrangement. Correct component fit and positioning are important during pump servicing.
The broader fluid section also involves sealing and valve functions. Packing components are used to limit fluid leakage around moving pump parts, while inlet and outlet valve components regulate the direction of material movement through the pumping chamber.
These systems operate together. A worn piston may contribute to internal wear or sealing problems. Damaged packing components may allow material leakage. Contaminated or worn valve parts may interfere with priming, pressure development or fluid delivery. Similar symptoms can have multiple causes, so diagnosis should be completed before ordering replacement components.
For contractors and repair technicians, the illustrated fluid section breakdown is useful when identifying individual service components rather than replacing a complete assembly without determining the cause of the problem.
Replacement-part identification is especially important because Titan uses similar component names across different sprayer models. A piston guide or retainer from another pump should not be assumed compatible simply because it performs the same general function.
Before ordering, verify the Titan RentSpray 600 model, locate the component in the correct fluid section diagram and compare the full manufacturer part number. Check current replacement references, equipment revisions, dimensions and supplied product contents where applicable.
Whether you are investigating loss of pressure, rebuilding a worn pump, replacing damaged internal hardware or carrying out preventive maintenance, this category provides a dedicated starting point for finding Titan RentSpray 600 Fluid Section Assembly Parts.
Explore Titan RentSpray 600 Fluid Section Components
The following sections explain the main component types involved in fluid section operation. Specific Titan part numbers are provided where identifiable from the category listing.
Titan 704-560 Piston Assembly
Titan 704-560 is identified as a piston assembly in the RentSpray 600 Fluid Section listing. The piston assembly is associated with the reciprocating pumping action that moves coating material through the fluid section.
Inspect the piston assembly when diagnosing internal wear, damaged pumping components or problems involving piston movement. Confirm the supplied assembly contents before purchasing.
Part Number: 704-560
Titan 730-508 Retainer
Titan 730-508 is a retainer listed in the fluid section breakdown. The product name identifies Titan 509594 as an earlier reference.
Retainers help secure or position specified internal components. Verify the correct diagram location, replacement reference and installation requirements before servicing the assembly.
Part Number: 730-508
Titan 700-587 Upper Piston Guide
The Titan 700-587 Upper Piston Guide is identified in the RentSpray 600 Fluid Section listing. Piston guides help maintain the intended positioning and alignment of moving pump components.
Inspect the guide and associated parts during authorized pump service. Confirm the correct part reference and assembly position.
Part Number: 700-587
Upper and Lower Packing Components
Packing components provide sealing around designated moving pump surfaces. Worn or damaged packings can contribute to external leakage or reduced pumping efficiency.
Identify the exact packing or repacking kit from the RentSpray 600 diagram. Confirm the kit contents and installation orientation before service.
Inlet and Outlet Valve Components
Inlet and outlet valves control the direction of coating movement through a reciprocating pump. Valve balls, seats, cages and associated parts may require inspection when diagnosing priming or pressure problems.
Use the exact valve components identified for the RentSpray 600 fluid section rather than substituting parts from another pump.
Pump Block and Housing Components
The pump housing provides the structural body for internal pumping and sealing components. Damage to sealing surfaces, threads or component seats may affect the performance of the fluid section.
Inspect the relevant pump housing components according to the approved service procedure before selecting replacements.
Outlet Fittings and Sealing Hardware
Fluid fittings and sealing components connect designated sections of the pumping system. Correct threads, sealing arrangements and pressure suitability are essential.
Confirm each fitting's exact manufacturer reference and specified connection before ordering.
Retainers, Plugs and Internal Hardware
Smaller internal parts may provide retaining, positioning, fastening or sealing functions. These components should be identified using their illustrated locations and complete Titan part numbers.
Do not substitute generic hardware unless the replacement has been verified for the exact pump application.
Titan RentSpray 600 Fluid Section Parts Identification Table
Use the following reference table for components identifiable from the RentSpray 600 Fluid Section Assembly category listing. Consult the complete illustrated diagram for all 35 listed parts.
Parts identification: The category contains 35 listed parts. This table highlights three identifiable references and is not the complete bill of materials. Use the full product listing and exploded diagram to confirm all remaining part numbers, item positions, quantities and replacement references.
How the Titan RentSpray 600 Fluid Section Works
The fluid section is the part of the sprayer that mechanically moves coating material through the pumping system. It operates with the drive mechanism, material intake components, pressure-control system and fluid outlet connections.
1. Coating Material Enters the Pump
During normal pumping operation, material is drawn from the supply container through the appropriate siphon or intake arrangement. The inlet valve permits material to enter the pumping chamber during the relevant portion of the pumping cycle.
A restricted inlet screen, damaged suction connection or malfunctioning inlet valve can interfere with material intake. These possibilities should be evaluated before concluding that the piston assembly requires replacement.
2. The Piston Reciprocates
The piston moves back and forth within the pumping arrangement. This reciprocating movement creates the displacement needed to move coating material through the fluid section.
The Titan 704-560 Piston Assembly is one of the identified replacement components associated with this mechanism. The Titan 700-587 Upper Piston Guide is associated with piston guidance and positioning.
3. Packing Components Maintain Sealing
Packing components provide sealing around the designated moving surfaces. Effective sealing helps reduce unintended fluid bypass or leakage during pump operation.
Worn packing components may contribute to material leakage or pressure problems. Repacking procedures require correct parts, installation orientation and inspection of the associated piston and pump surfaces.
4. Valve Components Control Flow Direction
Inlet and outlet valve components regulate the direction of coating material movement through the pump. Their operation depends on proper seating, freedom of movement and the condition of the relevant sealing surfaces.
Debris, damaged valve components or worn seats may contribute to priming problems or reduced pressure. Valve-related repairs should follow the applicable service instructions.
5. Pressurized Material Leaves the Fluid Section
The fluid section delivers coating material toward the outlet system. Downstream hoses, filters, spray guns and tips form part of the overall fluid-delivery arrangement.
The pump's performance depends on the condition of the complete system. A pressure problem may originate in the fluid section, but it may also involve the intake system, controls, spray tip or other connected components.
When selecting Titan RentSpray 600 Fluid Section Assembly Parts, identify the affected component through proper troubleshooting rather than replacing parts solely because they are associated with the reported symptom.
Common Signs That Fluid Section Parts May Need Service
The following conditions may indicate that the RentSpray 600 pumping system requires inspection. They are diagnostic starting points rather than proof of a specific component failure.
Loss of Spraying Pressure
Inspect the pumping system, valve components, packing condition, material supply and pressure controls according to the troubleshooting procedure.
Fluid Leakage Near the Pump
Visible leakage may indicate a sealing or connection problem. Identify the precise source after completing the required pressure relief procedure.
Difficulty Priming
Check the material intake arrangement, inlet screen, suction connections and inlet valve components before replacing internal pump parts.
Irregular Fluid Delivery
Inspect the complete fluid pathway for restrictions, damaged valve parts, air entry or internal pumping problems.
Visible Piston Wear
During authorized disassembly, inspect the piston and related guiding surfaces for damage. Determine whether the piston assembly requires replacement.
Recurring Packing Leakage
Repeated sealing problems may require inspection of the packing components, piston surface and pump housing rather than replacing a seal alone.
Titan RentSpray 600 Fluid Section Troubleshooting Guide
Use the following table to identify areas that may require further investigation. Follow the manufacturer's diagnostic and safety procedures before disassembling the fluid section.
| Observed Problem | Possible Inspection Area | Recommended Action |
|---|---|---|
| Pump does not prime | Siphon system, inlet valve and material supply | Check the intake pathway and follow the prescribed priming procedure. |
| Pump cannot develop expected pressure | Valve components, packing system and piston | Diagnose the fluid section and connected pressure-control system. |
| Material leaks around the pumping section | Packing components and sealing surfaces | Relieve pressure and identify the affected seal or connection. |
| Piston movement appears abnormal | Piston assembly, piston guide and drive connection | Inspect according to the service procedure and confirm the cause before replacement. |
| Sprayer delivers inconsistent flow | Inlet and outlet valves, intake system and fluid pathway | Check for restrictions, damaged components and incorrect operating conditions. |
| Internal hardware is damaged | Retainers, guides, plugs and related components | Match the exact diagram reference and use the specified replacement hardware. |
High-pressure safety: Airless sprayers can produce fluid pressures capable of causing serious injection injuries. Turn off the equipment, disconnect electrical power and follow the manufacturer's pressure relief procedure before inspecting or servicing the fluid section. Never use your hands to locate leaks. A suspected injection injury requires immediate emergency medical attention. Internal pump repairs should be carried out by personnel familiar with the applicable service procedure.
Maintaining Titan RentSpray 600 Fluid Section Assembly Parts
Proper cleaning, inspection and servicing help identify developing pump problems. Follow the applicable Titan maintenance schedule and use cleaning or storage products suitable for the equipment and coating material.
Flush After Use
Flush the fluid system according to the manufacturer's instructions to reduce residual coating buildup and contamination.
Inspect for Leakage
Check accessible fluid section connections for visible leakage after the required safety procedures have been completed.
Monitor Packing Condition
Inspect packing-related components during authorized service. Replace worn seals using the specified parts and installation procedure.
Examine Piston Components
During pump disassembly, inspect the piston assembly and guide for damage, scoring or other abnormal wear.
Keep Material Clean
Use the prescribed intake screening and material preparation procedures to reduce debris entering the pump.
Record Replacement Parts
Document the complete Titan part numbers and replacement references used during fluid section servicing.
How to Order the Correct Titan RentSpray 600 Fluid Section Parts
Follow this process to identify the correct replacement component and reduce ordering errors.
1. Confirm the Sprayer Model
Verify the equipment is a Titan RentSpray 600 and record any relevant serial or configuration information.
2. Open the Fluid Section Diagram
Locate the required piston, retainer, guide, packing component, valve part or fitting in the illustrated assembly.
3. Match the Titan Part Number
Compare the complete manufacturer reference and check any documented replacement or supersession information.
4. Verify Product Contents
Confirm whether the listing is for a single component, service kit or complete assembly, along with current fitment and availability.
Do not assume that the RentSpray 600 Fluid Section Assembly uses the same internal components as the RentSpray 600 Impact, RentSpray 500 or other Titan models. Always match the exact diagram and part number.
Frequently Asked Questions About Titan RentSpray 600 Fluid Section Assembly Parts
What parts are included in the Titan RentSpray 600 Fluid Section Assembly category?
The category contains 35 listed parts. Identifiable components include Titan 704-560 Piston Assembly, Titan 730-508 Retainer and Titan 700-587 Upper Piston Guide. Use the full illustrated parts breakdown for the remaining references.
What is Titan 704-560 Piston Assembly?
Titan 704-560 is a piston assembly listed for the RentSpray 600 fluid section. It is associated with the reciprocating pumping mechanism. Confirm the complete assembly contents and equipment application before ordering.
What replaces Titan 509594 Retainer?
The category listing identifies Titan 730-508 Retainer as replacing Titan 509594. Confirm the current replacement reference and installation position.
What is the function of Titan 700-587 Upper Piston Guide?
The upper piston guide is associated with the positioning and guidance of the reciprocating piston arrangement. Correct installation and fit are important during fluid section servicing.
Why is my RentSpray 600 losing pressure?
Pressure loss can involve worn packing components, damaged valves, piston wear, intake restrictions or pressure-control problems. Follow the manufacturer's troubleshooting procedure to identify the cause before ordering parts.
Should I replace the entire fluid section or individual parts?
The appropriate repair depends on the diagnosed fault, condition of the pump housing and moving components, availability of service parts and the manufacturer's recommended repair procedure. Confirm whether a complete assembly or individual replacement component is required.
How can I get help identifying RentSpray 600 Fluid Section Assembly parts?
Contact AllTitanParts at 713-931-0006 with your RentSpray 600 model information, serial number, illustrated diagram position and any available Titan part reference.
