Titan RentSpray 600 Main Assembly Parts
Shop Titan RentSpray 600 Main Assembly Parts at AllTitanParts. Find replacement components for the main assembly of your airless paint sprayer, including power cord assemblies, pressure control knobs, digital controls, fluid section mounting hardware, bypass hoses, inlet screens, pail brackets and fastening components. Browse the illustrated parts listing, identify the correct Titan part number and select the replacement required for equipment maintenance or repair.
Shop Titan RentSpray 600 Main Assembly Replacement Parts
The Titan RentSpray 600 Main Assembly Parts category provides a dedicated location for identifying replacement components associated with the principal equipment assembly of the RentSpray 600 airless paint sprayer. This assembly brings together electrical supply components, pressure adjustment controls, mounting hardware, fluid-handling connections and related support parts.
The main assembly is an important part of the sprayer because it supports several systems involved in equipment operation. Electrical components provide the required power connections, pressure-control components allow the operator to adjust or monitor equipment settings, and fluid-related components help support the movement of coating material through the sprayer.
AllTitanParts organizes these components according to the RentSpray 600 Main Assembly parts listing, helping customers locate individual products using their illustrated item numbers and manufacturer references. This arrangement is useful when replacing a damaged power cord, identifying a pressure control knob, servicing a fluid connection or locating the correct mounting hardware.
The category includes Titan 700-681 Motor Mount Screw, Titan 704-499 Power Cord Assembly, Titan 704-553 Power Cord Assembly, Titan 9800340 Ground Screw, Titan 704-486 Oval Head Screw, Titan 704-488A Pressure Control Knob, Titan 704-469 Xact Digital Control Assembly and Titan 704-467 Xact Digital Control System Cover.
Additional components include Titan 704-300A Syphon By-Pass Hose Assembly, Titan 765-063 Strain Relief, Titan 704-331 Gasket Housing, Titan 761-178 Hex Flange Screw, Titan 704-554 Fluid Section Assembly, Titan 704-117 Fluid Section Screw, Titan 704-304 Pail Bracket and Titan 710-033 Pail Bracket Bolt.
The listing also identifies Titan 702-239 Bypass Hose, Titan 755-225 Down Tube, Titan 730-334 Hose Tie Clamp and Titan 710-046 Inlet Screen. These products are associated with fluid handling, material intake, return-flow connections or related mounting requirements.
Each component has a distinct purpose. For example, a pressure control knob is not interchangeable with an electronic control assembly, and a fluid section mounting screw should not be substituted with another fastener based solely on appearance. The correct part depends on the manufacturer reference, specified dimensions, installation position and equipment configuration.
Some product listings identify replacement or superseded part numbers. These references are useful when an earlier component number has changed, but the current replacement information should always be checked before purchasing.
The main assembly can be affected by electrical faults, damaged fluid connections, loose hardware, worn controls, contamination or normal component wear. Symptoms such as failure to start, inconsistent pressure adjustment, material leakage or restricted intake flow may require inspection of several components before the cause can be established.
Before ordering Titan RentSpray 600 Main Assembly Parts, confirm the sprayer model, locate the required item in the illustrated breakdown and compare the complete Titan part number with the individual product description. Verify replacement references, product contents and electrical requirements where applicable.
Explore Titan RentSpray 600 Main Assembly Components
The following component groups help identify the main assembly replacement parts available in the RentSpray 600 category.
Power Cord Assemblies
Titan 704-499 and Titan 704-553 are power cord assembly references appearing in the Main Assembly listing. The 704-499 product is described as a lighted power cord assembly. Confirm the correct electrical configuration before ordering.
Titan 704-488A Pressure Control Knob
The Titan 704-488A Pressure Control Knob is associated with pressure adjustment. Its product listing identifies Titan 805-354 as a replacement reference. Verify the current part number and control configuration.
Titan 704-469 Xact Digital Control Assembly
The Titan 704-469 Xact Digital Control Assembly is an electronic control component. Confirm the exact equipment application and controller requirements before replacing an existing assembly.
Titan 704-467 Xact Digital Control System Cover
The Titan 704-467 Cover is associated with the Xact Digital Control System. Inspect the existing cover for damage and verify the appropriate replacement reference and mounting requirements.
Titan 704-554 Fluid Section Assembly
The Titan 704-554 Fluid Section Assembly appears in the main assembly listing. Its individual product description also references other Titan equipment, so confirm the correct RentSpray 600 application before ordering.
Titan 755-225 Down Tube and 710-046 Inlet Screen
The down tube and inlet screen are associated with material intake. The Titan 755-225 listing identifies obsolete reference 704-327, while the Titan 710-046 listing identifies a large 10-mesh screen. Confirm connection requirements.
Titan RentSpray 600 Main Assembly Parts Identification Table
Use this reference table to identify the item numbers and component descriptions appearing in the RentSpray 600 Main Assembly listing.
Important: These references appear in the RentSpray 600 Main Assembly category listing. Some individual product descriptions also identify other Titan models. Confirm the correct equipment application, part supersession and current product specifications before purchasing. The table does not establish universal compatibility.
How the Titan RentSpray 600 Main Assembly Supports Sprayer Operation
The main assembly brings together components associated with the electrical supply, equipment controls, structural connections and fluid-handling arrangement of the RentSpray 600. These components support the sprayer's overall operation, although they do not all perform the same function.
Electrical Supply and Grounding
The power cord assembly provides an electrical connection for the equipment. The Titan 704-499 and Titan 704-553 references identify power cord products in the main assembly listing. The Titan 9800340 Ground Screw is also listed as a grounding-related fastening component.
Electrical safety depends on correct installation, suitable components and intact grounding arrangements. Damaged cords, loose connections or incorrect replacement components require attention from qualified service personnel.
Pressure Adjustment and Digital Controls
The Titan 704-488A Pressure Control Knob is associated with operator pressure adjustment. The Titan 704-469 Xact Digital Control Assembly and Titan 704-467 Control System Cover belong to the electronic control arrangement.
A damaged knob, defective electronic component or compromised connection may affect the equipment's control functions. However, pressure problems can also originate in the fluid section or other parts of the sprayer. Proper diagnosis is necessary before replacing electronic controls.
Fluid Section Mounting and Support
The Titan 704-554 Fluid Section Assembly appears as a main assembly item, along with the Titan 704-117 Fluid Section Screw. These components are associated with the pumping system and its mounting arrangement.
Correct mounting hardware is important because the fluid section operates under repeated mechanical loading. Use only the specified fasteners and follow the manufacturer's installation instructions.
Material Intake and Return Components
The Titan 704-300A Syphon By-Pass Hose Assembly, Titan 702-239 Bypass Hose, Titan 755-225 Down Tube and Titan 710-046 Inlet Screen are associated with fluid movement or material intake.
Restricted intake flow, damaged hoses or contaminated screens may interfere with material supply. The correct inspection procedure depends on the symptom and the location of the component.
Mounting Hardware and Structural Connections
The main assembly listing includes motor mounting screws, oval-head screws, hex-flange screws, pail bracket hardware and related fasteners. These components secure designated parts of the sprayer and should be matched by the correct manufacturer reference.
Do not replace structural or electrical fasteners with visually similar hardware unless the required dimensions, material specifications and installation requirements have been confirmed.
Common RentSpray 600 Main Assembly Repair Needs
Main assembly components may require attention following physical damage, electrical faults, material restrictions or normal service wear. These examples help identify the relevant replacement category.
Damaged Power Cord
Inspect the correct power cord assembly for visible damage, compromised insulation or connector problems. Confirm the required electrical configuration before replacement.
Worn Pressure Control Knob
A damaged or missing adjustment knob may require replacement. Verify the current part reference and inspect the underlying control mechanism.
Digital Control Problems
Electrical control faults require appropriate diagnosis. Confirm wiring, power supply and related components before selecting an electronic control assembly.
Damaged Fluid Connections
Inspect the applicable bypass hoses, down tube and related fluid connections after completing the required pressure relief procedure.
Restricted Inlet Screen
An obstructed or damaged inlet screen may affect material intake. Clean or replace the specified component according to the manufacturer's instructions.
Loose or Damaged Hardware
Inspect designated motor mounting, fluid section mounting and pail bracket fasteners. Use the correct replacement dimensions and specified installation procedure.
Titan RentSpray 600 Main Assembly Troubleshooting Guide
The following symptoms may help identify which main assembly components should be investigated. A symptom alone does not confirm that a specific replacement part is required.
Sprayer Does Not Power On
Investigate the electrical supply, power cord, switch, controller and associated connections using the specified diagnostic procedure.
Pressure Cannot Be Adjusted
Inspect the pressure control knob and relevant control components. Determine whether the issue is mechanical, electrical or related to the pumping system.
Sprayer Will Not Prime
Check the material supply, inlet screen, down tube, siphon connections and applicable fluid section components before selecting replacement parts.
Material Leaks from a Hose
Relieve pressure and identify the damaged connection. Verify the correct hose assembly, fittings and sealing requirements before replacement.
Loose Pail Bracket
Inspect the Titan 704-304 Pail Bracket and Titan 710-033 Pail Bracket Bolt for damage or incorrect installation.
Damaged Control Cover
Inspect the Titan 704-467 Xact Digital Control System Cover and the associated mounting points. Confirm the appropriate replacement before installation.
Safety: Airless paint sprayers operate with high-pressure fluid capable of causing serious injection injuries. Disconnect electrical power and follow the manufacturer's pressure relief procedure before servicing fluid components. Never use your hands to locate a leak. Seek immediate emergency medical attention for suspected injection injuries. Electrical diagnosis and repair should be performed by qualified personnel.
Maintaining Titan RentSpray 600 Main Assembly Parts
Routine inspection can help identify damaged connections, loose mounting components and material restrictions. Follow the applicable Titan RentSpray 600 maintenance instructions.
Inspect the Power Cord
Check the external cord and plug for visible damage before use. Remove damaged equipment from service until repaired.
Check Pressure Controls
Inspect accessible control knobs and protective covers for damage. Do not disassemble electronic controls while energized.
Clean the Inlet Screen
Inspect the specified inlet screen for contamination and clean it according to the approved procedure.
Inspect Hoses and Tubes
Check accessible siphon, bypass and return-flow components for visible wear or damage after pressure relief.
Verify Mounting Hardware
Inspect specified motor, fluid section and bracket fasteners during authorized service. Follow the required fastening instructions.
Maintain Service Records
Record the complete Titan part numbers used during repairs and any documented replacement references.
How to Order Titan RentSpray 600 Main Assembly Parts
Use this four-step process to identify the correct replacement component for your sprayer.
1. Confirm the Model
Verify that the equipment is a Titan RentSpray 600 and record any relevant model or revision information.
2. Locate the Diagram Item

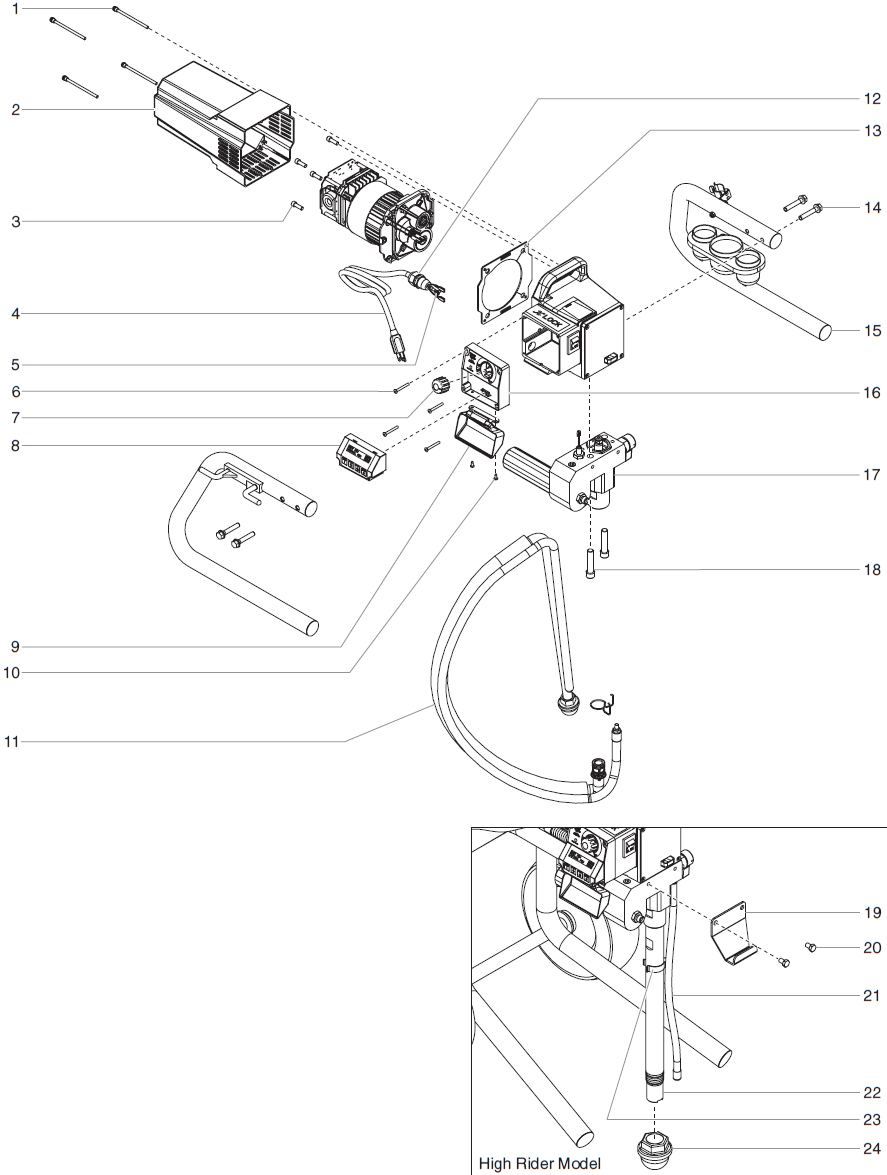

Identify the component in the RentSpray 600 Main Assembly parts breakdown and note its illustrated item number.
3. Match the Titan Part Number
Compare the complete manufacturer reference and check whether the product listing identifies a newer replacement number.
4. Verify Product Details
Review the part configuration, electrical requirements, supplied contents, quantity and current availability before checkout.
Do not assume that parts from the RentSpray 500, Impact series or other Titan equipment are automatically interchangeable with RentSpray 600 Main Assembly components. Confirm each application using the appropriate product reference.
Frequently Asked Questions About Titan RentSpray 600 Main Assembly Parts
What parts are included in the Titan RentSpray 600 Main Assembly?
The category includes power cord assemblies, pressure control components, digital controls, screws, fluid section mounting hardware, hoses, down tubes, inlet screens, pail brackets and related parts. Refer to the illustrated listing for individual part numbers.
Which power cord assemblies are listed for the RentSpray 600?
The Main Assembly category lists Titan 704-499 Power Cord Assembly as item 4 and Titan 704-553 Power Cord Assembly as item 4A. Verify the correct electrical configuration and equipment application before ordering.
What replaces Titan 704-488A Pressure Control Knob?
The individual listing identifies Titan 805-354 as the replacement for Titan 704-488A. Confirm the current replacement reference and compatibility with your control arrangement.
What is Titan 704-469 Xact Digital Control Assembly?
Titan 704-469 is an electronic control assembly appearing in the RentSpray 600 Main Assembly listing. Confirm the required controller configuration and equipment application before purchasing.
Where can I find the RentSpray 600 inlet screen?
The Main Assembly listing identifies Titan 710-046 Inlet Screen as item 24. Its product description identifies a large 10-mesh screen and a replacement reference for Titan 5006536. Verify the required screen specification before ordering.
Are all parts in this category exclusive to the RentSpray 600?
No. Some component listings reference additional Titan models. The presence of a product in this category does not mean it is exclusive to the RentSpray 600 or compatible with every sprayer revision.
How can I get help identifying the correct RentSpray 600 Main Assembly part?
Contact AllTitanParts at 713-931-0006 with your RentSpray 600 model information, diagram item number and any available Titan part reference.
Related Titan RentSpray 600 Assembly Parts
If the component you need is not in the main assembly listing, explore the related RentSpray 600 assembly categories.
