Titan RentSpray 600 Drive Assembly Parts
Shop Titan RentSpray 600 Drive Assembly Parts at AllTitanParts to identify mechanical drive components, pressure-control parts, electrical connections, and related replacement hardware. Explore Titan crankshaft and gear assemblies, second-stage gears, thrust washers, pressure sensors, rocker switches, front covers, and other components identified in the RentSpray 600 Drive Assembly parts listing. Match the required Titan part number and illustrated item reference before ordering parts for your airless paint sprayer.
Shop Titan RentSpray 600 Drive Assembly Replacement Parts
The Titan RentSpray 600 Drive Assembly Parts category brings together components associated with the mechanical drive and related control arrangement of the RentSpray 600 airless paint sprayer. It provides a convenient reference for equipment owners, painting contractors, rental operators, and service technicians who need to identify replacement components by manufacturer part number and illustrated diagram position.
The drive mechanism is an important part of an electric airless sprayer because it transfers mechanical movement from the motor toward the pumping mechanism. Proper operation depends on the condition of the gears, crankshaft, supporting components, and associated mechanical connections.
The RentSpray 600 Drive Assembly category also includes electrical and pressure-related components. These parts should be distinguished from the mechanical gear train because they perform different functions and require different diagnostic procedures.
Components identified in this category include Titan 704-380 Rocker Switch, Titan 700-139 Motor Baffle Screw, Titan 704-019 Front Cover, Titan 704-492A Pressure Sensor Assembly, Titan 762-057 PTFE O-Ring, Titan 704-591 Electronic Control Assembly, Titan 704-173A Crankshaft/Gear Assembly, Titan 704-174 Thrust Washer, Titan 704-176 2nd Stage Gear, and Titan 704-548 Transducer Jumper.
These components serve different purposes. Mechanical parts such as the crankshaft and second-stage gear participate in motion transmission. Supporting components such as the thrust washer and designated fasteners are associated with the mechanical arrangement. The pressure sensor, electronic control assembly, rocker switch, and transducer jumper belong to the sprayer's electrical or pressure-control system.
Over time, wear, contamination, impact damage, electrical faults, or improper assembly can affect equipment operation. Symptoms may include unusual mechanical noise, abnormal pumping movement, difficulty starting, inconsistent pressure response, or unexpected interruptions during spraying.
However, these symptoms do not automatically identify a defective drive assembly component. A sprayer that fails to develop pressure may have a problem in the fluid section, material supply, pressure-control circuit, or mechanical drive system. Accurate diagnosis should precede replacement.

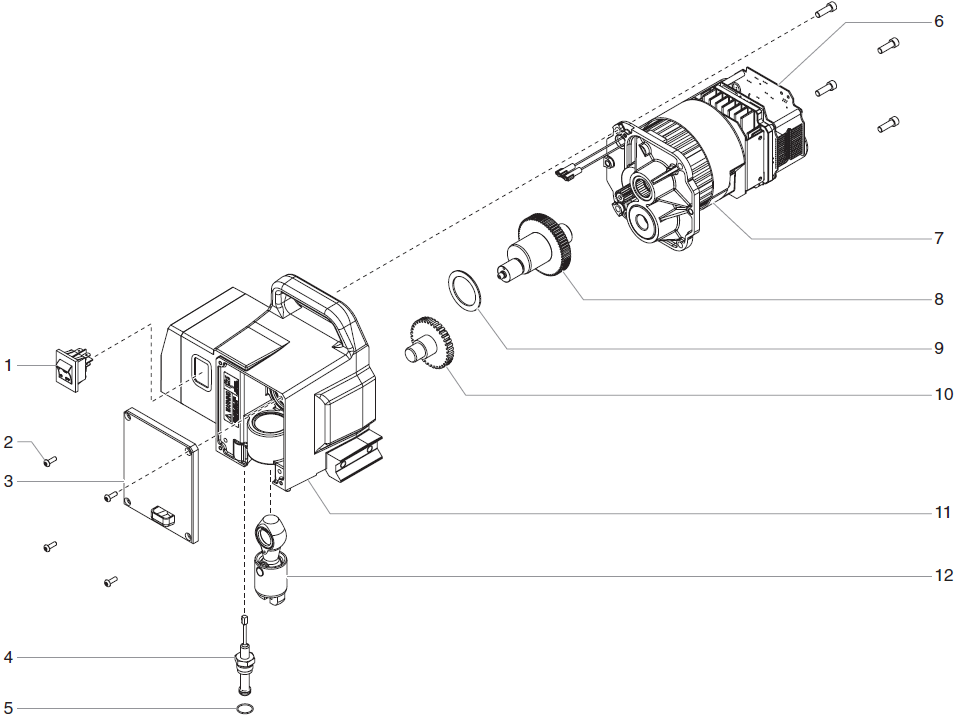

The illustrated parts arrangement helps customers identify the correct component and distinguish similar-looking items used in other Titan sprayer models. This is especially important for gears, crankshaft assemblies, electronic controls, and pressure-related components that may have model-specific requirements.
Before purchasing, confirm the Titan RentSpray 600 model, locate the required component in the applicable parts diagram, and verify its complete manufacturer reference, documented replacement number, and product contents.
Explore Titan RentSpray 600 Drive Assembly Components
The following replacement parts are identified in the RentSpray 600 Drive Assembly category. Review each product's function and confirm its application before selecting a replacement.
Titan 704-380 Rocker Switch
The Titan 704-380 Rocker Switch is identified in the drive assembly listing. The product information references Titan 9850936 as its replacement. Verify the applicable switch specification and current replacement reference before ordering.
Titan 700-139 Motor Baffle Screw
The Titan 700-139 Motor Baffle Screw is identified as a Phillips-head screw with an 8-32 x 1/2-inch description. Confirm the specified mounting location and quantity before replacement.
Titan 704-019 Front Cover
The Titan 704-019 Front Cover is a replacement cover component. Inspect the existing cover for cracks, damage, or insecure mounting. Verify the correct part number and attachment requirements.
Titan 704-492A Pressure Sensor Assembly
The Titan 704-492A Pressure Sensor Assembly is associated with pressure sensing and control. Confirm the correct assembly reference and diagnose the pressure-control system before replacing the sensor.
Titan 762-057 PTFE O-Ring
The Titan 762-057 O-Ring is identified as a PTFE component. Verify its exact installation position and sealing requirements. Do not substitute an O-ring based solely on its appearance.
Titan 704-591 Electronic Control Assembly
The Titan 704-591 Electronic Control Assembly is listed with an electrical-control description. Confirm the required voltage, controller configuration, and equipment application before replacement.
Titan 704-173A Crankshaft/Gear Assembly
The Titan 704-173A Crankshaft/Gear Assembly is associated with mechanical motion transfer. The listing identifies Titan 704-173 as an earlier reference. Inspect the gear and crankshaft arrangement according to the applicable service procedure.
Titan 704-174 Thrust Washer
The Titan 704-174 Thrust Washer is associated with the mechanical drive arrangement. Check for wear or damage during authorized disassembly and verify the specified installation position.
Titan 704-176 2nd Stage Gear
The Titan 704-176 2nd Stage Gear participates in the mechanical drive arrangement. The listing identifies Titan 0509121 as an earlier reference. Inspect for abnormal wear or damage and verify the correct replacement configuration.
Titan 704-548 Transducer Jumper
The Titan 704-548 Transducer Jumper is associated with the electrical signal connection arrangement. Inspect the appropriate connections and verify the exact jumper reference before replacement.
Titan RentSpray 600 Drive Assembly Parts Identification Table
Use the following table to identify the component references shown in the category listing. Item numbers are provided where identified.
Parts identification: This table reflects components displayed in the RentSpray 600 Drive Assembly category listing. It does not establish that every component is currently in stock or suitable for every equipment revision. Confirm the relevant diagram, product details, and replacement references before purchasing.
How the Titan RentSpray 600 Drive Assembly Works
The drive assembly forms part of the mechanical connection between the sprayer's motor and pumping mechanism. In an electric piston pump system, the motor provides rotational motion, while the drive arrangement transfers and converts that movement to operate the fluid section.
The Titan 704-176 2nd Stage Gear and Titan 704-173A Crankshaft/Gear Assembly are identified mechanical components within the RentSpray 600 drive arrangement. These components are relevant to motion transmission and the movement required for pumping operation.
The crankshaft arrangement is associated with converting rotational movement into the motion required by the pumping mechanism. Gear condition, correct assembly, and the integrity of supporting components are important to reliable mechanical operation.
The Titan 704-174 Thrust Washer is identified as a supporting component. During service, its condition and correct placement should be checked in accordance with the applicable assembly procedure.
The RentSpray 600 Drive Assembly category also contains electrical and pressure-related components. The Titan 704-380 Rocker Switch is associated with electrical switching, while the Titan 704-591 Electronic Control Assembly belongs to the equipment's electronic control arrangement.
The Titan 704-492A Pressure Sensor Assembly is associated with pressure sensing, and the Titan 704-548 Transducer Jumper is associated with electrical signal connections. Their presence in the same parts category does not mean they perform mechanical gear functions.
The Titan 704-019 Front Cover and Titan 700-139 Motor Baffle Screw are associated with the assembly's physical arrangement and fastening requirements. The Titan 762-057 PTFE O-Ring is a sealing component whose exact installation position should be verified from the diagram.
Mechanical and electrical faults require different diagnostic methods. Unusual gear noise or restricted mechanical movement may justify inspection of the drive components. Electrical startup problems or pressure-control irregularities require investigation of the corresponding control circuit and related equipment.
Always follow the manufacturer-specified disassembly, lubrication, electrical isolation, and reassembly procedures. Never attempt to service moving drive components or electrical connections while the sprayer is connected to power.
Titan RentSpray 600 Drive Assembly Troubleshooting
Drive assembly faults may involve mechanical wear, electrical controls, pressure sensing, or connection problems. The following symptoms provide starting points for inspection rather than confirmation that a specific component has failed.
Unusual Mechanical Noise
Inspect the mechanical drive arrangement for possible gear wear, damaged components, or abnormal contact. Follow the approved disassembly procedure before examining internal parts.
Pump Does Not Cycle Normally
Check whether the motor, drive mechanism, and fluid section are operating as intended. Restricted movement can originate from more than one assembly.
Sprayer Will Not Start
Investigate the electrical supply, rocker switch, controller, and related connections according to the manufacturer's diagnostic procedure. Electrical testing should be performed by qualified personnel.
Inconsistent Pressure Response
Evaluate the fluid section, pressure sensor, electronic control system, and connected spray equipment. Do not replace the transducer without confirming the fault.
Damaged Front Cover
Inspect the Titan 704-019 Front Cover and relevant mounting points for cracks, impact damage, or missing hardware. Replace damaged components with the correct references.
Electrical Connection Problems
Inspect designated connections, including the applicable transducer jumper, only after isolating power. Verify the correct wiring and component references before replacement.
Safety: Disconnect electrical power and follow the manufacturer's pressure relief procedure before servicing the sprayer. Airless equipment can cause serious fluid injection injuries. Never inspect energized drive components or place hands near moving mechanical parts. Electrical diagnosis and repairs should be performed by appropriately qualified personnel.
Maintaining Titan RentSpray 600 Drive Assembly Parts
Correct inspection and servicing help identify mechanical wear and electrical connection problems before they develop into more extensive equipment faults. Follow the applicable RentSpray 600 maintenance and repair instructions.
Inspect Gear Components
Check the applicable gears and crankshaft arrangement for abnormal wear or damage during authorized service.
Check Supporting Parts
Inspect thrust washers and designated mechanical support components for wear or improper placement.
Use Approved Lubrication
Use only the specified lubricant and quantity for the relevant drive components.
Inspect Electrical Connections
Check accessible electrical components according to the prescribed safety and service procedures.
Check Covers and Fasteners
Confirm that protective covers and specified hardware are correctly installed before operation.
Verify Reassembly
Follow the specified component orientation, fastening, wiring, and operational testing requirements.
How to Order the Correct Titan RentSpray 600 Drive Assembly Parts
Use the following process to identify and purchase the correct drive assembly component.
1. Confirm Your Sprayer
Verify the Titan RentSpray 600 model and record any relevant equipment revision information.
2. Locate the Diagram Item
Identify the required mechanical, electrical, or pressure-related component in the drive assembly parts breakdown.
3. Verify the Part Number
Match the complete Titan reference and check documented replacements, such as 704-173A for 704-173.
4. Review Product Details
Confirm the specified configuration, product contents, quantity, and electrical requirements where applicable.
Do not assume that similar components from the RentSpray 500, RentSpray 700, Impact series, or other Titan sprayers are interchangeable. Compatibility must be confirmed by the appropriate manufacturer part references.
Frequently Asked Questions About Titan RentSpray 600 Drive Assembly Parts
What is included in the Titan RentSpray 600 Drive Assembly Parts category?
The category lists mechanical drive components and related electrical, pressure-control, sealing, and fastening parts. Examples include the crankshaft/gear assembly, second-stage gear, thrust washer, pressure sensor, rocker switch, electronic control assembly, and transducer jumper.
What does the Titan 704-173A Crankshaft/Gear Assembly do?
The crankshaft/gear assembly is associated with transferring mechanical movement through the sprayer drive mechanism. The product listing identifies Titan 704-173 as an earlier part reference.
Does Titan 704-176 replace Titan 0509121?
The RentSpray 600 category listing identifies Titan 704-176 2nd Stage Gear as replacing Titan 0509121. Confirm the current replacement reference and your equipment application before ordering.
Which rocker switch is listed for the RentSpray 600 Drive Assembly?
Titan 704-380 Rocker Switch is listed as item 1, with Titan 9850936 identified as its replacement reference. Verify the applicable switch configuration before purchase.
Can a defective pressure sensor affect sprayer operation?
A pressure sensor fault may affect pressure-control operation. However, similar symptoms can result from other electrical or fluid-system problems, so appropriate diagnosis is required before replacing Titan 704-492A.
Are RentSpray 600 drive parts compatible with other Titan sprayers?
Some part numbers may appear in other Titan equipment listings, but compatibility must be verified individually. Confirm the complete part number, equipment model, and applicable revision.
Where can I get help identifying RentSpray 600 Drive Assembly parts?
Contact AllTitanParts at 713-931-0006 with your Titan RentSpray 600 model, diagram item number, and any available manufacturer part reference.
Related Titan RentSpray 600 Replacement Parts
The RentSpray 600 parts catalog also includes separate assembly categories for other equipment systems. Explore the related fluid section and high rider categories when the required component is outside the drive assembly.
