Titan RentSpray 600 Siphon Assembly Parts
Shop Titan RentSpray 600 Siphon Assembly Parts at AllTitanParts to find replacement components for the material intake and return-flow system of your airless paint sprayer. Browse siphon hoses, return hose assemblies, inlet screen filters, O-rings, siphon elbows and retaining clips. Use the illustrated parts breakdown and manufacturer part numbers to identify components for repairing damaged connections, addressing intake restrictions and maintaining the RentSpray 600 siphon assembly.
Shop Titan RentSpray 600 Siphon Assembly Replacement Parts
The Titan RentSpray 600 Siphon Assembly Parts category provides replacement components associated with the material intake and return-flow arrangement of the RentSpray 600 airless paint sprayer. The siphon assembly forms an important connection between the coating material supply and the sprayer's fluid-handling system.
During normal operation, coating material must enter the equipment through the appropriate intake components before it can be delivered through the pumping system. The siphon hose, inlet screen and related connections help establish this intake pathway. Return-flow components provide a designated route for material during applicable priming, circulation or pressure-relief operations.
The condition of these components can affect the sprayer's ability to draw material, prime correctly and maintain a consistent supply to the fluid section. A restricted inlet screen, damaged siphon hose, compromised seal or loose connection may contribute to operating problems. However, similar symptoms can also originate in the fluid section or other parts of the equipment.

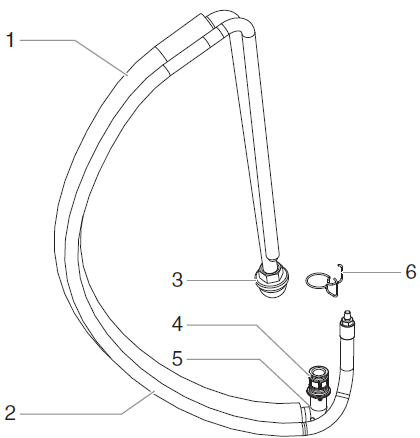

AllTitanParts organizes the RentSpray 600 Siphon Assembly category around an illustrated parts breakdown. This allows customers, painting contractors, rental equipment operators and repair technicians to locate components using their diagram item numbers and Titan manufacturer references.
The category identifies seven replacement products: Titan 700-1023A Siphon Hose, Titan 704-263A Return Hose Assembly, Titan 700-805 Inlet Screen Filter, Titan 704-121 Siphon Elbow O-Ring, Titan 704-109 O-Ring, Titan 700-1024 Elbow and Titan 9822526 Retaining Clip.
Each component performs a different function. The siphon hose provides a material intake connection, while the return hose assembly serves the designated return-flow pathway. The inlet screen helps intercept larger debris before it enters the intake system. O-rings provide sealing functions at specified connections, and retaining hardware helps secure designated components.
The Titan 700-1023A Siphon Hose listing identifies earlier references Titan 700-1023 and Titan 700-659. The product description also identifies an O-ring and elbow among the supplied components. Before ordering, review the current listing to confirm the complete assembly contents and applicable configuration.
The Titan 704-263A Return Hose Assembly replaces the earlier Titan 0508605 and Titan 704-263 references. Customers searching for either older number should compare the current product listing with their existing hose arrangement before selecting the replacement.
The Titan 700-805 Inlet Screen Filter is described in the category listing as a coarse-mesh filter for skid units with a 3/4-inch UNF thread reference. Confirm the exact screen specifications and whether the installed equipment uses the corresponding skid configuration.
The Titan 704-121 Siphon Elbow O-Ring is marked as discontinued by the manufacturer in the category listing. Titan 704-109 is also listed as an O-ring at item 4A. These references should not be assumed interchangeable without confirmation of the required sealing application.
The Titan 700-1024 Elbow is identified as a siphon elbow component, while Titan 9822526 Retaining Clip replaces the earlier Titan 704-127 reference. The elbow and retaining clip should be selected according to the correct illustrated position and installation requirements.
Some individual component descriptions reference additional Titan sprayer models. Their presence in the RentSpray 600 Siphon Assembly category does not establish universal compatibility with every RentSpray 600 revision or another Titan sprayer. Verify each component by manufacturer part number and equipment configuration.
Whether you are replacing a damaged intake hose, investigating priming problems, servicing a return connection or identifying a discontinued sealing component, this category provides a focused starting point for locating Titan RentSpray 600 Siphon Assembly Parts.
Explore Titan RentSpray 600 Siphon Assembly Components
The following products are identified in the RentSpray 600 Siphon Assembly category. Match each replacement to the illustrated item number and verify its current specifications before ordering.
Titan 700-1023A Siphon Hose
The Titan 700-1023A Siphon Hose provides a material intake connection for the applicable sprayer arrangement. Its listing identifies earlier part numbers 700-1023 and 700-659 and mentions an O-ring and elbow among the supplied components.
Inspect the existing hose for damage, connection problems or material restrictions. Confirm the replacement assembly contents and correct installation configuration before ordering.
Part Number: 700-1023A
Titan 704-263A Return Hose Assembly
The Titan 704-263A Return Hose Assembly is associated with the sprayer's designated return-flow pathway. The product listing identifies Titan 0508605 and Titan 704-263 as earlier references.
When replacing a return hose, verify the required connection arrangement, supplied components and current replacement number. Do not substitute an unrelated fluid hose based solely on appearance.
Part Number: 704-263A
Titan 700-805 Inlet Screen Filter
Titan 700-805 is an inlet screen filter described as a coarse-mesh component for skid units. The category listing identifies a 3/4-inch UNF thread reference.
The screen helps intercept larger contaminants entering the material intake system. Confirm the required mesh specification, connection type and equipment configuration before replacement.
Part Number: 700-805
Titan 704-121 Siphon Elbow O-Ring
The Titan 704-121 Siphon Elbow O-Ring is associated with sealing at a designated siphon elbow connection. The category listing marks this part as discontinued by the manufacturer.
Before selecting another O-ring, confirm whether an authorized replacement is available. A visually similar seal may differ in size, material or suitability for the intended connection.
Part Number: 704-121
Titan 704-109 O-Ring
Titan 704-109 is an O-ring identified as item 4A in the RentSpray 600 Siphon Assembly listing. Its product description also references other Titan sprayer applications.
Use the correct sealing reference for the specific connection. The item 4A designation does not, by itself, establish that this O-ring replaces every application of Titan 704-121.
Part Number: 704-109
Titan 700-1024 Elbow
The Titan 700-1024 Elbow is identified as a siphon elbow component. It forms part of the designated connection arrangement in the illustrated siphon assembly.
Inspect the elbow and its mating connections for damage or leakage. Verify the correct installation position, sealing components and equipment application before ordering.
Part Number: 700-1024
Titan 9822526 Retaining Clip
Titan 9822526 is a retaining clip identified in the RentSpray 600 Siphon Assembly listing. The product description identifies Titan 704-127 as an obsolete earlier reference.
Retaining components should match the specified connection and installation position. Confirm the replacement reference before reassembling the siphon system.
Part Number: 9822526
Titan RentSpray 600 Siphon Assembly Parts Identification Table
Use this table to compare the seven products and their illustrated item numbers in the RentSpray 600 Siphon Assembly category.
Parts identification: The seven product references above appear in the RentSpray 600 Siphon Assembly category. The Titan 704-121 O-Ring is marked discontinued. Confirm current availability, supersession details, hose assembly contents, connection specifications and exact sprayer configuration before purchasing.
How the Titan RentSpray 600 Siphon Assembly Works
The siphon assembly supports material intake and designated return-flow operations in the RentSpray 600 airless paint sprayer. It connects the material supply to the pumping system through the appropriate hose, screen, elbow and sealing components.
Material Intake Through the Siphon Hose
The siphon hose provides a pathway for coating material to enter the sprayer. During applicable pumping operations, the fluid section draws material through the intake arrangement. The hose must remain suitable for the coating material and properly connected to the designated inlet components.
A damaged hose, loose connection or obstruction may interfere with intake performance. The Titan 700-1023A Siphon Hose should be selected according to the appropriate equipment configuration and current assembly specifications.
Inlet Screening and Contamination Control
The Titan 700-805 Inlet Screen Filter is positioned within the material intake arrangement for the applicable skid-unit configuration. Its screening function helps prevent larger debris from entering the fluid pathway.
Accumulated debris may restrict the intake of coating material. Inspect and clean the screen according to the approved maintenance procedure. Replace the component if it is damaged or no longer suitable for service.
Siphon Elbow Connections and O-Ring Seals
The Titan 700-1024 Elbow provides a designated connection within the siphon assembly. O-rings such as Titan 704-121 and Titan 704-109 appear in the category listing and are associated with sealing requirements at specified positions.
The correct seal must match the required size, material and application. Do not assume that different O-ring references are interchangeable simply because they appear near the same connection in a parts diagram.
Return Hose and Priming Operations
The Titan 704-263A Return Hose Assembly provides a designated return-flow component. Depending on the equipment's operating mode, the return pathway may be used during priming or other prescribed fluid-handling operations.
The return hose must be correctly connected and secured. Damaged tubing, incorrect routing or compromised connections should be addressed using the appropriate replacement assembly and installation procedure.
Retaining Hardware and Connection Security
The Titan 9822526 Retaining Clip is a fastening component used in the specified siphon assembly arrangement. Retaining hardware helps secure the associated connection according to the illustrated installation requirements.
A missing or damaged retaining clip should be replaced with the correct specified component. Verify the clip position and the condition of the adjoining parts before returning the equipment to service.
The siphon assembly works together with the fluid section, pressure controls and other equipment systems. Proper diagnosis should consider the complete material pathway rather than assuming every priming or pressure problem originates in the siphon hose.
Common Titan RentSpray 600 Siphon Assembly Repair Needs
The following conditions may indicate that siphon assembly components require inspection, cleaning or replacement. These symptoms do not establish a diagnosis by themselves.
Damaged Siphon Hose
Inspect the Titan 700-1023A Siphon Hose for visible deterioration, physical damage or compromised connections. Confirm the correct assembly before replacement.
Restricted Inlet Screen
Inspect the Titan 700-805 Inlet Screen Filter for accumulated material or debris. Clean or replace it according to the approved procedure.
Damaged Return Hose
Examine the return hose and its connections for leakage, wear or incorrect routing. Verify the Titan 704-263A assembly reference before ordering.
Leaking Elbow Connection
Inspect the siphon elbow and applicable sealing components. Identify the correct O-ring reference and check for damage to mating surfaces.
Missing Retaining Clip
Verify whether Titan 9822526 is the specified retaining clip for the affected connection. Replace damaged hardware according to the assembly instructions.
Discontinued O-Ring
Titan 704-121 is marked discontinued. Confirm an approved replacement or alternative service arrangement before attempting a substitution.
Titan RentSpray 600 Siphon Assembly Troubleshooting Guide
Material intake problems can originate in the siphon assembly, the fluid section or another connected system. Use the following table to identify appropriate inspection areas.
| Observed Problem | Possible Inspection Area | Recommended Action |
|---|---|---|
| Sprayer will not prime | Siphon hose, inlet screen, intake connections and fluid section | Follow the prescribed priming and troubleshooting procedures. Check for restrictions or connection faults. |
| Reduced material intake | Titan 700-805 Inlet Screen Filter | Inspect for debris or damage and service according to the manufacturer's instructions. |
| Leak at siphon connection | Elbow, O-ring and mating connection | Relieve pressure, identify the leak source and confirm the correct sealing component. |
| Return hose damage | Titan 704-263A Return Hose Assembly | Inspect the hose and connections. Replace damaged components using the specified reference. |
| Loose connection hardware | Titan 9822526 Retaining Clip | Check the illustrated position and confirm the required retaining component. |
| Inconsistent fluid delivery | Material supply, siphon system and fluid section | Investigate the complete fluid pathway before replacing an individual component. |
High-pressure safety: Before inspecting or repairing the siphon assembly, turn off the sprayer, disconnect electrical power and follow the manufacturer's pressure relief procedure. Never use your hands to locate a fluid leak. Airless spray injection injuries require immediate emergency medical attention. Do not operate equipment with damaged hoses, missing retaining hardware or leaking connections.
Maintaining Titan RentSpray 600 Siphon Assembly Parts
Routine cleaning and inspection can help identify restrictions, damaged hoses and worn sealing components. Follow the applicable Titan RentSpray 600 maintenance instructions and use compatible cleaning materials.
Inspect the Siphon Hose
Check the hose and accessible connections for visible damage, deterioration or leakage after completing the required safety procedures.
Clean the Inlet Screen
Inspect the inlet screen for accumulated debris. Use the prescribed cleaning procedure and replace the screen if damaged.
Check Return Hose Connections
Examine the return hose arrangement for damage, loose connections or incorrect routing. Confirm the correct assembly when replacement is needed.
Inspect O-Rings
During authorized service, inspect the specified seals for deterioration or damage. Use the correct manufacturer reference and approved replacement procedure.
Verify Retaining Hardware
Confirm that the designated retaining clip is present and correctly installed according to the illustrated assembly requirements.
Flush the Fluid Pathway
Flush the sprayer using the manufacturer-specified procedure and suitable materials to reduce the accumulation of coating residue.
How to Order the Correct Titan RentSpray 600 Siphon Assembly Parts
Use this four-step process to identify the correct component before placing an order.
1. Confirm Your Sprayer
Verify the Titan RentSpray 600 model and identify the applicable skid or other equipment configuration.
2. Locate the Diagram Item
Find the siphon hose, return hose, inlet screen, O-ring, elbow or retaining clip in the illustrated assembly breakdown.
3. Match the Part Number
Compare the complete Titan reference and check documented replacement numbers or discontinued-part notices.
4. Verify Product Details
Confirm connection specifications, assembly contents, sealing requirements, compatibility and current availability before checkout.
A part appearing in multiple Titan equipment listings is not automatically interchangeable across all models. Verify each application individually, especially when selecting hoses, elbows, inlet screens and O-rings.
Frequently Asked Questions About Titan RentSpray 600 Siphon Assembly Parts
What parts are included in the Titan RentSpray 600 Siphon Assembly category?
The category lists Titan 700-1023A Siphon Hose, 704-263A Return Hose Assembly, 700-805 Inlet Screen Filter, 704-121 Siphon Elbow O-Ring, 704-109 O-Ring, 700-1024 Elbow and 9822526 Retaining Clip.
What replaces Titan 700-1023 Siphon Hose?
The Titan 700-1023A Siphon Hose listing identifies Titan 700-1023 and Titan 700-659 as earlier references. Confirm the current assembly contents and equipment configuration before ordering.
What is the replacement for Titan 704-263 Return Hose Assembly?
Titan 704-263A is identified as replacing Titan 704-263 and Titan 0508605. Verify the required hose configuration and current product details.
Which inlet screen filter is listed for the RentSpray 600 Siphon Assembly?
Titan 700-805 Inlet Screen Filter is identified as item 3. The listing describes a coarse-mesh filter for skid units with a 3/4-inch UNF thread reference. Confirm the exact specification before purchasing.
Is Titan 704-121 Siphon Elbow O-Ring still available?
The AllTitanParts category listing marks Titan 704-121 as discontinued by the manufacturer. Confirm whether an authorized replacement is available before selecting an alternative seal.
What replaces Titan 704-127 Retaining Clip?
The Titan 9822526 Retaining Clip listing identifies Titan 704-127 as an obsolete earlier reference. Match the replacement to the correct illustrated installation position.
How can I get help identifying RentSpray 600 Siphon Assembly parts?
Contact AllTitanParts at 713-931-0006 with your RentSpray 600 model information, siphon assembly diagram item number and any available Titan manufacturer part reference.
