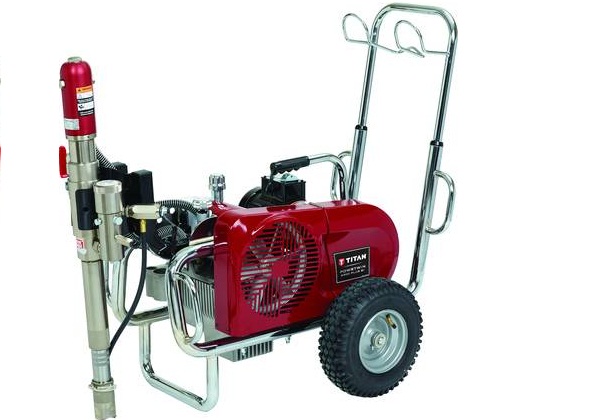

For heavy scale projects which need sprayer machines with up to 6 guns, Titan has presented the right machine. It is the easiest to work with and very portable.

This machine is designed for you if you work heavy-scale projects such as industrial, commercial buildings etc. PowrTwin series as a whole is a series of heavy-duty machines, but 12000 is the mightiest.  It is the one which works with heaviest coatings easily.

It can manage all kinds of paints and primers. You get this, you do not need any other machine. With the horsepower of Honda®, it is the best in town.

Get this machine and leave all your worries behind.

Features:

The mightiest of the PowrTwin series: PowrTwin^TM 12000 Plus DI has the best features in the market.

• Exceeded Power:

PowrTwin^TM 12000 Plus DI has exceeded power. It is able to produce 11.9 l/m. It can utilize up to 6 guns at the same time which is enough to coat heavy coatings quite easily.

• Convertible:

It is no secret, as the name suggests it is convertible from electric to gas and vice versa. Moreover, it can be converted without using any tools. Also, it has a belt guard for safe Electric gas conversion so that no one gets hurt.

• Saves from Paint Spillage:

PowrTwin^TM 12000 Plus DI has an easy swing frame which prevents the paint spillage. This way paint is saved, and less wastage is made sure.

• Highly Portable:

PowrTwin^TM 12000 Plus DI has a lesser height and center of gravity, making it very portable and easier to carry.

Specifications (PowrTwin^TM 12000 Plus DI 400V)

Voltage: The voltage required by PowrTwin^TM 12000 Plus DI is 400 V~, 50 Hz, V3~

Capacity: The power output of PowrTwin^TM 12000 Plus DI is 5.5 kW

Power Cord: The power chord required for PowrTwin^TM 12000 Plus DI is 5 x 2.5 mm² – 6 m

Fuse Protection: The PowerTwin^TM Plus DI has fuse protection of 16 A

Maximum operating pressure: The maximum operating pressure of PowrTwin^TM 12000 Plus DI is 24.8 MPa (248 bar, 3600 PSI)

Maximum sound pressure level: The maximum sound pressure level recorded at 1 m distance from the unit and 1.60 m above the reverberant floor with 120 bar (12 MPa) operating pressure is 88 dB (A)

Maximum size of the tip with a spray gun: The maximum size for PowrTwin^TM 12000 Plus DI with 1-gun is 0.059” – 1.50 mm, with 2-guns, is 0.040” – 1.01 mm, with 3-guns, is 0.034” – 0.86 mm, with 4-guns 0.030” – 0.76 mm, with 5-guns is 0.026” – 0.66 mm and with 6-guns is 0.024” – 0.61 mm.

Maximum volume flow: The maximum volume flow PowrTwin^TM 12000 Plus DI offers is 3.15 gal (11.9 l)/min

Weight: The approximate weight of the machine is 220 lbs. (100 kg)

Maximum viscosity: The maximum viscosity PowrTwinTM 12000 Plus DI can have is 65.000 mPa s.

Dimensions (L x W x H): The dimension of the PowrTwin^TM 12000 Plus DI are 46” x 27” x 34” (1168 x 686 x 866 mm)

Maximum temperature: The maximum temperature of the coating material is 109ºF (43° C).

Filter insert (standard equipment): The standard filter insert is 50 mesh, 18 in²

Hydraulic oil filling quantity: The hydraulic oil filling quantity it needs, is 5.9 l (1.56 gal).

Maximum tire pressure: The maximum tire pressure it offers is 0.2 MPa (2 bar, 30 PSI).

Special high-pressure hose: The special high-pressure hose is DN 6 mm, 15 m (50’ x 1/4”) with a connection thread NPSM 1/4.

Specifications (PowrTwin^TM 12000 Plus DI Gas)

Gasoline engine & power: The PowrTwin^TM 12000 Plus DI carries a Honda 270cc, 8.5 Hp.

Fuel Capacity: The fuel capacity of PowrTwin^TM 12000 Plus DI is 1.6 US gal (6.06l).

Maximum operating pressure: The maximum operating pressure of PowrTwin^TM 12000 Plus DI is 24.8 MPa (248 bar, 3600 PSI).

Maximum sound pressure level: The maximum sound pressure level recorded at 1 m distance from the unit and 1.60 m above the reverberant floor with 120 bar (12 MPa) operating pressure is 98 dB (A).

Maximum size of the tip with a spray gun: The maximum size for PowrTwin^TM 12000 Plus DI with 1-gun is 0.059” – 1.50 mm, with 2-guns, is 0.040” – 1.01 mm, with 3-guns, is 0.034” – 0.86 mm, with 4-guns 0.030” – 0.76 mm, with 5-guns is 0.026” – 0.66 mm and with 6-guns is 0.024” – 0.61 mm.

Maximum volume flow: The maximum volume flow PowrTwin^TM 12000 Plus DI offers is 3.15 gal (11.9 l)/min.

Weight: The approximate weight of the machine is 194 lbs. (88 kg).

Maximum viscosity: The maximum viscosity it can have is 65.000 mPa s.

Dimensions (L x W x H): The dimension of the PowrTwin^TM 12000 Plus DI are 46” x 27” x 34” (1168 x 686 x 866 mm).

Maximum temperature: The maximum temperature of the coating material is 109ºF (43° C).

Filter insert (standard equipment): The standard filter insert is 50 mesh, 18 in²

Hydraulic oil filling quantity: The hydraulic oil filling quantity it needs, is 5.9 l (1.56 gal).

Maximum tire pressure: The maximum tire pressure it offers is 0.2 MPa (2 bar, 30 PSI).

Special high-pressure hose: The special high-pressure hose is DN 6 mm, 15 m (50’ x 1/4”) with a connection thread NPSM ¼.

This machine made sure that heavy scale jobs should not be scary anymore. Rather, it made them fun and highly interesting.

It fulfils the high demands of the job, easily manages the heavy coatings.

1. Three qualities we hear about a paint machine, we love it immediately: Electric-Gas Convertible.
3. Heavy Coater.

It is all these qualities that make this machine what it is.

There are so many great Titan gas sprayers, but if you are looking for something which is mighty and is gas-electric, you should go for this machine and never look back.
