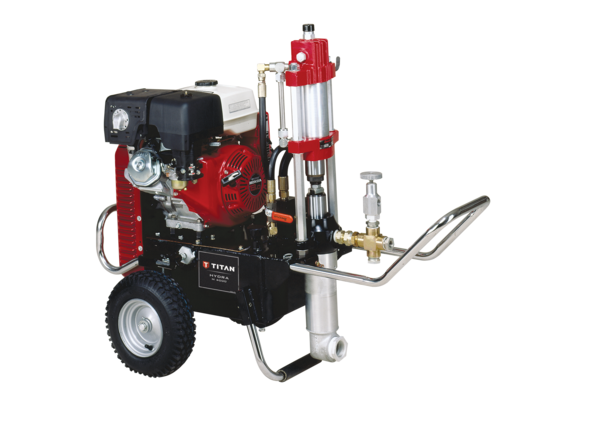

The built and application of this machine is beyond expectations. The output of Hydra M 4000 is three gallons per minute, which provides the heaviest, rightly thick and even coating to the surface with maximum efficiency in minimum time. The hydraulic system if M 4000 is strong, solid, ultra-slow-stroking and durable, something you cannot keep your hands off.

Features:



The features of Hydra M 4000 are better than you thought.

• Hydra M 4000 has extra pressure for hard to atomize coatings or long hoses
• Hydra M 4000 is available with siphon hose or 55-gallon direct immersion remote
• It has an SP model to do the job for hard to apply and speciality foundation coatings
• Hydra M 4000 is built for the toughest jobs.
• Hydra M 4000 has the longest slowest stroke for maximum life
• The ultra-high capacity hydraulic system keeps the machine cool in the harshest conditions
• Hydra M 4000 has a hand-tight cylinder and a foot valve for quick and easy maintenance
• Hydra M 4000 has severe service 500 hard chrome piston and cylinder for extra long life
• The spring-loaded self-adjusting UHMWPE packing system eliminates the chances of premature wear from over-tightening before it reaches you.

Specifications (Hydra™ M 4000)



Gallons per minute (GPM):  The gallon per minute capacity of Hydra™ M 4000  is  3.3 GPM.

Cycle rate per gallon: The cycle per gallon of Hydra™ M 4000  is 13.

Cycles per minute (max) : The cycle per minute of Hydra™ M 4000  is 43.

Maximum tip size:  The maximum tip size for 1-Gun of Hydra™ M 4000  is .060” ,2-Gun is .040” and 3-Guns is .035”.

Pressure range: The power range of Hydra™ M 4000  is 500-4000 psi.

Power: The power provided to Hydra™ M 4000  is by 11 HP Honda engine Electric Start.

Fuel capacity: The fuel capacity of Hydra™ M 4000  is 1.6 gallons.

Weight: The weight of Hydra™ M 4000  is approximately 361 lbs.

Inlet paint filter: The inlet paint filter of Hydra™ Pro IV is 1  ¼” Rock catcher.

Outlet paint filter: The outlet paint filter of Hydra™ Pro IV is 50 mesh, 18in2.

Pump inlet:  The pump inlet of Hydra™ M 4000  is 1 1/4” NPT (F)

Pump outlet: The pump outlet of Hydra™ M 4000  is 1/2” NPT(F).

Paint filter hose connections: The paint filter hose connections of Hydra™ Pro IV are (1) – 1/4” NPSM(M)  and (1) 3/8” NPT(F) Plugged.

Dimensions: The dimensions of Hydra™ M 4000  are 38” H x 52” L w/handle (32” w/o handle) x 24 1/2” W.

HYDRAS are well known for their mightiness; another known HYDRA is Hydra m Pro Super™. Let’s have a look at its features.

Specifications (Hydra M Pro Super™)



Gallons per minute (GPM):  The gallon per minute capacity of Hydra M Pro Super™  is  2.5 GPM.

Cycle rate per gallon: The cycle per gallon of Hydra M Pro Super™  is 24.

Cycles per minute (max): The cycle per minute of Hydra M Pro Super™  is 60.

Maximum tip size:  The maximum tip size for 1-Gun of Hydra M Pro Super™  is .050” ,2-Gun is .035” and 3-Guns is .029”.

Pressure range: The power range of Hydra M Pro Super™  is 500-4000 psi.

Power: The power provided to Hydra M Pro Super™  is by 11 HP Honda engine Electric Start.

Fuel capacity: The fuel capacity of Hydra M Pro Super™  is 1.6 gallons.

Weight: The weight of Hydra M Pro Super™  is approximately 354 lbs.

Inlet paint filter: The inlet paint filter of Hydra Pro IV is 1” Rock catcher.

Outlet paint filter: The outlet paint filter of Hydra Pro IV is 50 mesh, 18in2.

Pump inlet:  The pump inlet of Hydra M Pro Super™  is 1 ” NPT (F)

Pump outlet: The pump outlet of Hydra M Pro Super™  is 1/2” NPT(F).

Paint filter hose connections: The paint filter hose connections of Hydra Pro IV are (1) – 1/4” NPSM(M)  and (1) 3/8” NPT(F) Plugged.

Dimensions: The dimensions of Hydra M Pro Super™  are 38” H x 52” L w/handle (32” w/o handle) x 24 1/2” W.

Titan has so many varieties in paint sprayers, get yourself your favorite titan gas sprayers at alltitanparts.com.
