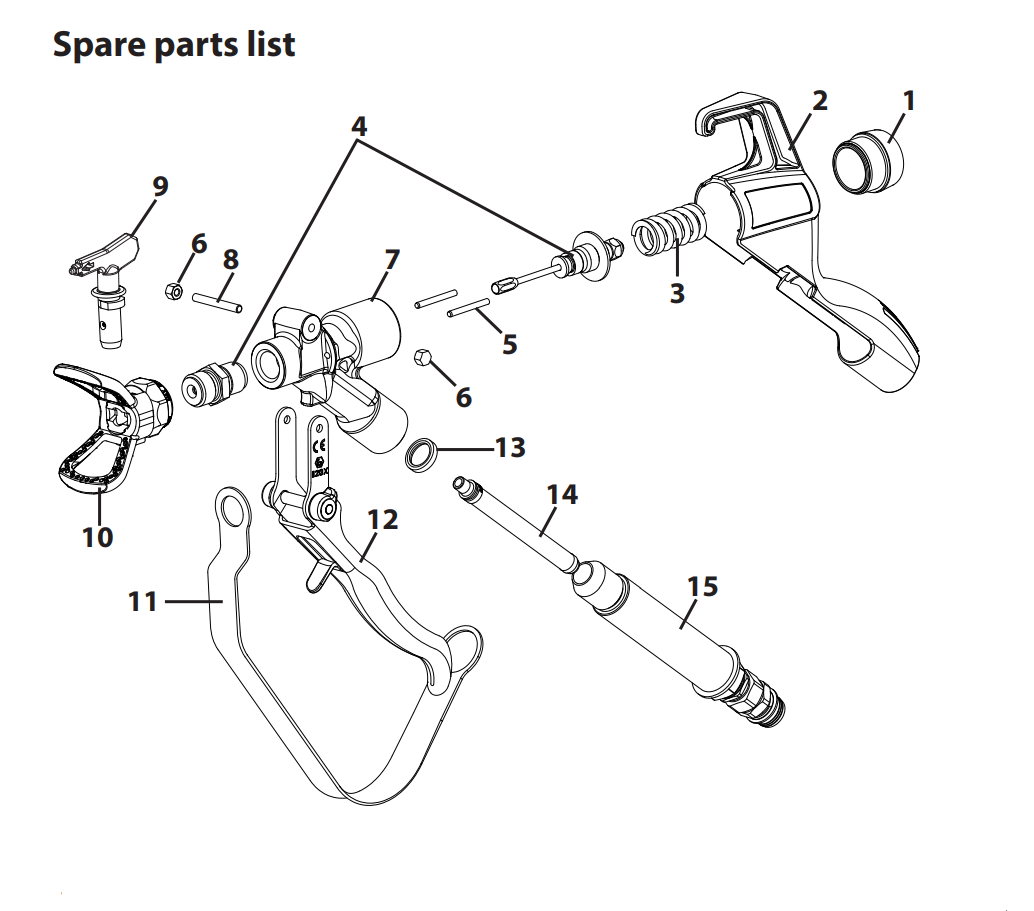

M-4 / M-8 High Capacity Spray Gun Parts List
-
Titan 2339650 Cap
Item No: 1B
Part #:2339659
Titan 2339650 Cap (7700 PSI, 530 bar) Titan 2339650 Cap (7700 PSI, 530 bar) ... -
Titan 2332588 Handle Recess
Item No: 2
Part #:2332588
Titan 2332588 Plastic handle Titan 2332588 Plastic handle... -
Titan 2344878 Pressure Spring
Item No: 3
Part #:2344878
Titan 2344878 Pressure Spring Titan 2344878 Pressure Spring... -
Titan 0347335 Pressure Spring.
Item No: 3b
Part #:0347335
Titan 0347335 Spring, 7700 PSI-OEM (7700PSI, 530 bar) Titan 0347335 Spring, 7700 PSI-OEM (7700PSI, 530 bar)... -

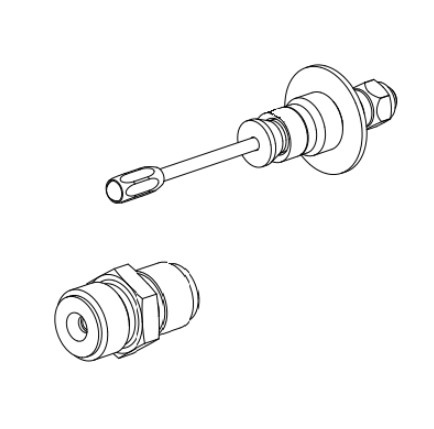

Titan 2348175 M-4 / M-8 Gun repair kit
Item No: 4
Part #:2348175
Titan 2348175 M-4 / M-8 Gun repair kit Includes: Seal Assy/Diffuser Service-kit AG-19 G-Thread Titan 2348175 M-4 / M-8 Gun repair kit Includes: Seal Assy/Diffuser Serv... -
Titan 2332598 Cylinder Pin
Item No: 5
Part #:2332598
Titan 2332598 Cylinder Pin or 2332-598 Titan 2332598 Cylinder Pin or 2332-598... -
Titan 9910403 Cap Nut
Item No: 6
Part #:9910403
Titan 9910403 Cap Nut, m5 x 25 Titan 9910403 Cap Nut, m5 x 25... -

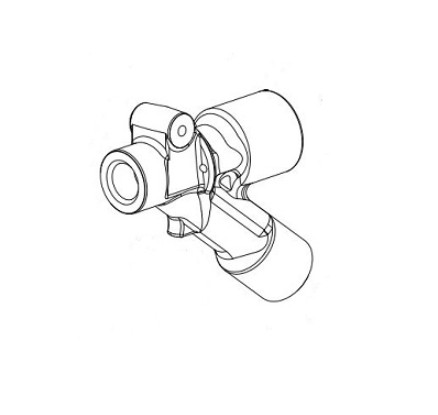

Titan 2343066 Gun Housing
Item No: 7
Part #:2343066
Titan 2343066 Gun body, 250 bar Titan 2343066 Gun body, 250 bar... -
Titan 2343158 Gun Body
Item No: 7A
Part #:2343158
Titan 2343158 Gun Body 530 bar Titan 2343158 Gun Body 530 bar... -
Titan 2343085 Bolt
Item No: 8
Part #:2343085
Titan 2343085 Pin-OEM Titan 2343085 Pin-OEM... -
Titan 0289228 Tip Guard, G-THREAD
Item No: 10
Part #:0289228
Titan 0289228 No Build Tip Guard, Pkgd 7/8'' replaces part Titan 661-012. Pressure rated at 5000 PSI (34.5 MPa). The Aerodynamic dimple design of the tip guard allows for better airflow and less paint build up. Seal cavity on safety guard has large “flats” for quick and easy installation of seal, Rotate guard without loosening from gun. No tools needed for installation. Interchangeable with most industry... Titan 0289228 No Build Tip Guard, Pkgd 7/8'' replaces part Titan 66...
