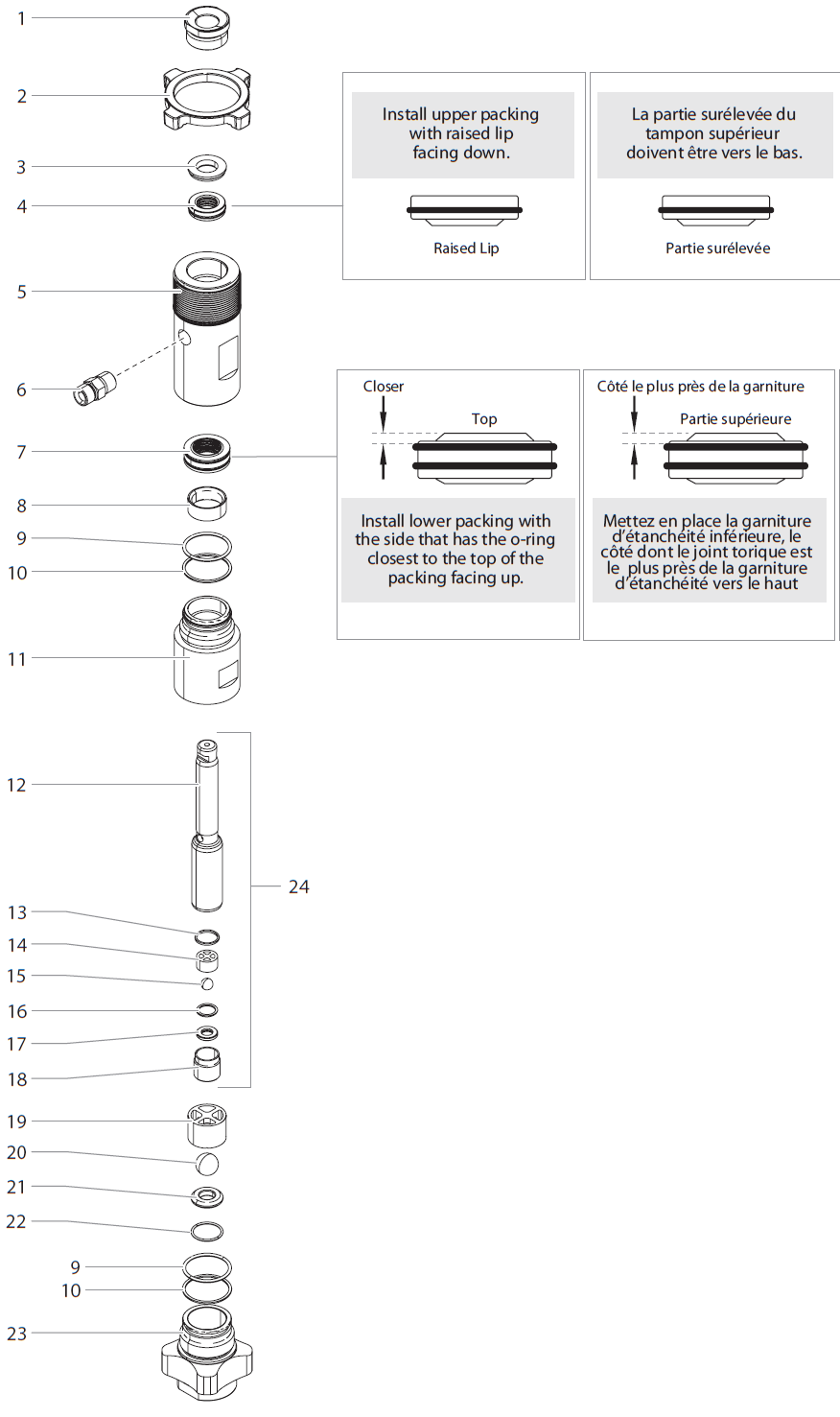

Impact 740 Fluid Section Assembly Parts (P/N 805-236A)

Titan 805-1010 Repacking Kit

Item No: -

Part #: 805-1010

Titan 805-1010 Repacking Kit is a genuine OEM repair kit designed for Titan Impact 740 and Impact 84...

Retail Price: $151.90

You save: $18.99 (12.50%)

Our Price: $132.91

QTY:

Titan 800-359 Piston Insertion Tool

Item No: --

Part #: 800-359

Titan 800-359 Piston Insertion Tool or Tool lower seal insertion or lower packing insertion too...

$19.30

QTY:

Titan 805-505 Seal Retainer

Item No: 1

Part #: 805-505

Titan 805-505 Seal Retainer or Retainer, upper seal Fits the following mode...

Retail Price: $31.20

You save: $1.72 (5.51%)

Our Price: $29.48

QTY:

Titan 805-449 Knock-off Nut

Item No: 2

Part #: 805-449

Knock-off Nut or Nut, knock off, machined *Replaced Part # 0290255* Fits th...

Retail Price: $31.00

You save: $1.7 (5.48%)

Our Price: $29.30

QTY:

Titan 800-327 Spacer

Item No: 3

Part #: 800-327

Titan 800-327 Spacer or Upper support ring Fits the following models: Impact ...

$21.10

QTY:

Titan 805-435 Upper Housing

Item No: 5

Part #: 805-435

Titan 805-435 Upper Housing or Housing, upper, 740/840 Fits the following mod...

Retail Price: $184.80

You save: $23.1 (12.50%)

Our Price: $161.70

QTY:

Titan 0508343 Fitting

Item No: 6

Part #: 0508343

Titan 0508343 Fitting or Double nipple (Ftg,3/8-17npt x 3/8-18npsm) is Replaced by Titan 800-268 ...

Retail Price: $31.60

You save: $1.74 (5.51%)

Our Price: $29.86

QTY:

Titan 800-354 Wear Ring

Item No: 8

Part #: 800-354

Titan Wear Ring 800-354

Retail Price: $31.80

You save: $1.75 (5.50%)

Our Price: $30.05

QTY:

Titan 800-332 Viton O-Ring

Item No: 9

Part #: 800-332

Titan 800-332 Viton O-Ring is the same as Titan 987110, it designed for use on various Titan paint s...

$3.80

QTY:

Titan 800-333 Back-Up Ring PTFE

Item No: 10

Part #: 800-333

Titan 800-333 O-Ring PTFE or Back -Up Ring PTFE, is a genuine OEM part designed to meet the sa...

$5.00

QTY:

Titan 805-436 Lower Housing

Item No: 11

Part #: 805-436

Lower Housing or Housing, lower, 740/840 Fits the following models: I...

Retail Price: $119.40

You save: $12.42 (10.40%)

Our Price: $106.98

QTY:

Titan 805-437A Piston Rod

Item No: 12

Part #: 805-437A

Titan 805-437A Piston Rod Titan 805-437A Piston Rod is the heart of your sprayer’s pressure syste...

Retail Price: $343.10

You save: $50.09 (14.60%)

Our Price: $293.01

QTY:

Titan 800-348 Outlet Valve Seal

Item No: 13

Part #: 800-348

Titan 800-348 Outlet Valve Seal or Polyseal, outlet valve is a genuine OEM part designed to meet t...

$2.50

QTY:

Titan 0507452 Upper Cage

Item No: 14

Part #: 0507452

Titan 0507452 Upper Cage outlet *replaced by 800-244* Fits the following...

$29.00

QTY:

Titan 9841502 Outlet Valve Ball

Item No: 15

Part #: 9841502

Titan 9841502 Outlet Valve Ball is a 10mm Carbide ball used on various Titan spray guns. Titan 9841...

$25.10

QTY:

Titan 0507454 Washer

Item No: 16

Part #: 0507454

Titan 0507454 Washer is a nylon flat washer, it replaces Titan 800-245 designed for use on several T...

$2.50

QTY:

Titan 0294516 Outlet Valve Seat

Item No: 17

Part #: 0294516

Titan 0294516 Outlet Valve replaces Titan 944-043, it is a circular seal which ensures proper sealin...

Titan 800-336 Outlet Valve Retainer

Item No: 18

Part #: 800-336

Titan 800-336 Outlet Valve Retainer replaces Titan 507733. Fits the following models: Impac...

Retail Price: $57.80

You save: $4.8 (8.30%)

Our Price: $53.00

QTY:

Titan 800-322 Lower Cage

Item No: 19

Part #: 800-322

Titan 800-322 Lower Cage or Inlet Cage replaces Titan 0507729 Fits the following models: Imp...

Retail Price: $46.40

You save: $3.53 (7.61%)

Our Price: $42.87

QTY:

Titan 51519 Inlet Ball

Item No: 20

Part #: 51519

Titan 51519 Inlet Ball replaces Titan 800-242 is a replacement part designed for Titan sprayers. ...

$21.40

QTY:

Titan 00310 Inlet Seat

Item No: 21

Part #: 00310

Titan 00310 Inlet Seat for several Titan sprayers like the Titan ProMark II Line Striper, Titan ED65...

Retail Price: $93.60

You save: $7.77 (8.30%)

Our Price: $85.83

QTY:

Titan 9871218 O-Ring

Item No: 22

Part #: 9871218

Titan 9871218 O-Ring It is made of PTFE material and measures 23mm x 2mm and is suitable for these ...

$3.80

QTY:

Titan 800-305 Foot Valve Housing

Item No: 23

Part #: 800-305

Titan 800-305 Foot Valve Housing or Housing, foot valve, machined Fit...

Retail Price: $208.20

You save: $28.94 (13.90%)

Our Price: $179.26

QTY:

Titan 805-235A Piston Assembly

Item No: 24

Part #: 805-235A

Titan 805-235A Piston Assembly or Piston Assembly, 740/840, pkgd Titan 805-235A Piston Assembly is...

Retail Price: $561.50

You save: $89.84 (16.00%)

Our Price: $471.66

QTY:

Maintain Smooth Operation – Shop Impact 740 Fluid Section Parts Today

Restore the spraying power of your Titan machine with genuine Impact 740 Fluid Section Assembly Parts (P/N 805-236A). At AllTitanParts.com, we provide authentic Titan replacement components that keep your airless sprayer running at peak performance, job after job.

The Impact 740 Fluid Section Assembly Parts (P/N 805-236A) include all the essential components needed to repair or rebuild the fluid section of your sprayer. From the piston rod, inlet valve, and outlet valve, to the packings and pump housing, every part is engineered to match original Titan specifications for seamless compatibility and reliable performance.

If your Titan 740 is losing pressure, showing signs of wear, or failing to spray efficiently, replacing worn fluid section parts can restore its full power. Our detailed diagrams make it easy to identify the right components, saving you time and effort during maintenance or repair.

AllTitanParts is your one-stop shop for fast, reliable delivery of Titan Impact 740 Fluid Section Assembly Parts. Whether you’re a contractor or technician, trust us to supply OEM-grade parts that help extend the life of your sprayer and minimize downtime.

Shop now for Impact 740 Fluid Section Assembly Parts (P/N 805-236A) and experience the performance difference of genuine Titan quality.
