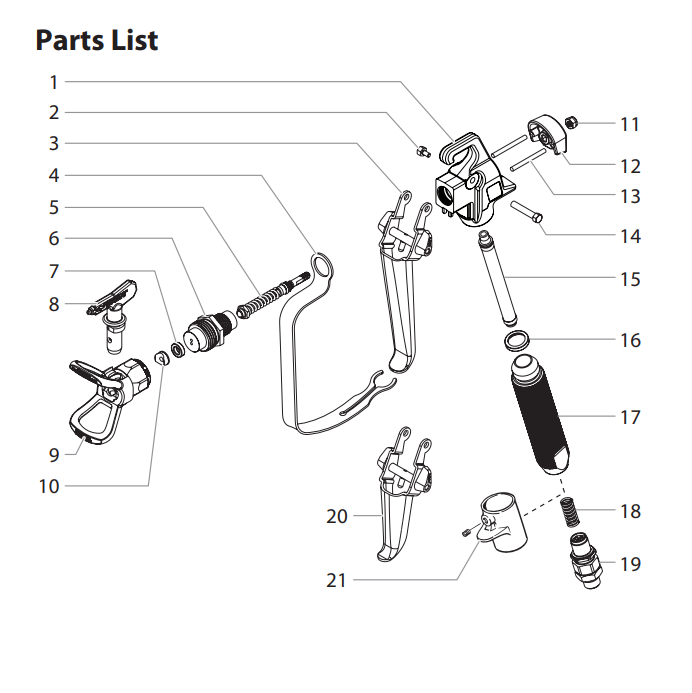

G-10 High Capacity Spray Gun Parts List


0296228
0296270A
0296404
0297045
662-517
0289228
0297007
9910201
0296222
0089958
0296342
0296343
0347706A
0279185
G-10 High Capacity Spray Gun Parts List

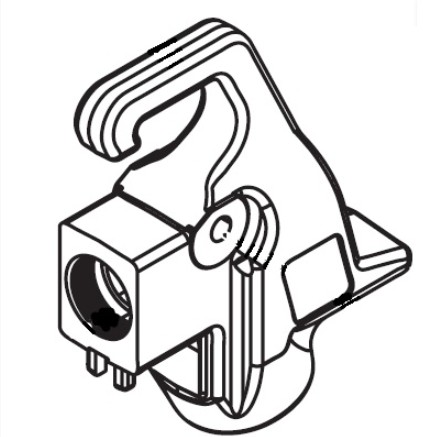

  • Titan 0296228 Gun Head

    Titan 0296228 Gun Head

    Item No: 1

    Part #:0296228

    Titan 0296228 Gun Head, machining  Fits: G-10 airless gun with TR2 tip Titan 0296228 Gun Head, machining  Fits: G-10 airless gun with TR2 tip...
    Retail Price: $46.50
    You save: $6.64  (14%)
    Our Price: $39.86

  • Titan 0296270A Packing Seal Assembly

    Titan 0296270A Packing Seal Assembly

    Item No: 5

    Part #:0296270A

    Titan 0296270A Packing Seal Assembly, pkgd OR G-10xl packing seal assy * Replaced 0296270* Fits: G-10 High Capacity Spray Gun, G-10 High Pressure Spray Gun with TR2 Spray Tip,LX-65 Spray Gun Titan 0296270A Packing Seal Assembly, pkgd OR G-10xl packing seal assy * Replac...
    Retail Price: $54.30
    You save: $7.76  (14%)
    Our Price: $46.54

  • Titan 0296404 Diffuser.

    Titan 0296404 Diffuser.

    Item No: 6

    Part #:0296404

    Titan 0296404 Diffuser Fits: G-10 Airless Gun Titan 0296404 Diffuser Fits: G-10 Airless Gun ...
    Retail Price: $32.20
    You save: $4.39  (14%)
    Our Price: $27.81

  • Titan 0297045 Compression Seal

    Titan 0297045 Compression Seal

    Item No: 7

    Part #:0297045

    Titan 0297045 Compression Seal Titan 0297045 Compression Seal ...
    $2.62

  • Titan 662-517 Tip Assembly

    Titan 662-517 Tip Assembly

    Item No: 8

    Part #:662-517

    Titan 662-517 Sc-6 plus 517 reversible tip (see accessory catalog for additional sizes)  Includes: Seal, Tip seal Fits: G-10 High Capacity Spray Gun, LX-80 II Professional Airless Gun, s-3, s-5 Titan 662-517 Sc-6 plus 517 reversible tip (see accessory catalog for additiona...
    Retail Price: $30.00
    You save: $4.40  (15%)
    Our Price: $25.60

  • Titan 0289228 Tip Guard, G-THREAD

    Titan 0289228 Tip Guard, G-THREAD

    Item No: 9

    Part #:0289228

    Titan 0289228 Tip Guard, G-THREAD is a high qaulity easy to install  Pkgd 7/8'' guard it replaces Titan 661-012.   The Aerodynamic dimple design of the tip guard allows for better airflow and less paint build up. Seal cavity on safety guard has large “flats” for quick and easy installation of seal,  pressure rated at 5000 PSI (34.5 MPa).   Rotate guard without loosening from gun. No tools needed for... Titan 0289228 Tip Guard, G-THREAD is a high qaulity easy to install  Pkgd 7...
    Retail Price: $29.00
    You save: $4.00  (14%)
    Our Price: $25.00

  • Titan 0297007 Tip Seal

    Titan 0297007 Tip Seal

    Item No: 10

    Part #:0297007

    Titan 0297007 Tip Seal is same as Titan 651-040 and it is made of a rubber seal and a metal saddle. Fits: G-10 High Capacity Spray Gun, G-10 High Pressure Spray Gun with TR2 Spray Tip, LX-65 Spray Gun, RX-Pro Airless Spray Gun, RX-80 Airless Spray Gun,    Titan 0297007 Tip Seal is same as Titan 651-040 and it is made of a rubber seal ...
    $3.68

  • Titan 9910201 Lock Nut

    Titan 9910201 Lock Nut

    Item No: 11

    Part #:9910201

    Titan 9910201 Lock Nut, self-locking (0043553) m5 nl5800502 Titan 9910201 Lock Nut, self-locking (0043553) m5 nl5800502...
    $1.79

  • Titan 0296222 Rear Housing

    Titan 0296222 Rear Housing

    Item No: 12

    Part #:0296222

    Titan 0296222 Rear Housing, g-10xl Titan 0296222 Rear Housing, g-10xl ...
    $7.60

  • Titan 0089958 Filter, Medium (White Color)

    Titan 0089958 Filter, Medium (White Color)

    Item No: 15

    Part #:0089958

    Titan 0089958 Filter (Medium, White Color) replaces these parts Titan # 550-483, 0154842, 0034377, 34377, 550-271 and ASM 4433. It is a 50 mesh stainless steel mesh filter, with a smooth tapered top with no threads making it easy to push into the spray gun and also for easy replacement. Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 (For use with RX-Pro®, RX-80™, G-10, LX-30,... Titan 0089958 Filter (Medium, White Color) replaces these parts Titan # 550...
    $15.00

  • Titan 0296342 Gun Handle

    Titan 0296342 Gun Handle

    Item No: 17

    Part #:0296342

    Titan 0296342 Gun Handle for LX60 or LX-60 spray gun (XT330) Titan 0296342 Gun Handle for LX60 or LX-60 spray gun (XT330) ...
    Retail Price: $25.40
    You save: $3.05  (12%)
    Our Price: $22.35

  • Titan 0296343 Spring

    Titan 0296343 Spring

    Item No: 18

    Part #:0296343

    Titan 0296343 Spring is an OEM part. It is compatible with: RX-80 Airless Spray Gun, RX-Pro Airless Spray Gun, LX-65 Spray Gun, G-10 High Pressure Spray Gun with TR2 Spray Tip, G-10 High Capacity Spray Gun  Titan 0296343 Spring is an OEM part. It is compatible with: RX-80 Airless S...
    $3.05

  • Titan 0347706A Swivel joint Assembly

    Titan 0347706A Swivel joint Assembly

    Item No: 19

    Part #:0347706A

    Titan 0347706A Swivel joint Assembly, pkgd *Replaces Part # 0347706 and same as 347706* Fits: xi445, LX-50 Spray Gun, Advantage GPX 33 Titan 0347706A Swivel joint Assembly, pkgd *Replaces Part # 0347706 and same as...
    Retail Price: $65.10
    You save: $9.30  (14%)
    Our Price: $55.80

  • Titan 0296281 Trigger Assembly, 2-Finger Gun.

    Titan 0296281 Trigger Assembly, 2-Finger Gun.

    Item No: 20

    Part #:0296291

    Titan 0296281 Trigger Assembly, 2-Finger Gun *Replaces Part # 581-078* Fits: Wagner, Titan and Spraytech G-10XL guns Titan 0296281 Trigger Assembly, 2-Finger Gun *Replaces Part # 581-078* Fits: ...
    Retail Price: $43.20
    You save: $6.17  (14%)
    Our Price: $37.03

  • Titan 0279185 Collar Assembly,2-Finger Gun

    Titan 0279185 Collar Assembly,2-Finger Gun

    Item No: 21

    Part #:0279185

    Titan 0279185 Collar Assembly,2-Finger Gun Titan 0279185 Collar Assembly,2-Finger Gun ...
    Retail Price: $23.50
    You save: $2.82  (12%)
    Our Price: $20.68

  • Titan 0296345 Handle Assembly

    Titan 0296345 Handle Assembly

    Item No: 22

    Part #:0296345

    Titan 0296345 Handle Assembly Includes: Handle, Spring, Swivel Fits: G-10 Airless Gun Titan 0296345 Handle Assembly Includes: Handle, Spring, Swiv...
    Retail Price: $86.20
    You save: $12.31  (14%)
    Our Price: $73.89

  • Titan/Spraytech 0296294 Gun Repair Kit

    Titan/Spraytech 0296294 Gun Repair Kit

    Item No: 23

    Part #:0296294

    Titan/Spraytech 0296294 Gun Repair Kit Titan/Spraytech 0296294 Gun Repair Kit...
    Retail Price: $95.00
    You save: $19.05  (20%)
    Our Price: $75.95

This Category illustrates the G-10 High Capacity Spray Gun Parts List.
