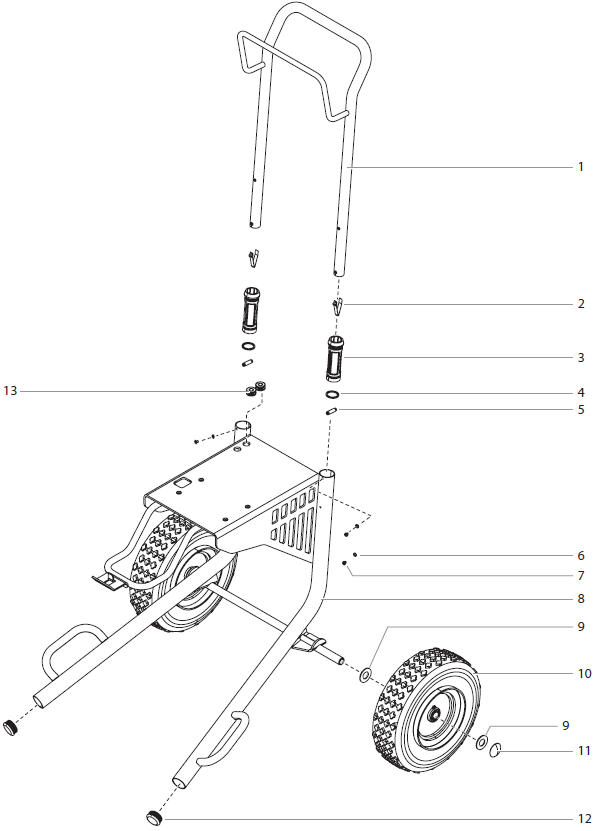

Elite 3500 Cart Assembly (Model 0537012)


590-506
590-508
856-921
800-036
0295687
670-109
800-019
9885571
0537215A
9841504
590-504
856-002
0537214A

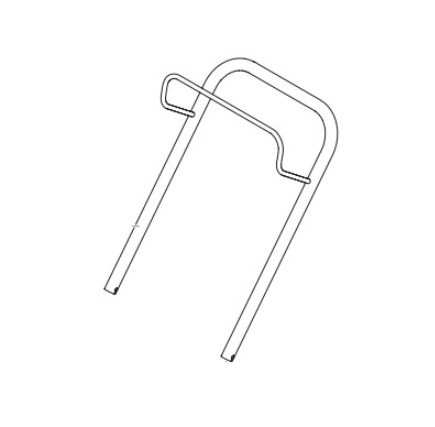

  • Titan 0537215A Handle PKGD
    Titan 0537215A Handle PKGD

    Item No: 1

    Part #:0537215A

    Titan 0537215A Handle PKGD-OEM  For Elite 4500 Titan 0537215A Handle PKGD-OEM  For Elite 4500 ...
    Retail Price: $302.40
    You save: $43.20  (14%)
    Our Price: $259.20

  • Titan 9841504 Snap button
    Titan 9841504 Snap button

    Item No: 2

    Part #:9841504

    Titan 9841504 Snap button  or Button,snap,a-131-s *Replaced # 590-507* Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 9841504 Snap button  or Button,snap,a-131-s *Replaced # 590-507...
    $3.89

  • Titan 590-504 Sleeve Handle
    Titan 590-504 Sleeve Handle

    Item No: 3

    Part #:590-504

    Handle Sleeve or Sleeve, handle (molded) Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Handle Sleeve or Sleeve, handle (molded) Fits the following models:...
    Retail Price: $15.50
    You save: $1.55  (10%)
    Our Price: $13.95

  • Titan 590-506 Flat Washer
    Titan 590-506 Flat Washer

    Item No: 4

    Part #:590-506

    Titan 590-506 Flat Washer 1.03id x 1.25od Replaced part # 295609 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 590-506 Flat Washer 1.03id x 1.25od Replaced part # 295609 ...
    $2.14

  • Titan 590-508 Roll Pin
    Titan 590-508 Roll Pin

    Item No: 5

    Part #:590-508

    Titan 590-508 Roll Pin or Pin, roll, 5/16 x 1-1/8 plated REPLACED #295610 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 590-508 Roll Pin or Pin, roll, 5/16 x 1-1/8 plated REPLACED #295610 ...
    $2.02

  • Titan 856-002 Washer Lock
    Titan 856-002 Washer Lock

    Item No: 6

    Part #:856-002

    Titan 856-002 Lock Washer or Washer, internal tooth lock #10 * save as 0509386* Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 856-002 Lock Washer or Washer, internal tooth lock #10 * save as 050...
    $1.79

  • Titan 856-921 Screw
    Titan 856-921 Screw

    Item No: 7

    Part #:856-921

    Titan 586921 Screw, Pan #10-32 x 1/4”, Replaced # 295321 Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 586921 Screw, Pan #10-32 x 1/4”, Replaced # 295321 Fits the...
    $2.02

  • Titan 0537214A Welded Frame
    Titan 0537214A Welded Frame

    Item No: 8

    Part #:0537214A

    Titan 0537214A Welded Frame or Hr cart weldment For: Elite 4500 Titan 0537214A Welded Frame or Hr cart weldment For: Elite 4500 ...
    Retail Price: $1,334.90
    You save: $190.70  (14%)
    Our Price: $1,144.20

  • Titan 0295687 Wheel Spacer
    Titan 0295687 Wheel Spacer

    Item No: 9

    Part #:0295687

    Titan Wheel spacer 0295687 * REPLACED # 870-004* Titan Wheel spacer 0295687 * REPLACED # 870-004* ...
    $3.47

  • Titan 670-109 Wheel
    Titan 670-109 Wheel

    Item No: 10

    Part #:670-109

    Wheel OR Wheel, 4.10 x 6 w-3/4 bearings Fits the following models: Impact 840,  PowrTwin 6900 Plus DI,  PowrTwin 4900 Plus,    PowrBeast 4700,4700T,7700,9700,  PowrTex 6900 SF 12000 SV Texture Sprayers,  PowrTex 1200 SF Airless Texture and Paint Sprayer   PowrLiner 2800 E.t.c Wheel OR Wheel, 4.10 x 6 w-3/4 bearings Fits the following models:...
    Retail Price: $100.10
    You save: $14.30  (14%)
    Our Price: $85.80

  • Titan 800-019 Axle Cap
    Titan 800-019 Axle Cap

    Item No: 11

    Part #:800-019

    Titan 800-019 Axle Cap  or Cap, axle, 3/4" dia Fits the following models: Impact 840 Titan 800-019 Axle Cap  or Cap, axle, 3/4" dia Fits the foll...
    $8.80

  • Titan 9885571 Plug
    Titan 9885571 Plug

    Item No: 12

    Part #:9885571

    Titan 9885571  Plug, tube 1.5 Inch  Replaced Part # 335-018 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 9885571  Plug, tube 1.5 Inch  Replaced Part # 335-018 ...
    $2.74
