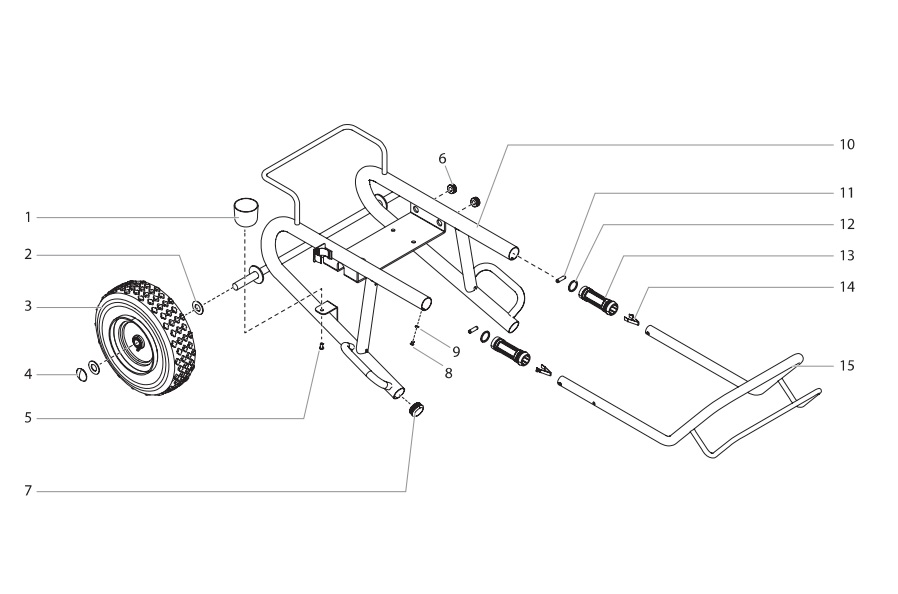

Elite 3500 Cart Assembly (Model 0537013)


700-1041
856-002
856-002
670-109
800-019
9805230
800-036
9885571
856-921
2403431A
590-508
590-506
590-504
9841504
0537215A
Elite 3500 Cart Assembly (Model 0537013)
  • Titan 700-1041 Drip Cup

    Titan 700-1041 Drip Cup

    Item No: 1

    Part #:700-1041

    Titan 700-1041 Drip Cup  or Paint cup Fits the following models: Impact 340, Impact 400, Impact 740, Impact 840, Advantage 400 Titan 700-1041 Drip Cup  or Paint cup Fits the following models: Impact...
    $14.20

  • Titan 856-002 Washer Lock

    Titan 856-002 Washer Lock

    Item No: 2, 9

    Part #:856-002

    Titan 856-002 Lock Washer or Washer, internal tooth lock #10 * save as 0509386* Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 856-002 Lock Washer or Washer, internal tooth lock #10 * save as 0...
    $1.79

  • Titan 670-109 Wheel

    Titan 670-109 Wheel

    Item No: 3

    Part #:670-109

    Wheel OR Wheel, 4.10 x 6 w-3/4 bearings Fits the following models: Impact 840,  PowrTwin 6900 Plus DI,  PowrTwin 4900 Plus,    PowrBeast 4700,4700T,7700,9700,  PowrTex 6900 SF 12000 SV Texture Sprayers,  PowrTex 1200 SF Airless Texture and Paint Sprayer   PowrLiner 2800 E.t.c Wheel OR Wheel, 4.10 x 6 w-3/4 bearings Fits the following models:...
    Retail Price: $100.10
    You save: $14.30  (14%)
    Our Price: $85.80

  • Titan 800-019 Axle Cap

    Titan 800-019 Axle Cap

    Item No: 4

    Part #:800-019

    Titan 800-019 Axle Cap  or Cap, axle, 3/4" dia Fits the following models: Impact 840 Titan 800-019 Axle Cap  or Cap, axle, 3/4" dia Fits the foll...
    $8.80

  • Titan 9805230 Drip Cup Screw

    Titan 9805230 Drip Cup Screw

    Item No: 5

    Part #:9805230

    Titan 9805230 Drip Cup Screw 1/4"-10 x 1/2" lg. *Replaced Part # 704-188* Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 9805230 Drip Cup Screw 1/4"-10 x 1/2" lg. *Replaced Part # 704-188* ...
    $1.79

  • Titan 800-036 Grommit

    Titan 800-036 Grommit

    Item No: 6

    Part #:800-036

    Titan 800-036 Grommit or Grommet, 7/16" dia (Fits Models 4700(120V) 4700(Gas) 7700(230V) 7700(Gas) and 9700(Gas)) Titan 800-036 Grommit or Grommet, 7/16" dia (Fits Models 4700(120V) 4700(Gas) 77...
    $4.31

  • Titan 9885571 Plug

    Titan 9885571 Plug

    Item No: 7

    Part #:9885571

    Titan 9885571 Plug is the perfect OEM for  sprayer, It features  a durable tube of 1.5 Inch  an easy-to-use design that can easily be integrated with your existing tools and components, it replaces Titan 335-018.   Compatible with: Titan Impact 440, X 440, 540, 640, 740, 840. Titan 9885571 Plug is the perfect OEM for  sprayer, It featu...
    $2.74

  • Titan 856-921 Screw

    Titan 856-921 Screw

    Item No: 8

    Part #:856-921

    Titan 586921 Screw, Pan #10-32 x 1/4”, replaces Titan 295321. Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 586921 Screw, Pan #10-32 x 1/4”, replaces Titan 295321. Fi...
    $2.02

  • Titan 2403431A Cart weldment packaged elite 4500 HR

    Titan 2403431A Cart weldment packaged elite 4500 HR

    Item No: 10

    Part #:2403431A

    Titan 2403431A Cart weldment packaged elite 4500 HR Titan 2403431A Cart weldment packaged elite 4500 HR ...
    Retail Price: $1,334.90
    You save: $190.70  (14%)
    Our Price: $1,144.20

  • Titan 590-508 Roll Pin

    Titan 590-508 Roll Pin

    Item No: 11

    Part #:590-508

    Titan 590-508 Roll Pin or Pin, roll, 5/16 x 1-1/8 plated REPLACED #295610 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 590-508 Roll Pin or Pin, roll, 5/16 x 1-1/8 plated REPLACED #29561...
    $2.02

  • Titan 590-506 Flat Washer

    Titan 590-506 Flat Washer

    Item No: 12

    Part #:590-506

    Titan 590-506 Flat Washer 1.03id x 1.25od Replaced part # 295609 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 590-506 Flat Washer 1.03id x 1.25od Replaced part # 295609 ...
    $2.14

  • Titan 590-504 Sleeve Handle

    Titan 590-504 Sleeve Handle

    Item No: 13

    Part #:590-504

    Handle Sleeve or Sleeve, handle (molded) Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Handle Sleeve or Sleeve, handle (molded) Fits the following model...
    Retail Price: $15.50
    You save: $1.55  (10%)
    Our Price: $13.95

  • Titan 9841504 Snap button

    Titan 9841504 Snap button

    Item No: 14

    Part #:9841504

    Titan 9841504 Snap button  or Button,snap,a-131-s *Replaced # 590-507* Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 9841504 Snap button  or Button,snap,a-131-s *Replaced # 590-...
    $3.89

  • Titan 0537215A Handle PKGD

    Titan 0537215A Handle PKGD

    Item No: 15

    Part #:0537215A

    Titan 0537215A Handle PKGD-OEM  For Elite 4500 Titan 0537215A Handle PKGD-OEM  For Elite 4500 ...
    Retail Price: $302.40
    You save: $43.20  (14%)
    Our Price: $259.20
