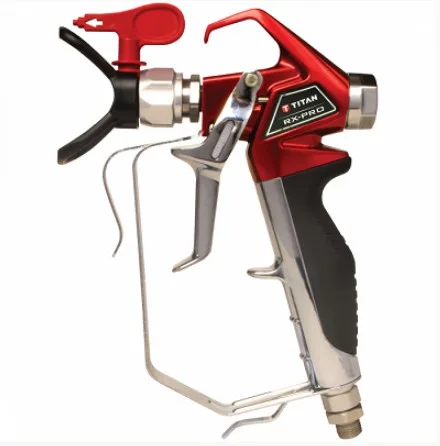

Titan 0538020 RX-Pro Airless Spray Gun, 517 TR1 Tip

Titan 0538020 RX-Pro Airless Spray Gun, 517 TR1 Tip

Sourced From:
Titan Tools Inc.



Titan part 0538020 is an RX‑Pro Airless Spray Gun with 517 TR1 Tip. This professional‑grade spray gun features a lightweight, ergonomic design with a durable trigger and swivel connection. The included 517 TR1 reversible tip provides a 0.017” orifice and a 10‑12” fan pattern, ideal for medium‑to‑heavy coatings. Replace a worn or damaged gun to restore precise spray control and reduce operator fatigue.

Part Number 0538020
Part Description RX‑Pro Airless Spray Gun, 517 TR1 Tip
Brand Titan
Fits
  • PowrBeast: 4700, 7700, 9700, 4700T
  • Impact: 1640, 540, 440, 410
Condition New

Retail Price: $346.3
You save: $50.56 (14.60%)
Our Price: $295.74



RX‑Pro Airless Spray Gun with 517 TR1 Tip

The Titan 0538020 RX‑Pro Airless Spray Gun is a high‑performance replacement gun designed for professional airless sprayers. It features a lightweight, balanced body, a smooth‑action trigger, and a 360° swivel connection to reduce hose drag. The included 517 TR1 reversible tip has a 0.017” orifice and produces a 10‑12” fan pattern, making it suitable for primers, latex paints, enamels, and medium‑viscosity coatings.

A worn, leaking, or poorly performing spray gun can cause uneven patterns, excessive overspray, or operator fatigue. Replacing your old gun with a genuine Titan RX‑Pro restores precise spray control, reduces tip clogs with the reversible feature, and improves overall spraying efficiency.

Service Guidance: Clean the gun and tip thoroughly after each use with compatible solvent. Reverse the tip and trigger into a waste bucket to clear clogs. Inspect the needle, seat, and swivel seals periodically for leaks or wear. Replace the tip when the fan pattern becomes uneven or the orifice is worn beyond 0.019”.

What it does and when to replace it

What the RX‑Pro gun & tip do
Precise spray control Adjustable pattern width with trigger modulation
Reversible tip Clears clogs instantly by rotating tip 180°
Ergonomic design Reduced weight and swivel connection for less fatigue
When replacement is recommended
Leaking gun Paint drips from tip or trigger area when not spraying
Uneven fan pattern Tails, fingers, or heavy edges – tip or gun wear
Hard trigger pull Sticking or excessively stiff trigger mechanism
Damaged swivel Hose connection leaks or won’t rotate freely

Compatibility

Titan part 0538020 is compatible with the following airless sprayers. The gun connects via standard 1/4” NPSM (or compatible) swivel fitting. Always verify thread compatibility with your sprayer’s hose.

Brand / Model Component
PowrBeast 4700 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
PowrBeast 7700 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
PowrBeast 9700 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
PowrBeast 4700T RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
Impact 1640 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
Impact 540 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
Impact 440 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip
Impact 410 RX‑Pro Airless Spray Gun w/ 517 TR1 Tip

Related parts commonly serviced together

When replacing a spray gun, inspect the hose connections and upstream components.

High‑pressure hose

Check the hose end fitting for wear and the hose for kinks or bulges.

Gun filter (coarse/fine)

The RX‑Pro typically uses a disposable mesh filter – replace if clogged or torn.

Tip guard & seals

Inspect the tip guard and O‑rings for damage when installing the new tip.

Frequently Asked Questions

It is an RX‑Pro airless spray gun complete with a 517 TR1 reversible tip. The gun is compatible with PowrBeast and Impact series sprayers, and the 0.017” tip is ideal for medium‑to‑heavy paints.

“517” indicates a 0.017” orifice size (first two digits: 17 = 0.017”) and a 10‑12” fan width (last digit: 7 = approximately 10‑12” at 12” distance). “TR1” means reversible (Titan Reversible) with a one‑piece design. This tip works well with primers, latex, and acrylics.

The gun uses a standard 1/4” NPSM (or compatible) swivel connection. It will fit most airless sprayers with the same fitting, including many Titan, SprayTech, and Graco models. However, always verify thread compatibility with your existing hose.

Release the trigger, rotate the tip 180° (the arrow points backward), point the gun into a waste bucket, and trigger once to blow the clog out. Then rotate the tip back to the spray position and resume. The reversible feature eliminates the need to remove the tip manually.
