Part #:0509285

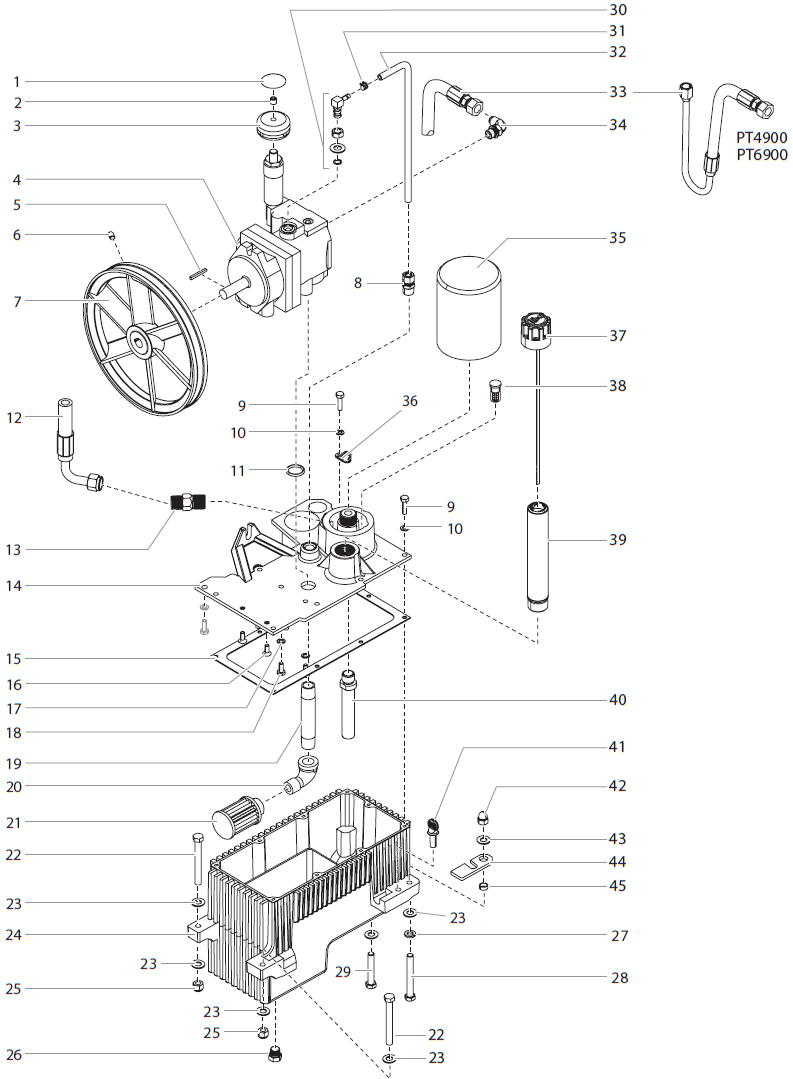

Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001. Fits the following models: PowrLiner 3500, PowrBeast 4700, 4700T, 7700, 9700, PowrTwin Series, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrCoat Series, PowrCoat 630, 730, LineCrew Series, PowrLiner Series, Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001. Fits the fo...PowrTwin Plus 6900 Hydraulic System Parts
-
Titan 313-755 Pressure control Knob deca or Decal
Item No: 1
Part #:313-755
Titan 313-755 Pressure control Knob deca or Decal Fit: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 4950, PowrLiner 4900xlt, PowrTwin 12000xlt, PowrTwin... Titan 313-755 Pressure control Knob deca or Decal Fit: PowrTwin 12000... -
Item No: 2
Part #:862-414
Titan 862-414 Set screw or Screw set, cup pt, 3/8-16x3/8 Fits: PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrLiner 4950, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrTwin 12000xlt DI Titan 862-414 Set screw or Screw set, cup pt, 3/8-16x3/8 Fits: PowrTwi... -
Titan 448-243 Pressure Control Knob
Item No: 3
Part #:448-243
Titan 448-243 Pressure control knob or Knob, adjustment Fits: Hydra M4000, Hydra M2000, Hydra Pro IV Gas Powered Airless Sprayer, Hydra M2000, PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 6000, PowrLiner... Titan 448-243 Pressure control knob or Knob, adjustment Fits: Hydra M4000, ... -
Titan 449-752A Hydraulic Motor
Item No: 4
Part #:449-752A
Titan 449-752A Hydraulic Motor or Pump, hydr high pressure, pkgd *Replaced Part # 449-752* Fits PowrTwin 6900 Plus A hydraulic motor is a mechanical actuator that converts hydraulic pressure and flow into torque and angular displacement (rotation). The hydraulic motor is the rotary counterpart of the hydraulic cylinder as a linear actuator. It is offered by AllTitanParts as an accessory to PowrTwin DI Sprayer Parts. Fits: PowrTwin 6900... Titan 449-752A Hydraulic Motor or Pump, hydr high pressure, pkgd *Replaced Part... -
Item No: 5
Part #:448-494
Titan 448-494 Pump Key,sq,.156sqx1-3/16"lg Titan 448-494 Pump Key,sq,.156sqx1-3/16"lg... -
Item No: 6
Part #:860-520
Titan 860-520 Set Screw or Screw,set, 5/16-18 x 1/2" * Same as 0509777* Titan 860-520 Set Screw or Screw,set, 5/16-18 x 1/2" * Same as 0509777*... -
Item No: 7
Part #:449-195A
Titan 449-195A Pulley or Fan Assembly *Replaced Part # 449-195* and part # 349225 (Includes set screw) Fits: PowrTwin 6900gh 8900gh 12000gh 12000ghd 6900xlt 8900xlt 12000xlt 12000xlt di 4900 PLUS 6900 PLUS Di, PowrLiner 6000 6900 6900xlt 6900xlt-SP 9900xlt 8900 8900xlt 8900xlt-sp 4950 4955, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrBeast 4700,4700T,7700,9700 Titan 449-195A Pulley or Fan Assembly *Replaced Part # 449-195* and part # 3492... -
Item No: 8
Part #:431-042
Titan 431-042 Tube connector Titan 431-042 Tube connector... -
Item No: 9
Part #:858-636
Titan 858-636 Bracket screw, 1/4-20 x 1.0 long Titan 858-636 Bracket screw, 1/4-20 x 1.0 long... -
Item No: 11
Part #:325-031
TITAN 325-031 O-RING-OEM Fits: PowrLiner 3100, Epic 690HPG, Epic 660hpx, Epic 447hpx, PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner... TITAN 325-031 O-RING-OEM Fits: PowrLiner 3100, Epic 690... -
Item No: 12
Part #:448-253
Titan 448-253 Return hose Titan 448-253 Return hose... -
Titan 451-029 Fitting,1/2nptx3/4-16 straight
Item No: 13
Part #:451-029
Titan 451-029 Fitting,1/2nptx3/4-16 straight Titan 451-029 Fitting,1/2nptx3/4-16 straight... -
Item No: 14
Part #:0290770
Titan 0290770 Tank Cover Fits: PowrLiner 4950 and 4955, PowrTwin 4900 and 6900 Plus Titan 0290770 Tank Cover Fits: PowrLiner 4950 and 4955, PowrTwin 49... -
Item No: 15
Part #:449-605
Titan 449-605 Tank Gasket Fits: Fits: Powrtwin plus, Hydra M4000, Hydra M2000, Hydra Pro IV Gas Powered Airless Sprayer, PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrCoat 730, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT... Titan 449-605 Tank Gasket Fits: Fits: Powrtwin plus, Hydra ... -
Item No: 16
Part #:858-621
Titan 858-621 Socket screw, flat head Titan 858-621 Socket screw, flat head... -
Item No: 18
Part #:858-624
TITAN 858-624 or 858624 SCREW,HH, 1/4"-20 X 5/8"-OEM TITAN 858-624 or 858624 SCREW,HH, 1/4"-20 X 5/8"-OEM... -
Item No: 19
Part #:0528171
Titan 0528171 Nipple 1/2" NPT X 4-1/2" LG-OEM Fits: PowrLiner 4950 Titan 0528171 Nipple 1/2" NPT X 4-1/2" LG-OEM Fits: PowrLiner 4950 ... -
Item No: 20
Part #:472-500
Titan 472-500 Street elbow,90deg, 1/2"(f)x1/2"(m) Titan 472-500 Street elbow,90deg, 1/2"(f)x1/2"(m)... -
Titan 448-208 Inlet screen 1/2" 100 mesh
Item No: 21
Part #:448-208
Titan 448-208 Inlet screen 1/2" 100 mesh Titan 448-208 Inlet screen 1/2" 100 mesh... -
Item No: 22
Part #:862-496
Titan 862-496 Hexagonal bolt or Bolt, hex hd, tap,3/8-16x3.25 Titan 862-496 Hexagonal bolt or Bolt, hex hd, tap,3/8-16x3.25... -
Item No: 24
Part #:449-718A
Titan 449-718 Hydraulic tank or Machined tank, pkgd *Replaces part # 449-623* Titan 449-718 Hydraulic tank or Machined tank, pkgd *Replaces part # 449-623* ... -
Item No: 25
Part #:862-410
Titan 862-410 Locknut or Nut,elast.sto, nylon insert Fits: PowrLiner 8900 XLT, PowrLiner 9900XLT, PowrLiner 8900, PowrLiner 8900 XLT SP, PowrLiner 6900, PowrLiner 6900 XLT, PowrLiner 6900 XLT SP, PowrLiner 6000, PowrLiner 4950, PowrLiner 4900xlt, PowrLiner 5000, PowrLiner 4900, PowrLiner 4000 Titan 862-410 Locknut or Nut,elast.sto, nylon insert Fits: PowrLine... -
Titan 449-212 Plug, Tank with O-Ring
Item No: 26
Part #:449-212
Titan 449-212 or 449212 PLUG, TANK W-ORING-OEM Fits: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 4955, PowrLiner 4950, PowrLiner 4900xlt, PowrLiner... Titan 449-212 or 449212 PLUG, TANK W-ORING-OEM Fits: PowrTwin 12000xlt... -
Item No: 27
Part #:0509292
Titan 0509292 Lock Washer replaces Titan 862-002. Fits the following models: PowrLiner Series, PowrLiner 550 850 1800M 2850 3500 4950 and 4955, PowrDrive, Sealed Hydraulic Multifinish Sprayers, AirCoat 423, lcx 130 750 1600 line striper, Line Striper Series, PowrCoat 630 1045, PowrCoat Series, PowrTwin 4900 Plus, PowrTwin 6900 Plus DI, PowrTwin Series, Hydra M2000, PowrBeast 4700 4700T 7700 9700 Titan 0509292 Lock Washer replaces Titan 862-002. Fits the following models... -
Item No: 28
Part #:862-493
Titan 862-493 Hexagonal bolt or Screw,hh, 3/8-16 x 3" Titan 862-493 Hexagonal bolt or Screw,hh, 3/8-16 x 3"... -
Item No: 29
Part #:862-480
Titan 862-480 Hexagonal bolt or Screw,hh, 3/8-16 x 2-1/2" Titan 862-480 Hexagonal bolt or Screw,hh, 3/8-16 x 2-1/2"... -
Item No: 30
Part #:192-228
TITAN 192-228 or 192228 1/4 X 1/4 ELBOW -OEM TITAN 192-228 or 192228 1/4 X 1/4 ELBOW -OEM... -
Item No: 31
Part #:449-126
Titan 449-126 Hose clamp Titan 449-126 Hose clamp... -
Item No: 32
Part #:420-251
Titan 420-251 Case Drain Hose or Tubing, Teflon 1/4" ID X 3/8 Replaced Part # 420-250 Fits: PowrBeast 4700,4700T,7700,9700, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrLiner 4955, PowrLiner 4950 Titan 420-251 Case Drain Hose or Tubing, Teflon 1/4" ID X 3/8 ... -
Titan 0288591 Pressure hose assembly
Item No: 33
Part #:0288591
Titan 0288591 Pressure hose assembly or high pressure hose assembly Includes: O-ring, elbow, motor tube, tee, fitting and pressure hose assembly Fits: PowrTwin 4900 Plus AND PowrTwin 6900 Plus Titan 0288591 Pressure hose assembly or high pressure hose assembly Include... -
Item No: 34
Part #:192-051
Titan 192-051 Elbow ***same as part # 0509396*** (Replaced part # 349487) Titan 192-051 Elbow ***same as part # 0509396*** (Replaced part # 349487) ... -
Titan 451-220 Hydraulic Filter
Item No: 35
Part #:451-220
Titan 451-220 Hydraulic Filter replaces Titan 449-610 and is same as Titan 555469. It fits: PowrTwin 12000xlt, PowrTwin 12000xlt DI, PowrTwin 12000ghd, PowrTwin 12000gh, PowrTwin 8900xlt, PowrTwin 8900gh, PowrTwin 6900xlt, PowrTwin 6900gh, PowrTwin 6900 Plus DI, PowrTwin 4900xlt, PowrTwin 4900gh, PowrTwin 4900 Plus, PowrTwin 3500 50th Anniversary Special, PowrTex 6900 SF 12000 SV... Titan 451-220 Hydraulic Filter replaces Titan 449-610 and is same as Titan 55546... -
Titan 101-205A Ground lug or Lug
Item No: 36
Part #:101-205A
Titan 101-205A Ground lug or Lug, ground, modified Titan 101-205A Ground lug or Lug, ground, modified... -
Titan 449-626 Hydraulic fluid dipstick
Item No: 37
Part #:449-626
Titan 449-626 Hydraulic fluid dipstick or Chrome Dipstick is same as Titan 449626. Suitable for these sprayers: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner... Titan 449-626 Hydraulic fluid dipstick or Chrome Dipstick is same as Titan&... -
Titan 449-609A Hydraulic by-pass
Item No: 38
Part #:449-609A
Titan 449-609A Hydraulic by-pass, pkgd *replaced 449-609* Titan 449-609A Hydraulic by-pass, pkgd *replaced 449-609*... -
Item No: 39
Part #:449-614
Titan 449-614 Tube assembly or Tube assy,filler breather (7.4 Inches Long) Fits: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 4955, PowrLiner 4950, PowrLiner... Titan 449-614 Tube assembly or Tube assy,filler breather (7.4 Inches Long) F... -
Item No: 40
Part #:0528164A
Titan 0528164A down tube, BRASS, PKGD-OEM Titan 0528164A down tube, BRASS, PKGD-OEM ... -
Item No: 41
Part #:862-438
Titan 862-438 Thumb screw Titan 862-438 Thumb screw... -
Item No: 42
Part #:862-402
Titan 862-402 Acorn nut: 3/8-16, high crown Titan 862-402 Acorn nut: 3/8-16, high crown ... -
Titan 449-107 Mounting plate retainer
Item No: 44
Part #:449-107
Titan 449-107 Mounting plate retainer Titan 449-107 Mounting plate retainer... -
Item No: 45
Part #:449-135
TITAN 449-135 or 449135 SPACER-OEM TITAN 449-135 or 449135 SPACER-OEM... -
Item No: 46
Part #:941-555
Titan 941-555 or 941555 Ball Valve is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance,with a 3/8"(fbe), 3000psi. Compatible with: Titan PowrLiner 4955, 8900 XLT, 9900XLT, 8900, 8900 XLT SP, 6900, 6900 XLT, 6900 XLT SP, 6000, 4950, 4900xlt, 5000, 4900, 4000. PowrTex 6900 SF, 12000 SV Texture Sprayers, Titan PowrTwin 12000xlt DI,... Titan 941-555 or 941555 Ball Valve is a genuine OEM part designed to meet t...
