PowrTwin 6900XLT Hydraulic System Parts


313-755
862-414
448-243
860-520
449-195A
448-494
449-752A
431-042
858-636
858-002
325-031
448-253
451-029
858-609
858-621
859-001
858-624
449-605
472-500
448-208
449-212
862-493
862-496
192-228
449-126
448-246
192-051
101-205A
451-220
449-609A
449-626
449-614
862-438
862-402
449-107
449-135
862-480
858-636
858-002
858-002
759-456
0509285
0509292
759-456
0509285
862-493
PowrTwin 6900XLT Hydraulic System Parts
  • Titan 313-755 Pressure control Knob deca or Decal

    Titan 313-755 Pressure control Knob deca or Decal

    Item No: 1

    Part #:313-755

    Titan 313-755 Pressure control Knob deca or Decal Fit: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrLiner 8900 XLT SP,  PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 4950, PowrLiner 4900xlt, PowrTwin 12000xlt, PowrTwin... Titan 313-755 Pressure control Knob deca or Decal Fit: PowrTwin 12000...
    $4.10

  • Titan 0509885 NUT

    Titan 0509885 NUT

    Item No: 2

    Part #:0509885

    0509885 nut or Nut, hex, 5/16-18 replaces part #860-501* Fits the following models: PowrTwin Series, Line Striper Series, PowrLiner Series, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, Line Striper Series, LCX 130 Line Striper, PowrDrive, PowrLiner 4950, PowrLiner 4955, Transfer Pump TT1 0509885 nut or Nut, hex, 5/16-18 replaces part #860-501* Fits the ...
    $1.79

  • Titan 862-414 Set screw

    Titan 862-414 Set screw

    Item No: 2

    Part #:862-414

    Titan 862-414 Set screw or Screw set, cup pt, 3/8-16x3/8 Fits: PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrLiner 4950, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrTwin 12000xlt DI Titan 862-414 Set screw or Screw set, cup pt, 3/8-16x3/8 Fits: PowrTwi...
    $2.14

  • Titan 448-243 Pressure Control Knob

    Titan 448-243 Pressure Control Knob

    Item No: 3

    Part #:448-243

    Titan 448-243 Pressure control knob or Knob, adjustment Fits: Hydra M4000, Hydra M2000, Hydra Pro IV Gas Powered Airless Sprayer, Hydra M2000, PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 6000, PowrLiner... Titan 448-243 Pressure control knob or Knob, adjustment Fits: Hydra M4000, ...
    Retail Price: $84.40
    You save: $12.06  (14%)
    Our Price: $72.34

  • Titan 860-520 Set Screw

    Titan 860-520 Set Screw

    Item No: 4

    Part #:860-520

    Titan 860-520 Set Screw or Screw,set, 5/16-18 x 1/2" * Same as 0509777* Titan 860-520 Set Screw or Screw,set, 5/16-18 x 1/2" * Same as 0509777*...
    $2.02

  • Titan 449-195A Pulley

    Titan 449-195A Pulley

    Item No: 5

    Part #:449-195A

    Titan 449-195A Pulley or Fan Assembly *Replaced Part # 449-195* and part # 349225 (Includes set screw) Fits: PowrTwin 6900gh 8900gh 12000gh 12000ghd 6900xlt 8900xlt 12000xlt 12000xlt di 4900 PLUS 6900 PLUS Di, PowrLiner 6000 6900 6900xlt 6900xlt-SP 9900xlt 8900 8900xlt 8900xlt-sp 4950 4955, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrBeast 4700,4700T,7700,9700 Titan 449-195A Pulley or Fan Assembly *Replaced Part # 449-195* and part # 3492...
    Retail Price: $125.60
    You save: $17.94  (14%)
    Our Price: $107.66

  • Titan 448-494 Pump Key

    Titan 448-494 Pump Key

    Item No: 6

    Part #:448-494

    Titan 448-494 Pump Key,sq,.156sqx1-3/16"lg Titan 448-494 Pump Key,sq,.156sqx1-3/16"lg...
    Retail Price: $25.70
    You save: $3.08  (12%)
    Our Price: $22.62

  • Titan 449-752A Hydraulic Motor

    Titan 449-752A Hydraulic Motor

    Item No: 7

    Part #:449-752A

    Titan 449-752A Hydraulic Motor or Pump, hydr high pressure, pkgd *Replaced Part # 449-752* Fits PowrTwin 6900 Plus A hydraulic motor is a mechanical actuator that converts hydraulic pressure and flow into torque and angular displacement (rotation). The hydraulic motor is the rotary counterpart of the hydraulic cylinder as a linear actuator. It is offered by AllTitanParts as an accessory to PowrTwin DI Sprayer Parts. Fits:  PowrTwin 6900... Titan 449-752A Hydraulic Motor or Pump, hydr high pressure, pkgd *Replaced Part...
    Retail Price: $1,422.90
    You save: $203.27  (14%)
    Our Price: $1,219.63

  • Titan 431-042 Tube connector

    Titan 431-042 Tube connector

    Item No: 8

    Part #:431-042

    Titan 431-042 Tube connector Titan 431-042 Tube connector...
    Retail Price: $32.80
    You save: $4.47  (14%)
    Our Price: $28.33

  • Titan 858-636 Bracket screw

    Titan 858-636 Bracket screw

    Item No: 9

    Part #:858-636

    Titan 858-636 Bracket screw, 1/4-20 x 1.0 long Titan 858-636 Bracket screw, 1/4-20 x 1.0 long...
    $2.14

  • Titan 325-031 O-Ring

    Titan 325-031 O-Ring

    Item No: 11

    Part #:325-031

    TITAN 325-031  O-RING-OEM   Fits: PowrLiner 3100, Epic 690HPG, Epic 660hpx, Epic 447hpx, PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner... TITAN 325-031  O-RING-OEM   Fits: PowrLiner 3100, Epic 690...
    $3.05

  • Titan 448-253 Return hose

    Titan 448-253 Return hose

    Item No: 12

    Part #:448-253

    Titan 448-253 Return hose Titan 448-253 Return hose...
    Retail Price: $113.10
    You save: $16.16  (14%)
    Our Price: $96.94

  • Titan 451-029 Fitting,1/2nptx3/4-16 straight

    Titan 451-029 Fitting,1/2nptx3/4-16 straight

    Item No: 13

    Part #:451-029

    Titan 451-029 Fitting,1/2nptx3/4-16 straight Titan 451-029 Fitting,1/2nptx3/4-16 straight...
    $8.70

  • Titan 858-609 Clinch nut

    Titan 858-609 Clinch nut

    Item No: 15

    Part #:858-609

    Titan 858-609 Clinch nut Titan 858-609 Clinch nut...
    $3.68

  • Titan 858-621 Socket screw

    Titan 858-621 Socket screw

    Item No: 16

    Part #:858-621

    Titan 858-621 Socket screw, flat head Titan 858-621 Socket screw, flat head...
    $2.38

  • Titan 858-624 Screw

    Titan 858-624 Screw

    Item No: 18

    Part #:858-624

    TITAN 858-624 or 858624 SCREW,HH, 1/4"-20 X 5/8"-OEM TITAN 858-624 or 858624 SCREW,HH, 1/4"-20 X 5/8"-OEM...
    $2.38

  • Titan 449-605 Tank Gasket

    Titan 449-605 Tank Gasket

    Item No: 19

    Part #:449-605

    Titan 449-605 Tank Gasket Fits: Fits:  Powrtwin plus, Hydra M4000, Hydra M2000, Hydra Pro IV Gas Powered Airless Sprayer, PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus,  PowrCoat 730,   PowrTex 6900 SF 12000 SV Texture Sprayers, PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT... Titan 449-605 Tank Gasket Fits: Fits:  Powrtwin plus, Hydra ...
    Retail Price: $16.90
    You save: $1.69  (10%)
    Our Price: $15.21

  • Titan 472-500 Elbow, street

    Titan 472-500 Elbow, street

    Item No: 21

    Part #:472-500

    Titan 472-500 Street elbow,90deg, 1/2"(f)x1/2"(m) Titan 472-500 Street elbow,90deg, 1/2"(f)x1/2"(m)...
    Retail Price: $21.00
    You save: $2.10  (10%)
    Our Price: $18.90

  • Titan 448-208 Inlet screen 1/2" 100 mesh

    Titan 448-208 Inlet screen 1/2" 100 mesh

    Item No: 22

    Part #:448-208

    Titan 448-208 Inlet screen 1/2" 100 mesh Titan 448-208 Inlet screen 1/2" 100 mesh ...
    Retail Price: $69.40
    You save: $9.91  (14%)
    Our Price: $59.49

  • Titan 759-456 Locknut

    Titan 759-456 Locknut

    Item No: 24

    Part #:759-456

    Titan 759-456 Locknut, thin, 3/8-16 nylon  Replaced Part # 862-411 & 220-001 Titan 759-456 Locknut, thin, 3/8-16 nylon  Replaced Part # 862-411 &...
    $5.78

  • Titan 0509292 Lock washer

    Titan 0509292 Lock washer

    Item No: 26

    Part #:0509292

    Titan 0509292 Lock Washer replaces Titan 862-002. Fits the following models: PowrLiner Series, PowrLiner 550 850 1800M 2850 3500 4950 and 4955, PowrDrive, Sealed Hydraulic Multifinish Sprayers, AirCoat 423, lcx 130  750 1600 line striper, Line Striper Series, PowrCoat 630 1045, PowrCoat Series, PowrTwin 4900 Plus, PowrTwin 6900 Plus DI, PowrTwin Series, Hydra M2000, PowrBeast 4700 4700T 7700 9700 Titan 0509292 Lock Washer replaces Titan 862-002. Fits the following models...
    $2.02

  • Titan 449-212 Plug, Tank with O-Ring

    Titan 449-212 Plug, Tank with O-Ring

    Item No: 27

    Part #:449-212

    Titan 449-212 or 449212 PLUG, TANK W-ORING-OEM Fits: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 4955, PowrLiner 4950, PowrLiner 4900xlt, PowrLiner... Titan 449-212 or 449212 PLUG, TANK W-ORING-OEM Fits: PowrTwin 12000xlt...
    $12.30

  • Titan 862-493 Hexagonal bolt

    Titan 862-493 Hexagonal bolt

    Item No: 28

    Part #:862-493

    Titan 862-493 Hexagonal bolt or Screw,hh, 3/8-16 x 3" Titan 862-493 Hexagonal bolt or Screw,hh, 3/8-16 x 3"...
    $6.41

  • Titan 862-496 Hexagonal bolt

    Titan 862-496 Hexagonal bolt

    Item No: 29

    Part #:862-496

    Titan 862-496 Hexagonal bolt or Bolt, hex hd, tap,3/8-16x3.25 Titan 862-496 Hexagonal bolt or Bolt, hex hd, tap,3/8-16x3.25...
    $2.14

  • Titan 192-228 Elbow

    Titan 192-228 Elbow

    Item No: 31

    Part #:192-228

    TITAN 192-228 or 192228 1/4 X 1/4 ELBOW -OEM TITAN 192-228 or 192228 1/4 X 1/4 ELBOW -OEM...
    Retail Price: $48.10
    You save: $6.87  (14%)
    Our Price: $41.23

  • Titan 449-126 Hose clamp

    Titan 449-126 Hose clamp

    Item No: 32

    Part #:449-126

    Titan 449-126 Hose clamp Titan 449-126 Hose clamp...
    $9.40

  • Titan 448-246 Pressure hose assembly

    Titan 448-246 Pressure hose assembly

    Item No: 34

    Part #:448-246

    Titan 448-246 Pressure hose assembly or Hydraulic hose assy pressure Fits: Powrtwin 6900 plus DI,  Powrtwin 12000 Plus, Powrtwin 12000XLT Titan 448-246 Pressure hose assembly or Hydraulic hose assy pressure Fits: Po...
    Retail Price: $103.20
    You save: $14.74  (14%)
    Our Price: $88.46

  • Titan 192-051 Elbow

    Titan 192-051 Elbow

    Item No: 35

    Part #:192-051

    Titan 192-051 Elbow ***same as part # 0509396*** (Replaced part # 349487) Titan 192-051 Elbow ***same as part # 0509396*** (Replaced part # 349487) ...
    Retail Price: $20.80
    You save: $2.08  (10%)
    Our Price: $18.72

  • Titan 101-205A Ground lug or Lug

    Titan 101-205A Ground lug or Lug

    Item No: 36

    Part #:101-205A

    Titan 101-205A Ground lug or Lug, ground, modified Titan 101-205A Ground lug or Lug, ground, modified...
    Retail Price: $24.80
    You save: $2.98  (12%)
    Our Price: $21.82

  • Titan 451-220 Hydraulic Filter

    Titan 451-220 Hydraulic Filter

    Item No: 37

    Part #:451-220

    Titan 451-220 Hydraulic Filter replaces Titan 449-610 and is same as Titan 555469. It fits: PowrTwin 12000xlt, PowrTwin 12000xlt DI, PowrTwin 12000ghd, PowrTwin 12000gh, PowrTwin 8900xlt, PowrTwin 8900gh, PowrTwin 6900xlt, PowrTwin 6900gh, PowrTwin 6900 Plus DI, PowrTwin 4900xlt, PowrTwin 4900gh, PowrTwin 4900 Plus, PowrTwin 3500 50th Anniversary Special, PowrTex 6900 SF 12000 SV... Titan 451-220 Hydraulic Filter replaces Titan 449-610 and is same as Titan 55546...
    Retail Price: $72.60
    You save: $10.37  (14%)
    Our Price: $62.23

  • Titan 449-609A Hydraulic by-pass

    Titan 449-609A Hydraulic by-pass

    Item No: 38

    Part #:449-609A

    Titan 449-609A Hydraulic by-pass, pkgd *replaced 449-609* Titan 449-609A Hydraulic by-pass, pkgd *replaced 449-609*...
    Retail Price: $33.00
    You save: $4.50  (14%)
    Our Price: $28.50

  • Titan 449-626 Hydraulic fluid dipstick

    Titan 449-626 Hydraulic fluid dipstick

    Item No: 39

    Part #:449-626

    Titan 449-626 Hydraulic fluid dipstick or Chrome Dipstick is same as Titan 449626. Suitable for these sprayers: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner... Titan 449-626 Hydraulic fluid dipstick or Chrome Dipstick is same as Titan&...
    Retail Price: $62.60
    You save: $8.94  (14%)
    Our Price: $53.66

  • Titan 449-614 Tube Assembly

    Titan 449-614 Tube Assembly

    Item No: 40

    Part #:449-614

    Titan 449-614 Tube assembly or Tube assy,filler breather (7.4 Inches Long) Fits: PowrTwin 12000xlt DI, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrTex 6900 SF 12000 SV Texture Sprayers PowrLiner 8900 XLT SP, PowrLiner 8900 XLT, PowrLiner 8900, PowrLiner 9900XLT, PowrLiner 6900 XLT SP, PowrLiner 6900 XLT, PowrLiner 6900, PowrLiner 4955, PowrLiner 4950, PowrLiner... Titan 449-614 Tube assembly or Tube assy,filler breather (7.4 Inches Long) F...
    Retail Price: $82.10
    You save: $11.73  (14%)
    Our Price: $70.37

  • Titan 862-438 Thumb screw

    Titan 862-438 Thumb screw

    Item No: 41

    Part #:862-438

    Titan 862-438 Thumb screw Titan 862-438 Thumb screw...
    $7.30

  • Titan 862-402 Acorn nut

    Titan 862-402 Acorn nut

    Item No: 42

    Part #:862-402

    Titan 862-402 Acorn nut: 3/8-16, high crown  Titan 862-402 Acorn nut: 3/8-16, high crown ...
    $7.40

  • Titan 449-107 Mounting plate retainer

    Titan 449-107 Mounting plate retainer

    Item No: 43

    Part #:449-107

    Titan 449-107 Mounting plate retainer Titan 449-107 Mounting plate retainer...
    Retail Price: $33.60
    You save: $4.58  (14%)
    Our Price: $29.02

  • Titan 449-135 Spacer

    Titan 449-135 Spacer

    Item No: 44

    Part #:449-135

    TITAN 449-135 or 449135 SPACER-OEM TITAN 449-135 or 449135 SPACER-OEM...
    Retail Price: $41.00
    You save: $5.59  (14%)
    Our Price: $35.41

  • Titan 862-480 Hexagonal bolt

    Titan 862-480 Hexagonal bolt

    Item No: 45

    Part #:862-480

    Titan 862-480 Hexagonal bolt or Screw,hh, 3/8-16 x 2-1/2" Titan 862-480 Hexagonal bolt or Screw,hh, 3/8-16 x 2-1/2"...
    $5.57

  • Titan 451-121 Elbow

    Titan 451-121 Elbow

    Item No: 46

    Part #:451-121

    Titan 451-121 Elbow fits: Titan 8950 (2-Gun) SPEEFLO PowrLiner,Titan 12000XLT DI (459-350) PowrTwin Gas Airless Sprayer,Titan 6900GHD (448-606) PowrTwin Airless Sprayer,Titan 6900XLT (2-Gun) SPEEFLO PowrLiner; also SPEEFLO and Airless machines Titan 451-121 Elbow fits: Titan 8950 (2-Gun) SPEEFLO PowrLiner,Titan 12000X...
    Retail Price: $20.50
    You save: $2.05  (10%)
    Our Price: $18.45

  • Titan 941-555 Ball Valve

    Titan 941-555 Ball Valve

    Item No: 47

    Part #:941-555

    Titan 941-555 or 941555 Ball Valve is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance,with a 3/8"(fbe), 3000psi.   Compatible with: Titan PowrLiner 4955, 8900 XLT, 9900XLT, 8900, 8900 XLT SP, 6900, 6900 XLT, 6900 XLT SP, 6000, 4950, 4900xlt, 5000, 4900, 4000. PowrTex 6900 SF, 12000 SV Texture Sprayers,  Titan PowrTwin 12000xlt DI,... Titan 941-555 or 941555 Ball Valve is a genuine OEM part designed to meet t...
    Retail Price: $134.20
    You save: $19.17  (14%)
    Our Price: $115.03

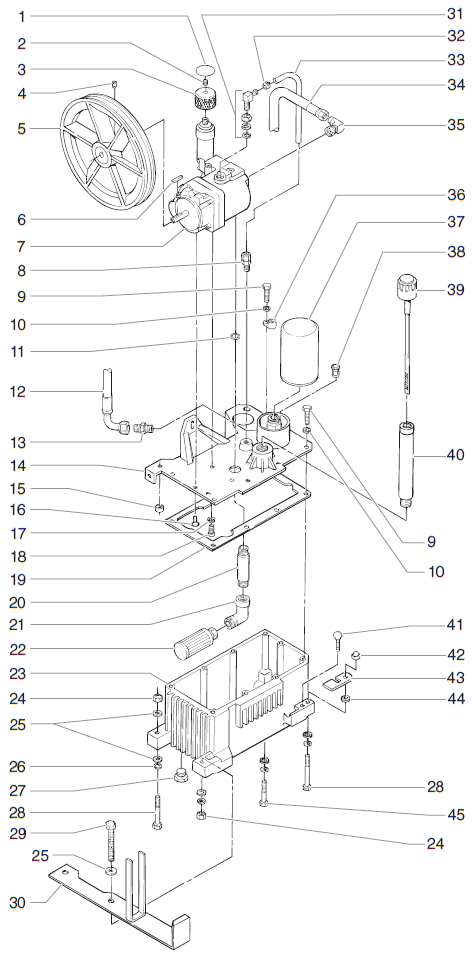

This Category illustrates the PowrTwin 6900XLT Hydraulic System Parts.
