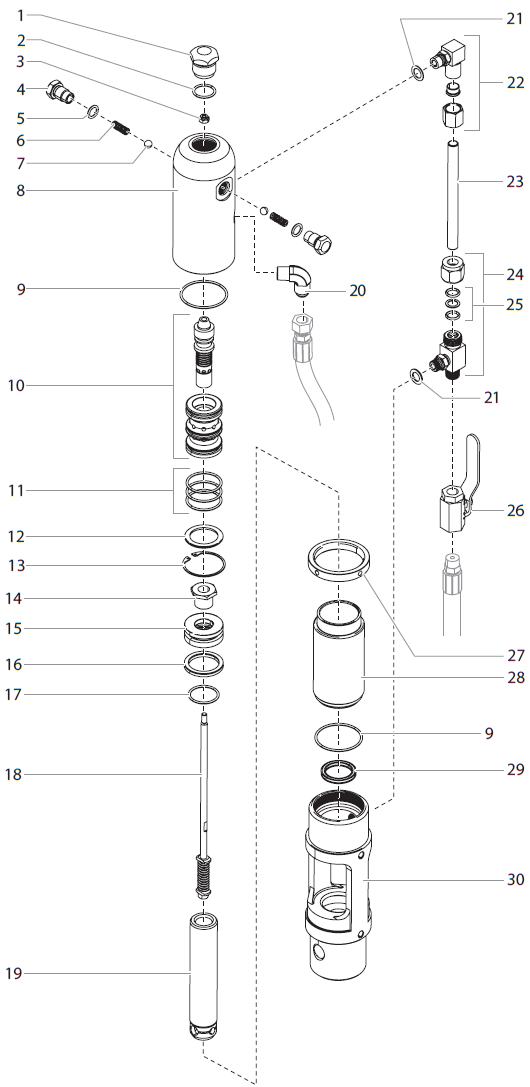

PowrLiner 4950 Hydraulic Motor

PowrLiner 4950 Hydraulic Motor
Titan Speeflo 235-050 Hydraulic Service Motor Kit
Titan Speeflo 235-050 Hydraulic Service Motor Kit

Item No: -

Part #: 235-050

Speeflo part 235-050 is a hydraulic service motor kit containing all necessary components to reb...

Retail Price: $84.10
You save: $6.98 (8.30%)
Our Price: $77.12
QTY:
Titan 235-030 Cylinder Head Plug
Titan 235-030 Cylinder Head Plug

Item No: 1

Part #: 235-030

  Titan part 235-030 is a cylinder head plug designed to seal access ports or threaded opening...

Retail Price: $81.80
You save: $6.79 (8.30%)
Our Price: $75.01
QTY:
Titan 441-217 Synthetic Rubber O-Ring
Titan 441-217 Synthetic Rubber O-Ring

Item No: 2

Part #: 441-217

PowrTwin part 441-217 is a Synthetic rubber O-Ring used to create fluid-tight seals between mating c...

$3.70
QTY:
Titan 858-811 Flex Lock Nut
Titan 858-811 Flex Lock Nut

Item No: 3

Part #: 858-811

PowrTwin part 858-811 is a Flex Lock Nut used to secure threaded fasteners while resisting loosening...

$4.80
QTY:
Titan 235-018 Trip Retainer
Titan 235-018 Trip Retainer

Item No: 4

Part #: 235-018

  Titan part 235-018 is a trip retainer designed to secure or position a mechanical trip...

Retail Price: $38.00
You save: $2.09 (5.50%)
Our Price: $35.91
QTY:
Titan 141-007 O-Ring Synthetic Rubber
Titan 141-007 O-Ring Synthetic Rubber

Item No: 5

Part #: 141-007

  Titan part 141-007 is a synthetic rubber O‑ring used as a fluid seal in sprayer pump...

$2.10
QTY:
Titan 325-005 Trip Spring
Titan 325-005 Trip Spring

Item No: 6

Part #: 325-005

PowrTwin part 325-005 is a Trip Spring used to provide return force or actuation tension within a me...

$6.60
QTY:
Titan 569-016 Ball
Titan 569-016 Ball

Item No: 7

Part #: 569-016

  Hydra / PowrLiner / PowrTex / PowrTwin part 569-016 is a ball designed to function as ...

$6.50
QTY:

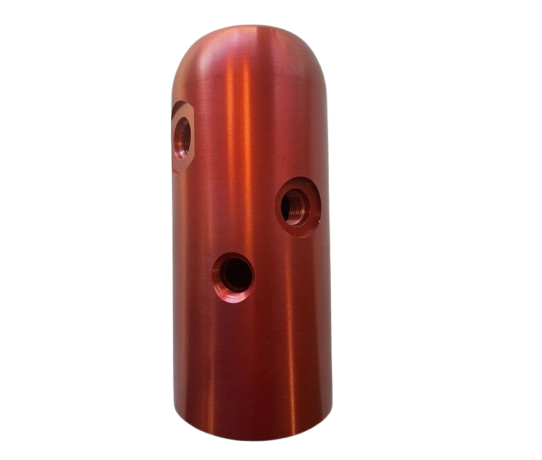

Titan 235-112FZ Cylinder Head Red
Titan 235-112FZ Cylinder Head Red

Item No: 8

Part #: 235-112FZ

  Part number 235-112FZ is a genuine cylinder head (red) used in PowrLiner, PowrTex, and...

Retail Price: $612.60
You save: $89.44 (14.60%)
Our Price: $523.16
QTY:
Titan 431-032 O-Ring
Titan 431-032 O-Ring

Item No: 9

Part #: 431-032

  Titan part 431-032 is a replacement O‑ring used in fluid pump sections, valve assemb...

$7.30
QTY:
Titan 441-908 Spool Valve with Sleeve
Titan 441-908 Spool Valve with Sleeve

Item No: 10

Part #: 441-908

Titan 441-908 Spool Valve with Sleeve is designed for use on various Titan paint sprayers. It is rep...

Retail Price: $839.60
You save: $134.34 (16.00%)
Our Price: $705.26
QTY:
Titan 441-152 Synthetic Rubber O-Ring
Titan 441-152 Synthetic Rubber O-Ring

Item No: 11

Part #: 441-152

PowrTwin part 441-152 is a Synthetic Rubber O-Ring used to create fluid-tight seals between mating c...

$6.70
QTY:
Titan 431-053 Sleeve Retainer
Titan 431-053 Sleeve Retainer

Item No: 12

Part #: 431-053

  Titan part 431-053 is a sleeve retainer designed to secure a sleeve, bushing, or bearing wit...

$28.30
QTY:
Titan 431-054 Retainer Ring or Snap Ring
Titan 431-054 Retainer Ring or Snap Ring

Item No: 13

Part #: 431-054

  PowrBeast / PowrTwin / PowrLiner / PowrTex part 431-054 is a retainer ring or snap rin...

$6.70
QTY:

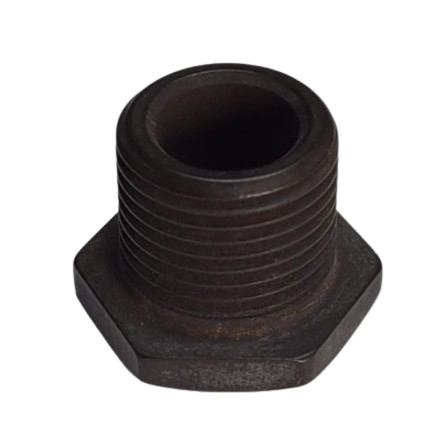

Titan 235-022 Piston Retainer Screw
Titan 235-022 Piston Retainer Screw

Item No: 14

Part #: 235-022

  Titan part 235-022 is a piston retainer screw used to secure the piston assembly withi...

Retail Price: $52.00
You save: $4.32 (8.31%)
Our Price: $47.68
QTY:

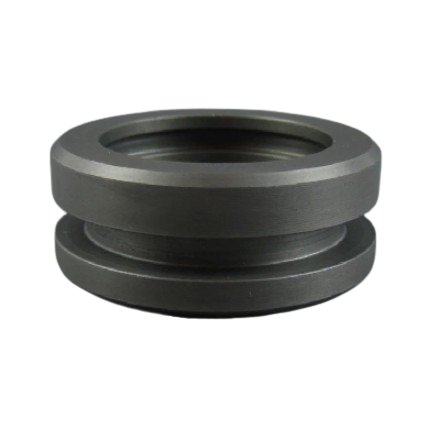

Titan 235-014 Piston
Titan 235-014 Piston

Item No: 15

Part #: 235-014

  Titan part 235-014 is a piston used in the fluid section of compatible PowrLiner, Powr...

Retail Price: $110.40
You save: $11.48 (10.40%)
Our Price: $98.92
QTY:
Titan 235-027 Piston Seal or Seal, Piston
Titan 235-027 Piston Seal or Seal, Piston

Item No: 16

Part #: 235-027

  Titan part 235-027 is a piston seal designed to provide a dynamic seal between the pis...

$29.10
QTY:
Titan 235-026 O-Ring
Titan 235-026 O-Ring

Item No: 17

Part #: 235-026

  Titan part 235-026 is a replacement O‑ring designed for fluid or air sealing applica...

$5.70
QTY:
Titan 235-021A Valve Rod Assembly
Titan 235-021A Valve Rod Assembly

Item No: 18

Part #: 235-021A

Part 235-021A is a replacement valve rod assembly used in hydraulic systems on compatible PowrLi...

Retail Price: $110.20
You save: $11.46 (10.40%)
Our Price: $98.74
QTY:

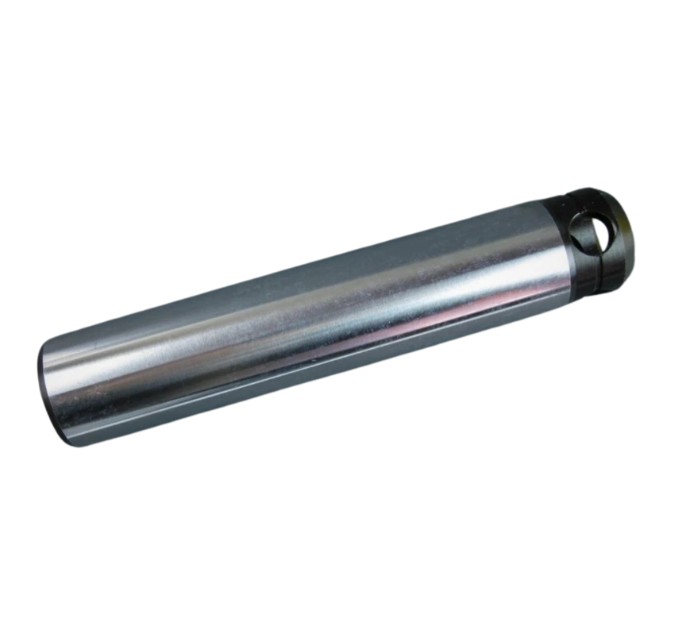

Titan 235-948 Piston Rod
Titan 235-948 Piston Rod

Item No: 19

Part #: 235-948

Part 235-948 is a replacement piston rod used in hydraulic systems on compatible PowrTwin, PowrT...

Retail Price: $309.30
You save: $45.16 (14.60%)
Our Price: $264.14
QTY:
Titan 451-121 Elbow
Titan 451-121 Elbow

Item No: 20

Part #: 451-121

PowrTwin part 451-121 is an Elbow used to redirect fluid flow at critical junctions within the pump ...

$24.10
QTY:
Titan/Speeflo 700-499 O-ring
Titan/Speeflo 700-499 O-ring

Item No: 21

Part #: 700-499

Part number 700-499 is an O-ring used to create a leak-proof seal between components in compatib...

$3.20
QTY:

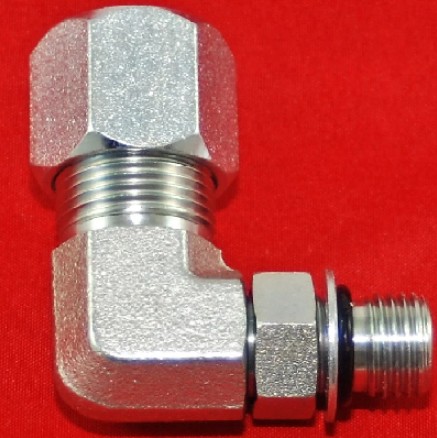

Titan 192-000 Hydraulic Elbow
Titan 192-000 Hydraulic Elbow

Item No: 22

Part #: 192-000

  PowrLiner / PowrTwin / PowrTex part 192-000 is a hydraulic elbow designed to change th...

Retail Price: $35.40
You save: $0.71 (2.01%)
Our Price: $34.69
QTY:
Titan 235-029 Motor Tube
Titan 235-029 Motor Tube

Item No: 23

Part #: 235-029

Part 235-029 is a replacement motor tube used in hydraulic systems on compatible PowrLiner, Powr...

Retail Price: $54.80
You save: $4.55 (8.30%)
Our Price: $50.25
QTY:
Titan 235-125 Tee Fitting
Titan 235-125 Tee Fitting

Item No: 24

Part #: 235-125

  Titan part 235-125 is a tee fitting designed to split or combine fluid flow in hydraulic, co...

Retail Price: $134.60
You save: $14 (10.40%)
Our Price: $120.60
QTY:
Titan 431-019A O-Ring/Backup Ring Set
Titan 431-019A O-Ring/Backup Ring Set

Item No: 25

Part #: 431-019A

  Titan 431-019A O-Ring/Backup Ring Set is a reliable and easy to fit O-ring, it replaces Titan...

$10.50
QTY:
Titan 941-555 Ball Valve
Titan 941-555 Ball Valve

Item No: 26

Part #: 941-555

Part 941-555 is a replacement ball valve for a wide range of compatible spray equipment. This va...

Retail Price: $157.90
You save: $19.74 (12.50%)
Our Price: $138.16
QTY:
Titan 235-001 Lock Ring
Titan 235-001 Lock Ring

Item No: 27

Part #: 235-001

  Titan part 235-001 is a lock ring used to secure components such as packings, seals, o...

Retail Price: $60.70
You save: $5.04 (8.30%)
Our Price: $55.66
QTY:
Titan 235-007 Hydraulic Cylinder
Titan 235-007 Hydraulic Cylinder

Item No: 28

Part #: 235-007

Part 235-007 is a replacement hydraulic cylinder used in the drive system of compatible PowrLine...

Retail Price: $371.50
You save: $54.24 (14.60%)
Our Price: $317.26
QTY:
Titan 235-028 Rod Seal
Titan 235-028 Rod Seal

Item No: 29

Part #: 235-028

  Titan part 235-028 is a rod seal designed to provide a dynamic seal around a reciproca...

Retail Price: $34.70
You save: $1.91 (5.50%)
Our Price: $32.79
QTY:
Titan 235-123 Motor/Pump Block
Titan 235-123 Motor/Pump Block

Item No: 30

Part #: 235-123

  PowrLiner / PowrTwin part 235-123 is a motor/pump block designed to house and align th...

Retail Price: $461.90
You save: $67.44 (14.60%)
Our Price: $394.46
QTY:

Titan PowrLiner 4950 Hydraulic Motor Parts

The Hydraulic Motor for the Titan PowrLiner 4950 converts hydraulic pressure into mechanical motion to drive the fluid section. Reliable hydraulic motor performance is essential for maintaining steady spray pressure and consistent striping results across demanding pavement marking projects.

Fits Titan PowrLiner 4950
System Hydraulic Drive Assembly
Used On Pavement striping, parking lots, municipal roadwork, athletic fields
Function Drives the high-pressure fluid section
Hydraulic Motor Components May Include:
  • Motor Housing
  • Drive Shaft
  • Internal Gear Components
  • Seals & O-Rings
  • Mounting Flange
  • Hydraulic Ports
  • Coupling Components
  • Fasteners
  • Service Kits
  • Pressure Fittings

Product Overview

The Titan PowrLiner 4950 Hydraulic Motor plays a critical role in powering the fluid section. By converting hydraulic energy into mechanical movement, it ensures consistent pump cycling and stable spray pressure during professional striping operations.

Because hydraulic motors operate under continuous pressure and load, regular inspection of seals, fittings, and mounting hardware helps maintain system reliability and reduce unexpected downtime.

Why the Hydraulic Motor Is Important

  • Maintains steady pump operation
  • Supports consistent spray pressure
  • Reduces pressure fluctuations
  • Enhances striping accuracy
  • Protects overall hydraulic system integrity

Signs Hydraulic Motor Service May Be Needed

  • Loss of spray pressure
  • Hydraulic fluid leaks
  • Unusual noise during operation
  • Erratic pump cycling
  • Overheating

Compatibility

Machine Model Drive Configuration
Titan PowrLiner 4950 Hydraulic Drive Model

Frequently Asked Questions

It powers the fluid section by converting hydraulic pressure into mechanical movement.

Yes. These components correspond to the Titan PowrLiner 4950 configuration.

Yes. Damaged seals can allow hydraulic fluid leakage and pressure loss.

Yes. Inconsistent motor performance can lead to pressure instability and uneven lines.

Yes. The hydraulic motor is a core component within the PowrLiner 4950 hydraulic drive system.
