PowrLiner 4000 - 930 Outlet Manifold Filter Assembly with Check Valve Parts

Titan PowrLiner 4000 – 930 Outlet Manifold Filter Assembly with Check Valve Parts

The 930 Outlet Manifold Filter Assembly with Check Valve is designed for the Titan PowrLiner 4000 and plays a key role in filtration and pressure control within the fluid delivery system. This assembly fits the Titan PowrLiner 4000 gas-powered configuration used as a professional Field & Pavement Marking Sprayer for parking lots, roadways, athletic fields, and industrial floor marking applications.

In a professional Titan sprayer, the outlet manifold and filter system help maintain clean material flow while supporting consistent spray pressure. Proper filtration reduces the risk of tip clogs and helps protect downstream components.

Function of the 930 Outlet Manifold Filter Assembly

Installed on the pressure side of the Titan paint sprayer. PowrLiner 4000 model, the outlet manifold directs pressurized coating material from the fluid pump toward the spray hose. The integrated filter element captures debris before it reaches the spray tip, while the check valve helps regulate material flow and reduce backflow within the system.

This combination supports:

• Cleaner spray output
• Improved tip protection
• More stable pressure control
• Reduced risk of clogging during striping

Designed for Titan PowrLiner 4000 Applications

The Titan PowrLiner series is engineered for dependable performance in demanding striping environments. The PowrLiner 4000 is commonly used for:

• Parking lot line striping
• Municipal and roadway marking
• Athletic field layouts
• Warehouse and industrial floor striping

Because striping materials can contain solids and heavy pigments, the outlet manifold filter assembly is an important component in maintaining smooth operation of your Field & Pavement Marking Sprayer.

When to Service or Replace the Assembly

• Frequent spray tip clogging
• Inconsistent spray pattern
• Restricted material flow
• Leakage around the manifold or fittings

Routine inspection of the filter element and check valve components helps reduce downtime and maintain proper system performance.

Model-Specific Fitment

The 930 Outlet Manifold Filter Assembly with Check Valve is configured specifically for the Titan PowrLiner 4000. Always confirm your model and serial information before ordering to ensure compatibility.

If you are maintaining your Titan PowrLiner 4000, you are in the right place. Visit AllTitanParts.com for detailed diagrams and parts support for Titan paint sprayer equipment.

Keeping your filtration and outlet manifold components in proper working condition helps ensure consistent striping performance and dependable operation from your Titan sprayer.

FAQs

1. What is the function of the Titan 930-937A Filter Cap Assembly?

   Filter Cap Assembly securely seals the filter, preventing leaks and maintaining proper pressure within the manifold system.

2. How does the Titan 930-920 Filter Body support performance?

   The filter body houses the filtration components and provides structural stability for smooth fluid flow.

3. Why is the Titan 180-909 Tungsten Carbide Seat important?

   The seat provides a durable surface for the check valve, ensuring leak-free operation and long-lasting performance.

4. What role does the Titan 930-020 Compression Spring play?

   The spring compression ensures the check valve operates correctly, maintaining consistent fluid pressure and flow.

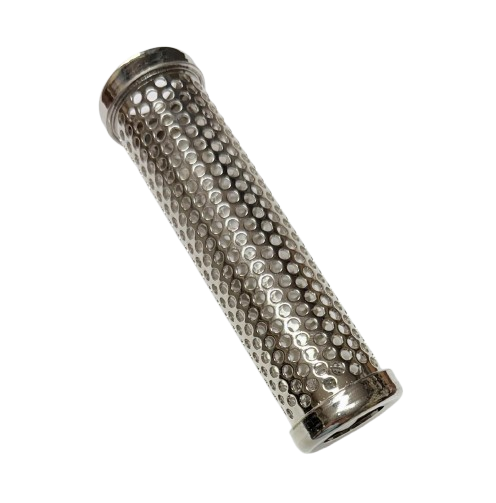

5. How can a clogged Titan 930-005 Manifold Filter affect spray quality?

   Debris in the filter can reduce flow, cause pressure fluctuations, and lead to inconsistent line striping, so regular inspection and cleaning or replacement is essential.
