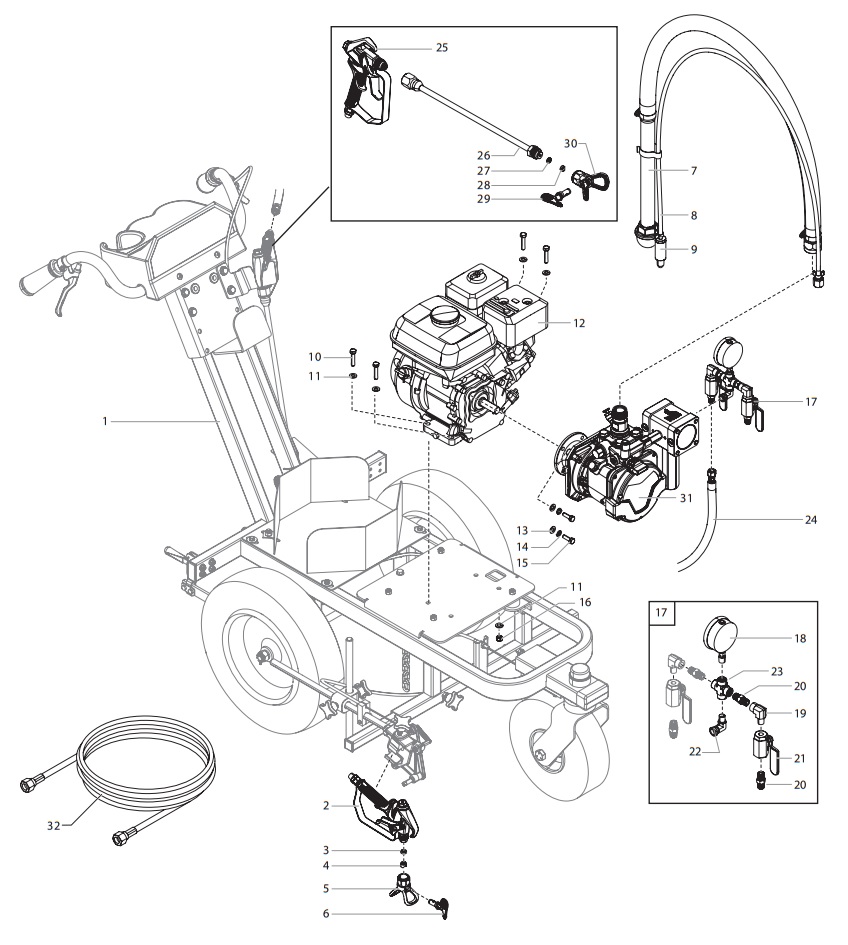

PowrLiner 3500S Main Assembly Parts


2416256A
0538014
651-020
0297007
0289122
2408355
2410679
2424122
860-552
756-088
756-088
980-332
860-002
0509538
9811122
2416321A
0508626
810-555
9885661
940-553
2410651
2416327
2408659
0538014
651-072
651-020
0297007
2416321A
2360739A
2360739A
9885661
756-088
0289228
697-419
PowrLiner 3500S Main Assembly Parts
  • Titan 2416256A Cart Assembly

    Titan 2416256A Cart Assembly

    Item No: 1

    Part #:2416256A

    Titan 2416256A Cart Assembly, Packaged for PowrLiner 3500s Titan 2416256A Cart Assembly, Packaged for PowrLiner 3500s ...
    Retail Price: $4,384.80
    You save: $657.72  (15%)
    Our Price: $3,727.08

  • Titan 0538014 Gun Assembly

    Titan 0538014 Gun Assembly

    Item No: 2, 25

    Part #:0538014

    Titan 0538014 Gun Assembly  2 Finger Spray Gun (No Tip) - 0538014 Comfort Grip™ - Ergonomic design brings added comfort Longer Life Packing Kit - Lasts longer with improved performance Onboard Tools - Built-in Filter Removal Tool making the jobsite life easier One-Touch Trigger Lock Offered in a 2 -finger trigger model The Titan RX-80 phased out the LX-80 in favor of a more comfortable, egronomic grip and longer packing kit... Titan 0538014 Gun Assembly  2 Finger Spray Gun (No Tip) - 0538014 Comfo...
    Retail Price: $200.00
    You save: $34.76  (17%)
    Our Price: $165.24

  • Titan 651-020 Tip Seal

    Titan 651-020 Tip Seal

    Item No: 3, 27

    Part #:651-020

    Titan 651-020 Gasket seal or Tip Seal SC6 (white) provides a tight seal for the tip. It is a high quality tip seal made from durable rubber material, always check for cracks requiring replacement.  This gasket seal fits these set of machines SGX-20 Airless Spray Gun, PowrLiner 850, PowrLiner 800, PowrLiner 550, lx-80 platinum, lx-80 II, s-5, s-5, s-7, s-3,lx-75, s-3, PowrLiner... Titan 651-020 Gasket seal or Tip Seal SC6 (white) provides a tigh...
    $3.78

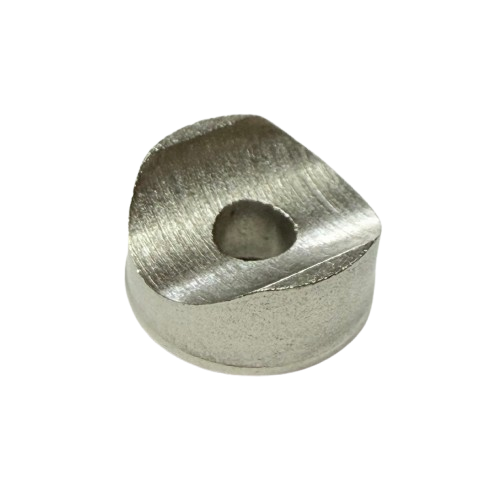

  • Titan 0297007 Tip Seal

    Titan 0297007 Tip Seal

    Item No: 4, 28

    Part #:0297007

    Titan 0297007 Tip Seal is same as Titan 651-040 and it is made of a rubber seal and a metal saddle. Fits: G-10 High Capacity Spray Gun, G-10 High Pressure Spray Gun with TR2 Spray Tip, LX-65 Spray Gun, RX-Pro Airless Spray Gun, RX-80 Airless Spray Gun,    Titan 0297007 Tip Seal is same as Titan 651-040 and it is made of a rubber seal ...
    $3.68

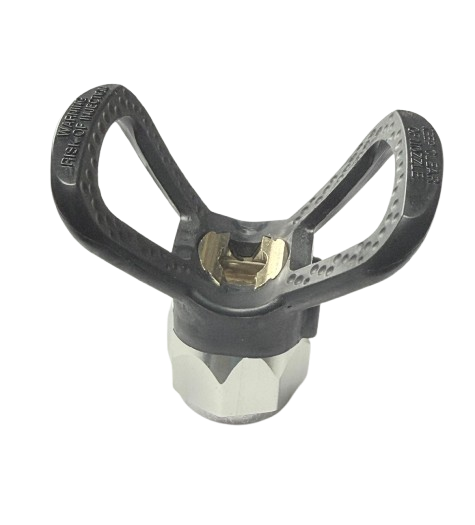

  • Titan 0289122 Tip Guard Assembly

    Titan 0289122 Tip Guard Assembly

    Item No: 5

    Part #:0289122

    Titan 0289122 Tip Guard Assembly or Guard, tip, tr-1, titan gthd Fits: PowrLiner 3500 Titan 0289122 Tip Guard Assembly or Guard, tip, tr-1, titan gthd Fits:...
    Retail Price: $43.60
    You save: $6.23  (14%)
    Our Price: $37.37

  • Titan 697-419 TR1 419 Line Striping Tip

    Titan 697-419 TR1 419 Line Striping Tip

    Item No: 6

    Part #:697-419

    Titan 697-419 TR1 419 4" fan, 0.019" orifice is a genuine OEM. This Line Striping tip is designed specifically for Line Striping professionals who need a very accurate fan width that stays accurate for the life of the tip. it one of the most durable tips in the market. Compatible with: PowrLiner 3500, PowrLiner 4955 Titan 697-419 TR1 419 4" fan, 0.019" orifice is a genuine OEM. Th...
    Retail Price: $38.00
    You save: $5.00  (13%)
    Our Price: $33.00

  • Titan 2408355 Suction tube Assembly

    Titan 2408355 Suction tube Assembly

    Item No: 7

    Part #:2408355

    Titan 2408355 Suction tube Assembly  Fits: PowrLiner 4500 Titan 2408355 Suction tube Assembly  Fits: PowrLiner 4500 ...
    Retail Price: $250.00
    You save: $35.71  (14%)
    Our Price: $214.29

  • Titan 2410679 Bleed hose assembly

    Titan 2410679 Bleed hose assembly

    Item No: 8

    Part #:2410679

    Titan 2410679 Bleed hose assembly Fits: Powrliner 3500 and Powrliner 4500 Titan 2410679 Bleed hose assembly Fits: Powrliner 3500 and Powrliner 450...
    Retail Price: $95.88
    You save: $13.70  (14%)
    Our Price: $82.18

  • Titan 2424122 Diffuser assembly PL3500/4500

    Titan 2424122 Diffuser assembly PL3500/4500

    Item No: 9

    Part #:2424122

    Titan 2424122 Diffuser assembly PL3500/4500 Titan 2424122 Diffuser assembly PL3500/4500 ...
    Retail Price: $54.90
    You save: $7.84  (14%)
    Our Price: $47.06

  • Titan 860-552 Screw

    Titan 860-552 Screw

    Item No: 10

    Part #:860-552

    TITAN 860-552 or 860552 SCREW,HH, 5/16-18 X 1-1/2"-OEM TITAN 860-552 or 860552 SCREW,HH, 5/16-18 X 1-1/2"-OEM...
    $2.14

  • Titan 756-088 Washer, sae flat 5/16

    Titan 756-088 Washer, sae flat 5/16

    Item No: 11, 13

    Part #:756-088

    Titan Washer, sae flat 5/16 756-088 Titan Washer, sae flat 5/16 756-088...
    $3.47

  • Titan 980-332A Honda Gas engine, 4.0 Hp

    Titan 980-332A Honda Gas engine, 4.0 Hp

    Item No: 12

    Part #:980-332A

    Titan 980-332A Honda Gas engine, 4.0 Hp, pkgd *Replaced Part # 980-332* Titan 980-332A Honda Gas engine, 4.0 Hp, pkgd *Replaced Part # 980-332*...
    Retail Price: $2,564.20
    You save: $366.31  (14%)
    Our Price: $2,197.89

  • Titan 860-002 Lock washer

    Titan 860-002 Lock washer

    Item No: 14

    Part #:860-002

    Titan 860-002 Washer or Washer, lock, split, 5/16 Fits the following models: Impact 1040 Titan 860-002 Washer or Washer, lock, split, 5/16 Fits the following models: I...
    $2.62

  • Titan 0509538 Screw

    Titan 0509538 Screw

    Item No: 15

    Part #:0509538

    Titan 0509538 Screw ,5/16-24X1 HEX HD CAP-OEM Titan 0509538 Screw ,5/16-24X1 HEX HD CAP-OEM ...
    $2.14

  • Titan 9811122 Nut

    Titan 9811122 Nut

    Item No: 16

    Part #:9811122

      Titan 9811122 Stop Nut, LC800 or Nut 5/16-18,nylock Same as Titan 860-502. Fits the following models: Elite Series Sprayers, Powrliner 3500, Elite 3500, Spraytech Electric Airless Sprayers and ED655 Plus Airless Pump and Diaphragm Pump   Titan 9811122 Stop Nut, LC800 or Nut 5/16-18,nylock Same as Titan 860-50...
    $0.14

  • Titan 2416321A Cross assembly packaged

    Titan 2416321A Cross assembly packaged

    Item No: 17

    Part #:2416321A

    Titan 2416321A Cross assembly packaged Titan 2416321A Cross assembly packaged ...
    Retail Price: $398.10
    You save: $56.87  (14%)
    Our Price: $341.23

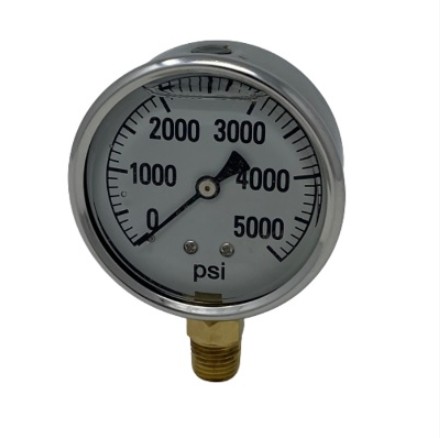

  • Titan 0508626 Guage 35MPA/5000 PSI

    Titan 0508626 Guage 35MPA/5000 PSI

    Item No: 18

    Part #:0508626

    Titan 0508626 Guage 35MPA/5000 PSI 1/4" NPT. Gauge only reads in PSI. 5000psi Max pressure.  Air bubble is supposed to be present in gauge.  Titan 0508626 Guage 35MPA/5000 PSI 1/4" NPT. Gauge only reads in PSI. 5000...
    Retail Price: $83.60
    You save: $11.94  (14%)
    Our Price: $71.66

  • Titan 810-555 Elbow

    Titan 810-555 Elbow

    Item No: 19

    Part #:810-555

    Titan 810-555 Elbow / 810-555 or 810555 90DEG, 1/4"(F)X1/4"(M)-OEM Titan 810-555 Elbow / 810-555 or 810555 90DEG, 1/4"(F)X1/4"(M)-OEM...
    Retail Price: $14.40
    You save: $1.44  (10%)
    Our Price: $12.96

  • Titan 9885661 Fitting, 1/4NPTF X 1/4NPTF

    Titan 9885661 Fitting, 1/4NPTF X 1/4NPTF

    Item No: 20

    Part #:9885661

    Titan 9885661 Fitting, 1/4NPTF X 1/4NPTF Titan 9885661 Fitting, 1/4NPTF X 1/4NPTF ...
    $3.80

  • Titan 940-553 Valve Ball

    Titan 940-553 Valve Ball

    Item No: 21

    Part #:940-553

    Titan 940-553 Valve Ball, 1/4(fbe)3000psi or GUIDE Titan 940-553 Valve Ball, 1/4(fbe)3000psi or GUIDE...
    Retail Price: $117.30
    You save: $16.76  (14%)
    Our Price: $100.54

  • Titan 2410651 Swivel Fitting

    Titan 2410651 Swivel Fitting

    Item No: 22

    Part #:2410651

    Titan 2410651 Swivel Fitting 90 degree 1/4NPT (M) AND (F) Titan 2410651 Swivel Fitting 90 degree 1/4NPT (M) AND (F) ...
    Retail Price: $51.90
    You save: $15.57  (30%)
    Our Price: $36.33

  • Titan 2416327 Cross Fitting

    Titan 2416327 Cross Fitting

    Item No: 23

    Part #:2416327

    Titan 2416327 Cross Fitting, Female 1/4 NPT Titan 2416327 Cross Fitting, Female 1/4 NPT ...
    $14.90

  • Titan 2408659 hose 12ft

    Titan 2408659 hose 12ft

    Item No: 24

    Part #:2408659

    Titan 2408659 hose 12ft Titan 2408659 hose 12ft...
    Retail Price: $57.00
    You save: $8.14  (14%)
    Our Price: $48.86

  • Titan 651-072 Tip Extension 18 Inches

    Titan 651-072 Tip Extension 18 Inches

    Item No: 26

    Part #:651-072

    Titan 651-072 Tip Extension 18 Inches aluminum /Replaced part # 0516741 Fits the following models: Advantage GPX 33, Elite 3500, Impact 340, Impact 400, Impact 410, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040, Impact 1040T, Impact 1140, Impact 1640 Titan 651-072 Tip Extension 18 Inches aluminum /Replaced part # 0516741 ...
    Retail Price: $46.00
    You save: $6.67  (15%)
    Our Price: $39.33

  • Titan 0289228 Tip Guard, G-THREAD

    Titan 0289228 Tip Guard, G-THREAD

    Item No: 29

    Part #:0289228

    Titan 0289228 Tip Guard, G-THREAD is a high qaulity easy to install  Pkgd 7/8'' guard it replaces Titan 661-012.   The Aerodynamic dimple design of the tip guard allows for better airflow and less paint build up. Seal cavity on safety guard has large “flats” for quick and easy installation of seal,  pressure rated at 5000 PSI (34.5 MPa).   Rotate guard without loosening from gun. No tools needed for... Titan 0289228 Tip Guard, G-THREAD is a high qaulity easy to install  Pkgd 7...
    Retail Price: $29.00
    You save: $4.00  (14%)
    Our Price: $25.00

  • Titan 695-517 TR1 517 Reversible Tip

    Titan 695-517 TR1 517 Reversible Tip

    Item No: 30

    Part #:695-517

    Titan 695-517 TR1 517 Reversible Tip Titan 695-517 TR1 517 Reversible Tip ...
    Retail Price: $33.00
    You save: $4.50  (14%)
    Our Price: $28.50

  • Titan 2360739A Pump Assembly

    Titan 2360739A Pump Assembly

    Item No: 31

    Part #:2360739A

    Titan 2360739A Pump Assembly Titan 2360739A Pump Assembly ...
    Retail Price: $2,500.00
    You save: $357.14  (14%)
    Our Price: $2,142.86

  • Titan 2417491 Front Cover Label

    Titan 2417491 Front Cover Label

    Part #:2417491

    Titan 2417491 Front Cover Label Titan 2417491 Front Cover Label ...
    $19.70

  • Titan 0537727 Relife valve label

    Titan 0537727 Relife valve label

    Part #:0537727

    Titan 0537727 Relife valve label Titan 0537727 Relife valve label ...
    $3.17

  • Titan 2418165 Conversion Kit

    Titan 2418165 Conversion Kit

    Part #:2418165

    Titan 2418165 Conversion Kit  for PL3500s Titan 2418165 Conversion Kit  for PL3500s ...
    Retail Price: $731.50
    You save: $128.43  (18%)
    Our Price: $603.07

This Category illustrates the PowrLiner 3500S Main Assembly Parts.
