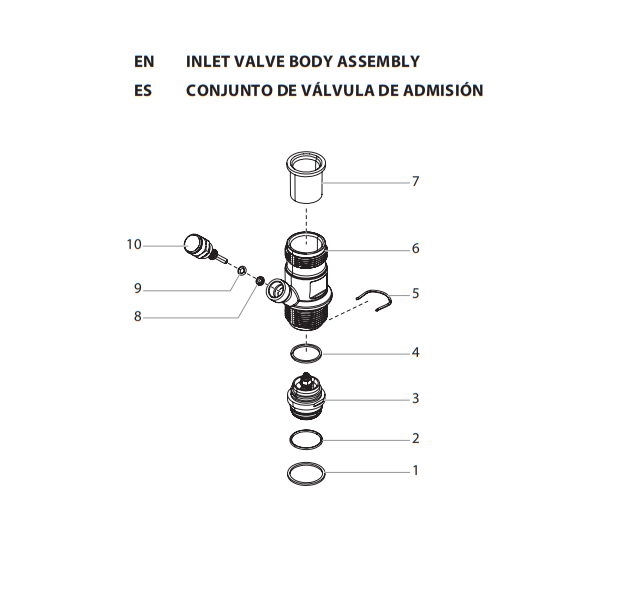

Titan PowerLiner 4500 Inlet Valve Body Assembly Parts

Titan PowerLiner 4500 Inlet Valve Body Assembly Parts
Titan 341330 Sealing Ring
Titan 341330 Sealing Ring

Item No: 1

Part #: 341330

  Titan part 341330 is a replacement sealing ring used to prevent fluid leakage between ...

$2.10
QTY:
Titan 9974028 O-Ring
Titan 9974028 O-Ring

Item No: 2

Part #: 9974028

SprayTech part 9974028 is an o-ring used to create a fluid-tight seal between mating surfaces on com...

$3.70
QTY:
Titan 2411377 Inlet Valve Assembly Gsh-33
Titan 2411377 Inlet Valve Assembly Gsh-33

Item No: 3

Part #: 2411377

  Titan part 2411377 is a GSH‑33 inlet valve assembly used to control material flow in...

Retail Price: $206.50
You save: $28.7 (13.90%)
Our Price: $177.80
QTY:
Titan 2369458 Seal (Replaces Titan 341331)
Titan 2369458 Seal (Replaces Titan 341331)

Item No: 4

Part #: 2369458

html   2369458 Seal (Replaces Titan 341331) is a genuine OEM replacement seal for Titan...

$2.10
QTY:
Titan 341336 Clip
Titan 341336 Clip

Item No: 5

Part #: 341336

  Titan part 341336 is a clip used to secure hoses, cables, or panels on compatible PowrLi...

$4.90
QTY:
Titan 2334383 Inlet Housing
Titan 2334383 Inlet Housing

Item No: 6

Part #: 2334383

  Titan part 2334383 is an inlet housing designed for use on compatible PowrLiner and El...

Retail Price: $33.20
You save: $1.83 (5.51%)
Our Price: $31.37
QTY:
Titan 0340339 Inlet (replaces Titan 2369454)
Titan 0340339 Inlet (replaces Titan 2369454)

Item No: 7

Part #: 0340339

Titan 0340339 Inlet replaces Titan 2369454, it is designed to fit snugly inside the inlet housing o...

$16.50
QTY:
Titan 341316 Wiper
Titan 341316 Wiper

Item No: 8

Part #: 341316

  Titan part 341316 is a wiper designed for use in the fluid section of compatible PowrL...

$4.90
QTY:
Titan 9971486 O-Ring
Titan 9971486 O-Ring

Item No: 9

Part #: 9971486

  Titan part 9971486 is a replacement O‑ring used to create a fluid‑tight seal betwe...

Retail Price: $33.20
You save: $1.83 (5.51%)
Our Price: $31.37
QTY:
Titan 2369452 Inlet Valve Pusher (Replaces Titan 2337033)
Titan 2369452 Inlet Valve Pusher (Replaces Titan 2337033)

Item No: 10

Part #: 2369452

  Part 2369452 is an inlet valve pusher used in the pump fluid section of compatible Pow...

Retail Price: $40.50
You save: $3.08 (7.60%)
Our Price: $37.42
QTY:

Titan PowrLiner 4500 Inlet Valve Body Assembly Parts

The Inlet Valve Body Assembly for the Titan PowrLiner 4500 is a critical component of the fluid section that controls material intake into the pump. It allows proper suction during the priming and spray cycle while preventing reverse flow that can cause pressure loss and inconsistent striping performance.

Fits Titan PowrLiner 4500
Used On Pavement striping, parking lots, road markings, athletic fields
System Location Fluid section – pump inlet stage
Function Controls material entry into pump and maintains proper prime
Assembly Components Include:
  • Inlet Valve Body
  • Valve Seat
  • Ball
  • Retainer
  • Spring (if applicable)
  • O-Rings and Seals
  • Threaded Housing
  • Mounting Hardware

Product Overview

The Titan PowrLiner 4500 Inlet Valve Body Assembly is responsible for drawing striping material into the pump chamber during each stroke cycle. Installed at the lower portion of the fluid section, this assembly ensures proper priming and consistent suction when spraying pavement or athletic field lines.

Because the inlet valve operates under repeated high-pressure cycling, internal components such as the seat and ball must remain in good condition to maintain stable pressure and prevent performance issues.

Why the Inlet Valve Assembly Is Important

  • Maintains consistent suction during priming
  • Prevents pressure loss from backflow
  • Supports smooth, uninterrupted striping
  • Protects the pump from cavitation-related wear
  • Helps extend fluid section service life

Signs the Inlet Valve Needs Service

  • Difficulty priming the machine
  • Pressure drop during operation
  • Surging spray output
  • Material leaking near the lower pump area
  • Visible wear on seat or ball components

Compatibility

Machine Model Application Type
Titan PowrLiner 4500 Pavement and athletic field line striping

Frequently Asked Questions

It controls the intake of coating material into the pump chamber and helps maintain proper prime during operation.

Abrasive striping materials and continuous high-pressure cycling can gradually wear the valve seat and ball.

Yes. Worn components can cause suction loss, poor priming, and inconsistent spray pressure.

Yes. This inlet valve body assembly configuration is designed for the Titan PowrLiner 4500 striping machine.

It is located at the lower portion of the fluid section and is responsible for drawing material into the pump during each stroke.
