LineCrew 1600 Main Assembly


0509285
0509627
0509521
0509727
0507387
0509173
0509297

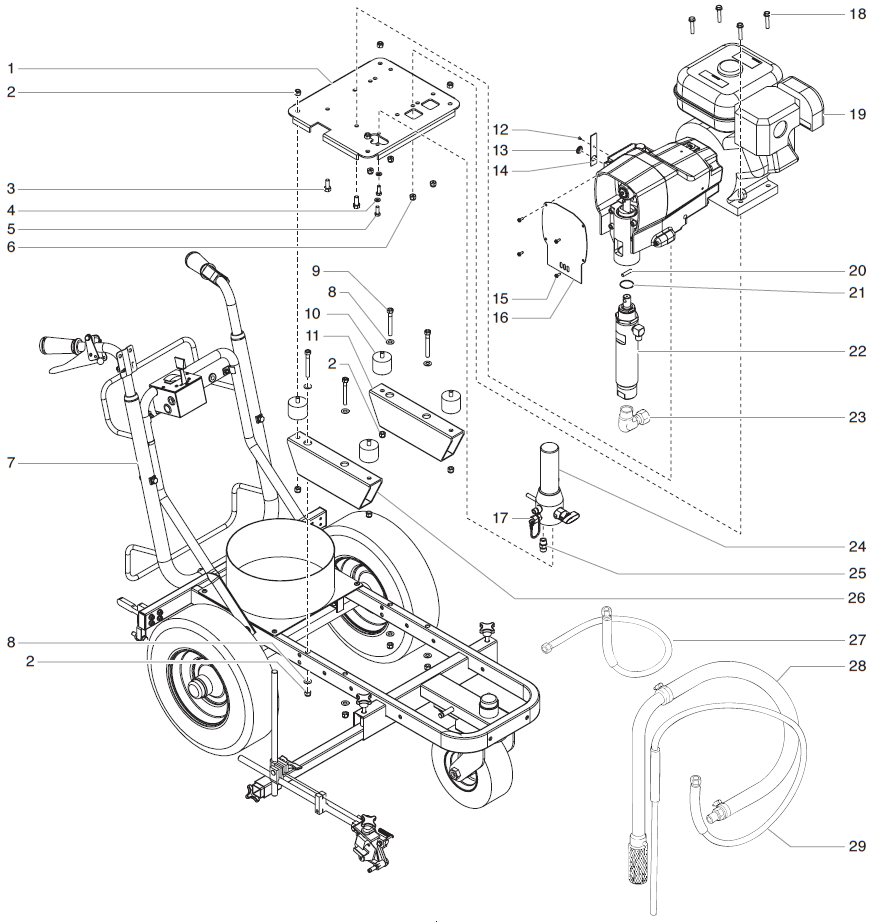

LineCrew 1600 Main Assembly
  • Titan 0509285 Flat Washer

    Titan 0509285 Flat Washer

    Item No: 8

    Part #:0509285

    Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001. Fits the following models: PowrLiner 3500, PowrBeast 4700, 4700T, 7700, 9700, PowrTwin Series, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrCoat Series, PowrCoat 630, 730, LineCrew Series, PowrLiner Series, Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001. Fits the fo...
    $1.79

  • Titan 0509627 Cover, control

    Titan 0509627 Cover, control

    Item No: 14

    Part #:0509627

    Titan 0509627 Cover, control Replaced part # 755-172 Fits: Advantage GPX 220 Titan 0509627 Cover, control Replaced part # 755-172 Fits: Advantage GPX 22...
    $5.04

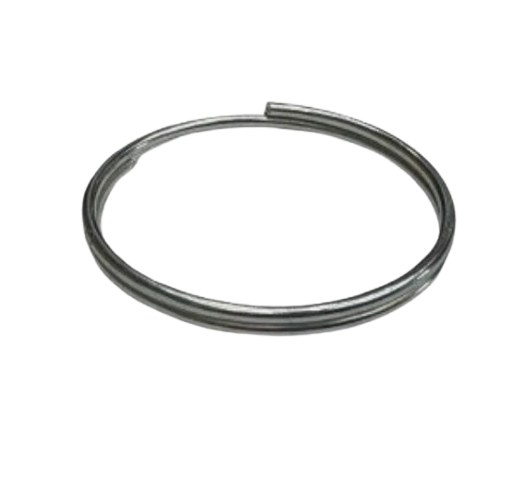

  • Titan 0509521 Retainer Ring

    Titan 0509521 Retainer Ring

    Item No: 21

    Part #:0509521

    Titan 0509521 Retainer Ring fits : Advantage GPX 165 and Advantage GPX 220 Titan 0509521 Retainer Ring fits : Advantage GPX 165 and Advantage GPX 220 ...
    $12.90

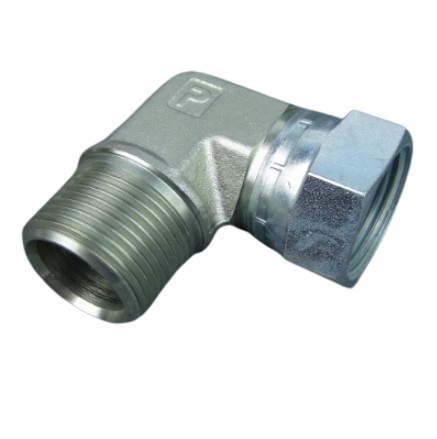

  • Titan 0509727 Swivel Elbow Fitting

    Titan 0509727 Swivel Elbow Fitting

    Item No: 23

    Part #:0509727

    Titan 0509727 Swivel Elbow Fitting  Fits: Titan Advantage GPX 85, GPX 165 and others Titan 0509727 Swivel Elbow Fitting  Fits: Titan Advantage GPX 85, GPX 16...
    Retail Price: $69.40
    You save: $9.91  (14%)
    Our Price: $59.49

  • Titan 0507387 Fluid Hose

    Titan 0507387 Fluid Hose

    Item No: 27

    Part #:0507387

    Hose or Hose,paint,airless,19"x3/8" Same as 800-266 Fits the following models: Impact 840, GXP 130 Hose or Hose,paint,airless,19"x3/8" Same as 800-266 Fits the foll...
    Retail Price: $79.90
    You save: $11.41  (14%)
    Our Price: $68.49

  • Titan 0509297 Syphon Hose Assembly

    Titan 0509297 Syphon Hose Assembly

    Item No: 28

    Part #:0509297

    Titan 0509297 Syphon Hose Assembly  *Replaced Part # 0555335* Includes: Hose 52'', Hose clamp, Tube, Intake screen, Adapter fits: LineCrew 750 and 1600 Titan 0509297 Syphon Hose Assembly  *Replaced Part # 0555335* Incl...
    Retail Price: $332.80
    You save: $47.54  (14%)
    Our Price: $285.26

  • Titan 0509173 Hose, return assy

    Titan 0509173 Hose, return assy

    Item No: 29

    Part #:0509173

    Hose, return assy Hose, return assy...
    Retail Price: $187.70
    You save: $26.81  (14%)
    Our Price: $160.89

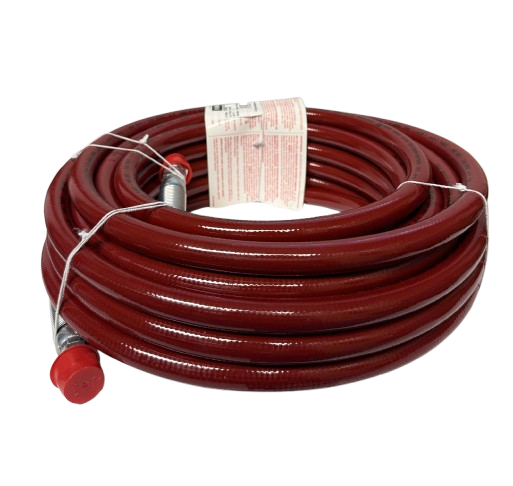

  • Titan 0291006 3300 PSI Hose 50' X 3/8"

    Titan 0291006 3300 PSI Hose 50' X 3/8"

    Item No: 32

    Part #:0291006

    Titan 0291006 3300 PSI Hose 50' X 3/8" | END CONNECTION 3/8" NPSM (FBE) same as part # 690-375-50 Titan 0291006 3300 PSI Hose 50' X 3/8" | END CONNECTION 3/8" NPSM (FBE) sa...
    Retail Price: $141.00
    You save: $23.33  (17%)
    Our Price: $117.67
