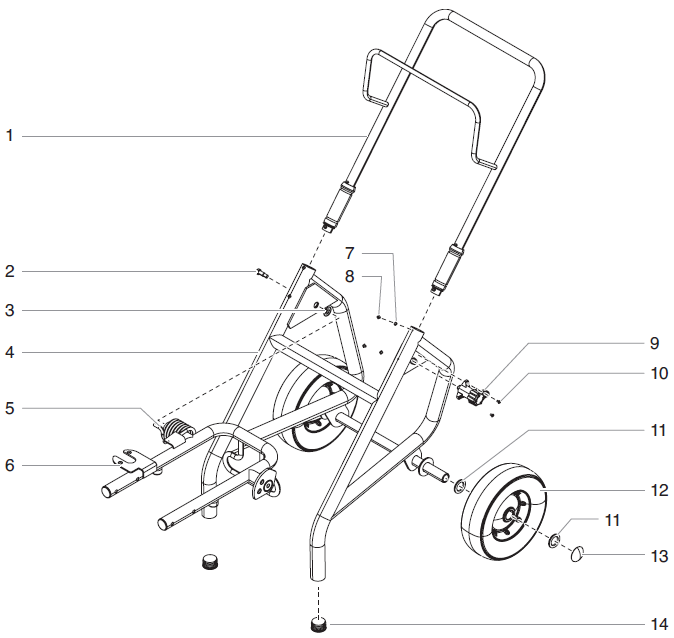

Impact 740/840 Upright Cart Assembly (P/N 805-227)

-
Shoulder Screw
Item No: 2
Part #:9805352
Shoulder Screw or Bolt, shoulder, 3/8 x 5/8 Fits the following models: Impact 840 Shoulder Screw or Bolt, shoulder, 3/8 x 5/8 Fits the following m... -
Bushing
Item No: 3
Part #:805-451
Bushing or Bushing, tilting carriage Fits the following models: Impact 840 Bushing or Bushing, tilting carriage Fits the following models: ... -
Cart
Item No: 4
Part #:805-202
Cart or Frame assy, 740lx/840lx Fits the following models: Impact 840 Cart or Frame assy, 740lx/840lx Fits the following models: Impac... -
Spring
Item No: 5
Part #:9894275
Spring or Spring, torsion, .331 wire Fits the following models: Impact 840 Spring or Spring, torsion, .331 wire Fits the following models: ... -
Carriage Assembly
Item No: 6
Part #:805-255A
Carriage Assembly or Carriage assy, pkgd Fits the following models: Impact 840 Carriage Assembly or Carriage assy, pkgd Fits the following mode... -
Lock Washer
Item No: 7
Part #:856-002
Lock washer or Washer, internal tooth lock 10 Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Lock washer or Washer, internal tooth lock 10 Fits the following... -
Screw
Item No: 8
Part #:856-921
SCREW, 10-32 X 1/4 PAN HD Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 SCREW, 10-32 X 1/4 PAN HD Fits the following models: Impact 400,... -
Cam Assembly
Item No: 9
Part #:805-228A
Cam Assembly or Cam assembly, carts, pkgd Fits the following models: Impact 840 Cam Assembly or Cam assembly, carts, pkgd Fits the following mod... -
Cam Assembly Screw
Item No: 10
Part #:9805353
Cam Assembly Screw or Screw, bhcs 8-32 x 1/4 lg Fits the following models: Impact 840 Cam Assembly Screw or Screw, bhcs 8-32 x 1/4 lg Fits the followi... -
Wheel Spacer
Item No: 11
Part #:0294534
Spacer,wheel or Washer (Spacer) Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Spacer,wheel or Washer (Spacer) Fits the following models: Impac... -
Wheel
Item No: 12
Part #:0278373
Wheel or ,semi-pneumatic,silver Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640 Impact 740, Impact 840 Wheel or ,semi-pneumatic,silver Fits the following models: Impac...
