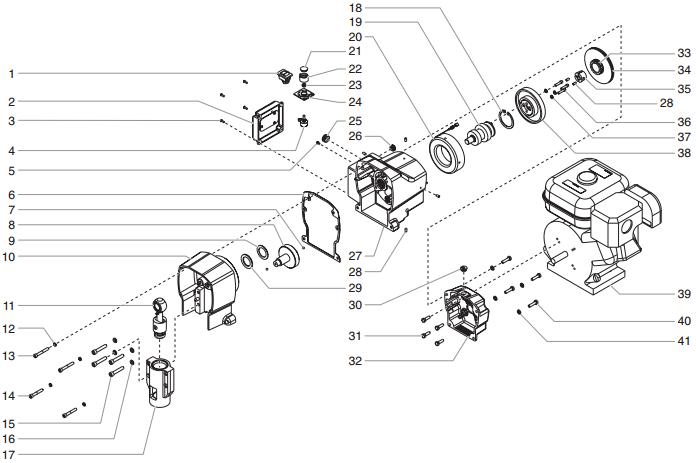

GPX 220 Drive Assembly
-
Titan 0509558 Electronic pressure control assembly
Item No: 2
Part #:0509558
Titan 0509558 Electronic pressure control assembly Fits: Advantage GPX 130, Advantage GPX 165, LCX 130 Line Striper, LineCrew 750 Line Striper, LineCrew 1600 Line Striper, GPX 80 Gas Piston Pump, GPX 130 Gas Piston Pump, GPX 165 Gas Piston Pump, GPX 220 Gas Piston Pump, GPX 750 Gas Piston Pump, GPX 1250 Gas Piston Pump, GPX 1600 Gas Piston Pump Titan 0509558 Electronic pressure control assembly Fits: Advantage GPX 1... -
Titan 0507973 potentiometer assy
Item No: 4
Part #:0507973
Titan 0507973 potentiometer assy Titan 0507973 potentiometer assy... -
Titan 9800340 Ground Screw
Item No: 5
Part #:9800340
Titan 9800340 Ground Screw or hex washer HD *Replaced # 704-229* Fits the following models: Impact 340, Impact 400, Impact 540, Impact 640 Titan 9800340 Ground Screw or hex washer HD *Replaced # 704-229*... -
Titan 0509495 Gasket
Item No: 6
Part #:0509495
Titan 0509495 Gasket Replaced part # 755-176 Fits: Advantage GPX 165 and Advantage GPX 220 Titan 0509495 Gasket Replaced part # 755-176 Fits: Advantage GPX 165 and ... -
Titan 0555230A Slider assy, gpx220 pkgd
Item No: 11
Part #:0555230A
Titan 0555230A Slider assy,gpx220 pkgd Titan 0555230A Slider assy,gpx220 pkgd... -
Titan 0509541 Lockwasher,5/16 hi collar
Item No: 12
Part #:0509541
Titan 0509541 Lockwasher,5/16 hi collar Titan 0509541 Lockwasher,5/16 hi collar... -
Titan 0555249A Slider hsg assy
Item No: 17
Part #:0555249A
Titan 0555249A Slider hsg assy , gpx220 pkgd Titan 0555249A Slider hsg assy , gpx220 pkgd... -
Titan 0555902 Clutch field
Item No: 20
Part #:0555902
Titan 0555902 Clutch field,pkgd,gpx Titan 0555902 Clutch field,pkgd,gpx... -
Titan 0507748 Cap
Item No: 21
Part #:0507748
Titan 0507748 Cap Fits: GPX 220 Titan 0507748 Cap Fits: GPX 220 ... -
Titan 0507740 potentiometer knob
Item No: 22
Part #:0507740
Titan 0507740 potentiometer knob Fits: Advantage GPX 220 Titan 0507740 potentiometer knob Fits: Advantage GPX 220 ... -
Titan 0509531 Grommet, liquid tight
Item No: 26
Part #:0509531
Titan 0509531 Grommet, liquid tight Replaced part # 755-181 Fits: Advantage GPX 165 Titan 0509531 Grommet, liquid tight Replaced part # 755-181 Fits: Advantage...
