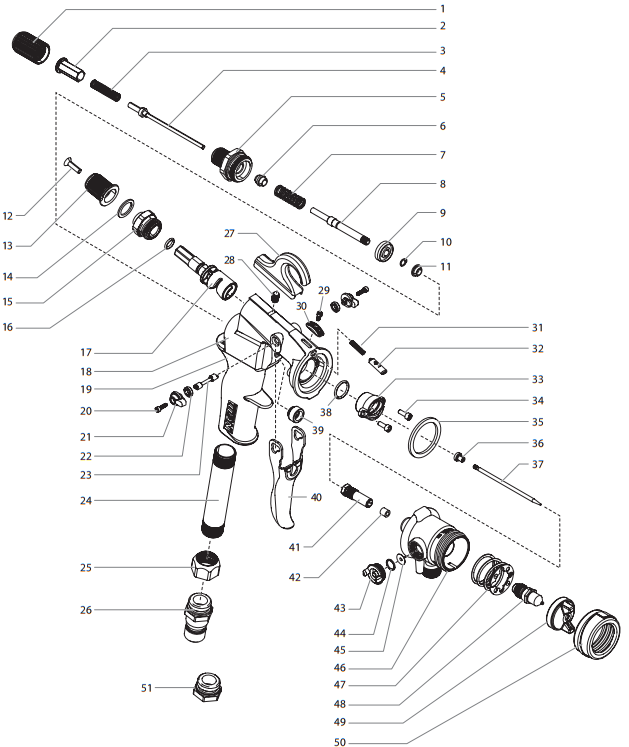

CAPSpray Maxum Elite Gun Assembly


0524490
0524489
0295575
0524505A
0524488A
0275501
0275578
0524624A
0277486
0277489
0277488
9805205
0524493
9894242
0524492A
0508403
0524491
0524478A
0524496
0524617
0524615
0524698
0524697
0524498A
0524497
0275481
0524495
0524504
0524500
0524084
0524502
0524499
0524612
0524613
0524503
0524483
0524618
0524086
0524486
0524485
0275579
0529220
0276415
0524272A
0275250
0276451
0276452
0524484
0277974
CAPSpray Maxum Elite Gun Assembly
  • Titan 0524490 Material Flow Adjustment Knob

    Titan 0524490 Material Flow Adjustment Knob

    Item No: 1

    Part #:0524490

    Titan 0524490 Material Flow Adjustment Knob Fits Titan’s Elite Gun Titan 0524490 Material Flow Adjustment Knob Fits Titan’s Elite Gun ...
    $12.30

  • Titan 0524489 Needle adjustment detent

    Titan 0524489 Needle adjustment detent

    Item No: 2

    Part #:0524489

    Titan 0524489 Needle Adjustment Detent is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.   Compatible with: Titan HVLP Spray Guns. Titan CapSpray Elite Spray Gun. Titan 0524489 Needle Adjustment Detent is a genuine OEM part designed to me...
    $1.79

  • Titan 0295575 Needle Spring

    Titan 0295575 Needle Spring

    Item No: 3

    Part #:0295575

    Titan 0295575 Needle Spring is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. The needle spring is a small component located inside the gun of the paint sprayer that helps to control and regulate the flow of paint. If it becomes damaged or worn out, it can cause issues with performance such as uneven spraying or clogging.   Compatible with: Titan... Titan 0295575 Needle Spring is a genuine OEM part designed to meet the same...
    $2.50

  • Titan 0524505A Rear Needle

    Titan 0524505A Rear Needle

    Item No: 4

    Part #:0524505A

    Titan 0524505A Rear Needle pkg   Fits: Capspray Elite Spray Gun, HVLP Spray Guns Titan 0524505A Rear Needle pkg   Fits: Capspray Elite Spray Gun,&nbs...
    Retail Price: $14.90
    You save: $1.49  (10%)
    Our Price: $13.41

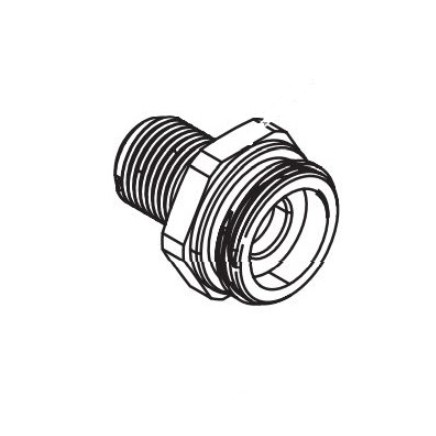

  • Titan 0524488A Material Flow Adjustment Housing

    Titan 0524488A Material Flow Adjustment Housing

    Item No: 5

    Part #:0524488A

    Titan 0524488A Material Flow Adjustment Housing Fits: CapSpray Maxum Elite HVLP Spray Gun Titan 0524488A Material Flow Adjustment Housing Fits: CapSpray Maxum Elite ...
    Retail Price: $28.70
    You save: $3.91  (14%)
    Our Price: $24.79

  • Titan 0275501 Rear Air Valve Seal

    Titan 0275501 Rear Air Valve Seal

    Item No: 6

    Part #:0275501

    Titan 0275501 Rear Air Valve Seal is an OEM replacement part. It fits the Wagner, Titan and Capspray NB, NBC and other HLVP spray guns. Titan 0275501 Rear Air Valve Seal is an OEM replacement part. It fits the Wagner...
    $11.10

  • Titan 0275578 Air Valve Spring

    Titan 0275578 Air Valve Spring

    Item No: 7

    Part #:0275578

    Titan 0275578 Air Valve Spring   Fits: HVLP Spray Guns, Capspray Elite Spray Gun, Maxum II HVLP Spray Guns Titan 0275578 Air Valve Spring   Fits: HVLP Spray Guns, Capspray Elite...
    $3.78

  • Titan 0524624A Air Valve Seal

    Titan 0524624A Air Valve Seal

    Item No: 8

    Part #:0524624A

    Titan 0524624A Air Valve Seal, air valve Fits: Capspray Elite Spray Gun, Capspray HVLP Transfer Pump Titan 0524624A Air Valve Seal, air valve Fits: Capspray Elite Spray Gu...
    Retail Price: $35.10
    You save: $4.79  (14%)
    Our Price: $30.31

  • Titan 0277486 Air Valve Seal

    Titan 0277486 Air Valve Seal

    Item No: 9

    Part #:0277486

    Titan 0277486 Air Valve Seal Titan 0277486 Air Valve Seal ...
    $3.26

  • Titan 0277489 Air Valve Snap Ring

    Titan 0277489 Air Valve Snap Ring

    Item No: 10

    Part #:0277489

    Titan 0277489 Air Valve Snap Ring is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.   Comaptible with: Titan CAPSpray Maxum II HVLP Spray Gun, Titan Spraytech Capspray HVLP. Titan 0277489 Air Valve Snap Ring is a genuine OEM part designed to meet th...
    $2.98

  • Titan 0277488 Front Air Valve Seal

    Titan 0277488 Front Air Valve Seal

    Item No: 11

    Part #:0277488

    Titan 0277488 Front Air Valve Seal is an OEM part Compatible with these SprayTech/Titan machines SprayTech Maxum II (0277034) Turbine Cup Spray Gun Maxum II (0277057) Turbine Pressure Feed Spray Gun Maxum II (0277055) Turbine Top Feed Spray Gun Maxum II (0277076) Regulator Cup Spray Gun Maxum II (0277075) Regulator Top Feed Spray Gun Maxum II (0277088) Compressor Pressure Feed Spray Gun Maxum II (0508062) Compressor Regulator Cup Spray Gun... Titan 0277488 Front Air Valve Seal is an OEM part Compatible with these SprayTec...
    $3.89

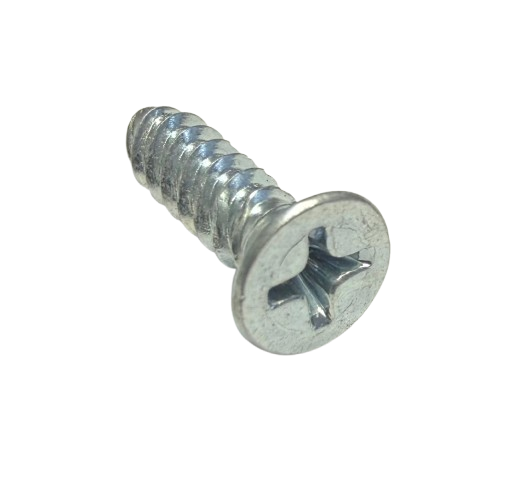

  • Titan 9805205 Screw

    Titan 9805205 Screw

    Item No: 12

    Part #:9805205

    Titan 9805205 Screw 16 X 5/8 Titan 9805205 Screw 16 X 5/8 ...
    $1.79

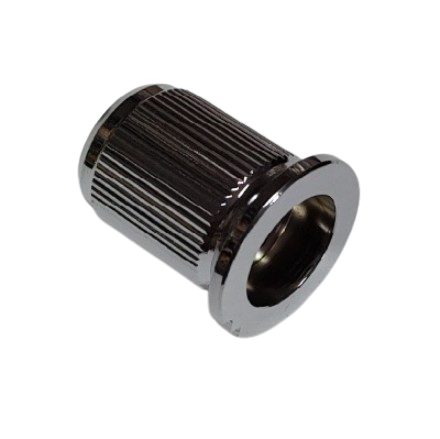

  • Titan 0524493 Air Flow Adjustment Knob

    Titan 0524493 Air Flow Adjustment Knob

    Item No: 13

    Part #:0524493

    Titan 0524493 Air Flow Adjustment Knob Titan 0524493 Air Flow Adjustment Knob ...
    Retail Price: $18.00
    You save: $1.80  (10%)
    Our Price: $16.20

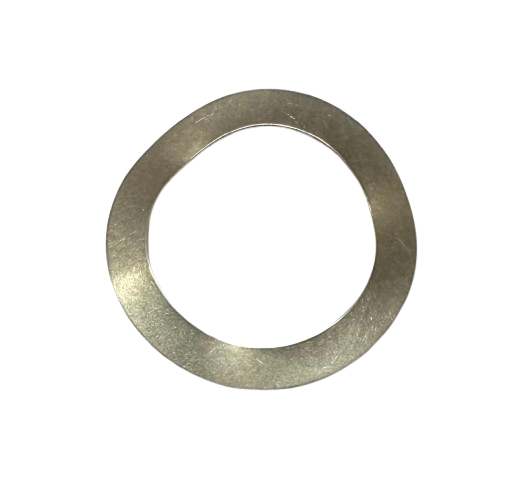

  • Titan 9894242 Wave Spring Washer

    Titan 9894242 Wave Spring Washer

    Item No: 14

    Part #:9894242

    Titan 9894242 Wave Spring Washer Titan 9894242 Wave Spring Washer ...
    $3.09

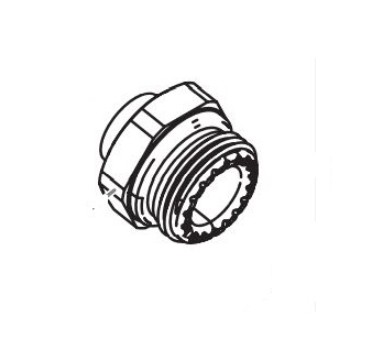

  • Titan 0524492A Air Control Housing, pkg

    Titan 0524492A Air Control Housing, pkg

    Item No: 15

    Part #:0524492A

    Titan 0524492A Air Control Housing, pkg Replaces part # 0524492 Titan 0524492A Air Control Housing, pkg Replaces part # 0524492 ...
    Retail Price: $20.50
    You save: $0.50  (2%)
    Our Price: $20.00

  • Titan 0508403 Air Flow Valve O-Ring

    Titan 0508403 Air Flow Valve O-Ring

    Item No: 16

    Part #:0508403

    Titan 0508403 Air Flow Valve O-Ring is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.   Compatible with: Titan HVLP Spray Guns. Titan CapSpray Elite Spray Gun. Titan 0508403 Air Flow Valve O-Ring is a genuine OEM part designed to meet ...
    $1.79

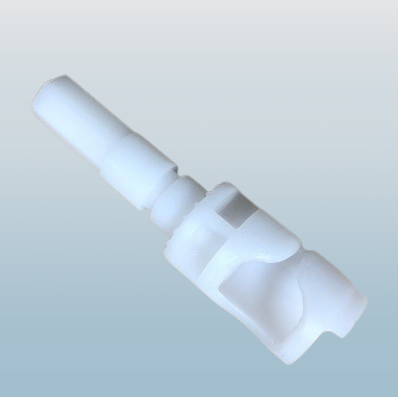

  • Titan 0524491 Air Flow Valve

    Titan 0524491 Air Flow Valve

    Item No: 17

    Part #:0524491

    Titan 0524491 Air Flow Valve, air control Fits: Capspray Elite Spray Gun Titan 0524491 Air Flow Valve, air control Fits: Capspray Elite Spray G...
    $11.80

  • Titan 0524478A Gun body

    Titan 0524478A Gun body

    Item No: 18

    Part #:0524478A

    Titan 0524478A Gun body, elite,pkg Titan 0524478A Gun body, elite,pkg ...
    Retail Price: $72.80
    You save: $10.40  (14%)
    Our Price: $62.40

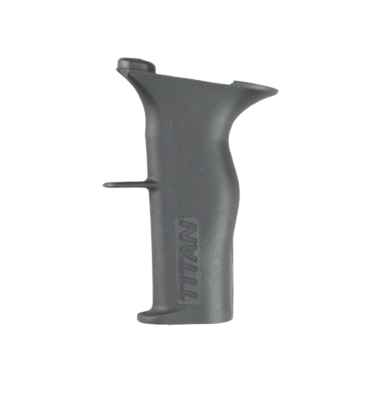

  • Titan 0524496 Handle

    Titan 0524496 Handle

    Item No: 19

    Part #:0524496

    Titan 0524496 Handle for Capspray HVLP power cart Titan 0524496 Handle for Capspray HVLP power cart ...
    $10.70

  • Titan 0524617 Shoulder Bolt

    Titan 0524617 Shoulder Bolt

    Item No: 20

    Part #:0524617

    Titan 0524617 Shoulder Bolt Fits: Capspray Elite Spray Gun Titan 0524617 Shoulder Bolt Fits: Capspray Elite Spray Gun ...
    $3.09

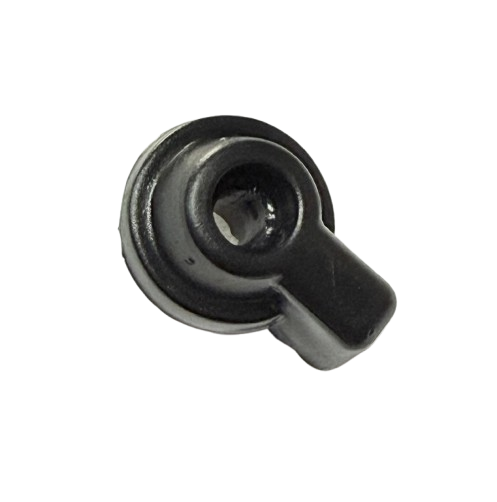

  • Titan 0524615 Trigger Lever

    Titan 0524615 Trigger Lever

    Item No: 21

    Part #:0524615

    Titan 0524615 Trigger Lever Fits the following models: HVLP Spray Guns, CapSpray Elite Spray Gun Titan 0524615 Trigger Lever Fits the following models: HVLP Spray ...
    $1.68

  • Titan 0524698 Seal

    Titan 0524698 Seal

    Item No: 22

    Part #:0524698

    Titan 0524698 Trigger Pin Seal Fits: HVLP Spray Guns, Capspray Elite Spray Gun Titan 0524698 Trigger Pin Seal Fits: HVLP Spray Guns, Capspray El...
    $4.73

  • Titan 0524697 Trigger Pin

    Titan 0524697 Trigger Pin

    Item No: 23

    Part #:0524697

    Titan 0524697 Trigger Pin Fits titan: Maxum Elite (0524027) Capspray HVLP Spray Gun Maxum Elite (0524052) Capspray HVLP Spray Gun Titan 0524697 Trigger Pin Fits titan: Maxum Elite (0524027) Capspray HVLP ...
    $13.50

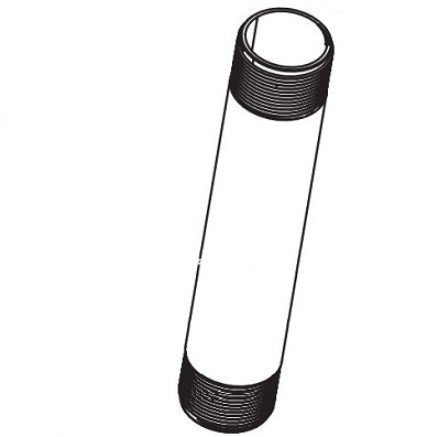

  • Titan 0524498A Handle Tube

    Titan 0524498A Handle Tube

    Item No: 24

    Part #:0524498A

    Titan 0524498A Handle Tube,Elite,pkg Titan 0524498A Handle Tube,Elite,pkg ...
    $7.30

  • Titan 0524497 Handle Tube, Nut

    Titan 0524497 Handle Tube, Nut

    Item No: 25

    Part #:0524497

    Nut, handle tube Nut, handle tube...
    $7.50

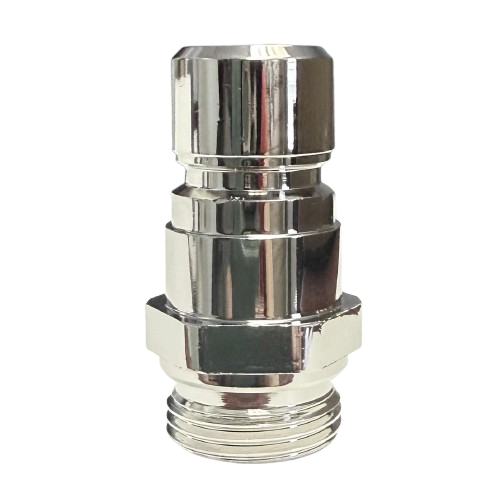

  • Titan 0275481 Quick Disconnect Fitting

    Titan 0275481 Quick Disconnect Fitting

    Item No: 26

    Part #:0275481

    Titan 0275481 Quick Disconnect Fitting ( Same as 0277503 ) Titan CAPspray 0275481 or 275481 Male Quick Disconnect Fits: Titan Maxum II HVLP guns Titan 0275481 Quick Disconnect Fitting ( Same as 0277503 ) Titan CAPspray 02...
    Retail Price: $47.20
    You save: $6.74  (14%)
    Our Price: $40.46

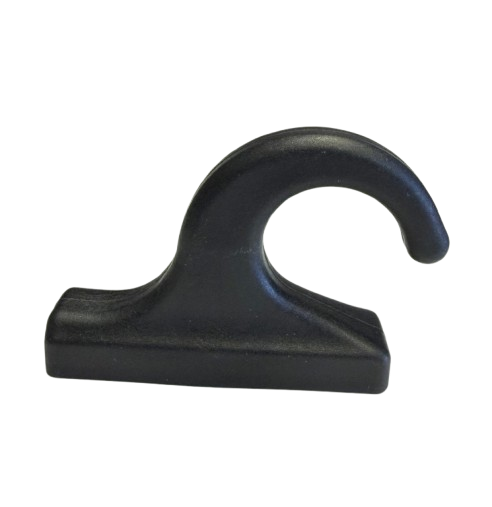

  • Titan 0524495 CapSpray Gun Hook

    Titan 0524495 CapSpray Gun Hook

    Item No: 27

    Part #:0524495

    Titan CapSpray 0524495 Gun Hook is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.   Compatible with: Titan CapSpray Maxum Elite HVLP Spray gun.   Titan CapSpray 0524495 Gun Hook is a genuine OEM part designed to meet...
    $3.36

  • Titan 0524504 Gun Hook Lock

    Titan 0524504 Gun Hook Lock

    Item No: 28

    Part #:0524504

    Titan 0524504 Gun hook lock or Lock Titan 0524504 Gun hook lock or Lock ...
    $7.35

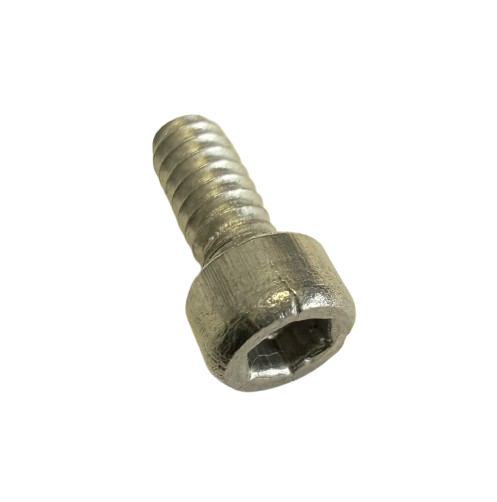

  • Titan 0524500 Screw

    Titan 0524500 Screw

    Item No: 29

    Part #:0524500

    Titan 0524500 Screw,sh,#4-40 x 1/4l, s.s. Titan 0524500 Screw,sh,#4-40 x 1/4l, s.s....
    $4.52

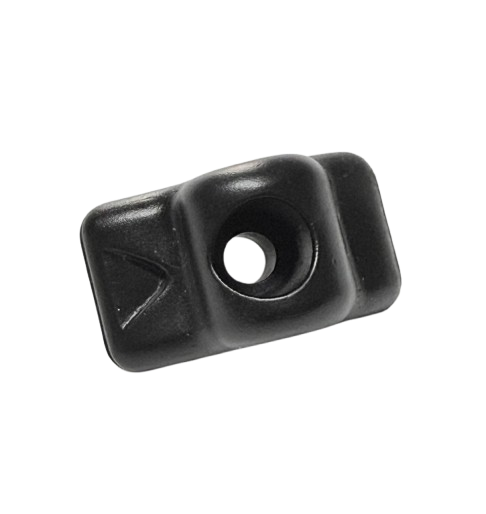

  • Titan 0524084 Gun Head Latch

    Titan 0524084 Gun Head Latch

    Item No: 30

    Part #:0524084

    Titan 0524084 Gun Head Latch is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. Compatible with: Titan HVLP. Titan Elite Gun. Titan 0524084 Gun Head Latch is a genuine OEM part designed to meet the sam...
    $0.42

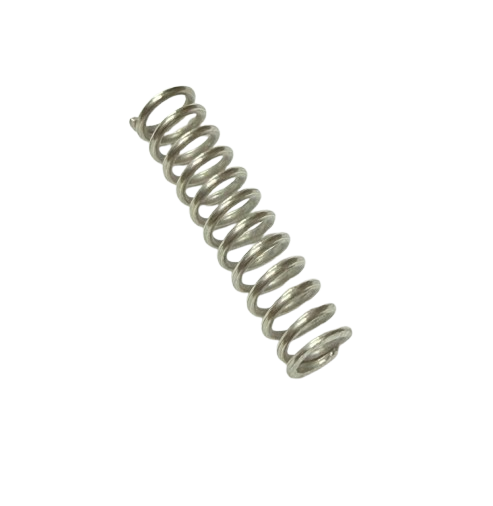

  • Titan 0524502 Head Latch Spring

    Titan 0524502 Head Latch Spring

    Item No: 31

    Part #:0524502

    Titan 0524502 Head Latch Spring or Spring,latch,head is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.   Compatible with: Titan HVLP Spray Guns. Titan CapSpray Elite Spray Gun. Titan 0524502 Head Latch Spring or Spring,latch,head is a genuine OEM ...
    $1.96

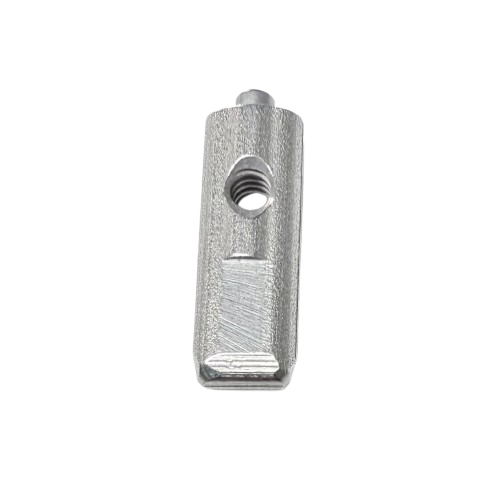

  • Titan 0524499 Head Latch Slide

    Titan 0524499 Head Latch Slide

    Item No: 32

    Part #:0524499

    Titan 0524499 Head Latch Slide Titan 0524499 Head Latch Slide ...
    Retail Price: $20.20
    You save: $2.02  (10%)
    Our Price: $18.18

  • Titan 0524612 Gun Body Insert

    Titan 0524612 Gun Body Insert

    Item No: 33

    Part #:0524612

    Titan 0524612 gun body insert goes between the gun body o-ring and the seal. Fits the CapSpray Maxum Elite HVLP Spray Gun (0524027, 0524052) Titan 0524612 gun body insert goes between the gun body o-ring and the seal...
    $2.02

  • Titan 0524613 Screw

    Titan 0524613 Screw

    Item No: 34

    Part #:0524613

    Titan 0524613 Screw with #6X .38 S.S. Screw Cap is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.   Compatible with: Titan Maxum Elite Capspray 0524027, 0524052    Titan 0524613 Screw with #6X .38 S.S. Screw Cap is a genuine OEM part desig...
    $2.14

  • Titan 0524503 Gun Body/Head Seal

    Titan 0524503 Gun Body/Head Seal

    Item No: 35

    Part #:0524503

    Titan 0524503 Gun Body/Head Seal is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.. This Gun Body/Head Seal sits inside the nozzle side of the gun body between the gun body insert, and gun head. Titan 0524503 Gun Body/Head Seal is a genuine OEM part designed to meet the same...
    $2.14

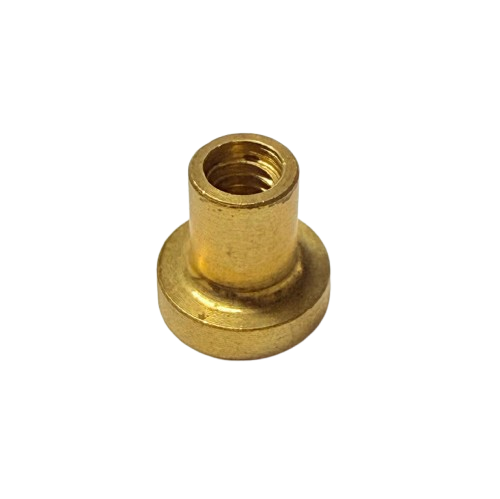

  • Titan 0524483 Fluid, Needle, Flange

    Titan 0524483 Fluid, Needle, Flange

    Item No: 36

    Part #:0524483

    Titan 0524483 Fluid, Needle, Flange Fits: Titan Maxum Elite (0524027) Capspray HVLP Spray Gun and Maxum Elite (0524052) Capspray HVLP Spray Gun Titan 0524483 Fluid, Needle, Flange Fits: Titan Maxum Elite (0524027) Capsp...
    $7.14

  • Titan 0524618 Gun Body O-Ring

    Titan 0524618 Gun Body O-Ring

    Item No: 38

    Part #:0524618

    Titan 0524618 Gun Body O-Ring ,viton 015 is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. Compatible with : Titan  HVLP Spray Guns. Titan CapSpray Elite Spray Guns.           Titan 0524618 Gun Body O-Ring ,viton 015 is a genuine OEM part designed to ...
    $0.98

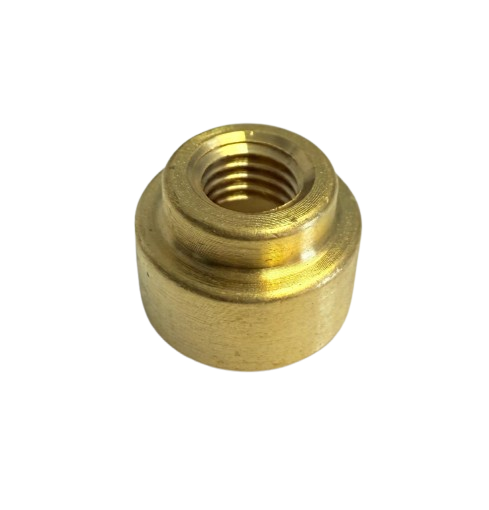

  • Titan 0524086 Trigger Bushing

    Titan 0524086 Trigger Bushing

    Item No: 39

    Part #:0524086

    Titan 0524086 Trigger Bushing Titan 0524086 Trigger Bushing ...
    $3.47

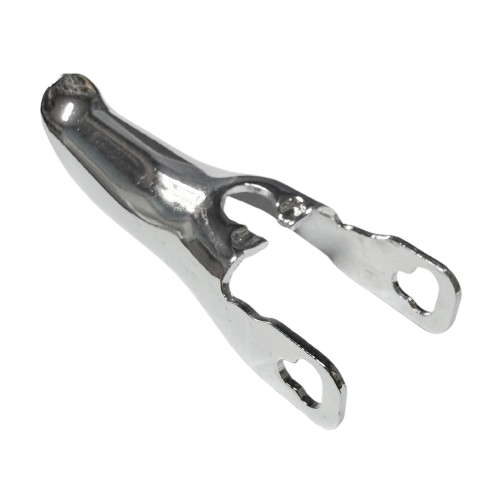

  • Titan 0524486 Trigger

    Titan 0524486 Trigger

    Item No: 40

    Part #:0524486

    Titan 0524486 Gun Trigger is an OEM part. Titan 0524486 Gun Trigger is an OEM part....
    $13.10

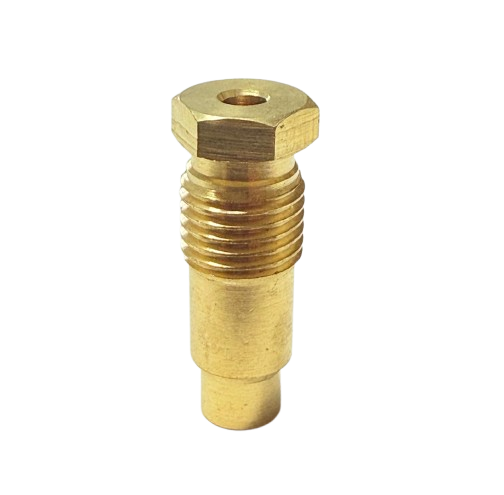

  • Titan 0524485 Needle Packing Adjustment Nut

    Titan 0524485 Needle Packing Adjustment Nut

    Item No: 41

    Part #:0524485

    Titan Nut,adjustment, packing Fits: Capspray Elite Spray Gun Titan Nut,adjustment, packing Fits: Capspray Elite Spray Gun ...
    $7.14

  • Titan 0275579 Needle Packing

    Titan 0275579 Needle Packing

    Item No: 42

    Part #:0275579

    Titan 0275579 Needle Packing is an OEM part.         This needle packing is found on the front end of the gun. It stops paint from going out the gun through the needle, when trigger is released. This needle packing is compatible with the following spray guns: Maxum II HVLP Spray Guns, Spraytech CapSpray HVLP, CapSpray Maxum II HVLP Spray Gun, CapSpray Elite Spray Gun, HVLP Spray Guns. Titan 0275579 Needle Packing is an OEM part.         Th...
    $7.14

  • Titan 0529220 Check Valve Retainer with O-Ring

    Titan 0529220 Check Valve Retainer with O-Ring

    Item No: 43

    Part #:0529220

    Titan 0529220 Check valve retainer with O-ring is an OEM part. The Check Valve Retainer prevents paint seeping out in the spray gun air tube. Compatible with the CapSpray Maxum Elite HVLP Spray Gun.   Titan 0529220 Check valve retainer with O-ring is an OEM part. The Check Va...
    $8.80

  • Titan 0276415 Valve Seal

    Titan 0276415 Valve Seal

    Item No: 45

    Part #:0276415

    Titan 0276415 Valve Seal provides an air tight seal for the air valve within the gun. With time, this seal wears out causing air leaks. Snap Ring Pliers and Allen key are used to remove and replace worn out valve Seal. Confirm the replacement seal part number is same as the one being replaced.  It is compatible with : Capspray Maxum Elite HVLP Spray Gun Model: 0524027/0524052, Capspray Maxum II HVLP Spray Gun.   Titan 0276415 Valve Seal provides an air tight seal for the air valve with...
    $1.96

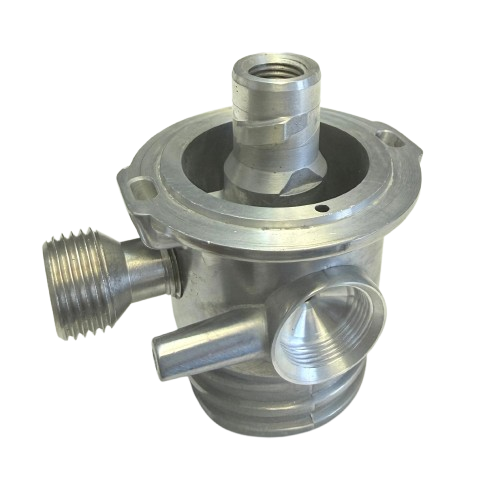

  • Titan 0524272A Gun Head PKG

    Titan 0524272A Gun Head PKG

    Item No: 46

    Part #:0524272A

    Titan 0524272A Gun Head PKG is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. Titan 0524272A Gun Head PKG is a genuine OEM part designed to meet the same...
    Retail Price: $53.80
    You save: $7.69  (14%)
    Our Price: $46.11

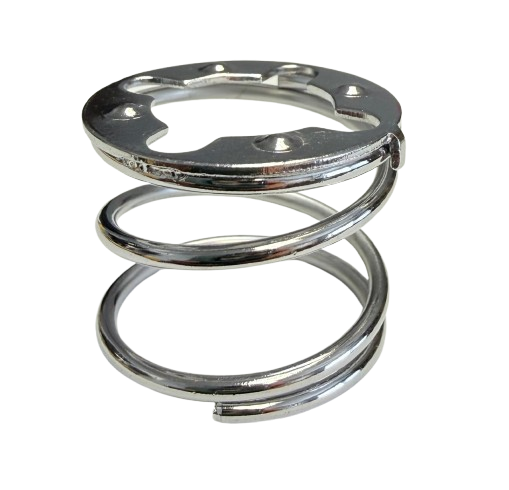

  • Titan 0275250 Spring Plate Assembly

    Titan 0275250 Spring Plate Assembly

    Item No: 47

    Part #:0275250

    Titan 0275250 Spring Plate Assembly Fits: HVLP Spray Guns, Capspray Elite Spray Gun, CAPSpray Maxum II HVLP Spray Gun Titan 0275250 Spring Plate Assembly Fits: HVLP Spray Guns, Capspr...
    Retail Price: $22.00
    You save: $2.64  (12%)
    Our Price: $19.36

  • Titan 0276451 Air Nozzle #3

    Titan 0276451 Air Nozzle #3

    Item No: 48

    Part #:0276451

    Titan 0276451 Air Nozzle Fits: HVLP Spray Guns, Capspray Elite Spray Gun, CAPSpray Maxum II HVLP Spray Gun  Titan 0276451 Air Nozzle Fits: HVLP Spray Guns, Capspray Elite Spra...
    Retail Price: $59.50
    You save: $8.50  (14%)
    Our Price: $51.00

  • Titan 0276452 Air Cap #3

    Titan 0276452 Air Cap #3

    Item No: 49

    Part #:0276452

    Titan 0276452 Air Cap #3 mach, 1.3mm guided or Air cap for set No.3 Fits: Capspray Elite Spray Gun. Models :Maxum Elite (0524027, 0524052)  Maxum II ( 0277034, 0277076 0277057, 0277088, 0524041) Titan 0276452 Air Cap #3 mach, 1.3mm guided or Air cap for set No.3 ...
    Retail Price: $109.50
    You save: $15.64  (14%)
    Our Price: $93.86

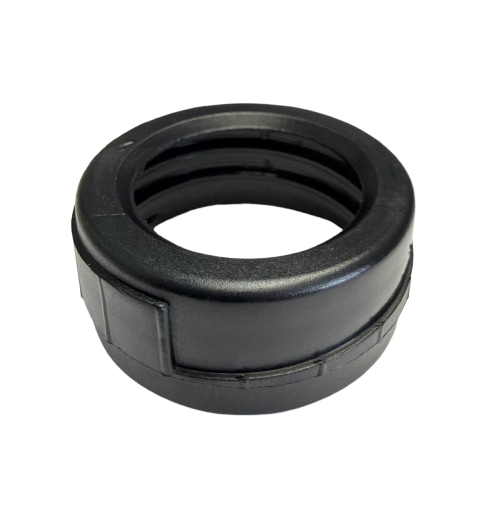

  • Titan 0524484 Air Cap Ring

    Titan 0524484 Air Cap Ring

    Item No: 50

    Part #:0524484

    Titan 0524484 Air Cap Ring Fits: Capspray Elite Spray Gun Titan 0524484 Air Cap Ring Fits: Capspray Elite Spray Gun ...
    $4.10

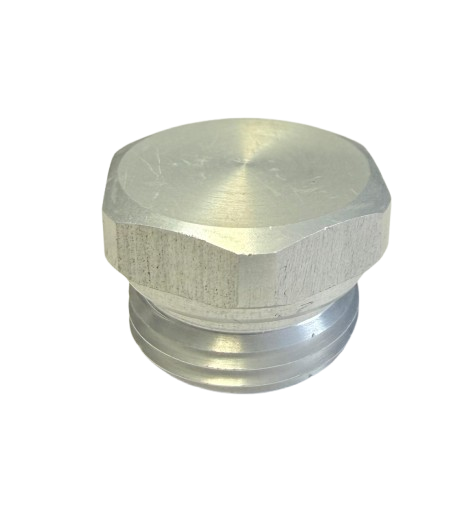

  • Titan 0277974 Air Plug

    Titan 0277974 Air Plug

    Item No: 51

    Part #:0277974

    Titan 0277974 Air Plug Same as 0277504 & 0275482 Fits: Titan Maxum HVLP guns Titan 0277974 Air Plug Same as 0277504 & 0275482 Fits: Titan Maxum HVL...
    Retail Price: $31.90
    You save: $4.35  (14%)
    Our Price: $27.55

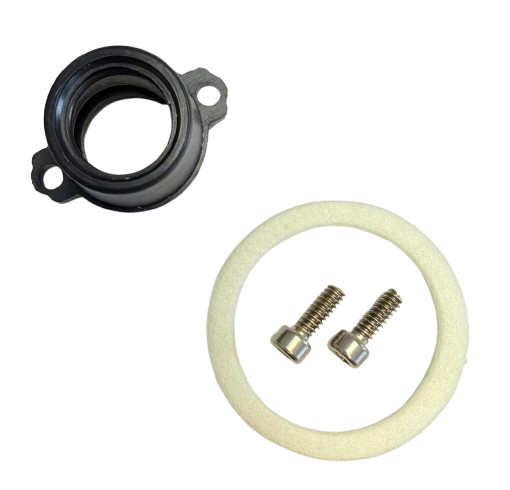

  • Titan 0524094 Repair Kit

    Titan 0524094 Repair Kit

    Part #:0524094

    Titan 0524094 Repair Kit Includes: Gun body insert, screw and gun body o-ring Fits: CapSpray Maxum Elite Hvlp spray gun Titan 0524094 Repair Kit Includes: Gun body insert, screw and gun body o-ri...
    $13.90
