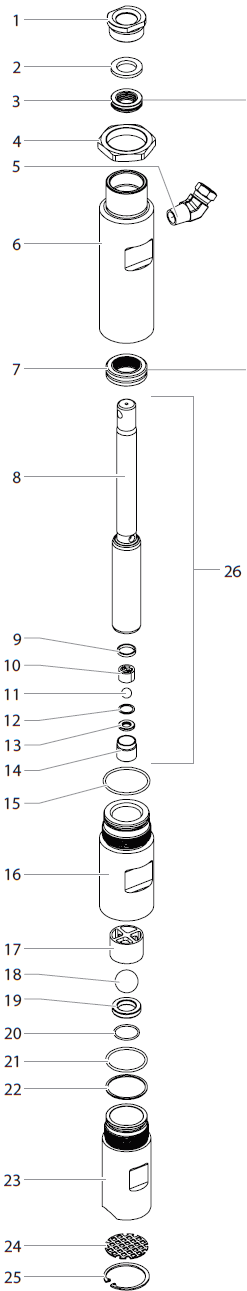

Advantage GPX 220 Fluid Section Assembly (P/N 0555265A)

Advantage GPX 220 Fluid Section Assembly (P/N 0555265A)


0509536
0509430
0509935A
0509505
0555909
0509648
0509601
0509710
0507454
0509655
173-133
0555907
0509602
0509707
0509623
0509708
0509652
0509653
0555903
0555217
431-054
800-336
800-336
  • Titan 0509536 Upper Seal Retainer
    Titan 0509536 Upper Seal Retainer

    Item No: 1

    Part #:0509536

    Titan 0509536 Upper Seal Retainer Fits: Advantage GPX 165 and 220 Titan 0509536 Upper Seal Retainer Fits: Advantage GPX 165 and 220 ...
    Retail Price: $83.30
    You save: $11.90  (14%)
    Our Price: $71.40

  • Titan 0509430 Adapter ring
    Titan 0509430 Adapter ring

    Item No: 2

    Part #:0509430

    Titan 0509430 Adapter Ring Fits : GPX 165 Titan 0509430 Adapter Ring Fits : GPX 165 ...
    Retail Price: $29.40
    You save: $4.01  (14%)
    Our Price: $25.39

  • Titan 0509935A Upper seal Assembly
    Titan 0509935A Upper seal Assembly

    Item No: 3

    Part #:0509935A

    Titan 0509935A Upper seal Assembly  Fits : LineCrew 1600, GPX 1600 and Advantage GPX 220 Titan 0509935A Upper seal Assembly  Fits : LineCrew 1600, GPX 1600 and...
    Retail Price: $70.00
    You save: $10.00  (14%)
    Our Price: $60.00

  • Titan 0509505 Jam Nut
    Titan 0509505 Jam Nut

    Item No: 4

    Part #:0509505

    Titan 0509505 Jam Nut fits: Advantage GPX 165 and Advantage GPX 220 Titan 0509505 Jam Nut fits: Advantage GPX 165 and Advantage GPX 220 ...
    Retail Price: $42.20
    You save: $5.75  (14%)
    Our Price: $36.45

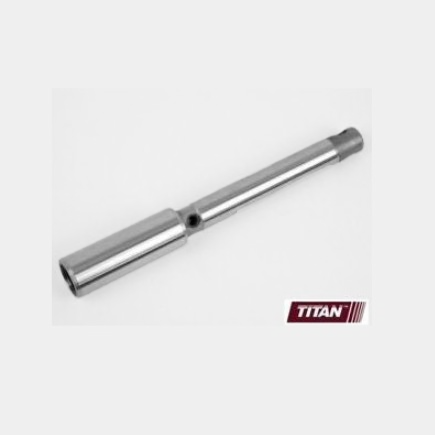

  • Titan 0555909 Piston rod
    Titan 0555909 Piston rod

    Item No: 8

    Part #:0555909

    Titan 0555909 Piston rod, gpx220 Titan 0555909 Piston rod, gpx220...
    Retail Price: $475.30
    You save: $67.90  (14%)
    Our Price: $407.40

  • Titan 0509648 Seal, outlet valve
    Titan 0509648 Seal, outlet valve

    Item No: 9

    Part #:0509648

    Seal, outlet valve Seal, outlet valve...
    Retail Price: $18.60
    You save: $1.86  (10%)
    Our Price: $16.74

  • Titan 0509601 Cage, outlet valve
    Titan 0509601 Cage, outlet valve

    Item No: 10

    Part #:0509601

    Cage, outlet valve Cage, outlet valve...
    Retail Price: $68.50
    You save: $9.79  (14%)
    Our Price: $58.71

  • Titan 0509710 Outlet valve ball
    Titan 0509710 Outlet valve ball

    Item No: 11

    Part #:0509710

    Titan 0509710 Outlet valve ball or Ball, 7/16" dia. *replaced 0349414 and 138-225*   Fits: Linecrew 1600, Powrtwin plus, PowrBeast 4700,4700T,7700,9700, PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrCoat 730, GPX 1600 Gas Piston Pump, GPX 220 Gas Piston Pump, GPX 165 Gas Piston Pump,LineCrew 1600 Line Striper, PowrLiner 4955, PowrLiner 4950, Advantage GPX Series, Advantage... Titan 0509710 Outlet valve ball or Ball, 7/16" dia. *replaced 0349414 and ...
    $5.36

  • Titan 0507454 Washer
    Titan 0507454 Washer

    Item No: 12

    Part #:0507454

    Titan 0507454 Washer or Nylon washer *REPLACED 800-245* Fits the following models: Impact 740, Impact 840 Titan 0507454 Washer or Nylon washer *REPLACED 800-245* Fits the ...
    $2.62

  • Titan 0509655 Outlet Valve Seat
    Titan 0509655 Outlet Valve Seat

    Item No: 13

    Part #:0509655

    Titan 0509655 Outlet Valve Seat fits : Advantage GPX 220 Titan 0509655 Outlet Valve Seat fits : Advantage GPX 220 ...
    Retail Price: $37.20
    You save: $5.07  (14%)
    Our Price: $32.13

  • Titan 800-336 Outlet Valve Retainer
    Titan 800-336 Outlet Valve Retainer

    Item No: 14

    Part #:800-336

    Titan 800-336 Outlet Valve Retainer or Retainer, outlet valve Replaced part # 507733 Fits the following models: Impact 740, Impact 840,  PowrTex 1200 SF Airless Texture and Paint Sprayer,  1140ix Digital Airless Sprayer,  1140ix Airless Sprayer,   1140i Airless Sprayer,  840ix Digital Airless Sprayer Titan 800-336 Outlet Valve Retainer or Retainer, outlet valve Replaced...
    Retail Price: $50.60
    You save: $7.23  (14%)
    Our Price: $43.37

  • Titan 173-133 O-Ring
    Titan 173-133 O-Ring

    Item No: 15

    Part #:173-133

    Titan 173-133 O-ring, ptfe Titan 173-133 O-ring, ptfe...
    Retail Price: $26.70
    You save: $3.20  (12%)
    Our Price: $23.50
