Maxum Elite HVLP SPRAY GUN Parts List

Titan 0524490 Material Flow Adjustment Knob

Item No: 1

Part #: 0524490

Titan 0524490 Material Flow Adjustment KnobFits Titan’s Elite Gun

$14.60

QTY:

Titan 0524489 Needle adjustment detent

Item No: 2

Part #: 0524489

Titan 0524489 Needle Adjustment Detent is compatible with Titan HVLP Spray Guns and the Titan CapSpr...

$3.40

QTY:

Titan 0295575 Needle Spring

Item No: 3

Part #: 0295575

Titan 0295575 Needle Spring is a small but essential component inside the Titan paint sprayer gun, r...

$2.50

QTY:

Titan 0524505A Rear Needle

Item No: 4

Part #: 0524505A

Titan 0524505A Rear Needle pkg It is a genuine OEM component designed for use in Titan's Maxum Elit...

$17.50

QTY:

Titan 0524488A Material Flow Adjustment Housing

Item No: 5

Part #: 0524488A

Titan 0524488A Material Flow Adjustment HousingFits: CapSpray Maxum Elite HVLP Spray Gun

Retail Price: $33.80

You save: $1.86 (5.50%)

Our Price: $31.94

QTY:

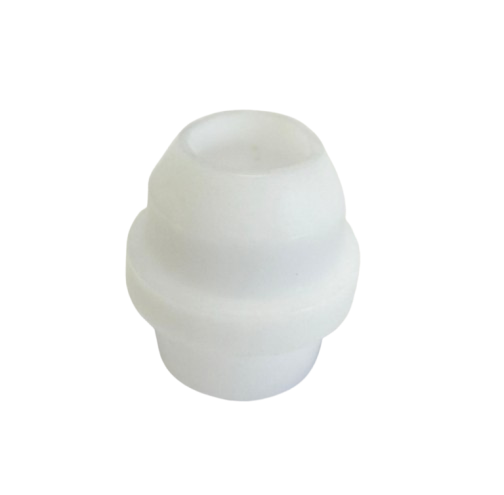

Titan 0275501 Rear Air Valve Seal

Item No: 6

Part #: 0275501

Titan 0275501 Rear Air Valve Seal is for various Titan HVLP spray guns like the Titan Capspray NB an...

$13.00

QTY:

Titan 0275578 Air Valve Spring

Item No: 7

Part #: 0275578

Titan 0275578 Air Valve Spring Fits: HVLP Spray Guns, Capspray Elite Spray Gun, Maxum II ...

$4.10

QTY:

Titan 0524624A Air Valve Seal

Item No: 8

Part #: 0524624A

Titan 0524624A Air Valve Seal, air valveFits: Capspray Elite Spray Gun, Capspray HVLP Transfer Pum...

Retail Price: $41.30

You save: $3.14 (7.60%)

Our Price: $38.16

QTY:

Titan 0277486 Air Valve Seal

Item No: 9

Part #: 0277486

Titan 0277486 Air Valve Seal prevents leak in various Titan spray guns like the Titan CAPSpray Maxum...

$3.60

QTY:

Titan 0277489 Air Valve Snap Ring

Item No: 10

Part #: 0277489

Titan 0277489 Air Valve Snap Ring fo various Titan HVLP spray guns like the Titan CAPSpray Maxum II ...

$3.00

QTY:

Titan 0277488 Front Air Valve Seal

Item No: 11

Part #: 0277488

Titan 0277488 Front Air Valve Seal is an OEM part Compatible with these SprayTech/Titan machines S...

$4.40

QTY:

Titan 9805205 Screw

Item No: 12

Part #: 9805205

Titan 9805205 Screw It is a 8-16 x 5/8" flat head screw, designed for durability and precision. T...

$3.40

QTY:

Titan 0524493 Air Flow Adjustment Knob

Item No: 13

Part #: 0524493

Titan 0524493 Air Flow Adjustment Knob for Titan Maxum Elite HVLP spray gun. Here are some details ...

$21.20

QTY:

Titan 9894242 Wave Spring Washer

Item No: 14

Part #: 9894242

Titan 9894242 Wave Spring Washer is designed to provide a secure fastening solution in various Titan...

$3.10

QTY:

Titan 0524492A Air Control Housing, pkg

Item No: 15

Part #: 0524492A

Titan 0524492A Air Control Housing, pkgReplaces part #0524492

$24.10

QTY:

Titan 0508403 Air Flow Valve O-Ring

Item No: 16

Part #: 0508403

Titan 0508403 Air Flow Valve O-Ring regulates the airflow within the Titan spray gun system. Func...

$3.40

QTY:

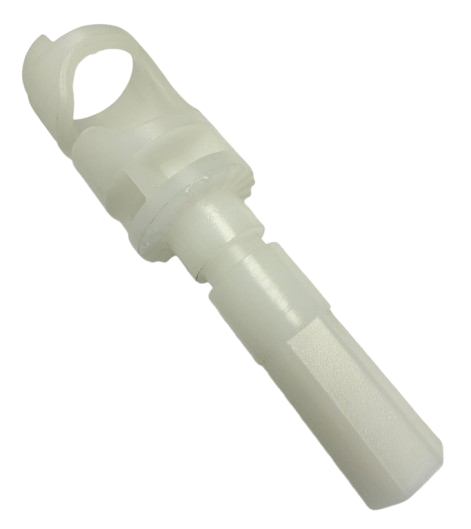

Titan 0524491 Air Flow Valve

Item No: 17

Part #: 0524491

Titan 0524491 Air Flow Valve is used to regulate the airflow in the Titan spray gun system. It is d...

$13.90

QTY:

Titan 0524478A Gun body

Item No: 18

Part #: 0524478A

Titan 0524478A Gun body, elite,pkg

Retail Price: $85.70

You save: $7.11 (8.30%)

Our Price: $78.59

QTY:

Titan 0524496 Handle

Item No: 19

Part #: 0524496

Titan 0524496 Handle for Capspray HVLP power cart Titan 0524496 Handle is a replacement part d...

$12.50

QTY:

Titan 0524617 Shoulder Bolt

Item No: 20

Part #: 0524617

Titan 0524617 Shoulder Bolt Fits: Capspray Elite Spray Gun Titan 0524617 Shoulder Bolt is a g...

$3.10

QTY:

Titan 0524615 Trigger Lever

Item No: 21

Part #: 0524615

Titan 0524615 Trigger Lever is a replacement part for Titan HVLP spray guns and CapSpray Elite m...

$2.60

QTY:

Titan 0524698 Seal

Item No: 22

Part #: 0524698

Titan 0524698 Trigger Pin Seal Fits: HVLP Spray Guns, Capspray Elite Spray Gun Titan 05246...

$5.30

QTY:

Titan 0524697 Trigger Pin

Item No: 23

Part #: 0524697

Titan 0524697 Trigger PinFits titan:Maxum Elite (0524027) Capspray HVLP Spray GunMaxum Elite (052405...

$15.90

QTY:

Titan 0524498A Handle Tube

Item No: 24

Part #: 0524498A

Titan 0524498A Handle Tube,Elite,pkg

$8.60

QTY:

Titan 0524497 Handle Tube, Nut

Item No: 25

Part #: 0524497

Nut, handle tube

$8.80

QTY:

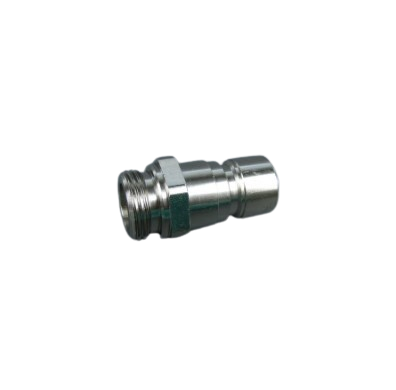

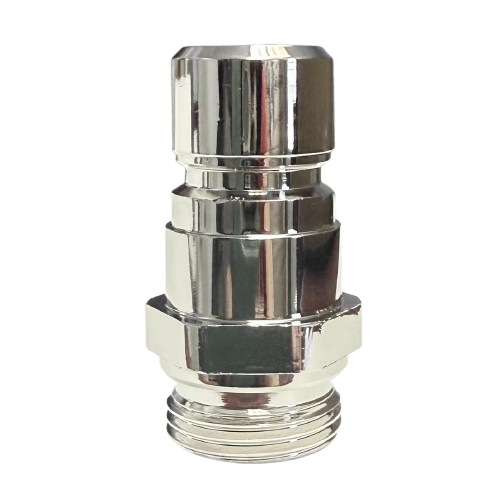

Titan 0275481 Quick Disconnect Fitting

Item No: 26

Part #: 0275481

Titan 0275481 Quick Disconnect Fitting (Same as 0277503)Titan CAPspray 0275481 or 275481 Male Quick ...

Retail Price: $55.60

You save: $4.61 (8.29%)

Our Price: $50.99

QTY:

Titan 0524495 Cap Spray Gun Hook

Item No: 27

Part #: 0524495

Titan CapSpray 0524495 Gun Hook is a replacement part designed for use with the Titan CapSpray Max...

$3.70

QTY:

Titan 0524504 Gun Hook Lock

Item No: 28

Part #: 0524504

Titan 0524504 Gun hook lock or Lock

$8.20

QTY:

Titan 0524500 Screw

Item No: 29

Part #: 0524500

Titan 0524500 Screw Titan 0524500 Screw is a fastener designed for precise assembly and secure moun...

$5.00

QTY:

Titan 0524084 Gun Head Latch

Item No: 30

Part #: 0524084

Titan 0524084 Gun Head Latch is designed for use with the Titan HVLP (High Volume Low Pressure) spra...

$0.40

QTY:

Titan 0524502 Head Latch Spring

Item No: 31

Part #: 0524502

Titan 0524502 Head Latch Spring or Spring,latch,head is a genuine OEM part designed to meet the sa...

$3.20

QTY:

Titan 0524499 Head Latch Slide

Item No: 32

Part #: 0524499

Titan 0524499 Head Latch Slide

$23.70

QTY:

Titan 0524612 Gun Body Insert

Item No: 33

Part #: 0524612

Titan 0524612 Gun Body Insert is positioned between the gun body O-ring and the seal for proper seal...

$2.00

QTY:

Titan 0524613 Screw

Item No: 34

Part #: 0524613

Titan 0524613 Screw with #6X .38 S.S. Screw Cap is a genuine OEM part designed to meet the same spe...

$2.10

QTY:

Titan 0524503 Gun Body/Head Seal

Item No: 35

Part #: 0524503

Titan 0524503 Gun Body/Head Seal It is a component designed to prevent contamination and maintain...

$2.10

QTY:

Titan 0524483 Fluid, Needle, Flange

Item No: 36

Part #: 0524483

Titan 0524483 Fluid, Needle, FlangeFits: Titan Maxum Elite (0524027) Capspray HVLP Spray Gun and Max...

$8.82

QTY:

Titan 0524618 Gun Body O-Ring

Item No: 38

Part #: 0524618

Titan 0524618 Gun Body O-Ring creates a tight seal between different components of the Titan Maxum ...

$1.00

QTY:

Titan 0524086 Trigger Bushing

Item No: 39

Part #: 0524086

Titan 0524086 Trigger Bushing Titan 0524086 Trigger Bushing is a genuine component designed for Tit...

$3.90

QTY:

Titan 0524486 Trigger

Item No: 40

Part #: 0524486

Titan 0524486 Gun Trigger is an OEM part.

$15.50

QTY:

Titan 0524485 Needle Packing Adjustment Nut

Item No: 41

Part #: 0524485

Titan 0524485 Needle Packing Adjustment Nut Fits: Capspray Elite Spray Gun Titan 052448...

$8.00

QTY:

Titan 0275579 Needle Packing

Item No: 42

Part #: 0275579

Titan 0275579 Needle Packing can be found on the front-end of various Titan sprayer guns like CapSpr...

$7.70

QTY:

Titan 0529220 Check Valve Retainer with O-Ring

Item No: 43

Part #: 0529220

Titan 0529220 Check Valve Retainer with O-ring It is a component designed for the Titan CapSpra...

$10.40

QTY:

Titan 0276415 Valve Seal

Item No: 45

Part #: 0276415

Titan 0276415 Valve Seal Titan 0276415 Valve Seal is a genuine OEM component designed to provide a...

$3.20

QTY:

Titan 0524272A Gun Head PKG

Item No: 46

Part #: 0524272A

Titan 0524272A Gun Head PKG is a genuine OEM replacement head for Maxum Elite Capspray HVLP Spray Gu...

Retail Price: $63.30

You save: $5.25 (8.29%)

Our Price: $58.05

QTY:

Titan 0275250 Spring Plate Assembly

Item No: 47

Part #: 0275250

Titan 0275250 Spring Plate Assembly is a genuine Titan OEM part for use in various high-volume, low-...

$25.10

QTY:

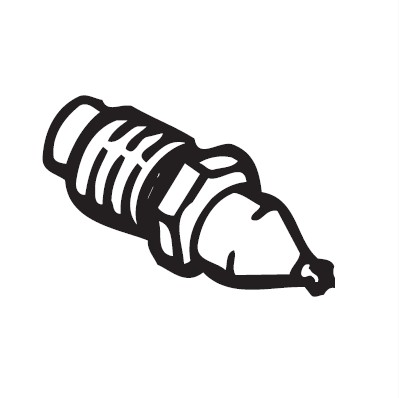

Titan 0276451 Air Nozzle #3

Item No: 48

Part #: 0276451

Titan 0276451 Air NozzleFits: HVLP Spray Guns, Capspray Elite Spray Gun, CAPSpray Maxum II HVLP S...

Retail Price: $68.00

You save: $5.64 (8.29%)

Our Price: $62.36

QTY:

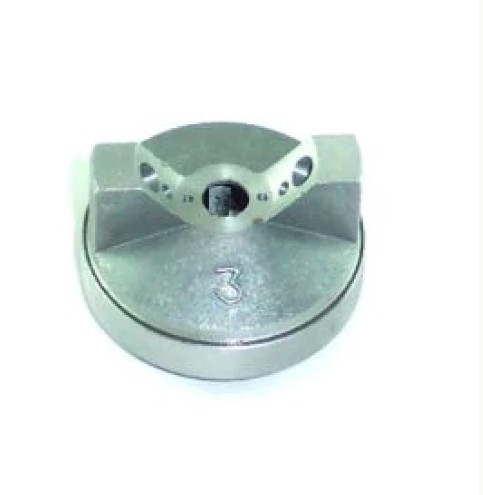

Titan 0276452 Air Cap #3

Item No: 49

Part #: 0276452

Titan 0276452 Air Cap #3 mach, 1.3mm guided or Air cap for set No.3Fits: Capspray Elite Spray Gun....

Retail Price: $128.90

You save: $13.41 (10.40%)

Our Price: $115.49

QTY:

Titan 0524484 Air Cap Ring

Item No: 50

Part #: 0524484

Titan 0524484 Air Cap Ring Titan 0524484 Air Cap Ring is an component designed for Titan's Capspra...

$4.60

QTY:

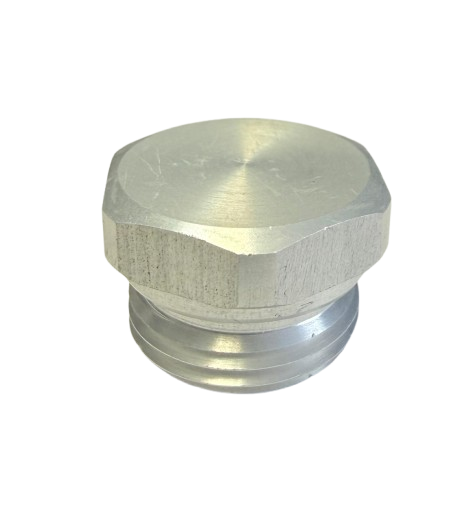

Titan 0277974 Air Plug

Item No: 51

Part #: 0277974

Titan 0277974 Air PlugSame as 0277504 & 0275482Fits: Titan Maxum HVLP guns

Retail Price: $37.60

You save: $2.07 (5.51%)

Our Price: $35.53

QTY:

Titan 0524094 Repair Kit

Item No: 52

Part #: 0524094

Titan 0524094 Repair KitIncludes: Gun body insert, screw and gun body o-ringFits: CapSpray Maxum Eli...

$16.40

QTY:

The Maxum Elite HVLP Spray Gun is a high-performance tool designed for contractors and finishing professionals who demand flawless results. This versatile HVLP gun can be used with gravity and siphon-fed cups, making it a perfect option for any painting project.

One of the key features of the Maxum Elite is its ability to adjust both air and fluid intake. This gives you ultimate control over the fan pattern size, orientation, and shape, allowing you to achieve a precise and consistent finish every time.
The removable and reversible fluid chamber design enables you to use standard pressurized cups and a pressurized gravity cup.
The indexed air and fluid controls on the Maxum Elite Spray Gun make it easy to use, even for beginners.
The fluid needle stays with the packing and head assembly, making it easy to change colour and tip size and more accessible storage and clean up.
The integrated check valve in the gun head is another great feature that helps to prevent paint from dripping when you're not using the gun.
The Elite HVLP Spray Gun also comes standard with the #3 Pro Set (needle set), an excellent addition for those who want to start immediately.

This needle set is designed to work with a wide range of paint types and thicknesses, making it an excellent option for professional and DIY projects.

Buy HVLP Maxum Elite Spray Gun Parts from AllTitanParts!

If you're looking for a reliable and efficient spray gun that can deliver flawless results, the Maxum Elite HVLP Spray Gun is worth considering. However, if you're looking for HVLP Maxum Elite Spray Gun broken parts, you can find them on AllTitanParts, as they offer a complete range of spray gun parts. Purchasing the Elite Spray Gun parts from AllTitanParts will provide high-quality parts and assure you of the best customer service, fast delivery, and a secure online shopping experience.

FAQs

1. What types of cups can be used with the Maxum Elite HVLP Spray Gun?

The Maxum Elite HVLP Spray Gun supports both gravity-fed and siphon-fed cups. Its removable and reversible fluid chamber also allows the use of standard pressurized cups and a pressurized gravity cup, making it highly versatile for different painting tasks.

2. How do the air and fluid adjustment controls improve spray performance?

The adjustable air and fluid intake controls allow precise control over fan pattern size, shape, and orientation. This helps achieve consistent atomization and a smooth, professional-quality finish across various coatings and surfaces.

3. What is the benefit of the integrated check valve in the gun head?

The integrated check valve prevents paint from dripping when the gun is not in use. This feature helps reduce material waste, keeps work areas cleaner, and ensures a more controlled spraying experience.

4. Is the Maxum Elite HVLP Spray Gun suitable for beginners?

Yes, the indexed air and fluid controls make the spray gun easy to set and operate, even for beginners. These indexed settings allow users to repeat preferred spray configurations with accuracy and confidence.

5. What advantages does the #3 Pro Set needle set offer?

The #3 Pro Set needle set is designed to handle a wide range of paint types and viscosities. It provides excellent control and versatility, allowing users to start spraying immediately without needing additional a rare needle sets for most projects.
