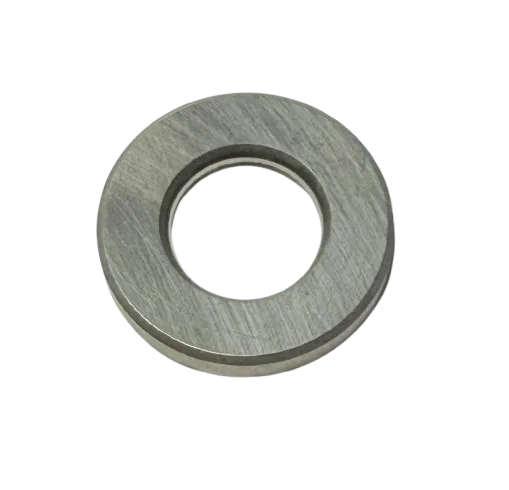

Titan part 0294516 is an outlet valve seat (replaces Titan 944-043) used in the fluid section of compatible airless sprayers. It provides a sealing surface for the outlet valve ball or poppet, ensuring proper flow direction and pressure retention. Replace a worn, pitted, or eroded valve seat to restore pump efficiency, eliminate pressure loss, and prevent backflow on SprayTech, Airless, Advantage, PowrLiner, Impact, Helix, and Advantage GPX units.
| Part Number | 0294516 |
|---|---|
| Part Description | Outlet Valve Seat (Replaces Titan 944-043) |
| Brand | Titan |
| Fits |
|
| Condition | New |
The Titan 0294516 Outlet Valve Seat is a direct replacement for the older Titan 944-043. It is a precision‑machined component that provides the sealing surface for the outlet valve ball or poppet in the fluid section of compatible airless sprayers. When the piston moves forward, the outlet valve ball seats against this surface, preventing backflow and directing paint toward the spray hose. The seat is typically made of hardened steel or tungsten carbide for long life.
Over time, the outlet valve seat can become pitted, worn, or eroded due to abrasive materials, cavitation, or normal wear. A damaged seat allows fluid to bypass, causing pressure loss, erratic spray, poor priming, or complete pump failure. Replacing a worn outlet valve seat with a genuine Titan 0294516 restores proper sealing, consistent pressure, and pumping efficiency on a wide range of SprayTech, Airless, Advantage, PowrLiner, Impact, Helix, and Advantage GPX models.
| Seals against valve ball | Prevents backflow during pump stroke |
|---|---|
| Directs fluid flow | Forces paint toward outlet hose |
| Maintains pressure | Ensures consistent pumping output |
| Visible pitting or wear | Seat surface is no longer smooth |
|---|---|
| Pressure loss | Sprayer runs but cannot build or hold pressure |
| Erratic spray / pulsation | Pressure fluctuates or spray pattern is uneven |
| Backflow symptoms | Paint pushes back into hopper or suction tube |
Titan part 0294516 (replaces 944-043) is compatible with the following sprayers. Always confirm fitment using the correct parts diagram for your exact model.
| Brand / Model | Component |
|---|---|
| SprayTech LCX 130 | Outlet valve seat |
| SprayTech GPX1250 | Outlet valve seat |
| SprayTech GPX 130 | Outlet valve seat |
| SprayTech GPX85 | Outlet valve seat |
| Airless EPX2555 | Outlet valve seat |
| Airless EPX2505 | Outlet valve seat |
| Airless EPX2455 | Outlet valve seat |
| Airless EPX2405 | Outlet valve seat |
| Airless EPX2355 | Outlet valve seat |
| Airless EPX2305 | Outlet valve seat |
| Airless EP2510 | Outlet valve seat |
| Airless EP2400 | Outlet valve seat |
| Airless EP2300 | Outlet valve seat |
| Airless EP2300 SE | Outlet valve seat |
| Advantage EPX2555 | Outlet valve seat |
| Airless Advantage EPX2455 | Outlet valve seat |
| Airless Advantage EPX2355 | Outlet valve seat |
| PowrLiner 6950 | Outlet valve seat |
| PowrLiner 4950 | Outlet valve seat |
| PowrLiner 1800M | Outlet valve seat |
| PowrLiner 2800M | Outlet valve seat |
| PowrLiner 2850 | Outlet valve seat |
| Impact 1640 | Outlet valve seat |
| Impact 840 | Outlet valve seat |
| Impact 740/840 | Outlet valve seat |
| Impact 840 I | Outlet valve seat |
| Impact 840 IA | Outlet valve seat |
| Helix VR | Outlet valve seat |
| Helix FR | Outlet valve seat |
| Advantage GPX 130 | Outlet valve seat |
| Advantage GPX 85 | Outlet valve seat |
| Advantage GPX 1100 | Outlet valve seat |
| Advantage GPX 700 | Outlet valve seat |
| Advantage GPX 600 | Outlet valve seat |
When replacing the outlet valve seat, inspect these related components.
Check for scoring, out‑of‑round, or wear – replace if damaged.
Replace the sealing element (O‑ring or lip seal) at the same time.
Ensure the retainer is not damaged and torques properly.
