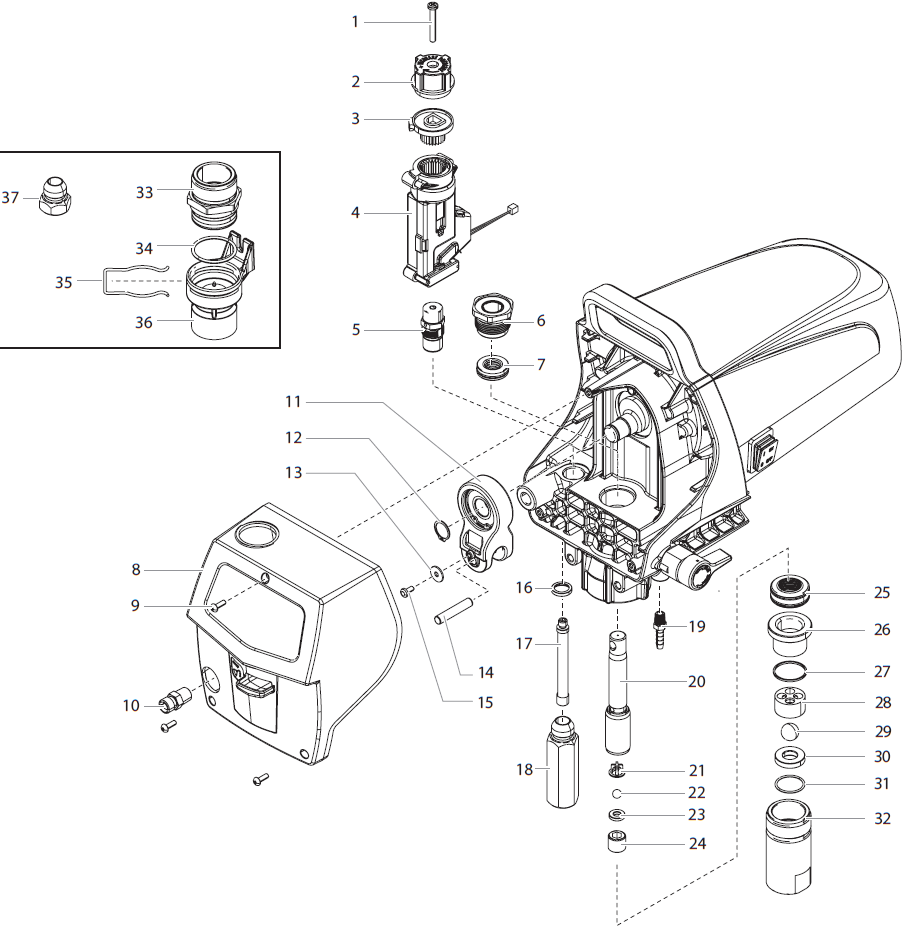

Impact 400 Drive Assembly Parts (II)


9805300
0532355A
0532334A
0532223A
0532215
0532914
0532222A
700-139
227-006
0532203A
9822529
9822600
9832128
9805446
560-038
540-030
0532360A
193-200
0532204A
0516304
50164
0512343
0512342
0532915
0509590
700-821
704-703
762-145
0532345
762-058
730-511
0532216A
805-351A
800-332
805-350
0532243A
0532242A
0532357
704-054
Impact 400 Drive Assembly Parts (II)
  • Titan 9805300 Screw

    Titan 9805300 Screw

    Item No: 1

    Part #:9805300

    Titan 9805300 Screw - OEM Fits: Impact 400, Impact 340  Titan 9805300 Screw - OEM Fits: Impact 400, Impact 340  ...
    $2.50

  • Titan 0532355A Pressure Control Knob

    Titan 0532355A Pressure Control Knob

    Item No: 2

    Part #:0532355A

    Titan 0532355A Pressure Control Knob  *Replaced Part # 0532355* Fits the following models: Impact 340, Impact 400 Titan 0532355A Pressure Control Knob  *Replaced Part # 0532355* ...
    $8.80

  • Titan 0532334A Pressure Control Knob Bottom

    Titan 0532334A Pressure Control Knob Bottom

    Item No: 3

    Part #:0532334A

    Titan 0532334A Pressure Control Knob Bottom  *Replaced Part # 0532334* Fits the following models: Impact 340, Impact 400 Titan 0532334A Pressure Control Knob Bottom  *Replaced Part # 0532334...
    $10.20

  • Titan 0532216A Pressure Switch

    Titan 0532216A Pressure Switch

    Item No: 4

    Part #:0532216A

    Titan 0532216A Pressure Switch Fits: Impact 340 Titan 0532216A Pressure Switch Fits: Impact 340 ...
    Retail Price: $30.40
    You save: $4.15  (14%)
    Our Price: $26.25

  • Titan 0532223A Transducer Assembly

    Titan 0532223A Transducer Assembly

    Item No: 5

    Part #:0532223A

    Transducer Assembly or Mechanical transducer assembly Fits the following models: Impact 340, Impact 400 Transducer Assembly or Mechanical transducer assembly Fits the fo...
    Retail Price: $34.30
    You save: $4.68  (14%)
    Our Price: $29.62

  • Titan 0532215 Upper Bushing

    Titan 0532215 Upper Bushing

    Item No: 6

    Part #:0532215

    Titan  0532215  Upper Bushing or Upper Bushing Assembly Fits the following models: Impact 340, Impact 400 Titan  0532215  Upper Bushing or Upper Bushing Assembly ...
    Retail Price: $19.40
    You save: $1.94  (10%)
    Our Price: $17.46

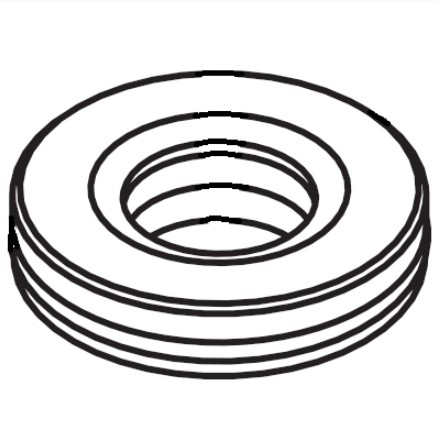

  • Titan 0532914 Upper Packing

    Titan 0532914 Upper Packing

    Item No: 7

    Part #:0532914

    Titan  0532914  Upper Packing or Seal, upper, packaged Fits the following models: Impact 340, Impact 400, Impact 410 Titan  0532914  Upper Packing or Seal, upper, packaged ...
    Retail Price: $36.30
    You save: $4.95  (14%)
    Our Price: $31.35

  • Titan 0532222A Front Cover

    Titan 0532222A Front Cover

    Item No: 8

    Part #:0532222A

      Titan 0532222A Front Cover  or Face plate assy, black, pkgd Fits the following models: Impact 400     Titan 0532222A Front Cover  or Face plate assy, black, pkgd...
    Retail Price: $20.40
    You save: $2.04  (10%)
    Our Price: $18.36

  • Titan 700-139 Motor Baffle Screw

    Titan 700-139 Motor Baffle Screw

    Item No: 9

    Part #:700-139

    Titan 700-139 Motor Baffle Screw, Philips head, 8-32X1/2" is a genuine OEM part. Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040, 740ix Digital Airless Sprayer, 740ix Airless Sprayer, 740i Airless Sprayer, 640ix Airless Sprayer. Titan 700-139 Motor Baffle Screw, Philips head, 8-32X1/2" is a genuine OEM ...
    $2.62

  • Titan 227-006 Outlet Fitting

    Titan 227-006 Outlet Fitting

    Item No: 10

    Part #:227-006

      Titan 227-006 Outlet Fitting, 1/4" NPT(M) X 1/4" NPS(M) is an OEM Part. Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640     Titan 227-006 Outlet Fitting, 1/4" NPT(M) X 1/4"...
    Retail Price: $16.20
    You save: $1.62  (10%)
    Our Price: $14.58

  • Titan 0532203A Yoke Assembly

    Titan 0532203A Yoke Assembly

    Item No: 11

    Part #:0532203A

    Titan 0532203A Yoke, machined  Fits: Impact 400, Impact 340  Titan 0532203A Yoke, machined  Fits: Impact 400, Impact 340&...
    Retail Price: $58.30
    You save: $8.33  (14%)
    Our Price: $49.97

  • Titan 9822529 Ring Retainer

    Titan 9822529 Ring Retainer

    Item No: 12

    Part #:9822529

    Titan 9822529 Retainer Ring or Ring, Retainer External,.669 DIA Fits the following models: Impact 340, Impact 400 Titan 9822529 Retainer Ring or Ring, Retainer External,.669 DIA Fits th...
    $0.42

  • Titan 9822600 Washer

    Titan 9822600 Washer

    Item No: 13

    Part #:9822600

    Titan 9822600 Washer, 0.60 OD / hardness 45-53Rc Fits the following models: Impact 340, Impact 400 Titan 9822600 Washer, 0.60 OD / hardness 45-53Rc Fits the followi...
    $1.96

  • Titan 9832128 Dowel Pin

    Titan 9832128 Dowel Pin

    Item No: 14

    Part #:9832128

    Titan 9832128 Dowel Pin , 5/16 x 1-5/8 Fits the following models: Impact 340, Impact 400 Titan 9832128 Dowel Pin , 5/16 x 1-5/8 Fits the following models: ...
    $3.09

  • Titan 9805446 Screw

    Titan 9805446 Screw

    Item No: 15

    Part #:9805446

    Titan 9805446 Screw 8-32 X 3/8 Taptite HX HD Fits the following models: Impact 340, Impact 400 Titan 9805446 Screw 8-32 X 3/8 Taptite HX HD Fits the following m...
    $1.96

  • Titan 560-038 Handle Seal

    Titan 560-038 Handle Seal

    Item No: 16

    Part #:560-038

    Titan 560-038 Handle Seal is same as Titan 0296289 it is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.  The Titan 560-038 Handle Seal is made from durable rubber and provides a tight seal for the manifold filter. This Handle Seal fits the inlet filter housing on the Titan skid models.   Compatible with: Titan... Titan 560-038 Handle Seal is same as Titan 0296289 it is a genuine OEM...
    $3.36

  • Titan 540-030 Green 30 Mesh

    Titan 540-030 Green 30 Mesh

    Item No: 17

    Part #:540-030

     Titan 540-030 Green 30 Mesh or Filter assy., bulk coarse green Fits the following models: Impact 340, Impact 400 (For use with LX-80″ and LX-80 Platinum)  Titan 540-030 Green 30 Mesh or Filter assy., bulk coarse green Fits th...
    Retail Price: $7.60
    You save: $1.30  (17%)
    Our Price: $6.30

  • Titan 0532360A Filter Housing

    Titan 0532360A Filter Housing

    Item No: 18

    Part #:0532360A

    Titan  0532360A  Filter Housing or Housing, filter, pkgd *Replaced Part #'s 0532360 / 700-421* Fits the following models: Impact 340, Impact 400 Titan  0532360A  Filter Housing or Housing, filter, pkgd *Re...
    Retail Price: $21.80
    You save: $2.62  (12%)
    Our Price: $19.18

  • Titan 193-200 Return Tube Fitting

    Titan 193-200 Return Tube Fitting

    Item No: 19

    Part #:193-200

    Titan 193-200 Return TubeFitting, 1/8"NPT x 1/4" Hose Barb is an OEM part. It is compatible with the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Advantage 400, Advantage 500 and more.   Titan 193-200 Return TubeFitting, 1/8"NPT x 1/4" Hose Barb is an OEM p...
    $5.46

  • Titan 0532204A Piston Assembly

    Titan 0532204A Piston Assembly

    Item No: 20

    Part #:0532204A

    Titan 0532204A Piston Assembly Includes: Upper Cage, Outlet Valve Ball, Outlet Valve Seat & Outlet Valve Retainer Fits the following models: Impact 340, Impact 400 Titan 0532204A Piston Assembly Includes: Upper Cage, Outlet Valve ...
    Retail Price: $108.50
    You save: $15.50  (14%)
    Our Price: $93.00

  • Titan 0516304 Upper Cage

    Titan 0516304 Upper Cage

    Item No: 21

    Part #:0516304

    Titan 0516304 Upper Cage or Guide, ball, outlet Fits the following models: Impact 340, Impact 400 Titan 0516304 Upper Cage or Guide, ball, outlet Fits the followin...
    $1.82

  • Titan 50164 Outlet Valve Ball

    Titan 50164 Outlet Valve Ball

    Item No: 22

    Part #:50164

    Titan 50164 Outlet Valve Ball l,.3125 dia *Replaced Part # 0516303* Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640,  linecrew 750,  RentSpray 400,  EP2100 piston pump,  Impact 410,  RentSpray 600 Impact Airless Sprayer,  RentSpray 500 Airless Sprayer,  RentSpray 400 Airless Sprayer,  GPX 750 Gas Piston Pump,  GPX 80 Gas Piston Pump, ... Titan 50164 Outlet Valve Ball l,.3125 dia *Replaced Part # 0516303* ...
    $3.47

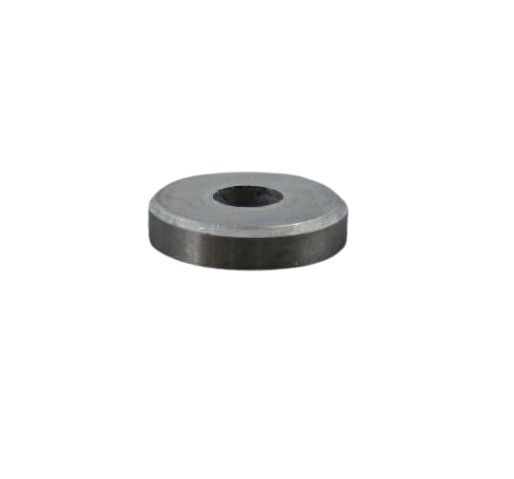

  • Titan 0512343 Outlet Valve Seat

    Titan 0512343 Outlet Valve Seat

    Item No: 23

    Part #:0512343

    Titan 0512343 Outlet Valve Seat Outlet Valve Seat or Seat,carbide, 5/16 Fits the following models: Impact 340, Impact 400 Titan 0512343 Outlet Valve Seat Outlet Valve Seat or Seat,carbide, 5...
    $13.40

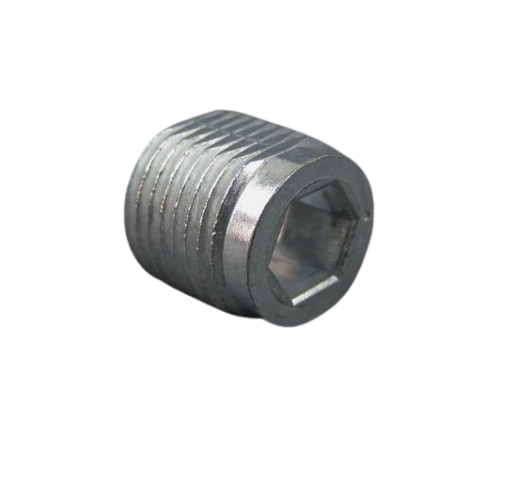

  • Titan 0512342 Outlet Valve Retainer

    Titan 0512342 Outlet Valve Retainer

    Item No: 24

    Part #:0512342

    Titan  0512342  Outlet Valve Retainer or Nut,outlet Fits the following models: Impact 340, Impact 400 Titan  0512342  Outlet Valve Retainer or Nut,outlet Fi...
    $5.36

  • Titan 0532915 Lower Packing

    Titan 0532915 Lower Packing

    Item No: 25

    Part #:0532915

    Titan  0532915  Lower Packing or Seal, lower, packaged replaced # 704-547 Fits the following models: Impact 340, Impact 400, Impact 640 Titan  0532915  Lower Packing or Seal, lower, packaged repla...
    Retail Price: $52.40
    You save: $7.49  (14%)
    Our Price: $44.91

  • Titan 0509590 Piston Bushing

    Titan 0509590 Piston Bushing

    Item No: 26

    Part #:0509590

    Titan 0509590 Piston Bushing  *Replaced Part # 755-186 / 730-509* Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Powrliner 3100 and many more models Titan 0509590 Piston Bushing  *Replaced Part # 755-186 / 730-509* ...
    Retail Price: $35.10
    You save: $4.79  (14%)
    Our Price: $30.31

  • Titan 700-821 Teflon-Ring/Seal

    Titan 700-821 Teflon-Ring/Seal

    Item No: 27

    Part #:700-821

    Titan 700-821 Teflon-Ring Seal or Foot valve seal is same as Titan 0509581 it replaces Titan 0508739  is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. The Titan 700-821 Inlet valve seal or Foot valve seal is made of high-quality, durable material that is resistant to wear and tear, ensuring a long service life. The seal is designed to fit precisely in... Titan 700-821 Teflon-Ring Seal or Foot valve seal is same as Titan 0509581 it&nb...
    $5.36

  • Titan 704-703 Inlet Valve Cage

    Titan 704-703 Inlet Valve Cage

    Item No: 28

    Part #:704-703

    Titan 704-703 Inlet Valve Cage replaces Titan 730-510 and titan 509951. It is compatible with Titan 330, 440i, 640i, 640ix, Impact 340, Impact 400, Impact 440, Impact 540, Impact 640 and more. Titan 704-703 Inlet Valve Cage replaces Titan 730-510 and titan 509951. It is co...
    Retail Price: $56.30
    You save: $8.04  (14%)
    Our Price: $48.26

  • Titan 762-145 Inlet Valve Ball

    Titan 762-145 Inlet Valve Ball

    Item No: 29

    Part #:762-145

    Titan 762-145 Inlet Valve Ball is a 625 diameter stainleess steel, a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance, aslo called Foot Valve Ball. The Titan 762-145 inlet valve ball is made of durable materials,which ensures that it can withstand the high pressures and abrasion associated with airless spraying. It is designed to fit snugly into the valve... Titan 762-145 Inlet Valve Ball is a 625 diameter stainleess steel, a genuin...
    $3.47

  • Titan 0532345 Inlet Valve Seat

    Titan 0532345 Inlet Valve Seat

    Item No: 30

    Part #:0532345

    Titan/SprayTech 0532345 Inlet Valve Seat  Disinfectant Sprayers, Disinfectant Sprayers Machines, Disinfectant Machine Parts, Disinfectant Machine Tips, Disinfectant Machine Hoses, Sprayer Heads, Sprayer Hoses, Sprayer Tips  Fits: Impact 340, Impact 400  Titan/SprayTech 0532345 Inlet Valve Seat  Disinfectant Sprayers, Di...
    Retail Price: $74.90
    You save: $10.70  (14%)
    Our Price: $64.20

  • Titan 762-058 Seat O-Ring

    Titan 762-058 Seat O-Ring

    Item No: 31

    Part #:762-058

    Titan 762-058 Seat O-Ring, PTFE is same as Titan 0509582. Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, 330 Airless Sprayer, 340 Airless Sprayer International Model, 440i Airless Sprayer, 440ix Airless Sprayer, 440xc Airless Sprayer, 540ix Airless Sprayer, 550xc Airless Sprayer, 640i Airless Sprayer, 640ix Airless Sprayer, 660xc Airless Sprayer, 690gxc Airless Sprayer, 740i Airless... Titan 762-058 Seat O-Ring, PTFE is same as Titan 0509582. Fits the following mod...
    $6.83

  • Titan 704-054 Foot Valve Housing

    Titan 704-054 Foot Valve Housing

    Item No: 32

    Part #:704-054

    Titan 704-054 Foot Valve Housing (skid/low) is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance, it replaces Titan 0508680.   Compatible with: Titan parts, 540ix Parts. Titan Impact 330 parts, 340 Parts, 400 Parts, 400 Parts. Titan Advantage 400 Parts,  440hpx Parts, 440i Parts, 440ix Parts, 440xc Parts, 447hp parts, 550XC Parts, 640i... Titan 704-054 Foot Valve Housing (skid/low) is a genuine OEM part designed ...
    Retail Price: $60.70
    You save: $8.67  (14%)
    Our Price: $52.03

  • Titan 730-511 Inlet Valve Housing

    Titan 730-511 Inlet Valve Housing

    Item No: 32

    Part #:730-511

    Titan 730-511 Inlet Valve Housing Inlet Valve Housing or Inlet Valve Housing Upright  AllTitanParts offers Inlet Valve Housing with RentSpray Series Sprayer Parts such as RentSpray Plus Airless Sprayer, RentSpray 400 Airless Sprayer, RentSpray 500 Airless Sprayer, and RentSpray 650 Airless Sprayer etc..  It is an OEM product.   Fits the following models: Titan 440, 440i, 440ix  more. Titan 730-511 Inlet Valve Housing Inlet Valve Housing or Inlet Valve Ho...
    Retail Price: $154.80
    You save: $22.11  (14%)
    Our Price: $132.69

  • Titan 805-351A Inlet Valve

    Titan 805-351A Inlet Valve

    Item No: 33

    Part #:805-351A

    Titan 805-351A Inlet Valve Housing or Foot Valve Housing(Pusher) is an OEM part. Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640 Titan 805-351A Inlet Valve Housing or Foot Valve Housing(Pusher) ...
    Retail Price: $57.90
    You save: $8.27  (14%)
    Our Price: $49.63

  • Titan 800-332 Viton O-Ring

    Titan 800-332 Viton O-Ring

    Item No: 34

    Part #:800-332

    Titan 800-332 Viton O-Ring is same as Titan 507730 and replaces Titan 9871160.  Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 paint sprayers. Titan 800-332 Viton O-Ring is same as Titan 507730 and replaces Titan 9871160.&n...
    $3.47

  • Titan 805-350 Pusher Assembly Clip

    Titan 805-350 Pusher Assembly Clip

    Item No: 35

    Part #:805-350

    Titan 805-350 Pusher Assembly Clip replaces part Titan 558742. It fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640 Titan 805-350 Pusher Assembly Clip replaces part Titan 558742. It fits the follo...
    $2.50

  • Titan 0532242A Pusher Assembly

    Titan 0532242A Pusher Assembly

    Item No: 36

    Part #:0532242A

    Titan 0532242A Pusher Assembly Includes an O-Ring and a Pusher Assembly Clip. Fits the following models: Impact 340, Impact 400   Titan 0532242A Pusher Assembly Includes an O-Ring and a Pusher Assembly Clip. Fi...
    Retail Price: $57.60
    You save: $8.23  (14%)
    Our Price: $49.37

  • Titan 0532243A Pusher Assembly

    Titan 0532243A Pusher Assembly

    Item No: 36

    Part #:0532243A

    Titan 0532243A Pusher Assembly Includes: O-ring and pusher assembly clip Fits the following models: Impact 400 Titan 0532243A Pusher Assembly Includes: O-ring and pusher assembl...
    Retail Price: $75.80
    You save: $10.83  (14%)
    Our Price: $64.97

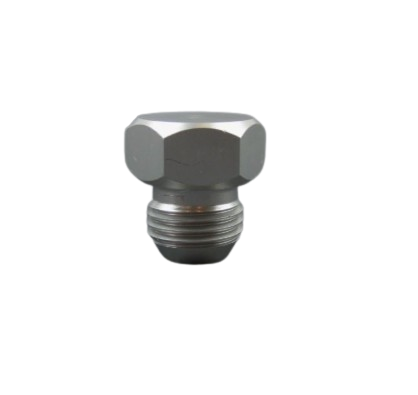

  • Titan 0532357 Filter Plug

    Titan 0532357 Filter Plug

    Item No: 37

    Part #:0532357

    Titan 0532357 Filter Plug Includes: O-ring and pusher assembly clip Fits the following models: Impact 340, Impact 400, Impact 410 Titan 0532357 Filter Plug Includes: O-ring and pusher assembly clip...
    $12.20

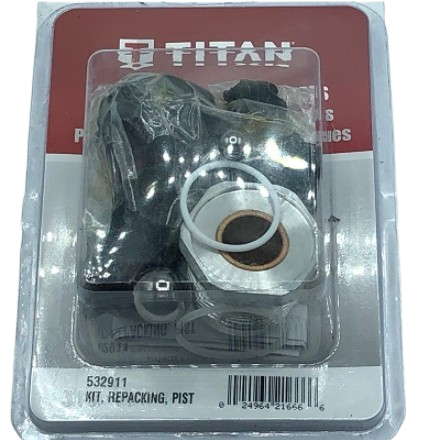

  • Titan 0532911 Fluid Section Repacking Kit

    Titan 0532911 Fluid Section Repacking Kit

    Part #:0532911

    Titan 0532911 Fluid Section Repacking Kit is a genuine OEM part designed to meet the same specifications and standards. Includes: Upper bushing, Upper packing, Upper cage, Outlet valve ball, Lower Packing, Inlet valve seal, Inlet valve ball and O-ring, PTFE. Compatible with: Titan Impact 340, 400. Titan 0532911 Fluid Section Repacking Kit is a genuine OEM part designed to...
    Retail Price: $78.00
    You save: $15.71  (20%)
    Our Price: $62.29

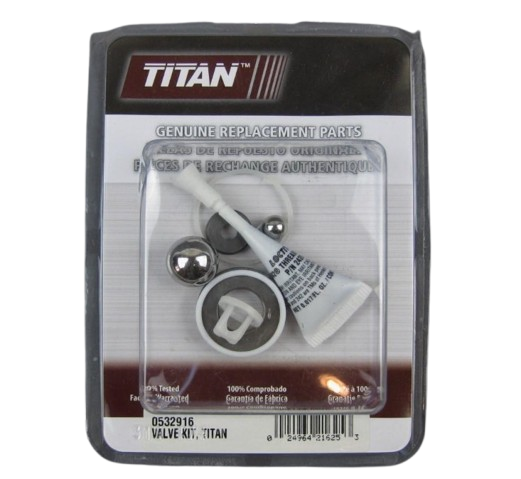

  • Titan 0532916 Valve Seat kit

    Titan 0532916 Valve Seat kit

    Part #:0532916

    Titan 0532916 Valve Seat kit  Includes: inlet valve seat, inlet valve seal, inlet valve ball, oring ptfe, outlet valve seat, outlet valve ball and outlet valve cage. Fits: Impact 340 and Impact 400 Titan 0532916 Valve Seat kit  Includes: inlet valve seat, inlet valve se...
    Retail Price: $125.00
    You save: $17.86  (14%)
    Our Price: $107.14

  • Titan 0532921A Repacking Kit

    Titan 0532921A Repacking Kit

    Part #:0532921A

    Titan 0532921A Rebuild kit OR  Fluid Section Repacking Kit or PISTON PUMP kit Includes: Upper Bushing, Upper Packing, Piston Assembly, Lower Packing, Bushing, Inlet Valve Seal, Inlet Valve Cage, Inlet Valve Ball, Inlet Valve Seat, O-Ring PTFE and Inlet Valve Housing Fits the following models: Impact 340, Impact 400 Titan 0532921A Rebuild kit OR  Fluid Section Repacking Kit or PISTON...
    Retail Price: $222.00
    You save: $48.10  (22%)
    Our Price: $173.90

  • Titan 0532922A Rebuild Pump Kit

    Titan 0532922A Rebuild Pump Kit

    Part #:0532922A

    Titan 0532922A Pump Rebuild Kit for Impact 400 High Rider  Includes: Upper Bushing, Upper Packing, Piston Assembly, Lower Packing, Bushing, Inlet Valve Seal, Inlet Valve Cage, Inlet Valve Ball, Inlet Valve Seat, O-Ring PTFE and Inlet Valve Housing Fits the following models: Impact 400 Titan 0532922A Pump Rebuild Kit for Impact 400 High Rider  In...
    Retail Price: $472.00
    You save: $99.52  (21%)
    Our Price: $372.48

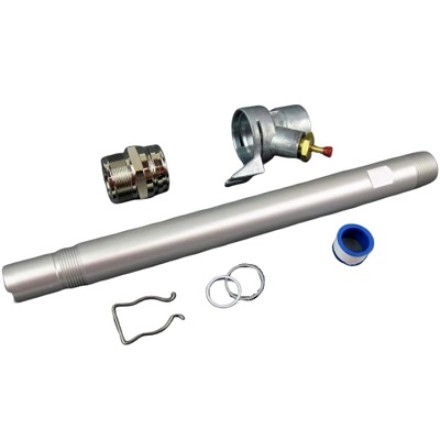

  • Titan 0532925 Inlet Pusher Kit

    Titan 0532925 Inlet Pusher Kit

    Part #:0532925

    Titan 0532925 Inlet pusher kit or rebuild kit for high rider or cart Includes: Inlet valve seal, O-ring, PTFE, inlet valve, O-ring, Pusher assembly clip, Pusher assembly and siphon tube Fits the following models: Impact 340, Impact 400 Titan 0532925 Inlet pusher kit or rebuild kit for high rider or cart ...
    Retail Price: $132.30
    You save: $18.90  (14%)
    Our Price: $113.40



Shop Impact 400 Drive Assembly Parts II from AllTitanParts

Looking to replace the parts of your Titan Impact 400 Electric Airless Paint Sprayer with high-quality and genuine Titan parts? AllTitanParts has got you covered! Our online store is the ultimate destination for all Titan Airless Sprayer replacement parts, including the vital Titan IMPACT 400 DRIVE ASSEMBLY PARTS II.

Each drive assembly part must ensure your Titan Impact 400 sprayer operates smoothly and efficiently. We have gone the extra mile to provide a comprehensive diagram of each part, such as the Pressure Control Knob, Transducer Assembly, Yoke Assembly, and many more. You can confidently believe our parts are crafted with precision and attention to detail.

Finding the right parts supplier for your Impact 400 Airless Paint Sprayer can be challenging. However, with AllTitanParts, you can be confident that you are getting the best quality parts at affordable prices. Shop with us today and experience the difference firsthand!
