Titan Impact 440 Main Assembly Parts
Find genuine OEM Titan Impact 440 Main Assembly Parts for maintaining and repairing your Impact 440 airless sprayer. Use the exploded main-assembly diagram to identify the component you need, locate its numbered callout, and match it with the corresponding Titan OEM part number before ordering.
Repair Your Impact 440 with the Correct Main Assembly Parts
The main assembly brings together important components and interfaces that support the operation of the Titan Impact 440. When servicing the sprayer, identifying the exact component from the correct exploded drawing is more reliable than selecting a replacement by appearance alone.
Whether you are replacing a worn component, damaged fitting, cover, control-related part, fastener, bracket, or other item shown in the main assembly, use the numbered diagram callout and corresponding Titan OEM part number to confirm the correct replacement.
What Is the Titan Impact 440 Main Assembly?
The Main Assembly parts diagram is a primary reference for locating components installed around the core Impact 440 sprayer assembly. It provides an exploded view that allows individual components to be traced to numbered references and corresponding Titan replacement part numbers.
Using the diagram is especially useful when multiple components are installed close together or when similar hardware is used elsewhere on the sprayer. Correct identification helps avoid ordering a component from the wrong Impact 440 assembly section.
Impact 440 Main Assembly Components to Inspect
The exact components and quantities should always be confirmed from the applicable Impact 440 exploded diagram. During repair, inspect the failed component together with adjoining parts that may have contributed to the problem or sustained related wear.
Inspect applicable components shown in the main assembly for wear, physical damage, looseness, contamination, or incorrect positioning.
Check applicable covers, guards, and protective components for cracking, deformation, missing hardware, or damage that affects proper installation.
Inspect applicable connections and fittings for looseness, leakage, thread damage, wear, or another condition requiring service.
Verify that applicable screws, bolts, washers, retainers, brackets, and related hardware are present, correctly installed, and serviceable.
Find Your Impact 440 Main Assembly Parts Faster
The exploded diagram provides the quickest route from the physical component on your sprayer to the correct replacement part number. Follow these four steps before ordering.
Locate the physical component on your Impact 440 and determine the area of the sprayer where it is installed.

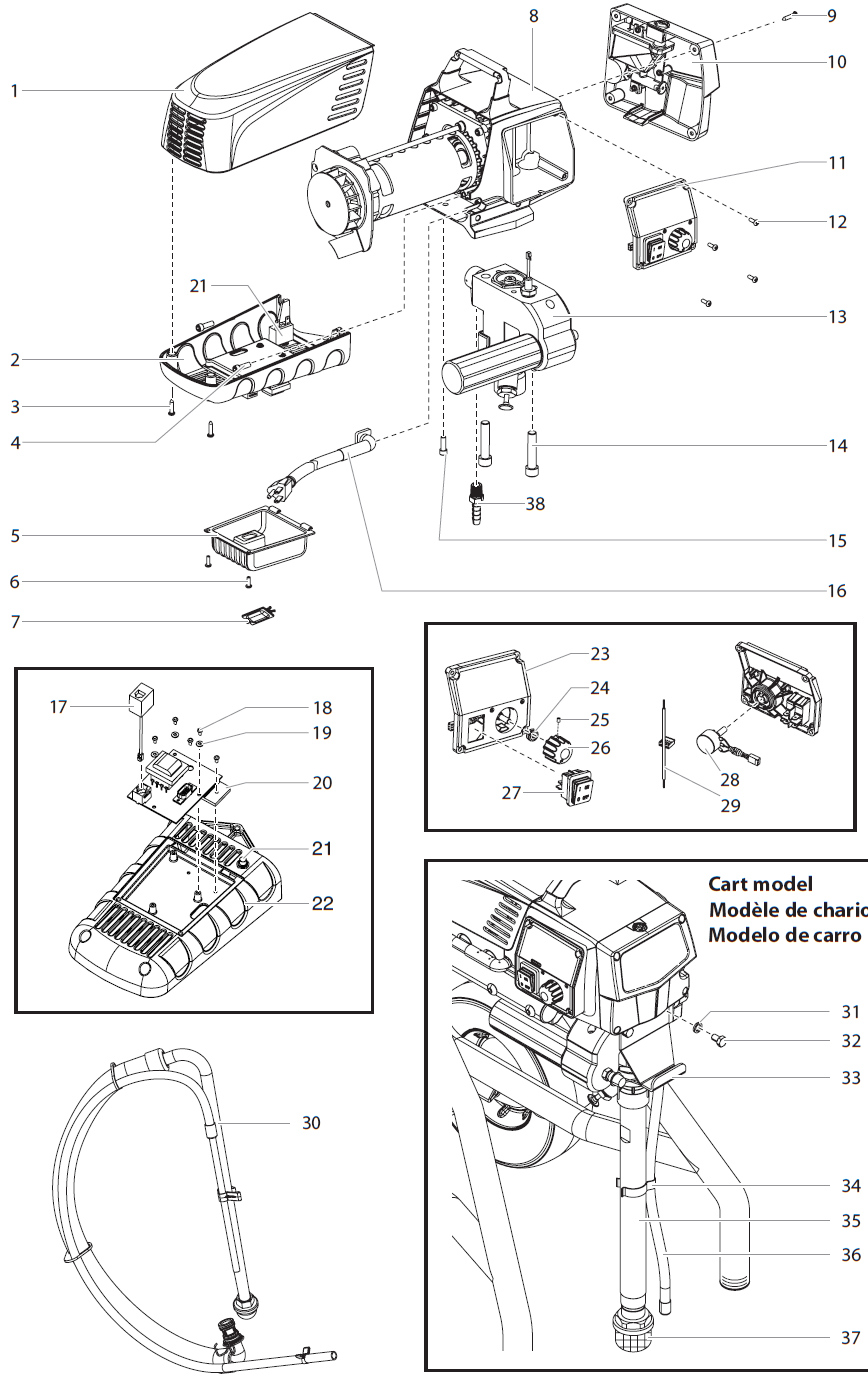

Locate the same component on the Titan Impact 440 Main Assembly exploded parts drawing.
Match the numbered diagram reference with the corresponding genuine Titan OEM part number.
Confirm the model, assembly section, diagram callout, and exact Titan part number before purchasing.
Troubleshooting Your Titan Impact 440?
Avoid replacing the first component that appears damaged without inspecting the surrounding system. A leak, loose connection, unusual vibration, damaged mounting point, or operational problem may involve more than one related component.
Identify the affected area, inspect adjoining parts, and use the correct Impact 440 assembly diagram to determine which components require service or replacement.
Impact 440 Main Assembly Inspection Guide
| Condition | What to Inspect | Inspection Focus |
|---|---|---|
| Visible fluid leakage | Applicable fittings, connections and adjoining components | Loose connection, damaged component, wear, or sealing issue |
| Loose or vibrating component | Fasteners, brackets, mounting points and adjoining parts | Loose or missing hardware, wear, damage, or incorrect positioning |
| Damaged cover or guard | Cover, attachment points and associated hardware | Cracking, deformation, damaged mounting point, or missing fastener |
| Unknown operational problem | Affected assembly and related machine systems | Identify the actual cause before selecting replacement parts |
Main Assembly Part or Another Impact 440 Component?
The Impact 440 is divided into multiple parts sections. If the component you need is not shown on the Main Assembly diagram, use the diagram for the machine system where the part is physically installed.
| Repair Area | Parts Section | Identification Method |
|---|---|---|
| General / core machine components | Main Assembly | Main diagram + Titan part number |
| Motor-related component | Motor Assembly | Motor diagram + Titan part number |
| Mechanical power-transfer component | Drive Assembly | Drive diagram + Titan part number |
| Pump / fluid-handling component | Fluid Section | Fluid-section diagram + Titan part number |
| Material-intake component | Suction Set | Suction diagram + Titan part number |
Impact 440 Main Assembly Service Guidance
Determine the affected area and inspect adjoining components before removing parts. This can help identify related wear or damage.
Keep removed fasteners, brackets, retainers, and related hardware organized according to their original locations during service.
Follow applicable Titan service instructions for pressure relief, electrical isolation, disassembly, replacement, reassembly, and testing.
Service Your Titan Impact 440 Safely
Airless spray equipment can retain high fluid pressure after operation. Before inspecting, disconnecting, or replacing components, shut down the sprayer and follow Titan's pressure-relief procedure. Disconnect electrical power where required before servicing electrical or motor-related components.
Refer to the applicable Titan operating and service documentation for complete safety, troubleshooting, disassembly, installation, and testing procedures.
Confirm the Correct Impact 440 Part Before Ordering
Many fittings, fasteners, brackets, covers, and other components can look similar across Titan sprayer models or different assembly sections. Appearance alone is not sufficient to confirm compatibility.
Verify that you are working from the correct Impact 440 Main Assembly diagram, locate the required component by its numbered callout, and match it with the exact Titan OEM part number before purchasing.
Explore Titan Impact 440 Parts
Continue through the Impact 440 parts catalog when your repair involves another machine system, or return to the complete Impact family to locate parts for another Titan Impact sprayer.
Shop Titan Impact 440 Main Assembly Parts
Use the exploded Main Assembly diagram to locate the component your Impact 440 requires, verify its numbered callout and exact Titan OEM part number, and select the correct replacement for your repair.
Find Impact 440 Main Assembly PartsTitan Impact 440 Main Assembly Parts FAQs
What is the Titan Impact 440 Main Assembly parts diagram?
It is an exploded parts reference showing components within the applicable Impact 440 main assembly and their numbered callouts for matching to Titan replacement part numbers.
How do I find the correct Titan Impact 440 part?
Locate the component on the correct Impact 440 exploded diagram, identify its numbered callout, and match that reference with the corresponding Titan OEM part number.
Are all Impact 440 replacement parts shown in the Main Assembly?
No. The Impact 440 can have separate parts sections for different machine systems. If the required component is not shown in the Main Assembly, use the appropriate diagram for its physical location and function.
Should I inspect surrounding parts when replacing a failed component?
Yes. Inspect applicable adjoining fittings, mounting points, fasteners, brackets, seals, and related components for wear or damage that may have contributed to the problem.
Can I identify an Impact 440 part by appearance alone?
No. Similar-looking components may have different applications or part numbers. Use the correct Impact 440 diagram, numbered callout, and exact Titan OEM part number.
Are these genuine Titan OEM Impact 440 parts?
AllTitanParts specializes in genuine Titan OEM replacement parts. Verify the individual product listing and exact Titan part number before ordering for your Impact 440.
What should I do before servicing my Impact 440?
Shut down the sprayer, follow Titan's pressure-relief procedure, disconnect electrical power where applicable, and follow the appropriate Titan service instructions for the repair being performed.
Where can I find more Titan Impact sprayer parts?
Browse the complete Impact 440 parts category for model-specific components or return to the Titan Impact Sprayer Parts category to find replacement parts for other Impact sprayer models.
