Item No: 1
Part #:805-425
Titan 805-425 Motor Shroud or Shroud, motor, 1140, painted Fits the following models: Impact 1040 Titan 805-425 Motor Shroud or Shroud, motor, 1140, painted...Item No: 1
Part #:805-425
Titan 805-425 Motor Shroud or Shroud, motor, 1140, painted Fits the following models: Impact 1040 Titan 805-425 Motor Shroud or Shroud, motor, 1140, painted...Titan 700-681 Motor Mount Screw
Item No: 2
Part #:700-681
Titan 700-681 Motor Mount Screw, Belly Pan Screw or Screw,soc hd cap,1/4-20 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040 Titan 700-681 Motor Mount Screw, Belly Pan Screw or Screw,soc hd cap,1/4-2...Titan 0552404A Belly Pan Assembly
Item No: 3
Part #:0552404A
Titan 0552404A Belly Pan Assembly , 110V, pkgd Fits the following models: Impact 1040 Titan 0552404A Belly Pan Assembly , 110V, pkgd Fits the following...Titan 9802266 Motor Controller Screw
Item No: 4 AND 14
Part #:9802266
Titan 9802266 Belly pan screw or Screw, #8-16 x .75 plastite or Motor shroud screw Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040 Titan 9802266 Belly pan screw or Screw, #8-16 x .75 plastite...Item No: 5
Part #:805-490
Titan 805-490 Belly Pan Cover or Cover, bellypan, epc port Fits the following models: Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040 Titan 805-490 Belly Pan Cover or Cover, bellypan, epc port Fi...Titan 700-139 Motor Baffle Screw
Item No: 6 20 AND 26
Part #:700-139
Titan 700-139 Motor Baffle Screw, Philips head, 8-32X1/2" is a genuine OEM part. Fits the following models: Impact 340, Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040, 740ix Digital Airless Sprayer, 740ix Airless Sprayer, 740i Airless Sprayer, 640ix Airless Sprayer. Titan 700-139 Motor Baffle Screw, Philips head, 8-32X1/2" is a genuine OEM ...Item No: 7
Part #:805-439
Titan 805-439 Grommet , housing, transducer Fits the following models: Impact 740, Impact 840, Impact 1040 Titan 805-439 Grommet , housing, transducer Fits the following mode...Titan 800-437 Transducer Assembly
Item No: 8
Part #:800-437
Titan 800-437 Transducer Assembly replaces Titan 0524917 Fits the following models: Impact 740, Impact 840, Impact 1040, Impact 1140 Titan 800-437 Transducer Assembly replaces Titan 0524917 Fits the following mode...Titan 805-269A Filter Head Assembly
Item No: 9
Part #:805-269A
Titan 805-269A Filter Head Assembly, Pkgd Includes: Filter body, filter spring, filter assembly, adapter, spring, o-ring, plug, filter housing, gasket, bypass valve assembly, cam base, valve handle, groove pin and fitting Fits the following models: Impact 740, Impact 840, Impact 1040, Impact 1140 Titan 805-269A Filter Head Assembly, Pkgd Includes: Filter body, fil...Item No: 10
Part #:0558369
Titan 0558369 Return Tube (Bent), upright cart only is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. Compatible with: Titan Impact 740, 840, 1040, 1140. Titan 0558369 Return Tube (Bent), upright cart only is a genuine OEM part...Item No: 11
Part #:805-297

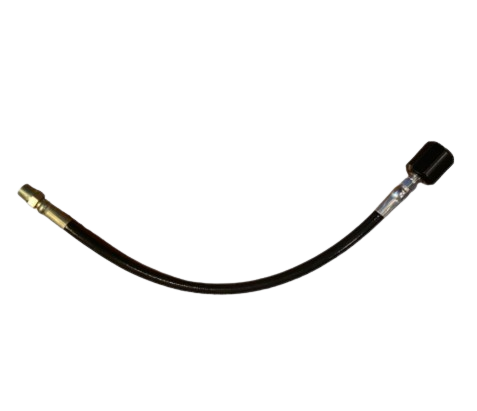

Titan 805-297 Hose Assembly, FLUID SEC,1140-OEM Fits: Impact 1140, Helix, Helix VR, Helix fr28, Titan 805-297 Hose Assembly, FLUID SEC,1140-OEM Fits: Impact 114...Item No: 12
Part #:860-002
Titan 860-002 Washer or Washer, lock, split, 5/16 Fits the following models: Impact 1040 Titan 860-002 Washer or Washer, lock, split, 5/16 Fits the following models: I...Item No: 13
Part #:9805311
TITAN 9805311 SCREW, SHCS, 5/16-18 X 1" LG-OEM TITAN 9805311 SCREW, SHCS, 5/16-18 X 1" LG-OEM...Titan 805-462 Electronic Motor Controller Cover
Item No: 15
Part #:805-462
Titan 805-462 Electronic Motor Controller Cover or Cover, controller, motor (Replaced part # 0290225) Fits the following models: Impact 540, Impact 640, Impact 740, Impact 840, Impact 1040, Impact 1640 Titan 805-462 Electronic Motor Controller Cover or Cover, controller, mo...Item No: 16
Part #:9805317
Titan 9805317 Handle Screw or Screw, 6-19 x .87 phlp pan Fits the following models: Impact 740, Impact 840, Impact 1040 Titan 9805317 Handle Screw or Screw, 6-19 x .87 phlp pan Fi...Titan 805-332 Back Cover Handle
Item No: 17
Part #:805-332
Titan 805-332 Back Cover Handle or Cover, handle, back Fits the following models: Impact 740, Impact 840, Impact 1040 Titan 805-332 Back Cover Handle or Cover, handle, back ...Titan 805-333 Front Cover Handle
Item No: 18
Part #:805-333

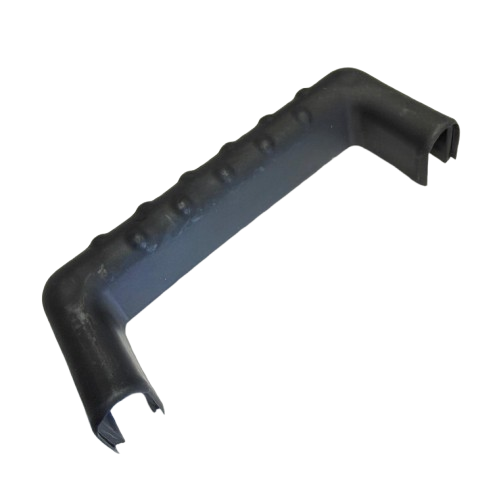

Titan 805-333 Front Cover Handle , Front or Cover, handle, front Fits the following models: Impact 740, Impact 840, Impact 1040 Titan 805-333 Front Cover Handle , Front or Cover, handle, front Fi...Titan 805-237A Control Panel Assembly
Item No: 21
Part #:805-237A
Titan 805-237A Control Panel Assembly or Control panel assemby, pkgd is made from high-quality materials, ensuring that it is durable and long-lasting. Includes: Control panel cover with label, nut with seal, set screw, control knob, switch and potentiometer. Compatible with: Titan Impact 840, 1140. Titan 805-237A Control Panel Assembly or Control panel assemby, pkgd i...Item No: 22
Part #:0522404
Titan 0522404 Fuse 250v, 20A slo-blo Fits: Impact 1040 Titan 0522404 Fuse 250v, 20A slo-blo Fits: Impact 1040 ...Titan 9804916 Fuse Block Screw
Item No: 23
Part #:9804916
Titan 9804916 Fuse Block Screw or Screw,6-32 x 3/8,pn hd phil. Fits the following models: Impact 740, Impact 840, Impact 1040 Titan 9804916 Fuse Block Screw or Screw,6-32 x 3/8,pn hd phil. ...Item No: 24
Part #:0522210
Titan 0522210 Fuse block 3 AG, 1 POS, 1/4QC Fits the following models: Impact 540, Impact 640, Impact 740, Impact 840 Titan 0522210 Fuse block 3 AG, 1 POS, 1/4QC Fits the followi...Titan 805-250A Face Plate Oiler Assembly
Item No: 25
Part #:805-250A
Titan 805-250A Face Plate / Oiler Assembly Faceplate/oil assembly 1140 pkgd Fits the following models: Impact 1040, impact 1140, Impact 1140T, Helix VR Titan 805-250A Face Plate / Oiler Assembly Faceplate/oil a...Item No: 28
Part #:9894274
Titan 9894274 SPRING, COMP, .39 ID X 2.80 LG-OEM Titan 9894274 SPRING, COMP, .39 ID X 2.80 LG-OEM...Item No: 29
Part #:805-464
Titan 805-464 Retainer or Clamp, fluid section 1040T/1140/1640 Fits: Impact 1140, Impact 1040T, Impact 1040, Titan 805-464 Retainer or Clamp, fluid section 1040T/1140/1640 Fits: I...Titan 9805362 Hex Hd,3/8-16 x 4.5 lg Bolt
Item No: 30
Part #:9805362
Titan 9805362 Hex Hd,3/8-16 x 4.5 lg Bolt Titan 9805362 Hex Hd,3/8-16 x 4.5 lg Bolt...Item No: 31A
Part #:805-467
Titan 805-467 Pail hook (upright cart only) or Hook, pail Fits the following models: Impact 740, Impact 840, Impact 1140 and Impact 740-840 Titan 805-467 Pail hook (upright cart only) or Hook, pail Fits the ...Titan 0558795 STOP RETAINER PLATE
Item No: 31B
Part #:0558795
Titan 0558795 STOP RETAINER PLATE Titan 0558795 STOP RETAINER PLATE...Item No: 32
Part #:9821503
Titan 9821503 Pail hook (upright cart only) or Hook, pail Replaced by 763-551 and 295694 Fits the following models: Impact 740 Impact 840, Helix, Helix VR, CapSpray 115, CapSpray,95,CapSpray 105, CapSpray 75, Advantage 1100, Advantage 700, Titan 9821503 Pail hook (upright cart only) or Hook, pail Replaced...Item No: 33
Part #:858-625
Titan 858-625 Pail Hook Screw (upright cart only) or Screw, hex 1/4-20 x 1/2 Fits the following models: Impact 740, Impact 840, Impact 1140, Impact 1040T, Powrcoat 1045, Helix, helix VR, Helix fr28 Titan 858-625 Pail Hook Screw (upright cart only) or Screw, ...Item No: 34
Part #:9805348
Titan 9805348 Hex Screw Fits: Impact 340, Impact 1640 Titan 9805348 Hex Screw Fits: Impact 340, Impact 1640...Item No: 35
Part #:805-286A
Titan 805-286A Lever Assembly or Lever Assembly, Titan 805-286A Lever Assembly or Lever Assembly, ...Titan 805-287A Clevis Assembly
Item No: 36
Part #:805-287A
Titan 805-287A Clevis Assembly or Clevis assy, pkgd Titan 805-287A Clevis Assembly or Clevis assy, pkgd...Titan 805-246A Fluid section assembly
Item No: 37
Part #:805-246A
Titan 805-246A Fluid section assembly or Fluid section, 1140lx pkgd Titan 805-246A Fluid section assembly or Fluid section, 1140lx pkgd...Item No: 38
Part #:730-334
Titan 730-334 Hose Tie Clamp or Clip is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance. Compatible with: Titan Impact 400, 440, 540, 640, 740, 840. Titan 730-334 Hose Tie Clamp or Clip is a genuine OEM part designed t...Item No: 39
Part #:451-241
Titan 451-241 Siphon Tube or Down tube (upright cart only). **Replaces part # 507782 Fits the following models: Impact 740, Impact 840 Titan 451-241 Siphon Tube or Down tube (upright cart only). **Replaces par...Titan 805-296A Siphon Assembly
Item No: 40
Part #:805-296A
Titan 805-296A Siphon Assembly (Low Rider) or Syphon hose assy, lowboy, pkgd Fits the following models: Impact 740, Impact 840 Titan 805-296A Siphon Assembly (Low Rider) or Syphon hose assy, lowb...Titan 805-853 Control Panel Cover with Label
Item No: 41
Part #:805-853

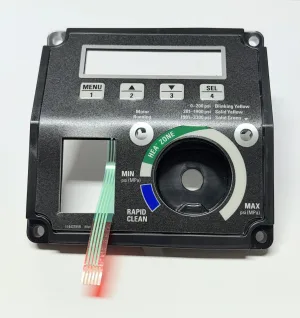

Titan 805-853 Control Panel Cover with Label Fits the following models: impact 740-840, Impact 840, Impact 1140 Titan 805-853 Control Panel Cover with Label Fits the following m...Item No: 42
Part #:700-176
Titan 700-176 Nut with Seal Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 700-176 Nut with Seal Fits the following models: Impact 440, I...Item No: 43
Part #:704-598
Titan 704-598 Set Screw or Set screw,8-32 x 1/4 Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 704-598 Set Screw or Set screw,8-32 x 1/4 Fits the foll...Item No: 44
Part #:805-354
Titan 805-354 Control knob or Knob, pressure, machined Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 Titan 805-354 Control knob or Knob, pressure, machined ...Item No: 45
Part #:9850936
Titan 9850936 25Amp On/Off Switch is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance, is same as Titan 704-380. It has dimensions 1.19 × 1.5in. Compatible with: Titan Impact 440, 540, 640, 740, 840, 1140, most Advantage series and a lot of other Titan Machines. Titan 9850936 25Amp On/Off Switch is a genuine OEM part designed to meet the s...Titan 805-401 Digi-Trac Display
Item No: 46
Part #:805-401
Titan 805-401 Digi-Trac Display Fits the following models: Impact 640, Impact 840, Impact 1140, Helix VR Titan 805-401 Digi-Trac Display Fits the following models: Impact 6...Item No: 47
Part #:0508579
Titan 730-083 Filter Spring replaces Titan 508602 It is compatible with the following sprayer models: Impact 440, Impact 540, Impact 640 Titan 730-083 Filter Spring replaces Titan 508602 It is compatible with&nbs...Item No: 48
Part #:0522007
Titan 0522007 LED Assembly Fits the following models: Impact 440, Impact 540, Impact 640, Impact 840 Titan 0522007 LED Assembly Fits the following models: Impact 440, I...Item No: 50
Part #:9805400
TITAN 9805400 SCREW, PH PN HD, M4 X 0.7 X 30-OEM TITAN 9805400 SCREW, PH PN HD, M4 X 0.7 X 30-OEM...Item No: 51
Part #:0552403
Titan 0552403 FAN,AXIAL,128V Titan 0552403 FAN,AXIAL,128V...Item No: 52
Part #:805-428
Titan 805-428 or 805428 Bellypan, 1140, machined *Replaced Part # 0558446* Titan 805-428 or 805428 Bellypan, 1140, machined *Replaced Part # 0558446*...Part #:0551972
Titan 0551972 Surge protector ,120v,surge,unpkgd * Replaces Part # 704-594 * Fits the following models: Impact 540, Impact 640, Impact 740, Impact 840 Titan 0551972 Surge protector ,120v,surge,unpkgd * Replaces Part # 704-594...Titan 805-404A Power Cord Assembly
Part #:805-404A
Titan 805-404A Power Cord Assembly *Replaced part # 805-404* Fits the following models: Impact 440, Impact 540, Impact 640, Impact 740, Impact 840, Impact 740-840, Impact 1140, RentSpray 500 Airless Sprayer, RentSpray 600 Impact Airless Sprayer Titan 805-404A Power Cord Assembly *Replaced part # 805-404* Fits the...At AllTitanParts, We understand that having the correct assembly parts is essential to keep your Titan Impact 1140 airless sprayer running smoothly and efficiently. That's why we offer a comprehensive range of Impact 1140 airless sprayer Main Assembly and other assembly parts for your convenience.

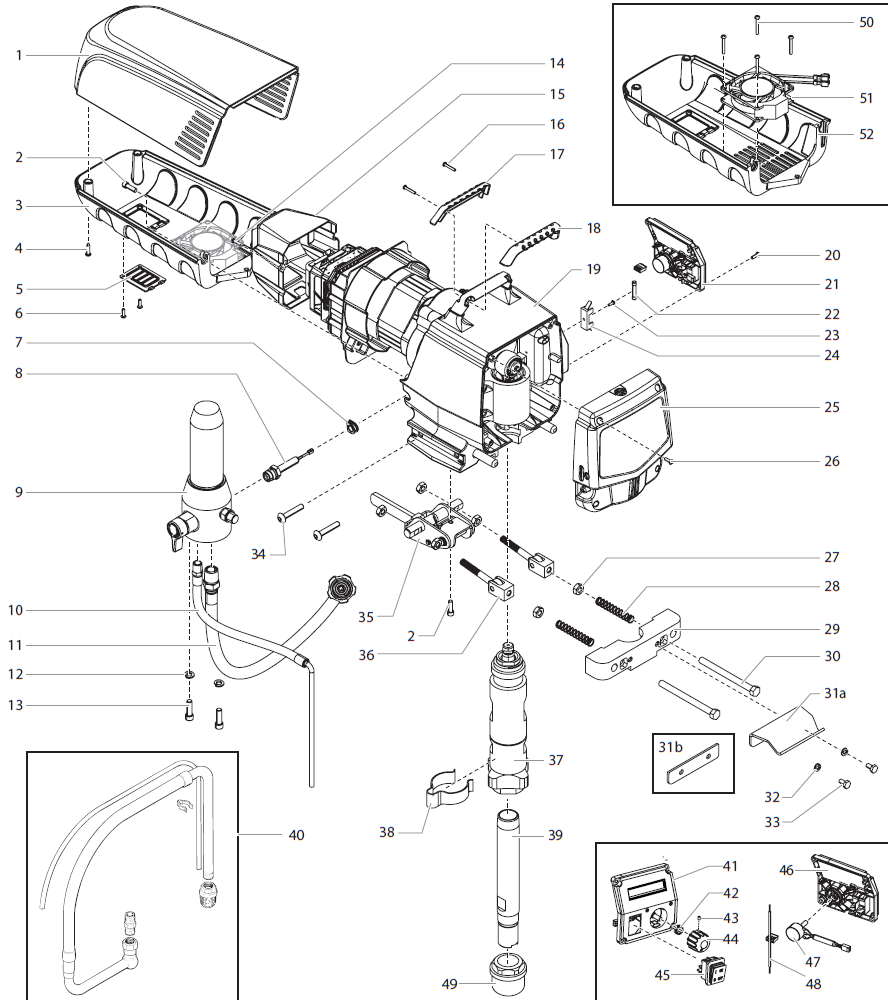

We pride ourselves on providing our customers with the highest quality Titan Impact 1140 Electric Airless Sprayer parts, and our Main Assembly is no exception. Our Main Assembly includes all the essential parts of the Impact 1140 Electric Airless Sprayer, ensuring your sprayer functions at its best.
In addition to our Main Assembly part, we offer a wide range of assembly parts for the Titan Impact 1140 High Rider Airless Paint Sprayer. Our assembly includes the Drive Assembly, Upright Cart Assembly, and all other assembly parts for your Impact 1140 Electric Airless Sprayer.
Our commitment to quality and customer satisfaction is reflected in everything we do. We understand the importance of having a reliable and efficient sprayer. We are dedicated to providing our customers with the highest quality parts to ensure their sprayer performs at their best. Shop with us today and experience the difference!
