Pump Head Assembly Overview
Buy Genuine Titan ED655 Plus Pump Head Replacement Parts
The Titan ED655 Plus Pump Head Assembly contains important fluid-handling components that work with the sprayer's diaphragm pumping system. Its inlet and outlet valve components help regulate the direction of coating movement, while the paint pump block provides the main fluid passage structure for the assembly.
During operation, the pump head must admit coating material, support pressurized delivery and provide the appropriate fluid path during priming and spraying. Worn valve seats, damaged sealing components, debris around valve balls or problems with the prime/spray valve can interfere with these functions.
AllTitanParts lists 16 individual replacement components for this pump head, including 0278242 Inlet Valve Assembly, 0278334 Paint Pump Block, 0555850 Prime/Spray Valve Assembly, 0278241 Ball Cage Seat Assembly, 0093635 Outlet Ball and 0156646 Seal. Match the part number to the illustrated assembly before purchasing.
OEM Parts Directory
Titan ED655 Plus Pump Head Assembly Parts List
The following 16 components appear in the ED655 Plus Pump Head Assembly parts listing. Each part has a separate Titan OEM number for identification and ordering.
| Diagram Ref. | Titan OEM Part Number | Part Description | Repair Function |
|---|---|---|---|
| 1 | 0278242 | Inlet Valve Assembly | Controls coating entry into the pump head. |
| 2 | 0089482 | Nylon Sealing Washer | Provides sealing at its designated connection. |
| 3 | 0278334 | Paint Pump Block | Provides the main fluid passage and component mounting structure. |
| 4 | 0555850 | Prime/Spray Valve Assembly | Directs fluid flow for applicable priming and spraying modes. |

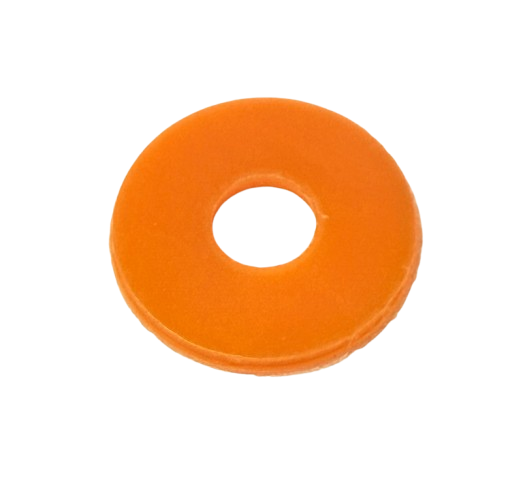

| 5 | 0278362 | Washer | Supports the specified component connection. |
| 6 | 0278241 | Ball Cage Seat Assembly | Supports valve ball location and seating. |
| 7 | 0093635 | Outlet Ball | Provides a check-valve sealing element in the outlet system. |
| 8 | 0047485 | Outlet Spring | Supports outlet valve operation. |
| 9 | 0278361 | Ball Guide | Helps position and guide the valve ball. |
| 10 | 9871114 | O-Ring | Seals its designated pump head connection. |
| 11 | 0278335 | Outlet Fitting | Provides the specified fluid outlet connection. |

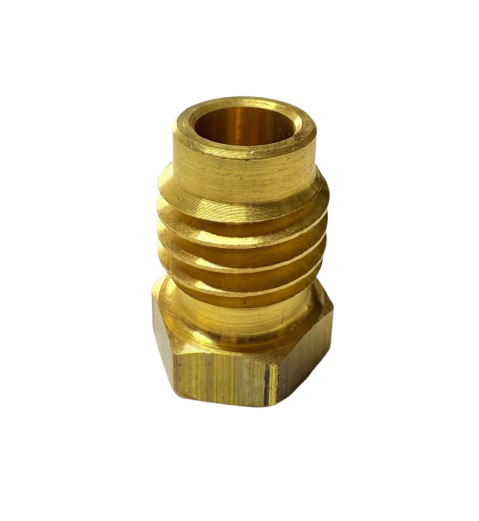

| 12 | 0278337 | Pusher Body | Forms part of the pump head's pusher mechanism. |

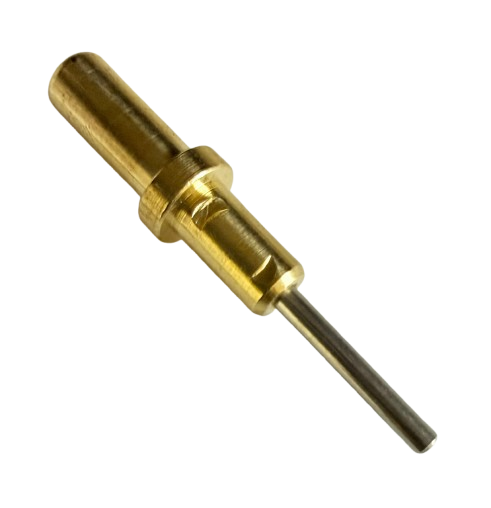

| 13 | 0278250 | Pusher Stem Assembly | Supports movement within the pusher mechanism. |

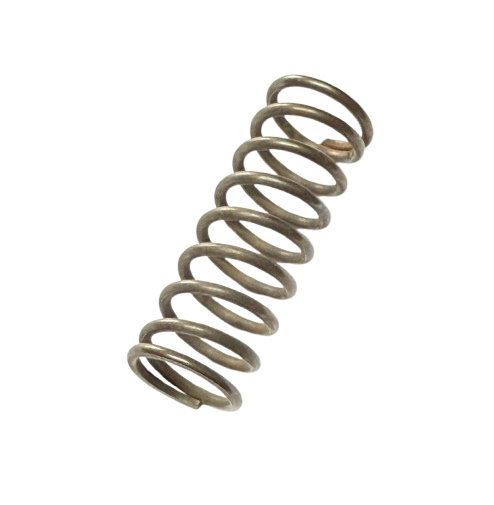

| 14 | 0278368 | Pusher Spring | Provides spring force within the pusher assembly. |
| 15 | 0156646 | Seal | Helps prevent fluid leakage at its specified location. |

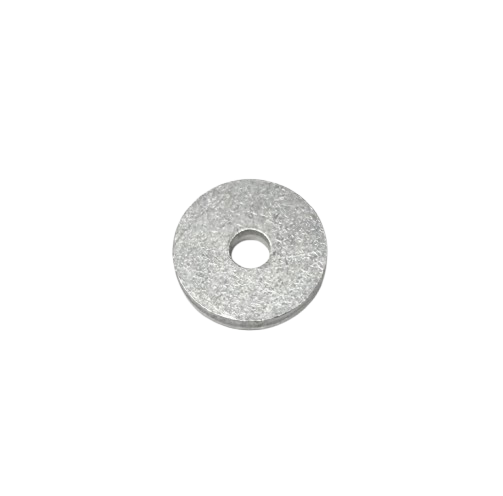

| 16 | 0278340 | Pusher Washer or Disk | Supports the pusher assembly's contact and load distribution. |
The full OEM part numbers above follow the product names in the catalog. Verify the exact diagram position before ordering, particularly where a product listing may display a shortened numeric form.
Featured OEM Pump Head Components
Shop Titan ED655 Plus Inlet Valves, Outlet Balls, Prime/Spray Valves and Seals

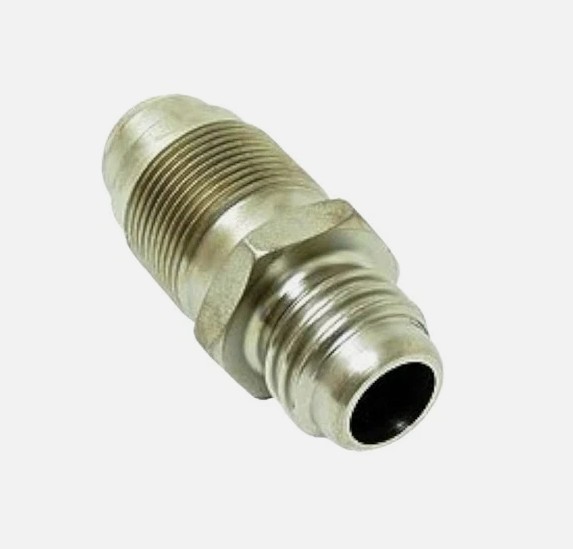

Titan 0278242 Inlet Valve Assembly

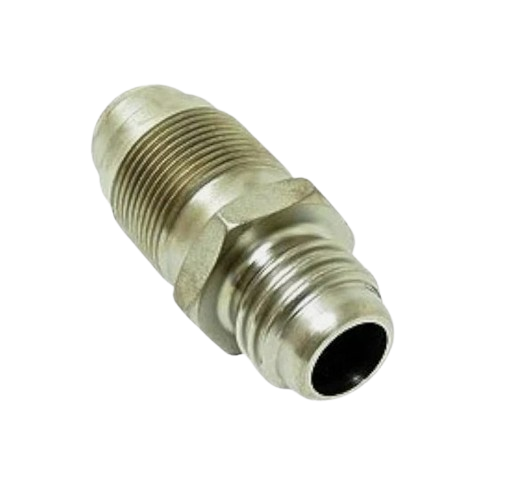

The Titan 0278242 Inlet Valve Assembly controls the entry of coating material into the pump head. Its internal valve action supports the intended direction of fluid movement during pump operation.
Inspect this assembly when troubleshooting poor priming, restricted intake or suspected inlet valve sealing problems.
OEM Part Number: 0278242Titan 0278334 Paint Pump Block

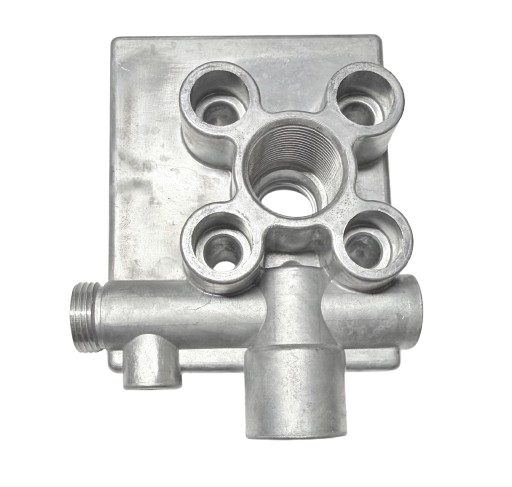

The Titan 0278334 Paint Pump Block forms a central structural component of the fluid-handling assembly. It provides internal fluid passages and mounting locations for related pump head parts.
Inspect the block for damaged threads, compromised sealing surfaces or other physical defects during a pump head rebuild.
OEM Part Number: 0278334Titan 0555850 Prime/Spray Valve Assembly
The Titan 0555850 Prime/Spray Valve Assembly helps direct coating material through the appropriate flow path for priming and spraying operations.
Inspect this valve if the sprayer does not transition correctly between operating modes or if fluid circulation behaves abnormally.

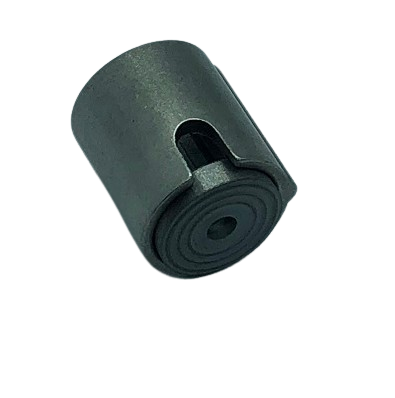

OEM Part Number: 0555850Titan 0278241 Ball Cage Seat Assembly
The Titan 0278241 Ball Cage Seat Assembly is a component of the pump head valve system. It helps position the valve ball and provides the appropriate seating arrangement.
Inspect its seating surfaces for wear, damage or contamination when servicing valve performance problems.

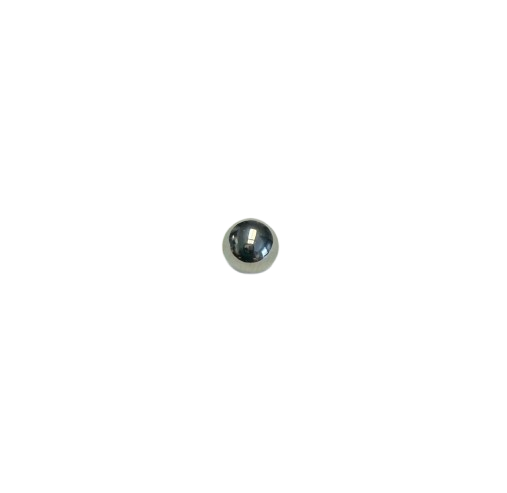

OEM Part Number: 0278241Titan 0093635 Outlet Ball
The Titan 0093635 Outlet Ball is a sealing element in the pump head's outlet check-valve mechanism. Its condition can affect the valve's ability to close correctly.
A worn, damaged or contaminated outlet ball may contribute to inconsistent pressure or reduced pumping efficiency.

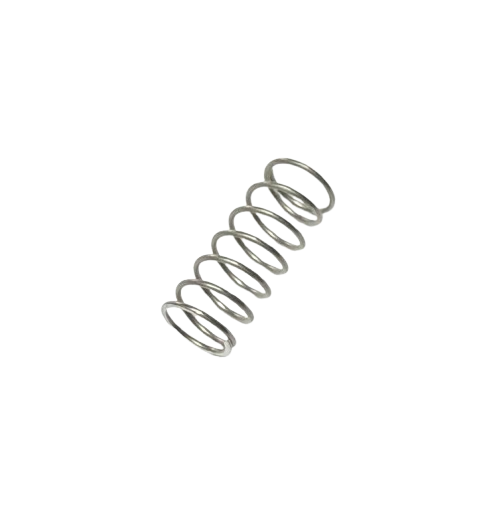

OEM Part Number: 0093635Titan 0047485 Outlet Spring
The Titan 0047485 Outlet Spring supports the intended operation of the outlet valve mechanism.
Inspect the spring for deformation, corrosion or damage when examining outlet valve components.
OEM Part Number: 0047485Titan 0278361 Ball Guide

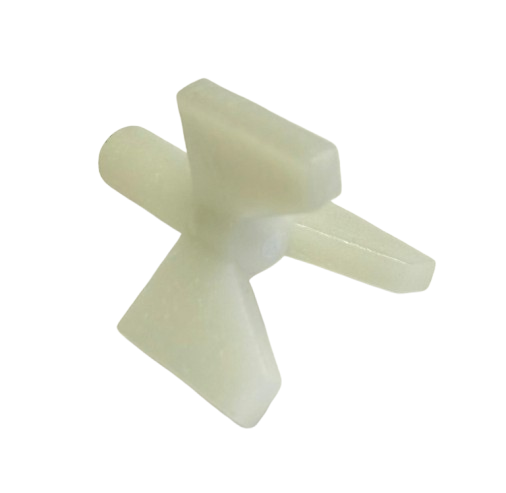

The Titan 0278361 Ball Guide helps maintain the correct movement and positioning of the valve ball within its assembly.
Inspect the guide alongside the outlet ball, spring and associated seating components during valve service.

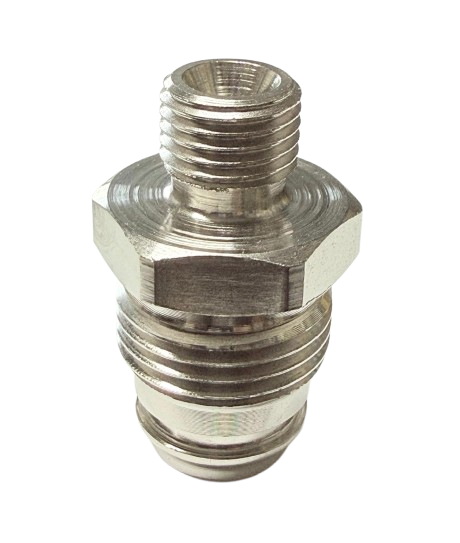

OEM Part Number: 0278361Titan 0278335 Outlet Fitting
The Titan 0278335 Outlet Fitting provides the designated fluid connection at the pump head outlet.
Check the fitting and its sealing surfaces when investigating connection damage or leakage.

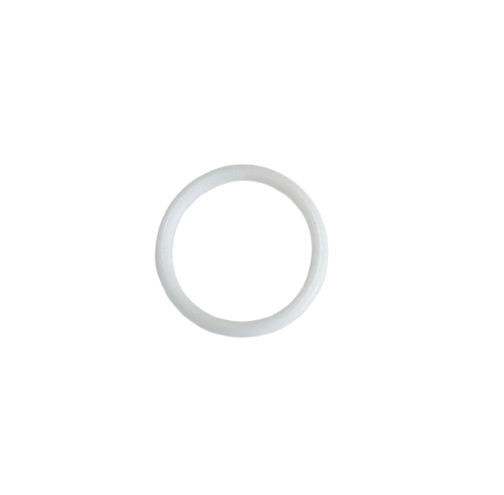

OEM Part Number: 0278335Titan 9871114 O-Ring
The Titan 9871114 O-Ring provides sealing at its designated pump head connection. Proper sealing helps prevent unwanted fluid leakage.
Replace an O-ring that is cut, flattened, swollen or otherwise damaged with the correct matching component.
OEM Part Number: 9871114Titan 0156646 Seal

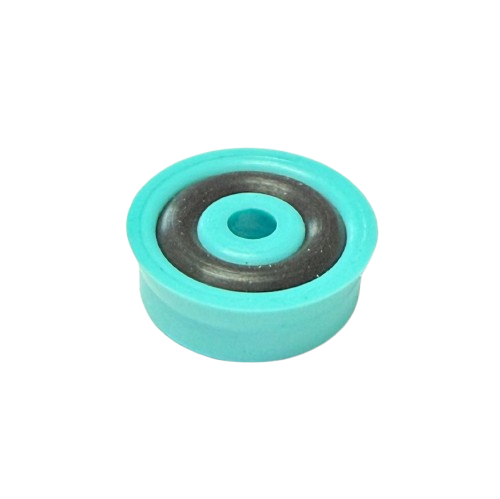

The Titan 0156646 Seal helps maintain fluid containment at its specified location within the pump head.
Inspect the seal during disassembly and replace it when its condition or the applicable service procedure requires replacement.
OEM Part Number: 0156646Pump Head System Functions
How the ED655 Plus Pump Head Supports Sprayer Performance
Coating Intake
The inlet valve assembly admits coating material into the pump's fluid chamber during the intake portion of the pumping cycle.
Fluid Displacement
Movement from the diaphragm pumping system changes chamber volume, allowing coating material to move through the pump head.
Outlet Valve Control
The outlet ball, seat, guide and spring support one-way fluid delivery through the outlet passage.
Priming and Spraying
The prime/spray valve assembly directs fluid through the intended operating path during applicable priming and spraying procedures.
Troubleshooting and Repair
Common Titan ED655 Plus Pump Head Problems
Pump head symptoms may have multiple causes. Inspect the complete fluid system and follow Titan's service procedures before replacing individual components.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | 0278242, 0555850 and material supply | Inspect the inlet valve, prime/spray valve and suction system for restrictions or leakage. |
| Pump cannot maintain pressure | 0093635, 0278241, 0047485 and 0278361 | Inspect the outlet check-valve components for contamination, wear or seating problems. |
| Coating leaks around the pump head | 0089482, 9871114, 0156646 and connections | Locate the leak and inspect the appropriate washer, O-ring, seal or fitting. |
| Prime/spray control does not function correctly | 0555850 | Check the prime/spray valve using the manufacturer's diagnostic instructions. |
| Restricted outlet flow | 0278335, 0093635 and outlet passages | Inspect the outlet fitting and valve passages for restrictions or contamination. |
| Internal pusher mechanism malfunction | 0278337, 0278250, 0278368 and 0278340 | Have the pusher mechanism inspected for wear, damage or incorrect assembly. |
OEM Replacement Reference
Identify the Correct Titan ED655 Plus Pump Head Valve and Seal Parts
The ED655 Plus Pump Head Assembly includes several components with related functions but different OEM numbers. For example, 0278242 identifies the complete listed inlet valve assembly, while 0278241 identifies the ball cage seat assembly. The outlet ball is 0093635, and the outlet spring is 0047485.
Similarly, the 9871114 O-Ring, 0089482 Nylon Sealing Washer and 0156646 Seal are separate components. These parts should not be substituted for one another based on appearance alone. Match each item to the correct factory diagram location.
OEM Buying Guide
How to Choose the Correct Titan ED655 Plus Pump Head Part
Verify the Model
Confirm that your sprayer is a Titan ED655 Plus and check its identification information.
Locate the Pump Head
Open the ED655 Plus Pump Head Assembly diagram and identify the affected component.
Match the OEM Number
Compare the diagram reference and full Titan part number with the product listing.
Order the Replacement
Purchase the matching OEM component and follow the applicable Titan repair procedure.
Preventive Maintenance
Maintain Your Titan ED655 Plus Pump Head Assembly
Keep Fluid Passages Clean
Follow the manufacturer's flushing instructions to help prevent dried coating and debris from obstructing pump head passages.
Inspect Valve Components
During authorized maintenance, examine the inlet valve and outlet ball, spring, guide and seat for contamination or wear.
Check Seals and Connections
Inspect the 9871114 O-Ring, 0089482 Nylon Sealing Washer, 0156646 Seal and related fittings when servicing leaks.
Monitor Priming Performance
Investigate repeated priming difficulties and unusual pressure changes before continued operation causes additional problems.
Related Titan ED655 Plus Assemblies
Shop More Titan ED655 Plus Airless Pump Parts
ED655 Plus Diaphragm Pump Assembly
Shop diaphragm, hydraulic piston, pressure regulation and mechanical drive components.
ED655 Plus Main Assembly
Browse main assembly hardware and related sprayer components.
ED655 Plus Hopper Assembly
Explore hopper and material supply components for applicable configurations.
Titan ED655 Plus Airless Pump Parts
Browse the complete ED655 Plus model parts directory and assembly categories.
Titan ED655 Plus Pump Head Service Safety
Before removing or servicing pump head components, turn off the sprayer, disconnect electrical power and complete Titan's pressure-relief procedure. Never loosen pressurized fittings or attempt to stop a high-pressure fluid leak with your hand. Fluid injection injuries require immediate emergency medical attention. Follow the applicable manufacturer instructions when servicing inlet valves, outlet valves, seals and prime/spray components.
Genuine Titan ED655 Plus Pump Head Parts
Order Titan ED655 Plus Pump Head Assembly Parts Today
Shop genuine Titan inlet valve assemblies, paint pump blocks, prime/spray valves, outlet balls, valve springs, seals and other ED655 Plus pump head replacement components.
Shop ED655 Plus Pump Head PartsFrequently Asked Questions
Titan ED655 Plus Pump Head Assembly FAQ
What is the Titan ED655 Plus Pump Head Assembly?
It is the fluid-handling assembly containing the pump block, inlet and outlet valve components, prime/spray valve, seals and related parts used by the ED655 Plus pumping system.
How many parts are listed for the ED655 Plus Pump Head Assembly?
The AllTitanParts category lists 16 individual replacement components.
What is the Titan ED655 Plus Inlet Valve Assembly part number?
Titan 0278242 is the Inlet Valve Assembly listed for this pump head.
What is the Titan ED655 Plus Paint Pump Block part number?
Titan 0278334 is the Paint Pump Block listed for the ED655 Plus Pump Head Assembly.
Which prime/spray valve is listed for the ED655 Plus?
Titan 0555850 is the Prime/Spray Valve Assembly identified in this category.
What is the ED655 Plus Outlet Ball part number?
Titan 0093635 is the Outlet Ball listed for the pump head.
What outlet spring is used in the ED655 Plus Pump Head?
Titan 0047485 is the Outlet Spring identified in the parts directory.
Why is my Titan ED655 Plus not priming?
Possible causes include an inlet valve problem, a malfunctioning prime/spray valve, blocked material intake or a suction leak. Diagnose the complete system before replacing parts.
Can a worn outlet ball cause pressure problems?
Yes. A damaged or contaminated outlet ball may interfere with check-valve sealing and contribute to pressure instability or reduced pump performance.
What O-ring and seal are listed for the pump head?
Titan 9871114 is the listed O-Ring, and Titan 0156646 is the listed Seal. The category also includes Titan 0089482 Nylon Sealing Washer.
Can I purchase ED655 Plus pump head components separately?
Yes. The category provides individual OEM replacement components, allowing customers to identify and order the specific part required for a repair.
Where can I buy Titan ED655 Plus Pump Head Assembly parts?
Shop Titan ED655 Plus Pump Head Assembly Parts at AllTitanParts. For part identification assistance, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding ED655 Plus Pump Head Parts?
Have your Titan ED655 Plus model, equipment serial number and factory diagram reference ready when requesting assistance with part identification or compatibility.
