Genuine Titan OEM | Hopper Assembly Replacement Parts
Shop Titan ED655 Plus Airless Pump Hopper Assembly Parts
Maintain a dependable coating supply with genuine Titan ED655 Plus Airless Pump Hopper Assembly Parts from AllTitanParts. Shop OEM mini hoppers, hopper covers, coarse and fine filter screens, return tubes and return tube assemblies designed for the applicable ED655 Plus hopper configuration. Use the illustrated parts diagram to identify the correct replacement, protect your material supply system and keep your airless sprayer ready for your next painting project.
Hopper Assembly Overview
Buy Genuine Titan ED655 Plus Hopper Replacement Parts
The Titan ED655 Plus Airless Pump Hopper Assembly is part of the sprayer's coating material supply system. The hopper holds paint or other compatible coating material for delivery to the pump, while its filter screen helps prevent unwanted debris from entering downstream components.
A properly maintained hopper assembly supports consistent material intake and helps reduce contamination-related problems. The hopper cover protects the material container, while the return tube components provide the designated return path for coating material during applicable priming or circulation operations.
AllTitanParts lists six replacement components for this assembly, including the 0090283 Mini Hopper, 0279591 Hopper Cover, 0088871 Coarse Filter Screen, 0089917 Filter Screen, 0093865 Return Tube and 0090560 Return Tube Assembly. Compare the OEM part number with the factory diagram before ordering.
OEM Parts Directory
Titan ED655 Plus Airless Pump Hopper Assembly Parts List
Find the correct replacement using the factory diagram reference, full Titan OEM part number and component description.
| Diagram Ref. | Titan OEM Part Number | Part Description | Primary Function |
|---|---|---|---|
| 1 | 0279591 | Hopper Cover | Covers the coating material container. |
| 2A | 0088871 | Filter Screen, Coarse | Screens larger particles from coating material. |
| 2 | 0089917 | Filter Screen | Provides finer material screening. |
| 3 | 0090283 | Mini Hopper | Holds coating material for pump intake. |
| 4 | 0093865 | Return Tube | Routes returning coating material through the designated return path. |
| 6 | 0090560 | Return Tube Assembly | Provides the listed return tube assembly connection. |
Diagram references 2 and 2A identify separate filter screen options. Confirm the correct screen for your coating material, equipment configuration and applicable Titan documentation. The listed references are not consecutive.
Featured OEM Hopper Components
Shop Titan ED655 Plus Mini Hoppers, Filter Screens, Covers and Return Tubes
Titan 0090283 Mini Hopper
The Titan 0090283 Mini Hopper is the material container listed for the ED655 Plus hopper assembly. It holds coating material and supports direct supply to the sprayer's pump intake.
Inspect the hopper for cracks, damaged connection points, coating buildup or other conditions that may interfere with material delivery. Replace a damaged hopper with the correctly identified OEM component.
OEM Part Number: 0090283Titan 0279591 Hopper Cover

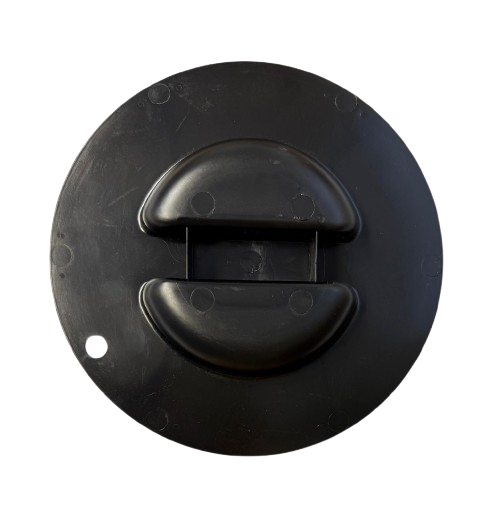

The Titan 0279591 Hopper Cover fits over the material container and helps protect the contents from external debris and contamination during appropriate operating and storage conditions.
A damaged, missing or poorly fitting cover can leave the material supply exposed. Check the cover for cracks and fitment problems when maintaining the hopper.
OEM Part Number: 0279591Titan 0088871 Coarse Filter Screen
The Titan 0088871 Filter Screen, Coarse is a material screening component designed to capture larger debris before it enters the pump's fluid supply system.
A coarse screen may be appropriate for certain coating applications, subject to the sprayer manufacturer's guidance. Clean or replace the screen when contamination or damage restricts material flow.
OEM Part Number: 0088871Titan 0089917 Filter Screen
The Titan 0089917 Filter Screen is the finer screening option listed for the ED655 Plus hopper assembly. It helps capture smaller unwanted particles before coating material reaches downstream pump components.
Inspect the screen for blocked mesh, dried coating and physical damage. Select the appropriate screen according to the coating and equipment requirements.
OEM Part Number: 0089917Titan 0093865 Return Tube
The Titan 0093865 Return Tube is part of the coating material return path associated with the hopper assembly. It helps route returning material during the applicable priming or circulation process.
Inspect the tube for cracks, kinks, obstructions, loose connections or other damage that may affect the return flow.
OEM Part Number: 0093865Titan 0090560 Return Tube Assembly
The Titan 0090560 Return Tube Assembly is an OEM return tube component listed in the ED655 Plus hopper assembly parts diagram.
Use the diagram to distinguish this assembly from the separately listed 0093865 Return Tube. Confirm the correct component before purchasing, particularly when repairing return-line connections.
OEM Part Number: 0090560Material Supply System Functions
How the ED655 Plus Hopper Assembly Supports Airless Spraying
Coating Storage
The mini hopper holds a supply of compatible coating material for delivery to the pump.
Material Screening
The selected filter screen helps remove debris that could restrict passages or interfere with downstream valves.
Material Return
The return tube components provide the designated return path during applicable priming and circulation operations.
Supply Protection
The hopper cover helps limit unwanted debris entering the material container.
Troubleshooting and Repair
Common Titan ED655 Plus Hopper Assembly Problems
Material supply problems may involve the hopper, filter screens, return tubing or other sprayer components. Identify the actual cause before ordering replacements.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Restricted coating supply | 0088871, 0089917 and 0090283 | Inspect the installed filter screen and hopper outlet for dried coating, debris or restrictions. |
| Sprayer has difficulty priming | 0090283, filter screens, return tubes and pump head | Confirm adequate material supply and check the intake and return paths before diagnosing pump valves. |
| Material leaks near hopper | 0090283 and hopper connections | Inspect the container for cracks and examine the relevant connection or seal. |
| Poor return flow | 0093865 and 0090560 | Check for kinked tubing, obstructions and damaged or disconnected return components. |
| Filter repeatedly becomes blocked | 0088871 and 0089917 | Review coating preparation, screen selection and cleaning procedures. |
| Debris enters the hopper | 0279591 and 0090283 | Inspect the hopper cover, container condition and material handling practices. |
OEM Replacement Reference
Choose the Correct Titan ED655 Plus Hopper Filter and Return Tube
The hopper assembly lists two different filter screens. Titan 0088871 is identified as the Coarse Filter Screen at diagram reference 2A, while Titan 0089917 is the Filter Screen at reference 2. Their different screening characteristics should be considered when selecting a component for the coating and sprayer configuration.
The parts list also distinguishes Titan 0093865 Return Tube at reference 4 from Titan 0090560 Return Tube Assembly at reference 6. These are separately identified OEM items and should not be assumed interchangeable.
For accurate ordering, compare the part number, diagram reference and existing component with the applicable Titan parts documentation. Do not assume that similar-looking parts have the same function or fitment.
OEM Buying Guide
How to Choose the Correct Titan ED655 Plus Hopper Part
Confirm Your Model
Verify that your sprayer is the Titan ED655 Plus and identify its hopper configuration.
Check the Diagram
Locate the hopper, cover, screen or return tube using the factory exploded view.
Match the Part Number
Confirm the full OEM number and any applicable screen or configuration requirements.
Order the OEM Part
Select the matching replacement from AllTitanParts and follow the appropriate installation procedure.
Preventive Maintenance
Maintain Your Titan ED655 Plus Hopper Assembly
Clean the Filter Screen
Inspect the installed screen regularly and clean it using the coating manufacturer's and Titan's approved procedures.
Keep the Hopper Clean
Remove coating residue after use and prevent dried material from accumulating around the hopper outlet.
Inspect Return Tubing
Check the 0093865 Return Tube and 0090560 Return Tube Assembly for damage, restrictions and secure connections.
Protect the Material Supply
Use the hopper cover as intended and keep contaminants out of the coating supply during handling and storage.
Related Titan ED655 Plus Assemblies
Shop More Titan ED655 Plus Airless Pump Parts
ED655 Plus Main Assembly
Browse main assembly components, hardware and related equipment parts.
ED655 Plus Pump Head Assembly
Find inlet valves, outlet balls, prime/spray valves and pump head seals.
ED655 Plus Diaphragm Pump Assembly
Shop diaphragm, hydraulic piston, pressure regulating and mechanical drive components.
Titan ED655 Plus Airless Pump Parts
Explore the complete ED655 Plus parts directory and related assemblies.
Titan ED655 Plus Hopper Assembly Service Safety
Before removing hopper components or disconnecting return tubing, turn off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen a pressurized connection or attempt to stop a high-pressure fluid leak with your hand. High-pressure fluid injection injuries require immediate emergency medical attention. Use appropriate personal protective equipment and follow the coating manufacturer's safety instructions when handling paint, solvents or cleaning materials.
Genuine Titan ED655 Plus Hopper Parts
Order Titan ED655 Plus Hopper Assembly Parts Today
Shop genuine Titan mini hoppers, hopper covers, coarse and fine filter screens, return tubes and return tube assemblies. Find the exact OEM component needed to maintain your ED655 Plus material supply system.
Shop ED655 Plus Hopper PartsFrequently Asked Questions
Titan ED655 Plus Airless Pump Hopper Assembly FAQ
What is the Titan ED655 Plus Hopper Assembly?
It is the material supply assembly that includes the mini hopper, cover, filter screens and return tube components associated with the ED655 Plus Airless Pump.
How many replacement parts are listed for the ED655 Plus Hopper Assembly?
AllTitanParts lists six individual components in the ED655 Plus Airless Pump Hopper Assembly category.
What is the Titan ED655 Plus Mini Hopper part number?
Titan 0090283 is the Mini Hopper listed at diagram reference 3.
What is the Titan ED655 Plus Hopper Cover part number?
Titan 0279591 is the Hopper Cover listed at diagram reference 1.
Which coarse filter screen is listed for the ED655 Plus?
Titan 0088871 is the Filter Screen, Coarse, identified at diagram reference 2A.
What is the standard filter screen part number?
Titan 0089917 is the Filter Screen listed at diagram reference 2. It is described as the finer screening option.
What is the difference between Titan 0088871 and 0089917?
Titan 0088871 is identified as a coarse filter screen, while Titan 0089917 is the finer filter screen. Select the appropriate option using Titan's guidance and the requirements of the coating material.
What is the Titan ED655 Plus Return Tube part number?
Titan 0093865 is the Return Tube listed at diagram reference 4.
What is the ED655 Plus Return Tube Assembly part number?
Titan 0090560 is the Return Tube Assembly listed at diagram reference 6.
Can a clogged hopper filter cause poor priming?
Yes. A clogged filter can restrict coating supply and contribute to priming difficulties. However, suction problems and pump head valve issues may produce similar symptoms.
Can I purchase ED655 Plus hopper components individually?
Yes. The category lists individual OEM replacement components, allowing customers to identify the specific hopper, filter, cover or return tube needed.
Where can I buy Titan ED655 Plus Hopper Assembly replacement parts?
Shop Titan ED655 Plus Hopper Assembly Parts at AllTitanParts. For help identifying the correct part, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding ED655 Plus Hopper Assembly Parts?
Have your Titan ED655 Plus model, equipment serial number and factory diagram reference ready when requesting help with part identification, filter selection or compatibility.
713-931-0006
