Shop Titan ED655 Plus Airless Pump Parts
Find replacement components for your Titan ED655 Plus Airless Pump at AllTitanParts. Browse four assembly categories, compare the relevant drawing with your equipment and identify the item your repair requires. Review its part number and product contents before ordering.
ED655 Plus Parts Overview
Locate Your Replacement by Assembly
A targeted repair begins with identifying the affected component. Start with the appropriate assembly category, then compare the diagram position, product description and replacement number with the installed item.
Record your model and serial information before shopping. Check any previous modifications or repairs that may affect selection, and confirm what each product includes rather than assuming an assembly category represents a complete replacement unit.
Shop by Assembly
Explore Titan ED655 Plus Replacement Parts Categories
ED655 Plus Main Assembly
Use the main assembly category to locate components shown in the overall equipment arrangement. Match the required item to its drawing reference and individual product details.

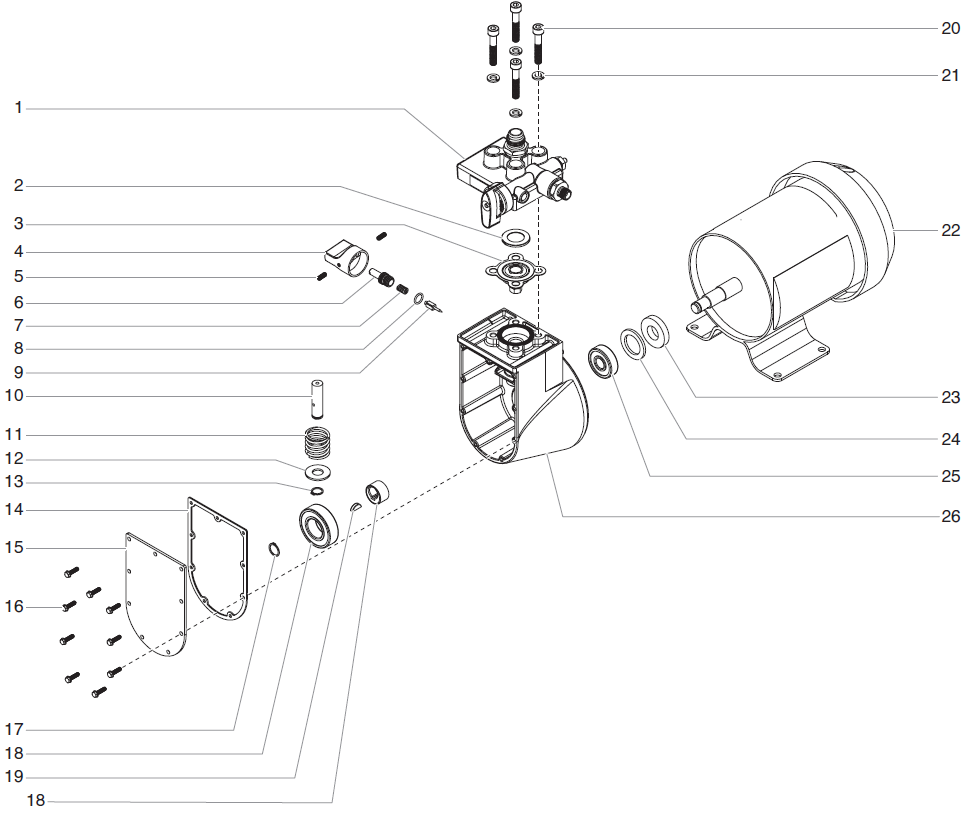

Browse Main Assembly PartsED655 Plus Diaphragm Pump, P/N 0555124
Explore the diaphragm pump drawing when identifying components in this assembly. Diagnose the operating fault first, then compare the specified replacement with the installed item.

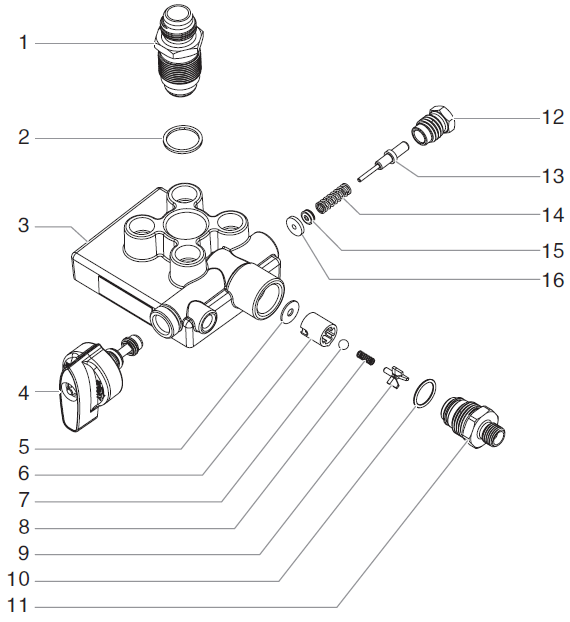

Browse Diaphragm Pump PartsED655 Plus Pump Head Assembly
Use the pump head category for components shown in its assembly drawing. Review associated service requirements and included items before choosing replacement products.

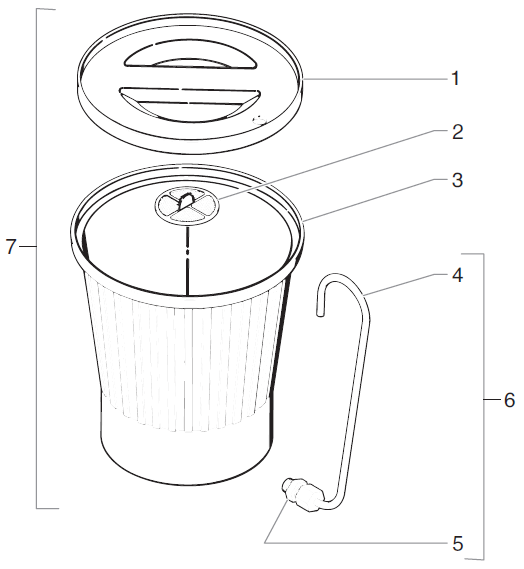

Browse Pump Head PartsED655 Plus Airless Pump Hopper Assembly
Compare the hopper drawing with the material supply arrangement fitted to your equipment. Select individual components according to their part numbers and product descriptions.
Browse Hopper Assembly PartsConfirm the Model Before Ordering
Check the Full ED655 Plus Identification
Use the complete model identification and the matching assembly drawing when selecting parts. Similar model names do not establish component interchangeability. Verify the replacement number and any documented fitment information before purchasing.
Replacement Parts Buying Guide
How to Choose the Correct ED655 Plus Part
- Confirm your equipment. Record the model, serial information and installed configuration.
- Establish the fault. Follow the manufacturer's diagnostic procedure before selecting replacements.
- Match the component. Compare its drawing reference, part number and description.
- Review your order. Check required quantities, included items and related components needed for the service task.
Inspection Before Replacement
Diagnose Priming, Flow and Leakage Problems
Poor priming, reduced delivery and inconsistent spraying can have several causes. Supply restrictions, contamination, leakage and worn components may produce similar symptoms. Follow the recommended inspection sequence to establish the appropriate repair.
Avoid choosing seals, springs or threaded fittings by appearance alone. Dimensions, materials and installation requirements determine suitability. Seek identification assistance when the required component is unclear.
Routine Equipment Care
Maintain Your ED655 Plus Between Jobs
Follow the prescribed cleaning, flushing and maintenance schedule. Use materials suitable for the coating and equipment, and inspect accessible components as directed.
Address recurring faults before returning the sprayer to service. Prepare the equipment for storage according to the manufacturer's instructions and record repairs and installed replacement numbers.
Relieve Pressure Before Servicing
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before opening fluid components or removing fittings. Switching off alone does not eliminate trapped pressure. Never loosen a pressurized connection or use your hand to stop a fluid leak. Follow the service instructions for reassembly and restart.
Find the Component Your Repair Requires
Order Titan ED655 Plus Replacement Parts
Choose the relevant assembly category, identify your component and review its replacement details before checkout.
Browse ED655 Plus PartsFrequently Asked Questions
Titan ED655 Plus Airless Pump Parts FAQ
Is this page for a complete sprayer or replacement parts?
This page is a replacement-parts directory. Browse the appropriate assembly category and review each product description to confirm what your purchase includes.
How do I identify the correct replacement component?
Confirm your equipment information, locate the item in its assembly drawing and compare the part number and description with the installed component.
Can I use parts from a similarly named model?
Check documented compatibility first. Similar model names do not establish that individual components are interchangeable.
Does poor priming always require a new pump?
No. Supply restrictions, air leaks and valve problems can produce similar symptoms. Follow the manufacturer's diagnostic procedure before choosing replacement parts.
Does an assembly product include all associated hardware?
Review its product description and the service requirements. Seals, fasteners or related components may need to be ordered separately.
What information helps with parts identification?
Provide the full model name, serial number, drawing reference and existing part number. A clear photograph may also help identify the component.
Need Help Finding an ED655 Plus Part?
Have your equipment information and component reference ready when contacting AllTitanParts.
