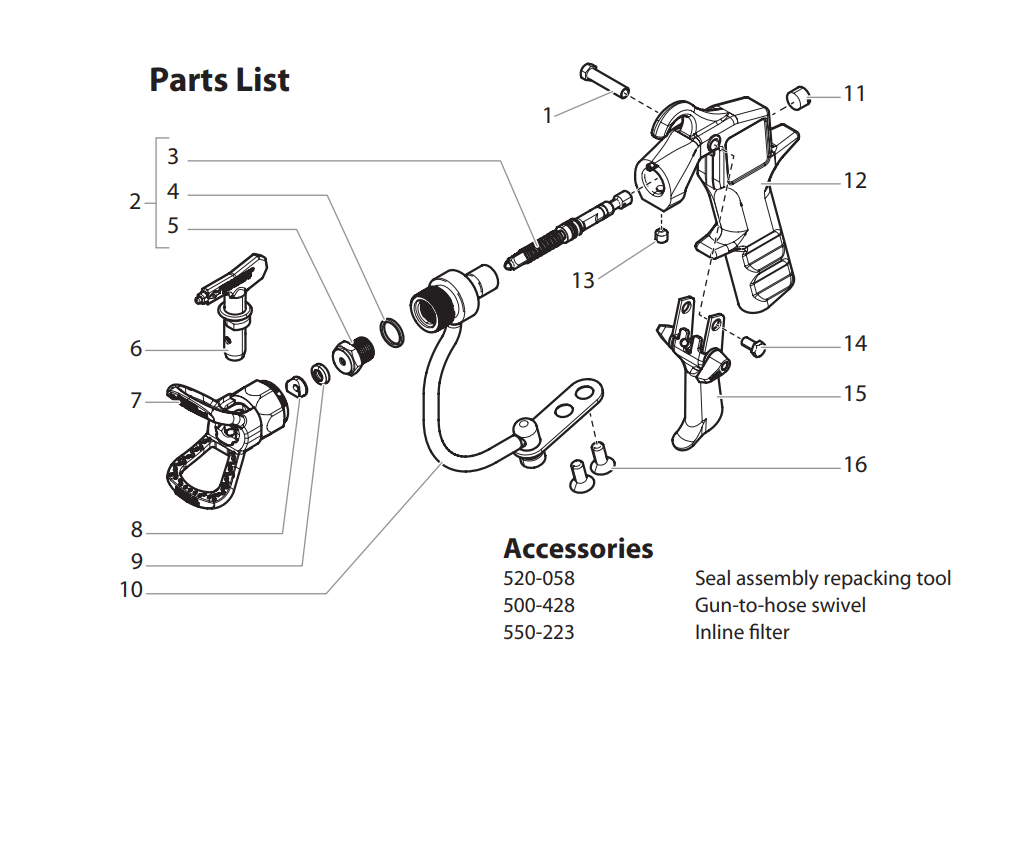

Titan S5 Airless Spray Gun Parts List


520-028
520-025
520-023A
520-020
520-048
662-517
0289228
651-040
651-020
520-408
520-034
520-035
520-031
520-060A
520-033
520-058
500-428
550-223
Titan S5 Airless Spray Gun Parts List
  • Titan 520-028 Trigger Pivot Screw

    Titan 520-028 Trigger Pivot Screw

    Item No: 1

    Part #:520-028

    Titan 520-028 Trigger Pivot Screw Titan 520-028 Trigger Pivot Screw ...
    $6.20

  • Titan 520-025 S-5/SGX-20 Rebuilding Kit

    Titan 520-025 S-5/SGX-20 Rebuilding Kit

    Item No: 2

    Part #:520-025

    Titan 520-025 S-5/SGX-20 Rebuilding Kit Titan 520-025 S-5/SGX-20 Rebuilding Kit...
    Retail Price: $179.10
    You save: $25.59  (14%)
    Our Price: $153.51

  • Titan 520-023A Seal Assembly, PKGD

    Titan 520-023A Seal Assembly, PKGD

    Item No: 3

    Part #:520-023A

    Titan 520-023A Seal assy, pkgd *Replaced Part # 520-023* Titan 520-023A Seal assy, pkgd *Replaced Part # 520-023*...
    Retail Price: $132.20
    You save: $18.89  (14%)
    Our Price: $113.31

  • Titan 520-020 Copper Washer

    Titan 520-020 Copper Washer

    Item No: 4

    Part #:520-020

    Titan 520-020 Copper washer Fits: ProFinish AS1130, SGX-20 Airless Spray Gun, G-15XL Stainless Steel Gun, 1200gxc Airless Sprayer, s-5,1200GXC, PowrLiner 6000, PowrLiner 5000 Titan 520-020 Copper washer Fits: ProFinish AS1130, SGX-20 Airles...
    $4.41

  • Titan 520-048 Diffuser Assembly

    Titan 520-048 Diffuser Assembly

    Item No: 5

    Part #:520-048

    Titan 520-048 Diffuser Assembly Titan 520-048 Diffuser Assembly...
    Retail Price: $58.30
    You save: $8.33  (14%)
    Our Price: $49.97

  • Titan 662-517 Tip Assembly

    Titan 662-517 Tip Assembly

    Item No: 6

    Part #:662-517

    Titan 662-517 Sc-6 plus 517 reversible tip (see accessory catalog for additional sizes)  Includes: Seal, Tip seal Fits: G-10 High Capacity Spray Gun, LX-80 II Professional Airless Gun, s-3, s-5 Titan 662-517 Sc-6 plus 517 reversible tip (see accessory catalog for additiona...
    Retail Price: $30.00
    You save: $4.40  (15%)
    Our Price: $25.60

  • Titan 0289228 Tip Guard, G-THREAD

    Titan 0289228 Tip Guard, G-THREAD

    Item No: 7

    Part #:0289228

    Titan 0289228 Tip Guard, G-THREAD also know as 0289228A is a high qaulity easy to install  Pkgd 7/8'' guard it replaces Titan 661-012.   The Aerodynamic dimple design of the tip guard allows for better airflow and less paint build up. Seal cavity on safety guard has large “flats” for quick and easy installation of seal,  pressure rated at 5000 PSI (34.5 MPa).   Rotate guard without loosening from gun.... Titan 0289228 Tip Guard, G-THREAD also know as 0289228A is a high qaulity e...
    Retail Price: $29.00
    You save: $4.00  (14%)
    Our Price: $25.00

  • Titan 651-040 Tip Seal Retainer

    Titan 651-040 Tip Seal Retainer

    Item No: 8

    Part #:651-040

    Titan 651-040 Tip Retainer(Metal) is same as Titan 0297007.  Tip retainers hold spray tips and other nozzle components firmly in place. It is compatible with these machines: SGX-20 Airless Spray Gun, PowrLiner 850, PowrLiner 800, PowrLiner 550, lx-80 platinum, lx-80 II, s-5, s-7, s-3, lx-75, LX-80 II Professional Airless Gun.    Titan 651-040 Tip Retainer(Metal) is same as Titan 0297007.  Tip ...
    $3.68

  • Titan 651-020 Tip Seal

    Titan 651-020 Tip Seal

    Item No: 9

    Part #:651-020

    Titan 651-020 Gasket seal or Tip Seal SC6 (white) provides a tight seal for the tip. It is a high quality tip seal made from durable rubber material, always check for cracks requiring replacement.  This gasket seal fits these set of machines SGX-20 Airless Spray Gun, PowrLiner 850, PowrLiner 800, PowrLiner 550, lx-80 platinum, lx-80 II, s-5, s-5, s-7, s-3,lx-75, s-3, PowrLiner... Titan 651-020 Gasket seal or Tip Seal SC6 (white) provides a tigh...
    $3.78

  • Titan 520-408 Fluid Tube Assembly

    Titan 520-408 Fluid Tube Assembly

    Item No: 10

    Part #:520-408

    Titan 520-408 Fluid Tube Assembly Titan 520-408 Fluid Tube Assembly...
    Retail Price: $137.90
    You save: $19.70  (14%)
    Our Price: $118.20

  • Titan 520-034 Plug

    Titan 520-034 Plug

    Item No: 11

    Part #:520-034

    Titan 520-034 or 520034 PLUG-OEM Titan 520-034 or 520034 PLUG-OEM...
    $8.80

  • Titan 520-035 Screw Set

    Titan 520-035 Screw Set

    Item No: 13

    Part #:520-035

    Titan 520-035 Screw Set, 1/4-20 X .25 LG-OEM Titan 520-035 Screw Set, 1/4-20 X .25 LG-OEM...
    $1.79

  • Titan 520-031 Head Screw

    Titan 520-031 Head Screw

    Item No: 14

    Part #:520-031

    Titan 520-031 Head screw Titan 520-031 Head screw...
    $2.14

  • Titan 520-033 Screw

    Titan 520-033 Screw

    Item No: 16

    Part #:520-033

    Titan 520-033 Head screw Titan 520-033 Head screw...
    $1.79

  • Titan 520-058 Seal Assembly Repacking Tool

    Titan 520-058 Seal Assembly Repacking Tool

    Part #:520-058

    Titan 520-058 Seal Assembly Repacking Tool Titan 520-058 Seal Assembly Repacking Tool...
    Retail Price: $68.80
    You save: $9.83  (14%)
    Our Price: $58.97

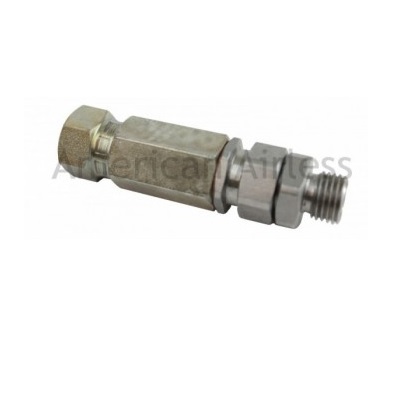

  • Titan 500-428 Gun To Hose Swivel

    Titan 500-428 Gun To Hose Swivel

    Part #:500-428

    Titan 500-428 or 500428 ****Swivel,Gun-to-Hose-tO-Pump-OEM Titan 500-428 or 500428 ****Swivel,Gun-to-Hose-tO-Pump-OEM...
    Retail Price: $93.60
    You save: $13.37  (14%)
    Our Price: $80.23

  • Titan 550-223 In-line Gun Filter

    Titan 550-223 In-line Gun Filter

    Part #:550-223

    Titan 550-223 In-line Gun Filter Fits: Any gun that used quarter inch fitting Titan 550-223 In-line Gun Filter Fits: Any gun that used quarter inch fitti...
    Retail Price: $144.40
    You save: $20.63  (14%)
    Our Price: $123.77
