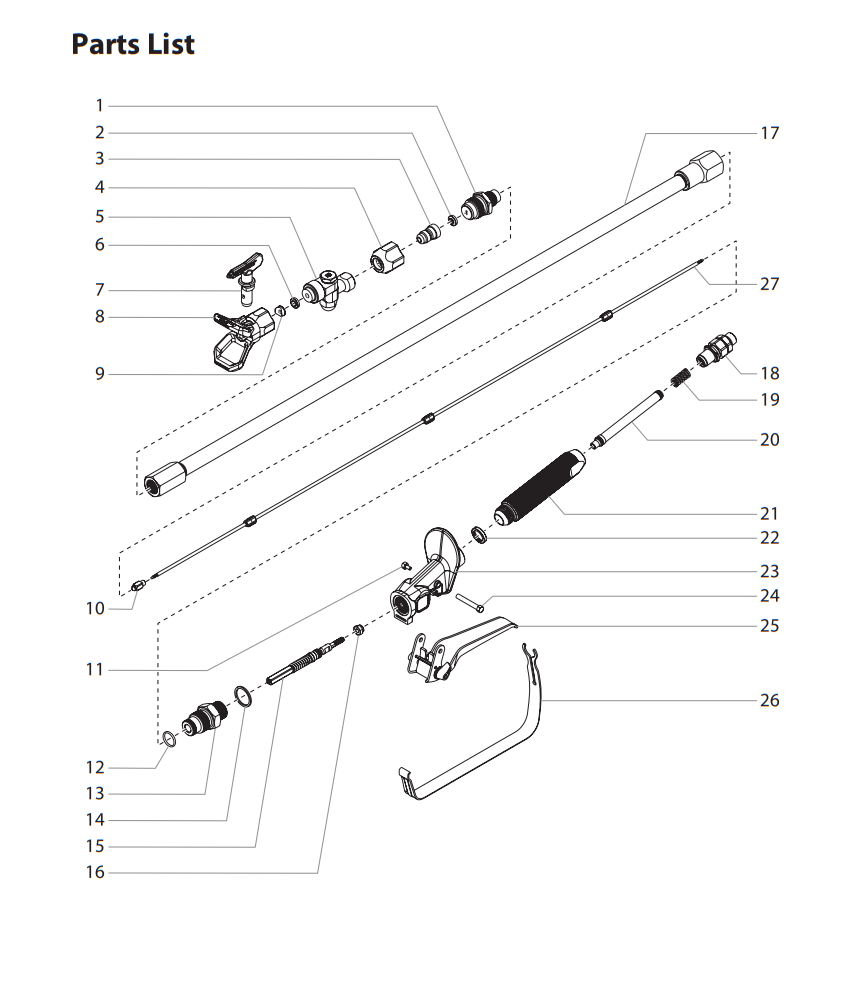

LX-75 Professional airless gun Parts List


520-099
711-010
611-652
611-418
661-012
550-514
580-513
550-466
550-456
550-437
550-458A
226-001
550-464A
580-530
550-488
0089958
580-531
560-038
550-448
550-454
550-455A
550-452
0286932
651-020
651-040
LX-75 Professional airless gun Parts List

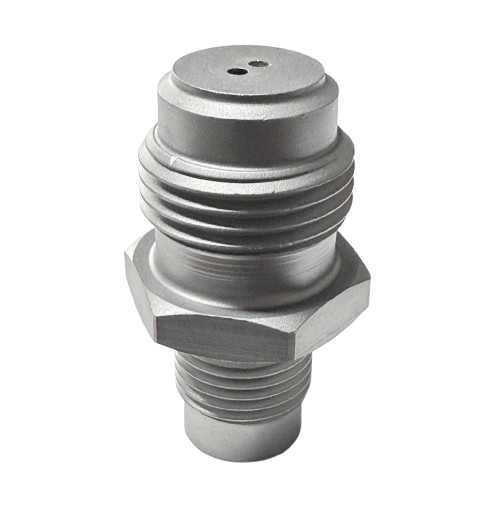

  • Titan 520-099 Diffuser G' Thread

    Titan 520-099 Diffuser G' Thread

    Item No: 1

    Part #:520-099

    Titan 520-099 Diffuser assembly, g thread, staked Titan 520-099 Diffuser assembly, g thread, staked...
    Retail Price: $66.60
    You save: $9.51  (14%)
    Our Price: $57.09

  • Titan 651-020 Tip Seal

    Titan 651-020 Tip Seal

    Item No: 2,6

    Part #:651-020

    Titan 651-020 Gasket seal or Tip Seal SC6 (white) provides a tight seal for the tip. It is a high quality tip seal made from durable rubber material, always check for cracks requiring replacement.  This gasket seal fits these set of machines SGX-20 Airless Spray Gun, PowrLiner 850, PowrLiner 800, PowrLiner 550, lx-80 platinum, lx-80 II, s-5, s-5, s-7, s-3,lx-75, s-3, PowrLiner... Titan 651-020 Gasket seal or Tip Seal SC6 (white) provides a tigh...
    $3.78

  • Titan 711-010 Mount Pole

    Titan 711-010 Mount Pole

    Item No: 3

    Part #:711-010

    Titan 711-010 Mount Pole Titan 711-010 Mount Pole ...
    Retail Price: $25.40
    You save: $3.05  (12%)
    Our Price: $22.35

  • Titan 611-652 Retaining Nut "G" Thread

    Titan 611-652 Retaining Nut "G" Thread

    Item No: 4

    Part #:611-652

    Nut, retaining, wrench tight Nut, retaining, wrench tight...
    Retail Price: $23.10
    You save: $2.77  (12%)
    Our Price: $20.33

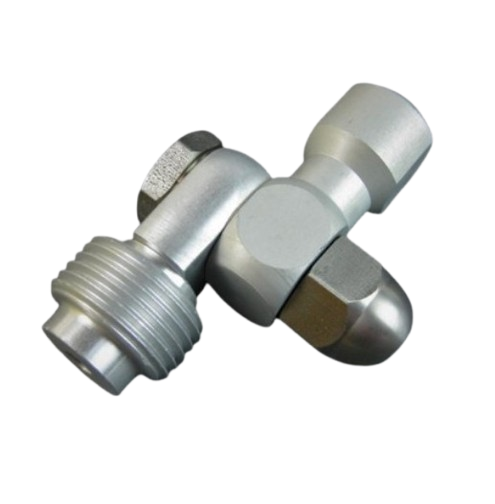

  • Titan 611-418 Tip Swivel Assembly G' Thread

    Titan 611-418 Tip Swivel Assembly G' Thread

    Item No: 5

    Part #:611-418

    Titan 611-418 Tip Swivel Assembly G' Thread Titan 611-418 Tip Swivel Assembly G' Thread ...
    Retail Price: $114.70
    You save: $16.39  (14%)
    Our Price: $98.31

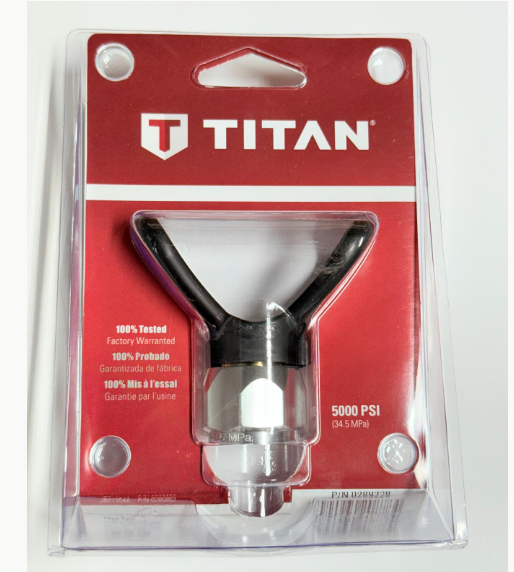

  • Titan 661-012 Tip Guard

    Titan 661-012 Tip Guard

    Item No: 8

    Part #:661-012

    Titan 661-012 Tip Guard is same as Titan 0289228 is a 7/8″ thread hand-tight reversible Tip Guard, it replaces Titan 297070. A top quality Titan Tip Guard that  protect you from high-pressure spray emission during spray operations.   Compatible with: Titan Advantage GPX 85, 1100, 700, GPX 220, GPX 165, GPX 130. Titan PowrLiner 800. Titan LX-65 , LX 80 platinum, LX 75, SGX-20. Titan G-10.     Titan 661-012 Tip Guard is same as Titan 0289228 is a 7/8″ thread han...
    Retail Price: $29.00
    You save: $4.00  (14%)
    Our Price: $25.00

  • Titan 651-040 Tip Seal Retainer

    Titan 651-040 Tip Seal Retainer

    Item No: 9

    Part #:651-040

    Titan 651-040 Tip Retainer(Metal) is same as Titan 0297007.  Tip retainers hold spray tips and other nozzle components firmly in place. It is compatible with these machines: SGX-20 Airless Spray Gun, PowrLiner 850, PowrLiner 800, PowrLiner 550, lx-80 platinum, lx-80 II, s-5, s-7, s-3, lx-75, LX-80 II Professional Airless Gun.    Titan 651-040 Tip Retainer(Metal) is same as Titan 0297007.  Tip ...
    $3.68

  • Titan 550-514 Ball Holder Assembly

    Titan 550-514 Ball Holder Assembly

    Item No: 10

    Part #:550-514

    Titan 550-514 Ball Holder Assembly, lx-75 Titan 550-514 Ball Holder Assembly, lx-75...
    Retail Price: $65.10
    You save: $9.30  (14%)
    Our Price: $55.80

  • Titan 580-513 Short Trigger Screw

    Titan 580-513 Short Trigger Screw

    Item No: 11

    Part #:580-513

    Titan 580-513 Short Trigger Screw is a genuine OEM part. Compatible with the following sprayers: LX-80 platinum, LX-80 II, S-7, S-3, LX-75, LX-80 II Professional Airless Gun, RX-80 Airless Spray Gun, RX-Pro Airless Spray Gun.   Titan 580-513 Short Trigger Screw is a genuine OEM part. Compatible with the fol...
    $3.15

  • Titan 550-466 O-Ring

    Titan 550-466 O-Ring

    Item No: 12

    Part #:550-466

    Titan 550-466 O-Ring, #015 Titan 550-466 O-Ring, #015 ...
    $5.57

  • Titan 550-456 Gun Head Fitting

    Titan 550-456 Gun Head Fitting

    Item No: 13

    Part #:550-456

    Titan 550-456 Gun Head Fitting lx-75 Titan 550-456 Gun Head Fitting lx-75 ...
    Retail Price: $85.50
    You save: $12.21  (14%)
    Our Price: $73.29

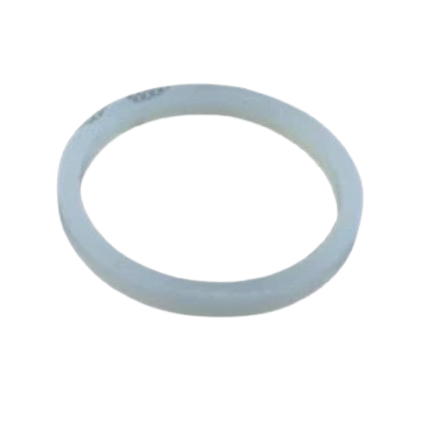

  • Titan 550-437 Seal Washer

    Titan 550-437 Seal Washer

    Item No: 14

    Part #:550-437

    Titan 550-437 Seal Washer Titan 550-437 Seal Washer...
    $4.10

  • Titan 226-001 Lock Nut

    Titan 226-001 Lock Nut

    Item No: 16

    Part #:226-001

      Titan 226-001 lock  Nut, with nylon Fits the following models: Impact 340, Impact 400,  lx-80 platinum,  lx-80 II,  lx-75,  Impact 410   RentSpray 650 Airless Sprayer,  RentSpray 600 Airless Sprayer, LX-80 II Professional Airless Gun,    RX-80 Airless Spray Gun,  HVLP Airspray,  ProFinish AS1130,  PowrLiner 6000,  PowrLiner...   Titan 226-001 lock  Nut, with nylon Fits the f...
    $2.98

  • Titan 580-530 Swivel

    Titan 580-530 Swivel

    Item No: 18

    Part #:580-530

    Titan 580-530 swivel Joint Assembly Fits: LX-80 II Professional Airless Gun, lx-80 platinum, lx-75, lx-80 II, Titan 580-530 swivel Joint Assembly Fits: LX-80 II Professional Airless Gun...
    Retail Price: $65.10
    You save: $9.30  (14%)
    Our Price: $55.80

  • Titan 550-488 Filter Spring

    Titan 550-488 Filter Spring

    Item No: 19

    Part #:550-488

    Titan 550-488 Filter spring or spring,filter Titan 550-488 Filter spring or spring,filter...
    $3.05

  • Titan 0089958 Filter, Medium (White Color)

    Titan 0089958 Filter, Medium (White Color)

    Item No: 20

    Part #:0089958

    Titan 0089958 Filter (Medium, White Color) replaces these parts Titan # 550-483, 0154842, 0034377, 34377, 550-271 and ASM 4433. It is a 50 mesh stainless steel mesh filter, with a smooth tapered top with no threads making it easy to push into the spray gun and also for easy replacement. Fits the following models: Impact 400, Impact 440, Impact 540, Impact 640, Impact 740, Impact 840 (For use with RX-Pro®, RX-80™, G-10, LX-30,... Titan 0089958 Filter (Medium, White Color) replaces these parts Titan # 550...
    $15.00

  • Titan 580-531 Handle

    Titan 580-531 Handle

    Item No: 21

    Part #:580-531

    Titan 580-531 gun handle Titan 580-531 gun handle...
    Retail Price: $25.40
    You save: $3.05  (12%)
    Our Price: $22.35

  • Titan 560-038 Handle Seal

    Titan 560-038 Handle Seal

    Item No: 22

    Part #:560-038

    Titan 560-038 Handle Seal is same as Titan 0296289 it is a genuine OEM part designed to meet the same specifications and standards as the original part for compatibility and performance.  The Titan 560-038 Handle Seal is made from durable rubber and provides a tight seal for the manifold filter. This Handle Seal fits the inlet filter housing on the Titan skid models.   Compatible with: Titan... Titan 560-038 Handle Seal is same as Titan 0296289 it is a genuine OEM...
    $3.36

  • Titan 550-448 Gun Head

    Titan 550-448 Gun Head

    Item No: 23

    Part #:550-448

    Titan 550-448 Gun head Titan 550-448 Gun head...
    Retail Price: $71.20
    You save: $10.17  (14%)
    Our Price: $61.03

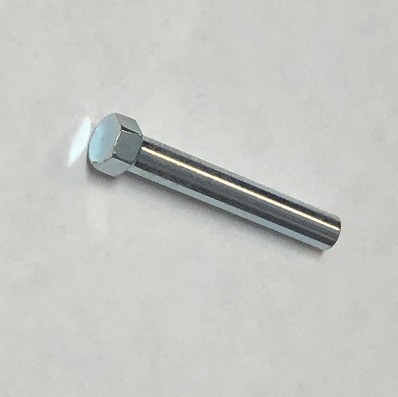

  • Titan 550-454 Long Trigger Screw

    Titan 550-454 Long Trigger Screw

    Item No: 24

    Part #:550-454

    Titan 550-454 Long Trigger Screw Titan 550-454 Long Trigger Screw ...
    Retail Price: $20.20
    You save: $2.02  (10%)
    Our Price: $18.18

  • Titan 550-455A Trigger

    Titan 550-455A Trigger

    Item No: 25

    Part #:550-455A

    Titan 550-455A Trigger Assembly  Titan 550-455A Trigger Assembly ...
    Retail Price: $62.90
    You save: $8.99  (14%)
    Our Price: $53.91

  • Titan 550-452 Trigger Guard

    Titan 550-452 Trigger Guard

    Item No: 26

    Part #:550-452

    Titan 550-452 Trigger Guard Titan 550-452 Trigger Guard...
    Retail Price: $24.90
    You save: $2.99  (12%)
    Our Price: $21.91

  • Titan 0286932 4' Needle Assembly

    Titan 0286932 4' Needle Assembly

    Item No: 27

    Part #:0286932

    Titan 0286932 4' Needle Assembly Titan 0286932 4' Needle Assembly ...
    Retail Price: $179.20
    You save: $25.60  (14%)
    Our Price: $153.60

  • Titan 550-521 Gun Repair Kit

    Titan 550-521 Gun Repair Kit

    Item No: 29

    Part #:550-521

    Titan 550-521 Gun Repair Kit or Kit,gun,packing seal,lx-75, (includes items 12 and 14–16) Titan 550-521 Gun Repair Kit or Kit,gun,packing seal,lx-75, (includes items...
    Retail Price: $126.80
    You save: $18.11  (14%)
    Our Price: $108.69

  • Titan 550-518 Diffuser/Ball Holder Repair Kit, “G” Thread

    Titan 550-518 Diffuser/Ball Holder Repair Kit, “G” Thread

    Item No: 30

    Part #:550-518

    Titan 550-518 Diffuser/Ball Holder Repair Kit, “G” Thread OR Kit,repair,g,diff/ballvlv lx75 Titan 550-518 Diffuser/Ball Holder Repair Kit, “G” Thread OR Kit,repair,g,di...
    Retail Price: $116.30
    You save: $16.61  (14%)
    Our Price: $99.69

  • Titan 0286937 Major Repair Kit, 4', Pole Gun

    Titan 0286937 Major Repair Kit, 4', Pole Gun

    Item No: 31

    Part #:0286937

    Titan 0286937 Major Repair Kit, 4', Pole Gun  Includes: Ball holder assembly, O-ring, Seal washer, Packing seal assembly, Lock nut, 4’ needle assembly Fits: LX-75 Professional airless gun  Titan 0286937 Major Repair Kit, 4', Pole Gun  Includes: Ball holder as...
    Retail Price: $233.20
    You save: $33.31  (14%)
    Our Price: $199.89

  • Titan 0286938 Major Repair Kit, 8’

    Titan 0286938 Major Repair Kit, 8’

    Item No: 32

    Part #:0286938

    Titan 0286938 Major Repair Kit, 8’ Includes: Ball holder assembly, O-ring, Seal washer, Packing seal assembly, Lock nut, 8’ needle assembly Fits: LX-75 Professional airless gun  Titan 0286938 Major Repair Kit, 8’ Includes: Ball holder assembly, O-...
    Retail Price: $357.40
    You save: $51.06  (14%)
    Our Price: $306.34
