Titan 840ix Digital Main Assembly Parts
Shop genuine Titan 840ix Digital Main Assembly replacement parts at AllTitanParts. Find OEM fluid section components, siphon tubes, inlet screens, bypass tubes, PrimeSpray valve assemblies, fittings, lock washers and mounting hardware. Use the numbered exploded parts diagram to identify the correct part for your Titan 840ix Digital Airless Sprayer and order with confidence.
Assembly Overview
Buy Titan 840ix Digital Main Assembly Replacement Parts
The Titan 840ix Digital Main Assembly brings together important fluid-handling, mounting and connection components of the sprayer. These parts work alongside the digital drive and pump system to support paint intake, priming, fluid circulation and spray operation.
The assembly diagram identifies 14 individual OEM replacement parts, including the Titan 800-300 Fluid Section, 451-241 Siphon Tube, 710-046 Inlet Screen, 800-904 Bypass Tube and 700-258 PrimeSpray Valve Assembly. It also identifies specialized fasteners and fittings that help secure and connect the assembly.
Whether you are replacing a damaged fitting, repairing a fluid intake connection or servicing the main pump installation, selecting the correct OEM part number helps you avoid unnecessary replacement of unrelated components.
Parts Identification
How to Find the Correct Titan 840ix Digital Main Assembly Part
Confirm Your Model
Check that your equipment is the Titan 840ix Digital Airless Sprayer.
Open the Main Diagram

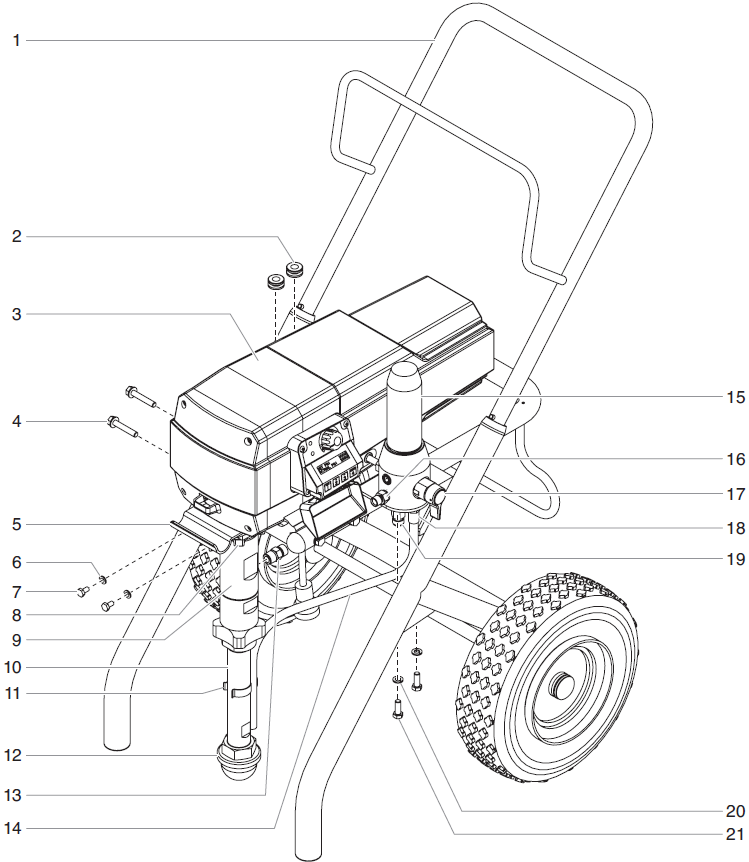

Use the illustrated Digital Main Assembly drawing shown on this page.
Match the Part Number
Compare the numbered callout with the corresponding Titan OEM part number.
Verify Before Ordering
Confirm the component, model configuration and required quantity.
OEM Parts Catalog
Titan 840ix Digital Main Assembly Parts and OEM Numbers
Browse the 14 parts listed for the Digital Main Assembly. Match the exact part number to its position in the exploded diagram before purchasing.
Titan 761-178 Hexagonal Flange Screw
OEM flange screw used at the designated mounting position. Verify the illustrated location and required quantity.
Part Number: 761-178Titan 9821503 Lock Washer
OEM lock washer for the specified fastener location. Replace damaged or missing hardware as directed.
Part Number: 9821503Titan 858-625 Pail Hook Screw
Replacement screw for the pail hook mounting position in the main assembly.
Part Number: 858-625Titan 800-328 Knock Off-Mach Nut
Specialized OEM nut used in the designated assembly location. Match the diagram callout before replacement.
Part Number: 800-328Titan 800-300 Fluid Section
Replacement fluid section assembly responsible for pumping coating material through the sprayer's fluid system.
Part Number: 800-300Titan 451-241 Siphon Tube
OEM siphon tube used to draw coating material from the supply container into the sprayer's intake system.
Part Number: 451-241Titan 730-334 Hose Tie Clamp
Retaining clamp for the designated hose connection. Inspect for damage or poor retention.
Part Number: 730-334Titan 710-046 Inlet Screen
OEM inlet screen that helps keep larger debris from entering the pump intake. Inspect for clogging or damage.
Part Number: 710-046Titan 800-904 Bypass Tube
OEM tube used in the bypass or return-fluid path during applicable operating modes.
Part Number: 800-904Titan 812-003 Fitting
OEM fitting used at its specified connection point. Verify thread specifications and pressure compatibility.
Part Number: 812-003Titan 700-258 PrimeSpray Valve Assembly
Replacement valve assembly for selecting the applicable priming or spraying fluid path.
Part Number: 700-258Titan 0507671 Fitting
Genuine Titan fitting for the designated fluid-system connection. Match the exact OEM number before installation.
Part Number: 0507671Titan 860-002 Lock Washer
Replacement lock washer used at the specified main assembly fastening point.
Part Number: 860-002Titan 860-535 Hexagonal Screws
OEM hexagonal screws for the illustrated assembly. Confirm their positions and required quantity.
Part Number: 860-535System Overview
How the Titan 840ix Digital Main Assembly Supports Sprayer Operation
Fluid Intake
The siphon tube and inlet screen support the intake of coating material while helping reduce debris entry.
Fluid Pumping
The 800-300 Fluid Section pumps coating material through the sprayer's fluid circuit.
Priming and Return Flow
The PrimeSpray valve and bypass tube contribute to fluid routing during the applicable operating modes.
Mechanical Connections
Fittings, screws, washers, clamps and specialized hardware secure the illustrated components.
Troubleshooting Guide
Common Titan 840ix Digital Main Assembly Problems
These checks help identify possible areas for inspection. A symptom alone does not confirm that a particular part has failed.
| Symptom | Parts to Inspect | Recommended Check |
|---|---|---|
| Sprayer fails to prime | 451-241, 710-046, 700-258 | Check the siphon tube, inlet screen and PrimeSpray valve position. |
| Restricted coating intake | 710-046, 451-241 | Inspect for screen blockage, intake obstruction or connection problems. |
| Unexpected bypass flow | 700-258, 800-904 | Inspect the valve operating position and bypass routing. |
| Fluid leakage at a connection | 812-003, 0507671, 730-334 | Check the applicable fittings, hose retention and sealing surfaces after relieving pressure. |
| Loose or damaged mounting hardware | 761-178, 9821503, 860-002, 860-535 | Inspect fasteners and washers against the illustrated assembly requirements. |
