Titan 840ix Digital | Low Rider Siphon Assembly
Titan 840ix Digital Low Rider Siphon Assembly Parts
Restore dependable coating material intake with Titan 840ix Digital Low Rider Siphon Assembly replacement parts. Browse suction tubes, intake hoses, strainers, fittings, seals and related siphon components where listed for your sprayer configuration. Use the illustrated parts diagram to identify the correct replacement and shop Titan airless sprayer parts online at AllTitanParts.
Assembly Overview
Buy Titan 840ix Digital Low Rider Siphon Parts Online
The Titan 840ix Digital Low Rider Siphon Assembly forms part of the sprayer's material intake system. It provides the fluid connection between the coating container and the pump inlet, allowing the fluid section to draw material into the sprayer during priming and operation.
A properly maintained siphon assembly helps provide a consistent material supply. Cracked suction components, loose fittings, damaged seals or blocked strainers may allow air into the intake path or restrict fluid flow. These conditions can contribute to priming problems, interrupted material delivery and inconsistent spraying.
AllTitanParts helps you locate the replacement components needed to service your Titan 840ix Digital Low Rider configuration. Compare the illustrated assembly diagram with your existing equipment, confirm the OEM part number and select the appropriate replacement.
Material Intake Components
Explore Titan 840ix Digital Low Rider Siphon Components

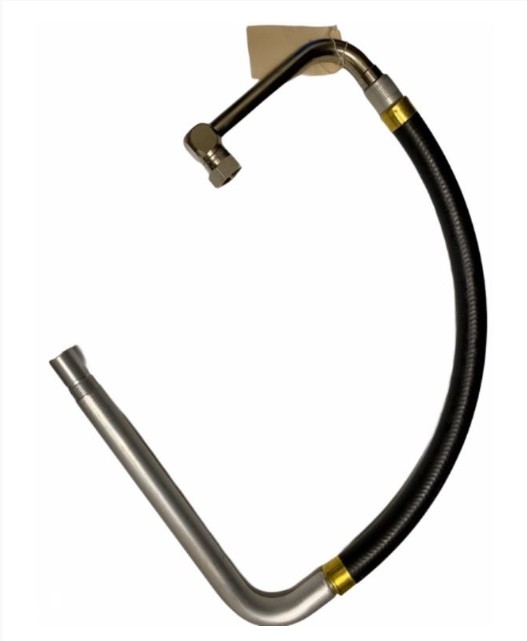

Suction Tubes and Intake Lines
Suction components carry coating material from the container toward the pump inlet. Inspect the intake path for cracks, restrictions, deformation and damaged connections.
Siphon Hoses
Where specified in the assembly, flexible suction hoses help connect the intake system to the fluid section. Check for deterioration, kinks, collapse and air leaks.
Inlet Strainers and Screens
Strainers help keep larger debris from entering the intake system. Inspect for coating buildup, damaged mesh or restricted material flow.
Siphon Fittings and Connectors
Connection fittings secure the intake components to the pump and related assembly parts. Match the exact manufacturer-specified connection.
O-Rings and Intake Seals
Sealing components help prevent unwanted air entry at designated intake connections. Confirm the required dimensions, material and OEM part number.
Clamps and Retaining Hardware
Where used, clamps and retaining components secure the siphon system. Check for missing, loose or damaged hardware before operation.
Material Flow
How the Titan 840ix Digital Low Rider Siphon Assembly Works
Material Pickup
The siphon inlet is positioned in the coating container so the pump can draw material into the intake path.
Initial Straining
An intake strainer, when fitted, helps prevent larger particles from entering the siphon system.
Fluid Transfer
Suction tubing or hose carries coating material toward the fluid section inlet.
Pump Intake
The pump's inlet valve and reciprocating mechanism draw material into the fluid section for pressurized delivery.
Troubleshooting Guide
Common Titan 840ix Digital Siphon Assembly Problems
Problems with the intake system can affect priming and spray performance. These symptoms indicate possible inspection areas rather than a confirmed diagnosis.
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Sprayer will not prime | Air leak, blocked strainer, insufficient material or inlet valve issue | Check material level, siphon connections, strainer and pump inlet. |
| Intermittent material supply | Restricted intake line, air entry or coating buildup | Inspect the intake path for restrictions and damaged connections. |
| Air bubbles in material flow | Possible suction-side air leak | Inspect hoses, fittings and seals for leaks or loose connections. |
| Reduced coating intake | Blocked strainer or restricted suction tubing | Clean and inspect the intake components following Titan instructions. |
| Visible damage to suction line | Age, abrasion, chemical exposure or handling damage | Replace damaged components with the correct OEM-specified parts. |
| Material leaks near connection | Damaged fitting, seal or connection | Stop operation and inspect the connection after pressure relief. |
Parts Identification
How to Find the Correct Titan 840ix Digital Siphon Replacement Part
Confirm the Model
Verify that your sprayer is the Titan 840ix Digital with the Low Rider configuration.
Locate the Component

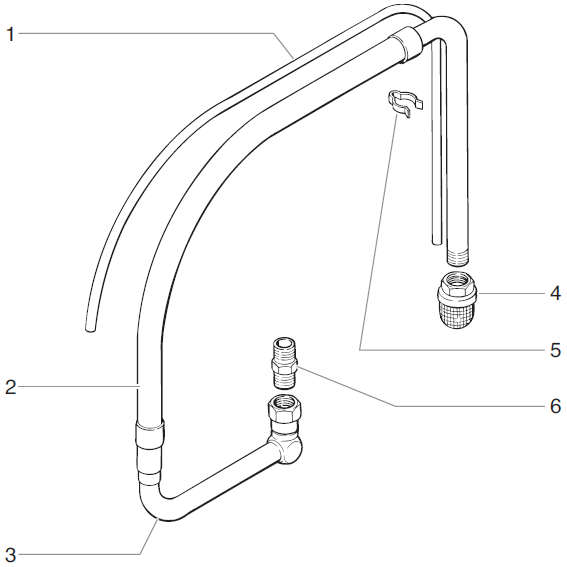

Use the Low Rider Siphon Assembly diagram to identify the damaged or missing part.
Match the OEM Number
Compare the diagram reference with the current Titan replacement part listing.
Order the Correct Part
Select the appropriate replacement and confirm whether seals or connecting hardware are also required.
Repair Planning
Should You Repair or Replace the Siphon Assembly?
Replace an Individual Component
A targeted repair may be appropriate when one identifiable component is damaged and the remaining siphon system is serviceable.
Examples include a damaged strainer, deteriorated seal or separately replaceable suction connection.
Consider a Larger Assembly Repair
More extensive service may be needed when multiple intake components are worn or damaged.
Confirm whether a complete replacement assembly is offered for your exact Titan configuration.
Preventive Maintenance
Maintain Your Titan 840ix Digital Low Rider Siphon System
Clean Intake Strainers
Remove accumulated coating residue according to the manufacturer's cleaning instructions.
Inspect Suction Connections
Check fittings, seals and connection points for damage or possible air leaks.
Protect Intake Hoses
Avoid sharp bends, abrasion and exposure to incompatible cleaning materials.
Flush After Spraying
Follow Titan's recommended flushing procedure to reduce coating buildup in the intake system.
Compatibility and Fitment
Titan 840ix Digital Low Rider Siphon Assembly Compatibility
This category is intended for the Titan 840ix Digital Low Rider Siphon Assembly. Confirm your sprayer model, Low Rider configuration and the individual OEM part number before ordering.
Siphon components from High Rider configurations, standard 840ix models or other Titan sprayers may have different lengths, fittings or connection arrangements. Similar appearance does not establish interchangeability. Use the appropriate manufacturer parts diagram.
Related Titan Assemblies
Shop More Titan 840ix Digital Airless Sprayer Parts
Browse the complete model's parts categories.
Digital Main Assembly PartsFind related main assembly components.
Digital Fluid Section PartsShop piston components, pump packings and inlet valve parts.
Digital Filter Assembly PartsExplore filter elements, housings and sealing components.
Digital High Rider Cart PartsFind replacement components for the High Rider cart configuration.
Siphon Assembly Service and Pressure Safety
Turn off and unplug the sprayer and follow Titan's complete pressure-relief procedure before disconnecting or servicing the intake system. High-pressure fluid injection can cause serious injury. Never inspect leaks by hand or loosen fluid connections while the system is pressurized. Follow the applicable Titan service manual and use manufacturer-approved replacement parts.
Titan Siphon Repair Parts
Shop Titan 840ix Digital Low Rider Siphon Parts
Find replacement components for your Titan 840ix Digital Low Rider material intake system. Use the illustrated parts diagram to identify the correct OEM component and place your order online at AllTitanParts.
Shop Low Rider Siphon Assembly PartsFrequently Asked Questions
Titan 840ix Digital Low Rider Siphon Assembly FAQ
What does the Titan 840ix Digital Low Rider Siphon Assembly do?
It provides the intake path that allows the sprayer's fluid section to draw coating material from the container.
Can a damaged siphon hose prevent the sprayer from priming?
Yes. A damaged or leaking suction-side connection may allow air into the intake path and interfere with priming.
What should I check if my Titan 840ix Digital will not draw paint?
Check the coating level, intake strainer, siphon line, fittings and seals. Pump inlet valve problems can produce similar symptoms.
How do I know if the siphon strainer needs cleaning?
Visible coating buildup, debris or restricted material flow may indicate that cleaning or replacement is needed.
Can I replace an individual siphon component?
Individual repair may be possible when the required component is available separately. Check the assembly diagram and product listing.
Are Low Rider and High Rider siphon parts interchangeable?
Do not assume interchangeability. Verify the OEM part number and manufacturer-approved application for the specific cart and intake configuration.
What causes air bubbles in the siphon system?
Possible causes include damaged suction tubing, deteriorated seals, loose fittings or an intake connection that is not fully submerged.
How should I maintain the Titan 840ix Digital siphon assembly?
Follow Titan's flushing instructions, inspect intake components regularly and keep the strainer free from accumulated debris.
Where can I buy Titan 840ix Digital Low Rider Siphon Assembly parts?
Browse the Titan 840ix Digital Low Rider Siphon Assembly category at AllTitanParts and select the appropriate replacement using the illustrated parts diagram.
Parts Identification Assistance
Need Help Finding Titan 840ix Digital Siphon Parts?
Have your Titan sprayer model, serial number and siphon assembly diagram reference ready when contacting AllTitanParts for replacement part assistance.
