TITAN 840IX DIGITAL | FLUID SECTION | P/N 800-300
Titan 840ix Digital Fluid Section Assembly Parts
Restore your airless sprayer's pumping performance with genuine Titan 840ix Digital Fluid Section Assembly replacement parts. Shop OEM piston rods, upper packings, valve seats, inlet balls, pump housings, seals, repacking kits and service tools for assembly 800-300. Identify your replacement using the illustrated parts diagram and order online at AllTitanParts.
Buy Titan 840ix Digital Fluid Section Replacement Parts
The Titan 840ix Digital Fluid Section Assembly (P/N 800-300) is the pumping section of the airless sprayer. Its piston, packings, inlet valve, outlet valve and fluid housings work together to draw coating material into the pump and deliver it toward the spray system under pressure.
Wear, contamination or damage within the fluid section can contribute to pressure loss, poor priming, inconsistent spray output or fluid leakage. Replacing the appropriate OEM components helps restore the assembly to its intended operating condition when the underlying fault has been correctly diagnosed.
AllTitanParts provides individual service parts as well as selected assemblies and repair tools. This lets you compare a targeted packing or valve repair with replacing a larger component, based on the condition of your equipment and the applicable Titan service instructions.
Shop Titan 840ix Digital Pump Parts by Component
Piston Rods and Assemblies
Find piston rod 800-246 and piston assembly 800-365A for repairs involving worn or damaged pumping components.
Packings and Seal Kits
Shop upper packing 800-248, repacking kit 800-273, O-rings, backup rings and sealing components.
Inlet and Outlet Valves
Browse inlet balls, foot valve seats, outlet valve seals, valve retainers and cages.
Pump Housings and Tools
Find upper and lower pump housings, wear rings, spacers and the specified piston insertion tool.
Titan 840ix Digital Fluid Section OEM Parts List
The following replacement parts and service items are listed for the fluid section. Use the diagram callout and exact OEM number to select the correct component.
Titan 800-273 Repacking Kit
Service kit for pump packing repairs. Confirm kit contents and applicability before installation.
Titan 800-325 Upper Seal Retainer
Retaining component for the upper sealing arrangement. Diagram item 1.
Titan 800-327 Spacer
Upper support spacer used in the fluid section. Diagram item 2.
Titan 800-248 Upper Packing
Upper pump packing used in the sealing system. Diagram item 3.
Titan 800-351 Upper Housing
Upper pump housing component. Diagram item 4.
Titan 800-354 Wear Ring
Wear ring used at the designated pump location. Diagram item 6.
Titan 800-332 Viton O-Ring
Sealing O-ring, also identified in the listing as Titan 987110. Diagram item 7.
Titan 800-333 PTFE Back-Up Ring
Backup ring for the specified sealing location. Diagram item 8.
Titan 800-352 Lower Housing
Lower pump housing component. Diagram item 9.
Titan 800-246 Piston Rod
Reciprocating piston rod within the pump mechanism. Diagram item 10.

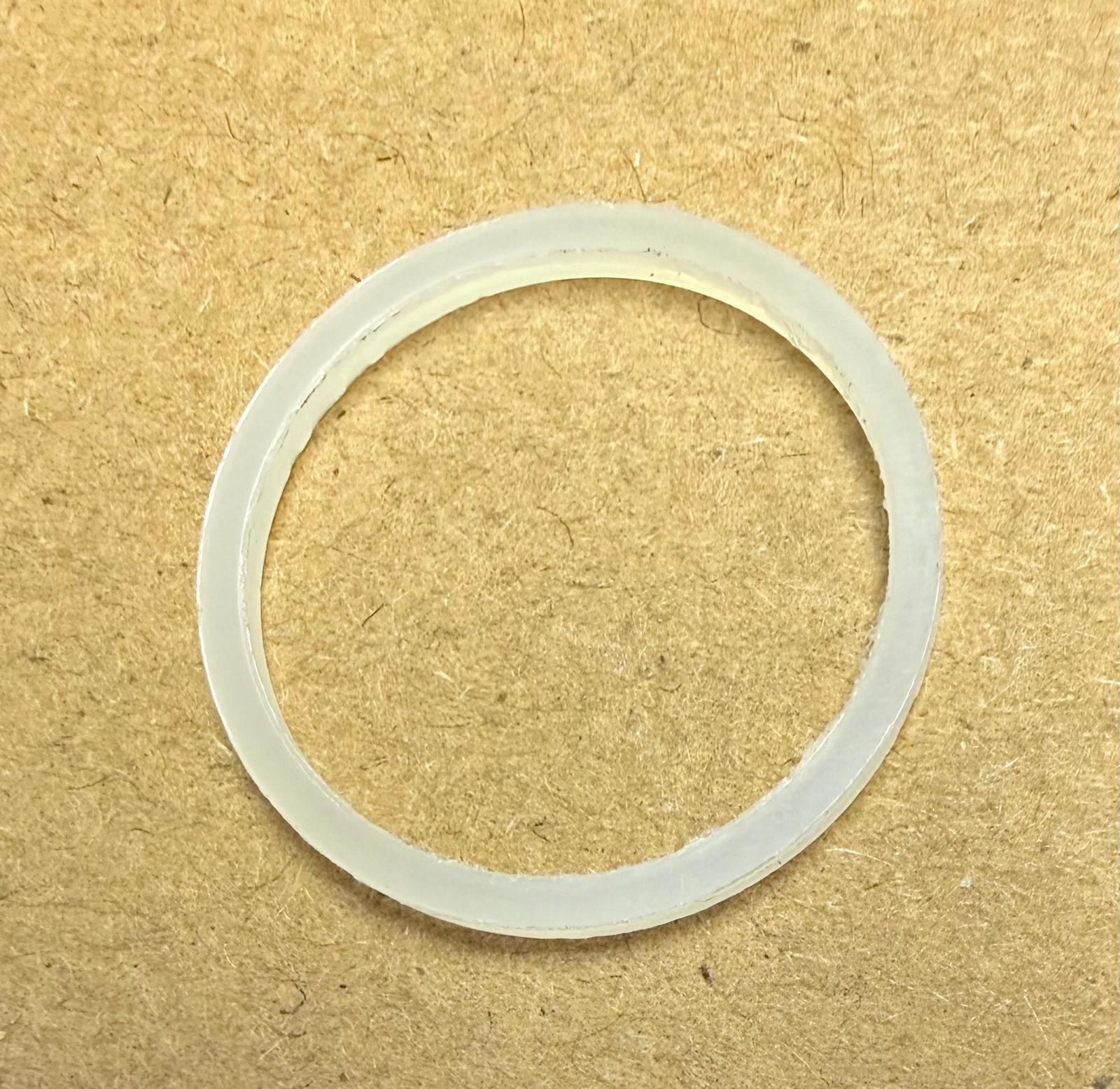

Titan 800-348 Outlet Valve Seal
Seal for the designated outlet valve arrangement. Diagram item 11.
Titan 800-243 Outlet Valve Seat
Valve seating component for fluid discharge control. Diagram item 15.

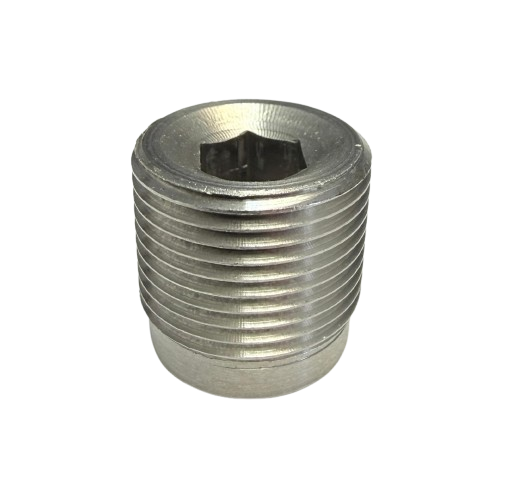

Titan 800-336 Outlet Valve Retainer
Retainer listed as replacing Titan 507733. Diagram item 16.
Titan 800-322 Lower Cage
Inlet cage listed as replacing Titan 0507729. Diagram item 17.
Titan 51519 Inlet Ball
Replacement for Titan 800-242 inlet ball. Diagram item 18.
Titan 800-241 Foot Valve Seat
Inlet valve seat for the lower fluid section. Diagram item 19.
Titan 762-058 Seat O-Ring
PTFE sealing ring for the valve seat. Diagram item 20.
Titan 800-305 Foot Valve Housing
Machined housing for the foot valve components. Diagram item 21.
Titan 800-365A Piston Assembly
Replacement piston assembly superseding Titan 800-365. Diagram item 22.

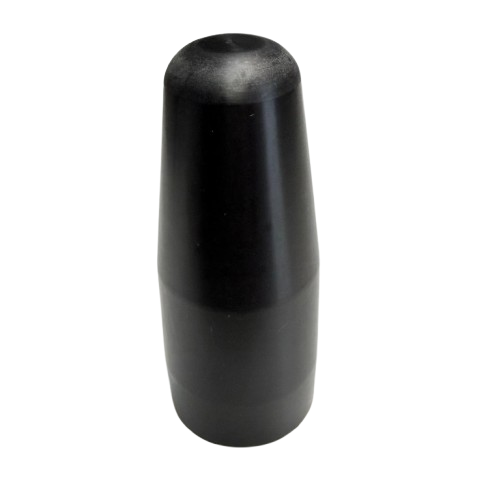

Titan 800-359 Piston Insertion Tool
Service tool listed for piston or lower packing insertion.
How the Titan 840ix Digital Fluid Section Works
1. Fluid Intake
The inlet ball, foot valve seat and inlet cage help control material entering the pumping chamber.
2. Piston Movement
The piston rod reciprocates within the pump to create the pumping action.
3. Fluid Sealing
Packings, O-rings and backup rings help control leakage within their specified sealing locations.
4. Pressurized Discharge
Outlet valve components help regulate discharge from the pumping chamber into the downstream fluid system.
Titan 840ix Digital Fluid Section Troubleshooting
Use these symptoms to identify components worth inspecting. They do not establish a definitive diagnosis.
| Symptom | Possible Inspection Area | Suggested Action |
|---|---|---|
| Pressure loss during spraying | Packings, piston, inlet and outlet valves | Inspect for wear or contamination after checking external fluid supply and filters. |
| Fluid leaking around pump rod | Upper packing, seal retainer, piston surface | Inspect sealing components and rod condition using the service procedure. |
| Sprayer does not prime | Inlet ball, foot valve seat, siphon system | Check the intake supply, valve cleanliness and possible air leaks. |
| Inconsistent pump output | Piston assembly, outlet valve, packings | Inspect internal components and follow Titan's diagnostic procedure. |
| Leakage at pump housing | O-rings, backup rings, mating surfaces | Relieve pressure and inspect the specified seals and housing surfaces. |
Titan 840ix Digital Fluid Section Part Number Cross-Reference
The current category listings identify the following replacement relationships. Verify manufacturer applicability and your assembly revision before purchasing.
| Earlier Part Number | Listed Replacement | Component |
|---|---|---|
| 800-242 | 51519 | Inlet Ball |
| 800-365 | 800-365A | Piston Assembly |
| 507733 | 800-336 | Outlet Valve Retainer |
| 0507729 | 800-322 | Lower Cage |
How to Choose the Correct Titan 840ix Digital Pump Repair Part
Confirm the Sprayer
Check the model and serial number to confirm your Titan 840ix Digital configuration.
Find the Diagram Item

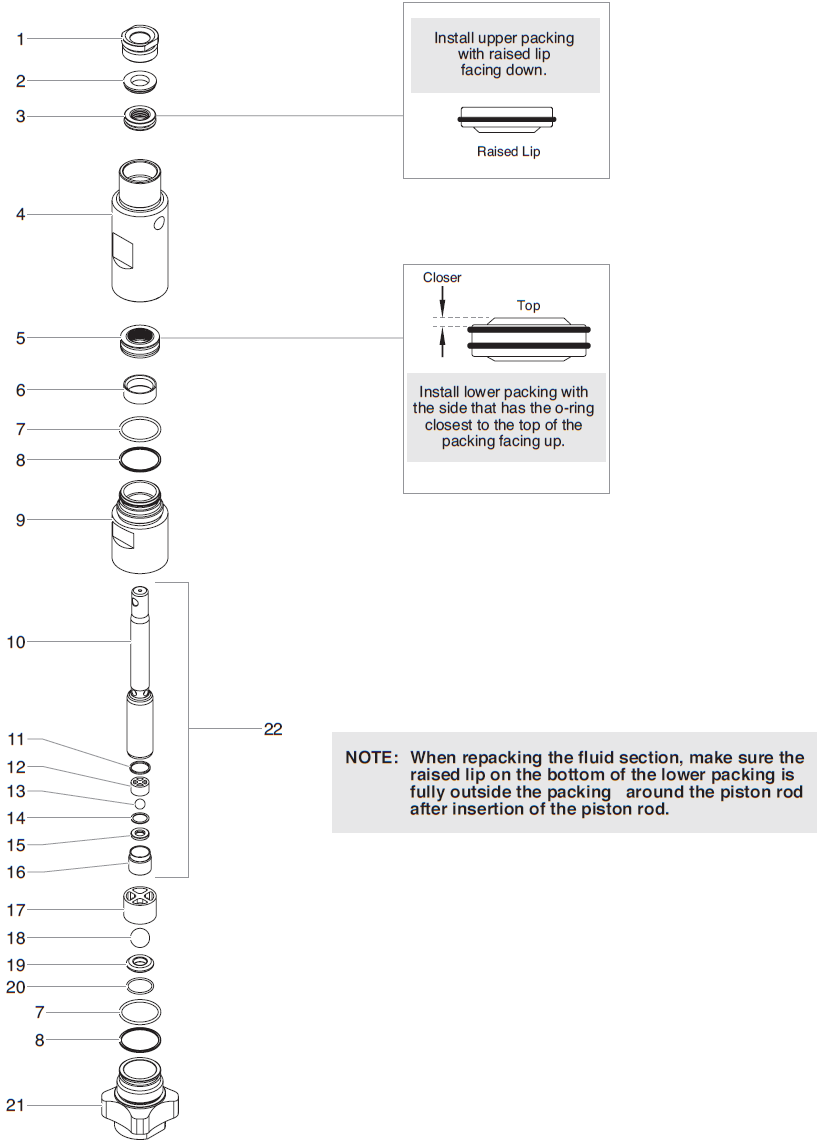

Locate the affected component in fluid section assembly 800-300.
Check the Part Number
Match the OEM number and check for any documented replacement.
Order the Needed Repair
Choose an individual component, appropriate service kit or complete assembly as required.
Titan 840ix Digital Fluid Section Maintenance Tips
Flush After Use
Follow Titan's cleaning procedure and use compatible flushing materials to prevent coating buildup.
Monitor Packing Wear
Inspect for leakage or pressure loss and service packings when indicated.
Keep Valves Clean
Inspect valve seats and balls for contamination, wear or surface damage.
Use Correct Service Tools
Follow manufacturer instructions for packing installation and piston assembly service.
Titan 840ix Digital Fluid Section Compatibility
This category is for the Titan 840ix Digital Fluid Section Assembly, P/N 800-300. Although individual Titan fluid section parts may be used across multiple sprayer models, fitment must be confirmed by the OEM part number, illustrated assembly and applicable service documentation.
Do not assume that a similar-looking piston, packing, valve ball or housing is interchangeable. Check the component's material, dimensions and manufacturer-approved application before installation.
Shop Related Titan 840ix Digital Sprayer Parts
Fluid Section Service and Pressure Safety
High-pressure fluid injection can cause serious injury. Turn off and unplug the sprayer and follow the complete Titan pressure-relief procedure before disconnecting fluid components or opening the pump. Use only manufacturer-approved parts and service methods. Never loosen a pressurized fitting or place hands near a suspected high-pressure leak.
Order Titan 840ix Digital Fluid Section Parts Online
Shop OEM piston assemblies, packings, valve components, pump housings, repacking kits and service tools for Titan fluid section 800-300. Find the correct part using the exploded diagram and order from AllTitanParts.
Shop Titan 840ix Digital Fluid Section PartsTitan 840ix Digital Fluid Section Parts FAQ
What is the Titan 840ix Digital fluid section assembly number?
The Titan 840ix Digital Fluid Section Assembly is identified as P/N 800-300.
What repacking kit is listed for the Titan 840ix Digital?
Titan 800-273 Repacking Kit is listed in the fluid section category. Confirm kit contents and compatibility before ordering.
What is the Titan 840ix Digital piston rod part number?
Titan 800-246 is the piston rod listed for this fluid section.
Which piston assembly replaces Titan 800-365?
Titan 800-365A is listed as the replacement for Titan 800-365 Piston Assembly.
What inlet ball replaces Titan 800-242?
Titan 51519 Inlet Ball is listed as replacing Titan 800-242.
What are common signs of worn fluid section packings?
Possible signs include leakage around the pump rod, pressure loss and inconsistent pump performance. Proper inspection is needed to identify the cause.
Can I replace individual valve parts instead of the complete pump?
Yes, the category lists individual valve balls, seats, retainers, cages and seals. The appropriate repair depends on the condition of the pump and the manufacturer's service guidance.
What is Titan 800-359 used for?
Titan 800-359 is listed as a piston insertion tool used during the applicable piston or lower packing service procedure.
How do I identify the correct Titan 840ix Digital fluid section part?
Confirm the sprayer model, locate the component on assembly diagram 800-300, match the OEM part number and verify any replacement number before ordering.
