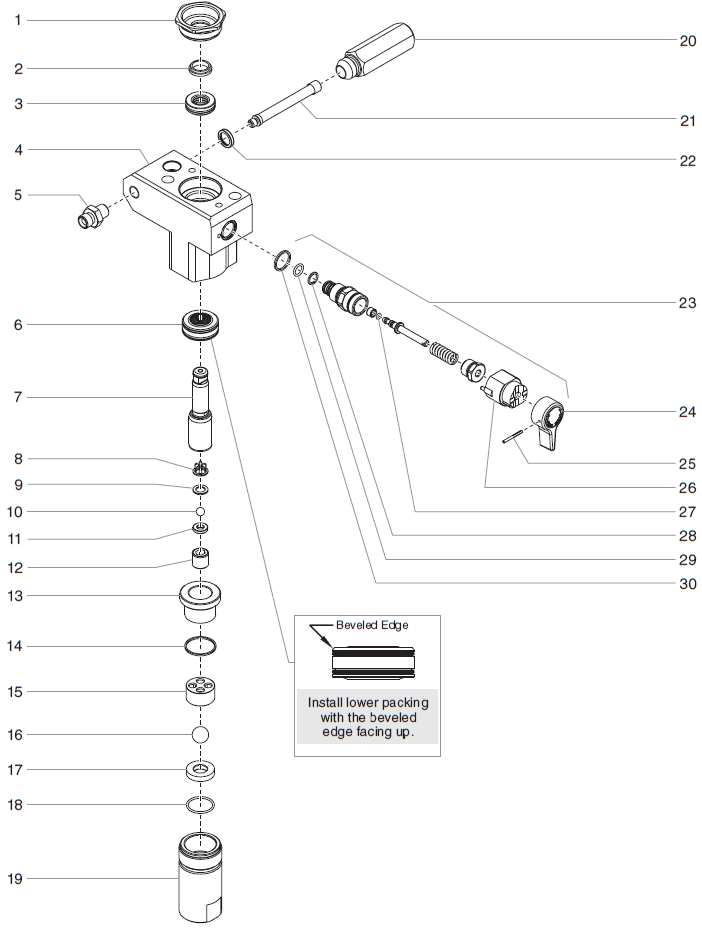

540ix Fluid Section Assembly Parts (Skid P/N 704-538, High Rider 704-571)

Titan 704-560 Piston Assembly

Item No: -

Part #: 704-560

OEM Titan Fluid Section Component Titan 704-560 Piston Assembly is a complete OEM piston ...

Retail Price: $230.70

You save: $32.07 (13.90%)

Our Price: $198.63

QTY:

Titan 730-508 Retainer (Replaces Titan 509594)

Item No: 1

Part #: 730-508

OEM Titan Hardware Component Titan 9885571 Plug is an OEM sealing plug used to close off ...

Retail Price: $33.20

You save: $1.83 (5.51%)

Our Price: $31.37

QTY:

Titan 700-587 Upper Piston Guide

Item No: 2

Part #: 700-587

OEM Titan Pump Component Titan 700-587 Upper Piston Guide is an OEM pump component that a...

$8.80

QTY:

Titan 704-564 Upper Packing Kit

Item No: 3

Part #: 704-564

OEM Titan Pump Component Titan 704-564 Upper Packing Kit is an OEM seal kit designed to r...

Retail Price: $43.80

You save: $3.33 (7.60%)

Our Price: $40.47

QTY:

Titan 704-532 Manifold Pump Block

Item No: 4

Part #: 704-532

Part number 704-532 is a manifold pump block designed to distribute fluid between the ...

Retail Price: $246.80

You save: $34.31 (13.90%)

Our Price: $212.49

QTY:

Titan 227-006 Outlet Fitting

Item No: 5

Part #: 227-006

OEM Titan Fluid System Component Titan 227-006 Outlet Fitting is an OEM component that co...

$18.50

QTY:

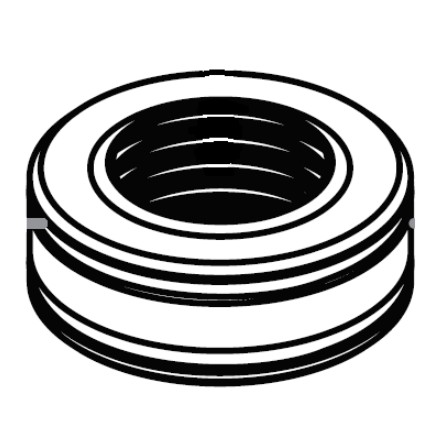

Titan 0532915 Lower Packing

Item No: 6

Part #: 0532915

OEM Titan Pump Component Titan 0532915 Lower Packing is an OEM seal used in the lower end...

Retail Price: $61.70

You save: $5.12 (8.30%)

Our Price: $56.58

QTY:

Titan 704-551A Piston Rod

Item No: 7

Part #: 704-551A

OEM Titan Pump Component Titan 704-551A Piston Rod is an OEM mechanical component that tr...

Retail Price: $159.20

You save: $19.9 (12.50%)

Our Price: $139.30

QTY:

Titan 704-642 Piston Rod Seal & Cage

Item No: 8

Part #: 704-642

Part number 704-642 is a genuine piston rod seal and cage assembly used in Airless 440...

$18.10

QTY:

Titan 704-612 Crush Washer

Item No: 9

Part #: 704-612

OEM Titan Sealing Component Titan 704-612 Crush Washer is an OEM sealing component that d...

$3.40

QTY:

Titan 762-144 Outlet Valve Ball

Item No: 10

Part #: 762-144

Titan 762-144 is a Titan outlet valve ball compatible with numerous airless sprayer models across mu...

$3.90

QTY:

Titan 704-558 Outlet Valve Seat (Replaces Titan 0551620)

Item No: 11

Part #: 704-558

OEM Titan Valve Component Titan 704-558 Outlet Valve Seat is an OEM sealing component tha...

Retail Price: $43.90

You save: $3.34 (7.61%)

Our Price: $40.56

QTY:

Titan 13481 Outlet Valve Retainer (replaces Titan 704-587)

Item No: 12

Part #: 13481

OEM Titan Valve Component Titan 13481 Outlet Valve Retainer is an OEM fastening component...

$18.80

QTY:

Titan 0509590 Piston Bushing

Item No: 13

Part #: 0509590

OEM Titan Pump Component Titan 0509590 Piston Bushing is an OEM guide component that supp...

Retail Price: $41.30

You save: $3.14 (7.60%)

Our Price: $38.16

QTY:

Titan 700-821 Teflon-Ring/Seal

Item No: 14

Part #: 700-821

OEM Titan Seal Component Titan 700-821 Teflon Ring/Seal is an OEM PTFE seal that fits bet...

$5.80

QTY:

Titan 704-703 Inlet Valve Cage

Item No: 15

Part #: 704-703

OEM Titan Valve Component Titan 704-703 Inlet Valve Cage is an OEM component that houses ...

Retail Price: $64.30

You save: $5.34 (8.30%)

Our Price: $58.96

QTY:

Titan 762-145 Inlet Valve Ball (replaces Titan 509583)

Item No: 16

Part #: 762-145

OEM Titan Pump Valve Component Titan 762-145 Inlet Valve Ball is an OEM check valve compo...

$17.60

QTY:

Titan 762-137 Foot Valve Seat

Item No: 17

Part #: 762-137

OEM Titan Valve Component Titan 762-137 Foot Valve Seat is an OEM sealing component that ...

Retail Price: $55.40

You save: $4.6 (8.30%)

Our Price: $50.80

QTY:

Titan 762-058 Seat O-Ring

Item No: 18

Part #: 762-058

OEM Titan Sealing Component Titan 762-058 Seat O-Ring is an OEM PTFE seal that fits aroun...

$7.40

QTY:

Titan 730-511 Inlet Valve Housing

Item No: 19A

Part #: 730-511

Part number 730-511 is an Inlet Valve Housing that contains and supports the internal components of ...

Retail Price: $182.10

You save: $22.76 (12.50%)

Our Price: $159.34

QTY:

Titan 704-054 Foot Valve Housing

Item No: 19

Part #: 704-054

Part number 704-054 is a Foot Valve Housing used in various Airless Sprayers, Advantag...

Retail Price: $71.50

You save: $5.93 (8.29%)

Our Price: $65.57

QTY:

Titan 0532360A Filter Housing

Item No: 20

Part #: 0532360A

Part number 0532360A is a filter housing that encloses and protects the fluid filter element in ...

$25.80

QTY:

Titan 540-030 Green 30 Mesh Filter

Item No: 21

Part #: 540-030

Titan part 540-030 is a green 30 mesh filter used to remove debris and contaminants fr...

$7.00

QTY:

Titan 560-038 Handle Seal

Item No: 22

Part #: 560-038

SprayTech part 560-038 is a handle seal designed for use in compatible airless spray guns. This ...

$3.70

QTY:

Titan 700-258 PrimeSpray Valve Assembly

Item No: 23

Part #: 700-258

Part 700-258 is a replacement PrimeSpray valve assembly for a wide range of compatible spray equ...

Retail Price: $125.10

You save: $13.01 (10.40%)

Our Price: $112.09

QTY:

Titan 700-697 Valve Handle

Item No: 24

Part #: 700-697

OEM Titan Valve Component Titan 700-697 Valve Handle is an OEM replacement control compon...

$18.50

QTY:

Titan 700-759 Groove Pin

Item No: 25

Part #: 700-759

OEM Titan Fastening Component Titan 700-759 Groove Pin is an OEM cylindrical fastener tha...

$3.80

QTY:

Titan 700-252B Cam Base

Item No: 26

Part #: 700-252B

OEM Titan Valve Component Titan 700-252B Cam Base is an OEM component that provides the m...

$6.30

QTY:

Titan 700-897 O-Ring

Item No: 27A

Part #: 700-897

Part number 700-897 is a precision O-Ring used to create leak-proof seals in fluid and air systems a...

$8.40

QTY:

Titan 700-721 O-Ring

Item No: 27

Part #: 700-721

700-721 is a replacement O-ring used in various Titan airless sprayer models to seal f...

$2.50

QTY:

Titan 221-012 Viton O-Ring

Item No: 28

Part #: 221-012

Titan part 221-012 is a Viton fluoroelastomer O‑ring used to seal fluid passages, pu...

$2.50

QTY:

Titan 222-012 O-Ring PTFE

Item No: 29

Part #: 222-012

Part number 222-012 is a PTFE O-Ring that provides a leak-proof seal in fluid systems across an exce...

$6.30

QTY:

Titan 700-537 Gasket

Item No: 30

Part #: 700-537

OEM Titan Valve Component Titan 800-925 Bypass Valve Assembly is an OEM pre-assembled val...

$2.50

QTY:

Titan 0551509 Lower Seal Packing Tool (Replaces Titan 762-202)

Part #: 0551509

0551509 is a lower seal packing tool (replaces Titan 762‑202) used to correctly inst...

$15.30

QTY:

Order Titan 540IX Fluid Section Assembly Parts

Have you been experiencing issues with your Titan 540IX Airless Sprayer due to lost or broken Fluid Section Assembly parts? No need to worry because AllTitanParts has got you covered! We offer all the Titan 540IX Fluid Section replaceable Assembly Parts you may need.

The Fluid Section Assembly includes parts such as the Piston Rod and Piston Bushing, which are essential for properly functioning the fluid section. Without these parts, your 540 IX sprayer won't be able to deliver the high-quality results you desire.

But you don't have to stress about finding replacement parts. AllTitanParts has all the Fluid Section replaceable Assembly Parts you may need, readily available for purchase.

But that's not all! AllTitanParts also offer all other assembly parts for the Titan 540IX Airless Sprayer. From the Skid Assembly to the Siphon/Return Assembly and all other important assembly parts, we have everything you need to keep your Titan 540IX Airless Sprayer in top-notch condition.

Don't let broken assembly parts hinder your painting progress. Choose the Titan 540IX Airless Sprayer and keep it functioning like new with AllTitanParts. Contact us today to order replacement parts and experience our products' quality.

FAQs

1. What are the common signs that the Titan 540IX Fluid Section Assembly needs replacement?

Typical symptoms include paint leaking from the fluid section, inconsistent spray patterns, pressure loss, or the sprayer failing to prime properly. These issues often point to worn components such as the piston rod, piston bushing, or packings.

2. Can I replace individual Fluid Section Assembly parts instead of the complete assembly?

Yes, many Fluid Section components for the Titan 540IX, including piston rods, bushings, seals, and valves, can be replaced individually. This allows for cost-effective repairs if the main fluid section housing is still in good condition.

3. What technical problems can occur if worn Fluid Section parts are not replaced in time?

Delayed replacement can lead to excessive paint leakage, reduced pressure output, uneven coating application, and increased strain on the drive assembly and motor, potentially causing more extensive damage.

4. Are Titan 540IX Fluid Section Assembly parts compatible with other Titan airless sprayer models?

Fluid Section Assembly parts are generally model-specific. While some components may appear similar, it is essential to verify compatibility using the correct Titan part numbers to prevent performance or installation issues.

5. Do I need professional assistance to install Titan 540IX Fluid Section Assembly replacement parts?

Basic mechanical skills and standard tools are usually sufficient for replacing most fluid section components. However, for proper sealing, alignment, and pressure performance, it is recommended to follow the manufacturer’s service instructions or seek professional support.
