Fluid Section Overview
Buy Genuine Titan 1140ix Digital Pump Replacement Parts
The Titan 800-300 Fluid Section Assembly is the pumping section of the Titan 1140ix Digital Airless Sprayer. It contains the piston, packings, fluid housings, inlet valve and outlet valve components that work together to draw coating material into the pump and deliver it under pressure to the spraying system.
With regular use, pump packings, piston surfaces, valve balls and seats can wear or become damaged. These conditions may contribute to poor priming, inconsistent pressure, fluid leakage or reduced pump output. Correct diagnosis and genuine OEM replacement parts help restore the affected components to their intended operating condition.
This category includes 24 listed products, from individual seals and valve components to the Titan 800-273 Repacking Kit and Titan 800-365A Piston Assembly. Use the diagram references and manufacturer part numbers to identify your exact repair requirement.
OEM Parts Directory
Titan 1140ix Digital Fluid Section Assembly Parts List
Find the correct part for the Titan 800-300 pump assembly. Some diagram references are shared by service kits, tools or complete subassemblies.
| Diagram Ref. | Titan Part Number | OEM Description |
|---|---|---|
| 1 | 800-325 | Upper Seal Retainer |
| 2 | 800-327 | Spacer |
| 3 | 800-248 | Upper Packing |
| 4 | 800-351 | Upper Housing |
| 5 | 800-355A | Lower Packing Assembly |
| 6 | 800-354 | Wear Ring |
| 7 | 800-332 | Viton O-Ring |
| 8 | 800-333 | PTFE Back-Up Ring |
| 9 | 800-352 | Lower Housing |
| 10 | 800-246 | Piston Rod |
| 11 | 800-348 | Outlet Valve Seal |
| 12 | 0507452 | Upper Cage |
| 14 | 0507454 | Washer |
| 15 | 800-243 | Outlet Seat Valve |
| 16 | 800-336 | Outlet Valve Retainer |
| 17 | 800-322 | Lower Cage |
| 18 | 51519 | Inlet Ball, replaces Titan 800-242 |
| 19 | 800-241 | Foot Valve Seat |
| 20 | 762-058 | Seat O-Ring |
| 21 | 800-305 | Foot Valve Housing |
| 22A | 800-273 | Repacking Kit |
| 22 | 800-359 | Piston Insertion Tool |
| 22 | 800-365A | Piston Assembly, replaces Titan 800-365 |
| 23 | 9841502 | Outlet Valve Ball |
Featured OEM Pump Parts
Shop Titan 800-300 Repacking Kits, Piston Rods and Valve Parts
Titan 800-273 Repacking Kit
The Titan 800-273 Repacking Kit is a service kit for renewing specified pump sealing components. It is an important option when worn packings contribute to fluid leakage or reduced pumping efficiency. Verify the kit contents before ordering additional individual seals.
OEM Part: 800-273Titan 800-246 Piston Rod
The Titan 800-246 Piston Rod is a primary moving component of the fluid section. Inspect its sealing surface for scoring, corrosion or abnormal wear when diagnosing repeated packing failures or pump leakage.
OEM Part: 800-246Titan 800-355A Lower Packing Assembly
The Titan 800-355A Lower Packing Assembly provides a designated sealing component within the pump. Replace worn or damaged packing components using the manufacturer's assembly and lubrication instructions.
OEM Part: 800-355ATitan 800-248 Upper Packing
The Titan 800-248 Upper Packing helps seal the piston rod within the fluid section. Inspect the packing and rod together when diagnosing fluid leakage around the upper pump area.

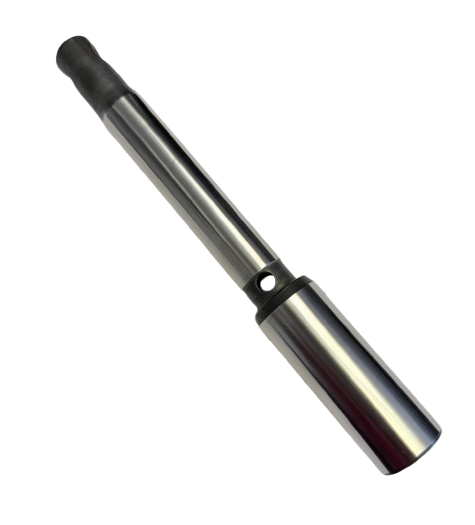

OEM Part: 800-248Titan 800-365A Piston Assembly
The Titan 800-365A Piston Assembly replaces Titan 800-365. It provides an assembly-level replacement option for the designated piston components. Confirm what is included before comparing it with individual piston and valve parts.
OEM Part: 800-365ATitan 51519 Inlet Ball
The Titan 51519 Inlet Ball replaces Titan 800-242. It works with the inlet valve seat to control one-way material flow. Inspect the ball and seat for wear, contamination or sealing damage.
OEM Part: 51519Titan 800-241 Foot Valve Seat
The Titan 800-241 Foot Valve Seat provides the mating sealing surface for the inlet ball. A damaged seat may contribute to poor priming or pressure loss. Inspect the ball and seat as a related valve pair.
OEM Part: 800-241Titan 9841502 Outlet Valve Ball
The Titan 9841502 Outlet Valve Ball works with the outlet valve seat to control discharge flow. Check for damage, debris or poor seating when diagnosing outlet valve problems.
OEM Part: 9841502Titan 800-243 Outlet Seat Valve
The Titan 800-243 Outlet Seat Valve provides a sealing surface for the outlet ball. Inspect the seat and related components when the pump cannot maintain consistent fluid delivery.
OEM Part: 800-243Titan 800-359 Piston Insertion Tool
The Titan 800-359 Piston Insertion Tool is listed as a service tool for this fluid section. Use it according to the specified procedure to assist with piston installation and help protect components during assembly.
OEM Part: 800-359Pump Operation
How the Titan 1140ix Digital Fluid Section Works
Material Intake
The foot valve housing, inlet ball and valve seat form part of the pump's material intake system.
Piston Movement
The reciprocating piston creates the pumping action that moves coating material through the fluid section.
Pressure Sealing
Upper and lower packings, O-rings and supporting components help contain fluid within the designated sealing areas.
Fluid Discharge
The outlet ball, seat and associated valve components control the discharge path toward the spraying system.
Troubleshooting Guide
Common Titan 1140ix Digital Fluid Section Problems
These symptoms can have multiple causes. Use the applicable Titan troubleshooting procedure to identify the faulty component before purchasing replacement parts.
| Symptom | Components to Inspect | Recommended Check |
|---|---|---|
| Pump will not prime | 51519 Inlet Ball, 800-241 Foot Valve Seat, 800-305 Housing | Inspect the inlet valve for debris, wear or sealing problems. Check the suction system and priming valve as well. |
| Fluid leaks around piston area | 800-248 Upper Packing, 800-355A Lower Packing, 800-246 Piston Rod | Inspect packings and piston surfaces for wear or damage. |
| Sprayer cannot maintain pressure | Inlet and outlet valve balls, seats, packings | Check valve sealing and packing condition, then evaluate other system causes. |
| Pump output is inconsistent | 9841502 Outlet Ball, 800-243 Outlet Seat, 51519 Inlet Ball | Inspect the valve components for contamination, scoring or poor seating. |
| Repeated packing wear | 800-246 Piston Rod, 800-248 Packing, 800-355A Packing Assembly | Inspect piston finish, alignment, lubrication and installation procedure. |
| Leakage at housing joints | 800-332 O-Ring, 800-333 Back-Up Ring, 762-058 Seat O-Ring | Check sealing surfaces, seal condition and correct assembly. |
OEM Buying Guide
How to Order the Correct Titan 1140ix Digital Fluid Section Parts
Confirm Your Model
Identify the Titan 1140ix Digital sprayer and verify its fluid section configuration.
Locate the Diagram Reference
Find the required piston, packing, housing, valve or service tool on the exploded diagram.
Match the OEM Part Number
Compare the manufacturer number and any listed replacement reference before purchasing.
Order from AllTitanParts
Buy the correct OEM pump repair component or service kit for your maintenance needs.
Repair Planning
Repacking Kit vs. Piston Assembly vs. Individual Pump Parts
Titan 800-273 Repacking Kit: Consider this kit when the repair involves the specified pump packings and sealing components. Confirm the included parts before buying separate seals.
Titan 800-365A Piston Assembly: This assembly replaces Titan 800-365 and may be appropriate when the repair requires the designated piston assembly rather than an individual part.
Individual valve and seal components: Parts such as Titan 51519 Inlet Ball, Titan 800-241 Foot Valve Seat, Titan 9841502 Outlet Valve Ball and Titan 800-348 Outlet Valve Seal can be selected when the failed component has been positively identified.
Replacing an individual part is not always sufficient when its mating surface is worn. Inspect related components and follow the manufacturer service procedure.
OEM Replacement References
Titan 800-300 Fluid Section Part Number Updates
Two products in this category include published replacement part references:
- Titan 51519 Inlet Ball replaces Titan 800-242.
- Titan 800-365A Piston Assembly replaces Titan 800-365.
If your existing equipment documentation shows an older part number, compare it with the current product listing and verify your sprayer configuration before ordering.
Preventive Maintenance
Protect Your Titan 1140ix Digital Fluid Section
Maintain Pump Lubrication
Use the Titan-specified piston lubricant and follow the recommended maintenance procedure.
Inspect Packing Wear
Check for leakage and other indications of worn upper or lower pump packings.
Keep Valve Components Clean
Flush the pump according to Titan instructions and inspect valve balls and seats during service.
Prepare for Storage
Follow the approved flushing and pump preservation procedure when equipment will be stored.
Related Titan 1140ix Categories
Shop More Titan 1140ix Digital Airless Sprayer Parts
Browse related OEM assemblies for additional repairs and maintenance.
Titan 1140ix Digital Main Assembly Parts
Shop fluid-section assemblies, siphon tubes, inlet screens, bypass tubes and PrimeSpray valve components.
Shop Digital Main AssemblyTitan 1140ix Digital Drive Assembly Parts
Find gearboxes, slide assemblies, mechanical drive components, digital controls and electrical service parts.
Shop Digital Drive AssemblyTitan 1140ix Filter Assembly Parts
Browse manifold filters, housings, seals and other Titan 800-900 filter assembly components.
Shop Filter Assembly PartsTitan 1140ix Prime/Spray Valve Assembly Parts
Shop the Titan 800-915 valve assembly components for priming and spraying control repairs.
Shop Prime/Spray Valve PartsTitan 1140ix Airless Sprayer Accessories Parts
Find Piston Lube, Liquid Shield, pressure gauges, fittings and other maintenance supplies.
Shop Sprayer AccessoriesTitan 1140ix Digital Airless Sprayer Parts
Return to the Titan 1140ix Digital model category to explore additional parts diagrams and assemblies.
Browse Titan 1140ix Digital PartsTitan 1140ix Digital Fluid Section Service Safety
Airless sprayers operate under high fluid pressure. Before disassembling the fluid section, removing valve components or servicing pump packings, switch off the equipment, disconnect electrical power and complete Titan's pressure-relief procedure. Never loosen pressurized connections. Follow the applicable Titan service manual, use suitable personal protective equipment and inspect all seals and components before returning the sprayer to operation.
Genuine Titan OEM Pump Repair Parts
Order Titan 1140ix Digital Fluid Section Parts Today
Shop Titan 800-273 Repacking Kits, 800-246 Piston Rods, 800-355A Lower Packing Assemblies, 800-365A Piston Assemblies, inlet and outlet valve parts, pump seals and housings.
Shop Titan 1140ix Digital Fluid Section PartsFrequently Asked Questions
Titan 1140ix Digital Fluid Section Assembly FAQ
What is the Titan 1140ix Digital Fluid Section Assembly part number?
The fluid section assembly is identified as Titan P/N 800-300. This category lists the individual components and service products associated with the assembly.
How many parts are listed in the Titan 800-300 fluid section category?
AllTitanParts lists 24 products, including pump packings, valve components, piston parts, housings, a repacking kit and a service tool.
What is the Titan 1140ix Digital repacking kit part number?
Titan 800-273 is the Repacking Kit listed for the Titan 800-300 Fluid Section Assembly. Confirm the kit contents before ordering.
Which piston rod fits the listed Titan 800-300 fluid section?
Titan 800-246 is the Piston Rod listed at diagram reference 10.
What replaces the Titan 800-365 Piston Assembly?
Titan 800-365A is listed as the replacement Piston Assembly for Titan 800-365.
What inlet ball replaces Titan 800-242?
Titan 51519 is the Inlet Ball listed as replacing Titan 800-242.
What are the Titan 1140ix Digital upper and lower packing part numbers?
Titan 800-248 is the Upper Packing, and Titan 800-355A is the Lower Packing Assembly.
Can worn valve balls cause pressure loss?
Yes. Worn or contaminated inlet and outlet valve components can interfere with sealing and contribute to priming or pressure problems. Inspect the balls and their mating seats.
What is Titan 800-359 used for?
Titan 800-359 is listed as a Piston Insertion Tool for the fluid section. Follow the applicable service instructions when using it.
Where can I buy genuine Titan 1140ix Digital Fluid Section Assembly Parts?
Shop Titan 1140ix Digital Fluid Section Assembly Parts at AllTitanParts. Match the OEM part number and diagram reference before ordering.
Titan OEM Parts Assistance
Need Help Identifying Titan 800-300 Pump Parts?
Have your Titan 1140ix Digital model, serial number, diagram reference and existing OEM part number ready when requesting assistance.
